Overview

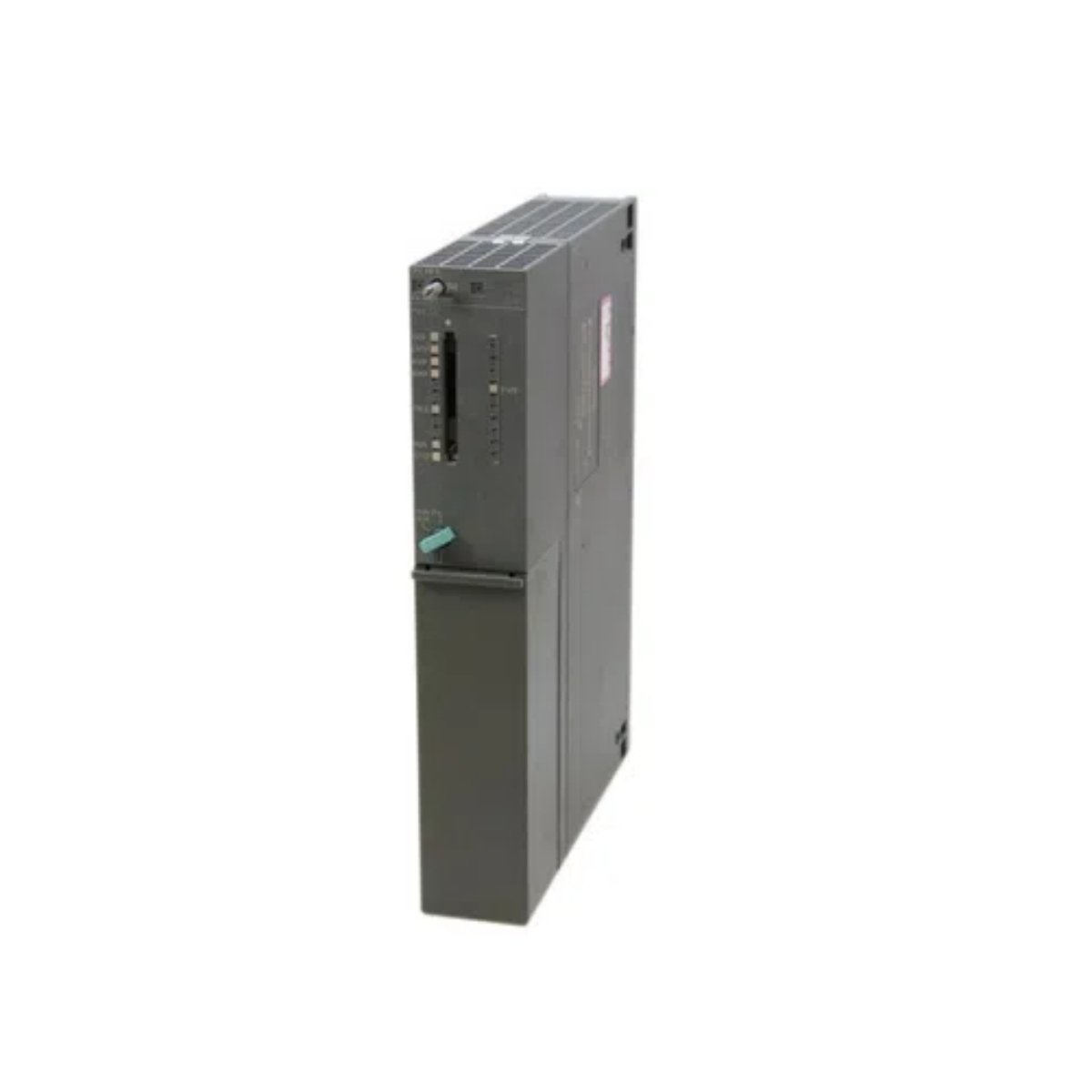

The Siemens 6ES7414-3XJ00-0AB0 CPU414-3 processor offers reliable performance for medium-sized automation systems. It provides fast instruction execution and handles complex logic operations efficiently. Engineers can integrate this CPU into S7-400 series networks for seamless industrial process control.
Performance Features
The CPU supports high-speed MPI and PROFIBUS DP interfaces, enabling smooth communication across distributed devices. Its pluggable interface modules expand connectivity options, allowing flexible system configurations. Furthermore, the CPU414-3 efficiently manages memory, ensuring consistent operation under industrial loads.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 6ES7414-3XJ00-0AB0 |
| Series | SIMATIC S7-400 |
| CPU Type | CPU414-3 |
| Work Memory | 768 KB total (384 KB code + 384 KB data) |
| Load Memory | Expandable via memory card |
| MPI Interface Speed | 12 Mbit/s |
| PROFIBUS DP Interface Speed | 12 Mbit/s |
| Pluggable Interface Module (IF/IFM) | 12 Mbit/s |
| Power Supply Voltage | +24 V DC typical |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Maximum Expansion Modules | Supports multiple S7-400 expansion modules |
| Instruction Performance | Efficient execution for medium complexity logic |
| Weight | Approx. 1.4 kg |
Connectivity & Integration
The 6ES7414-3XJ00-0AB0 CPU414-3 communicates efficiently through MPI, PROFIBUS DP, and pluggable interface modules. Engineers can link distributed I/O and operator panels to create reliable, scalable industrial automation networks.
Memory & Data Management
Its 768 KB work memory allows storing both program code and process data, supporting medium-scale industrial applications. Users can expand memory via Siemens-compatible cards to accommodate more complex operations.
Origin, Dimensions, and Weight
- Country of Origin: Germany
- Dimensions: Standard S7-400 module size
- Weight: 1.4 kg
Details
| Weight | 1.4 kg |
|---|
