Overview

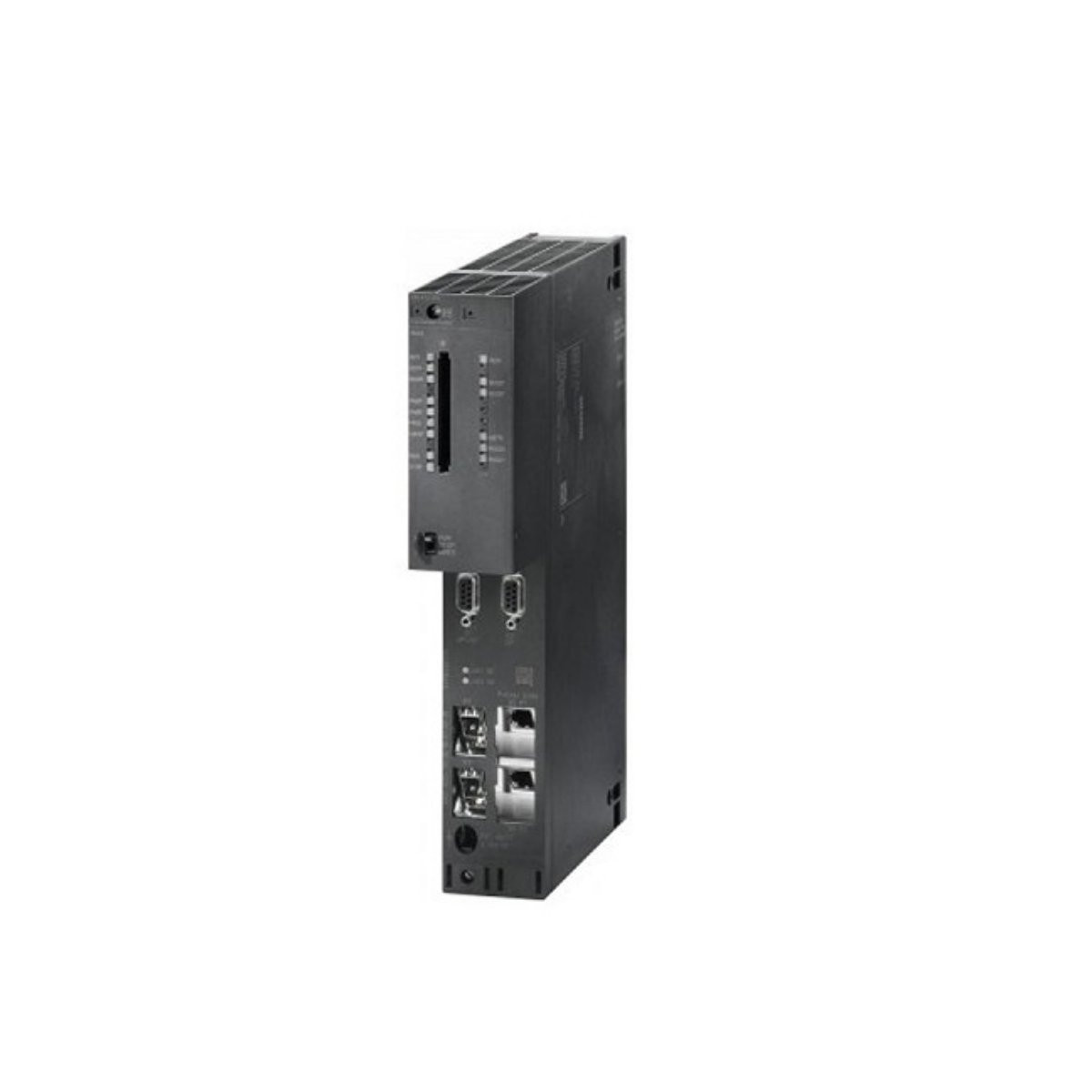

The Siemens 6ES7412-5HK06-0AB0 CPU412-5H delivers reliable processing for S7-400H systems. It handles medium-scale automation tasks efficiently while ensuring precise control across distributed I/O networks.
Performance Features
This CPU integrates MPI/DP, DP, and PROFINET interfaces, along with two synchronization ports. The CPU412-5H provides fast CiR synchronization with 100 ms basic load and zero microseconds per I/O byte, guaranteeing stable real-time operations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 6ES7412-5HK06-0AB0 |
| Series | SIMATIC S7-400H |
| CPU Type | CPU412-5H |
| Work Memory | 1 MB total (512 KB program + 512 KB data) |
| Load Memory | Expandable via FLASH memory card, up to 64 MB |
| Integrated RAM | 512 KB |
| Expandable RAM | Up to 64 MB |
| Interfaces Provided | MPI/DP, DP, PROFINET, 2 sync module ports |
| CiR Synchronization Time | 100 ms basic load, 0 µs per I/O byte |
| Supply Voltage | Powered via system power supply |
| Input Current (5 V DC typical) | 1.6 A |
| Power Loss (Typical) | 7.5 W |
| Instruction Performance | Optimized for medium-scale automation applications |
Memory & Data Management
The 6ES7412-5HK06-0AB0 CPU412-5H manages program code and process data efficiently. Engineers can expand memory using Siemens FLASH cards to handle larger and more complex automation projects.
Connectivity & Integration
With MPI/DP, DP, and PROFINET, this CPU integrates distributed I/O and synchronization modules seamlessly. Engineers can connect multiple CPUs to maintain high-availability and precise control.
Origin, Dimensions, and Weight
- Country of Origin: Germany
- Dimensions: 23.3 × 30 × 6.3 cm
- Weight: 1.332 kg
Details
| Weight | 1.332 kg |
|---|---|
| Dimensions | 233 × 30 × 63 mm |
