High-Performance Digital I/O Module for Compact Automation

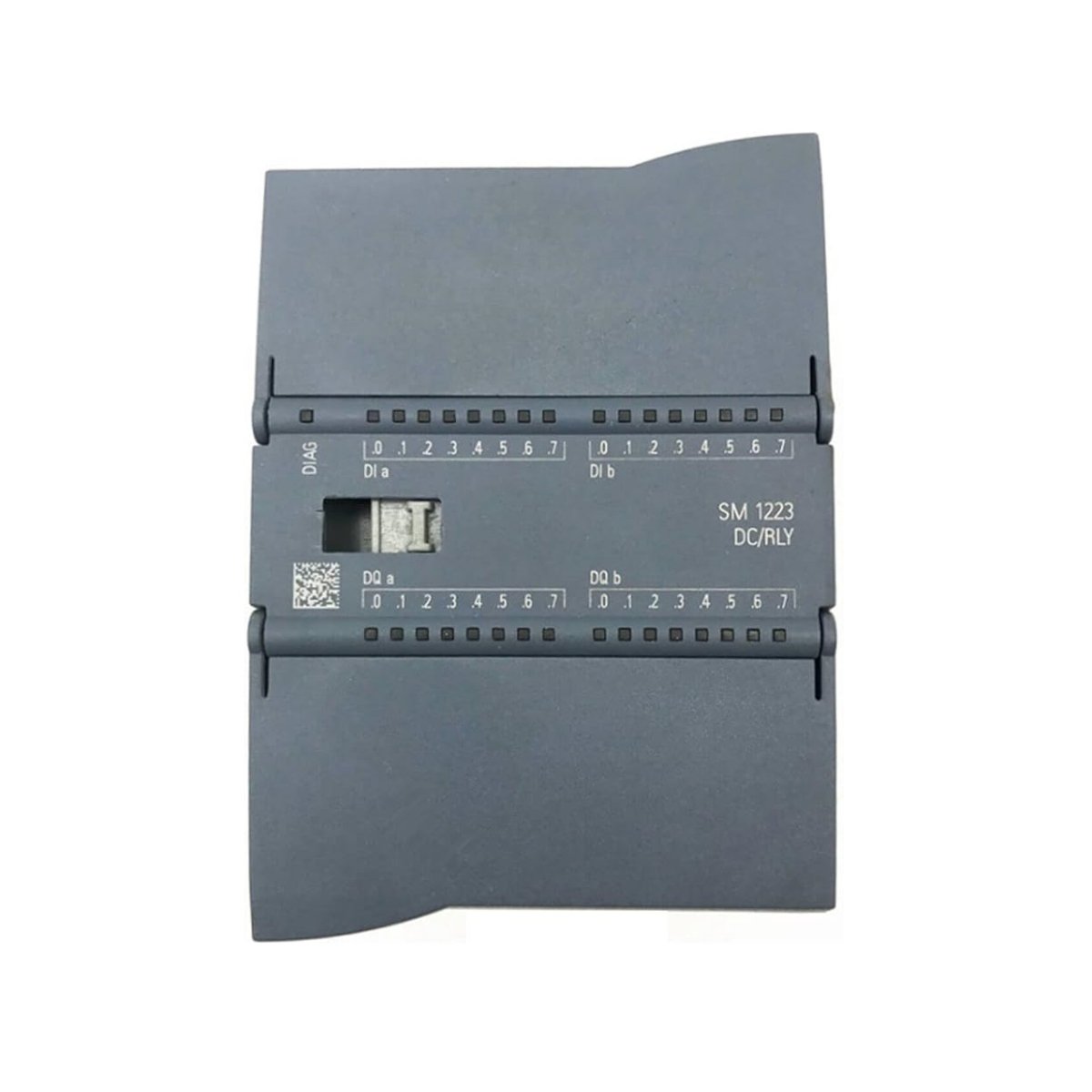

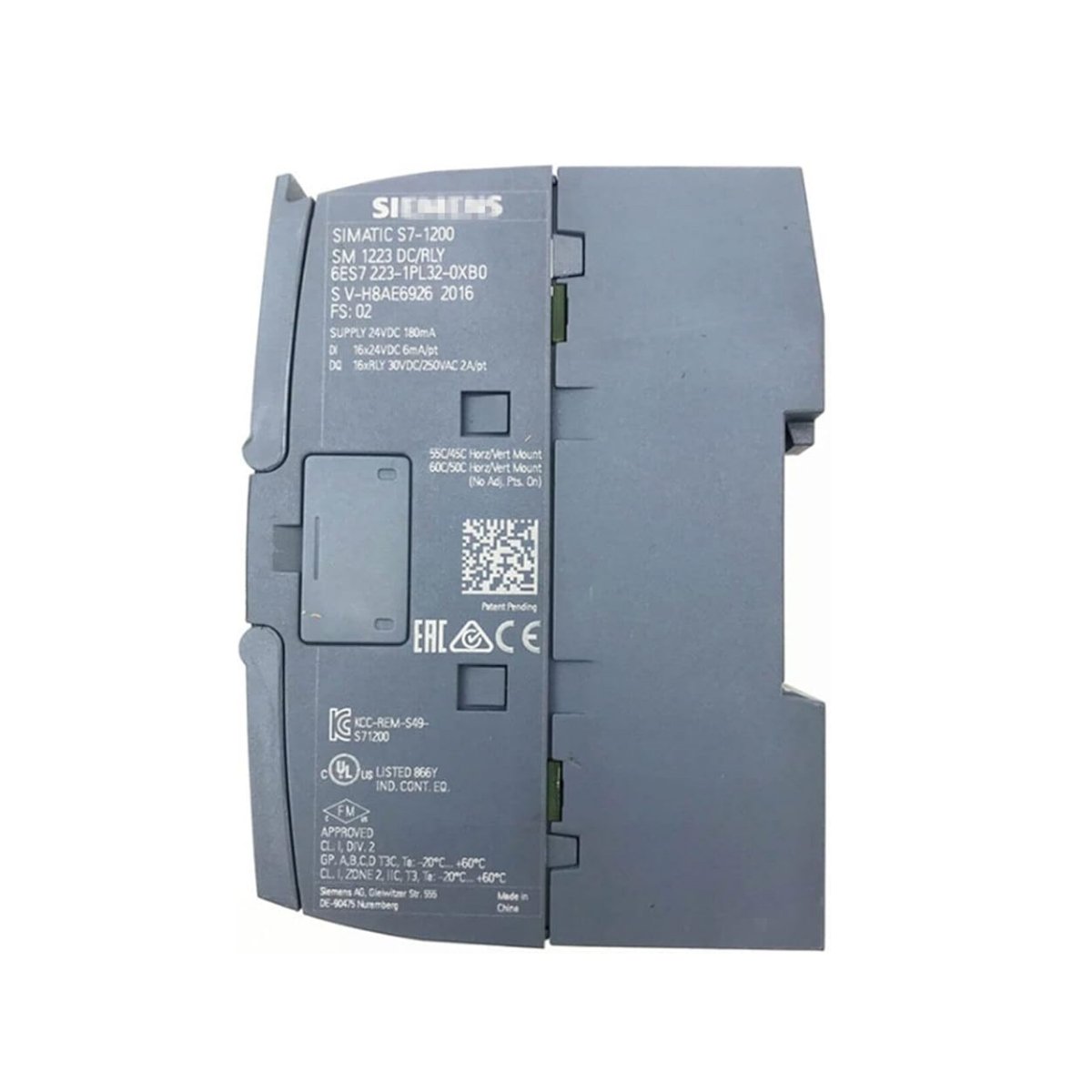

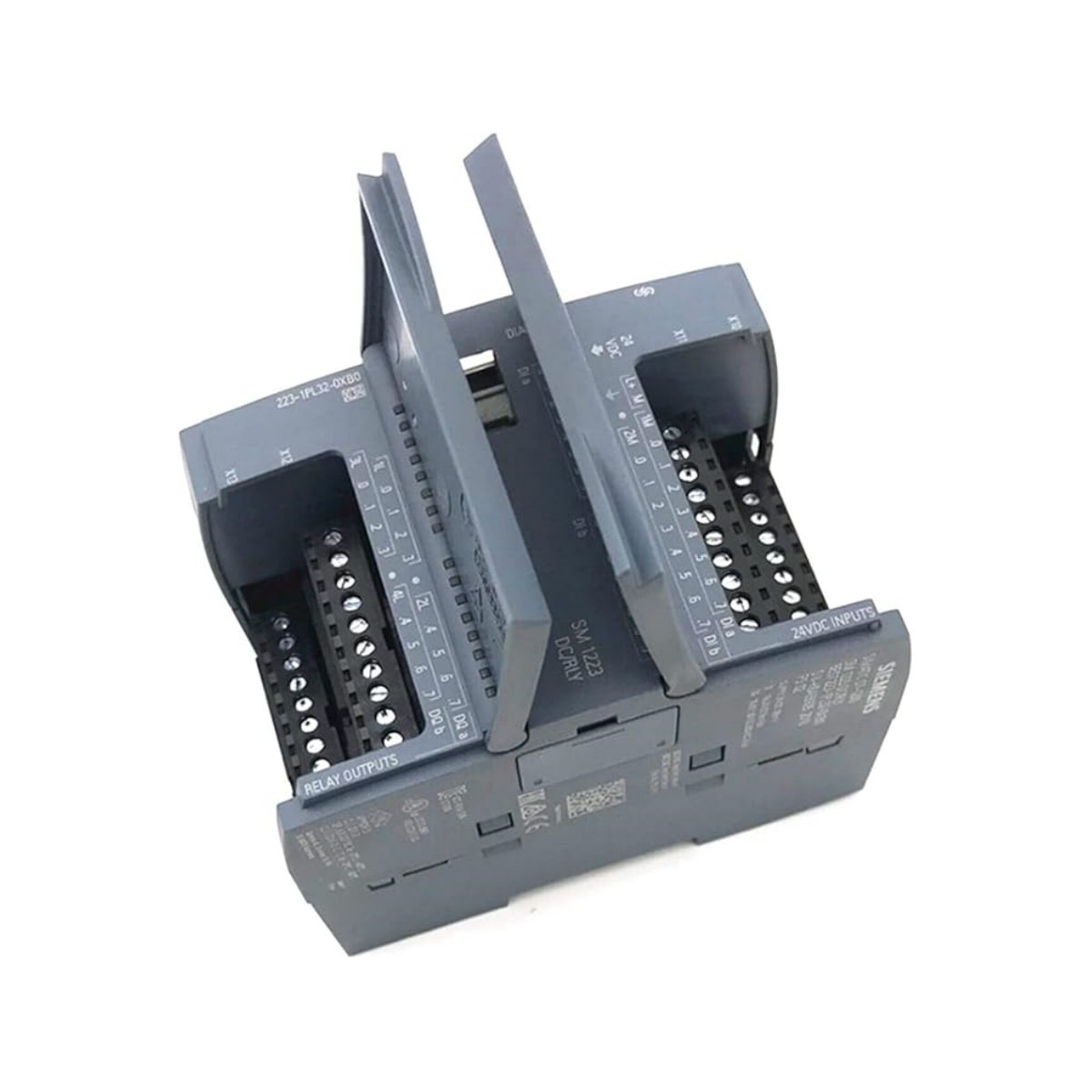

The Siemens 6ES7223-1PL32-0XB0 Digital I/O module provides 16 digital inputs and 16 relay outputs. It ensures fast, reliable signal processing for S7-1200 PLC systems while maintaining low power consumption and flexible installation. Engineers can integrate this module seamlessly with standard DIN rail setups.
Key Features and Advantages
- Wide Voltage Range: Supports 24 V DC rated supply with tolerance from 20.4 V to 28.8 V.
- Flexible Inputs: 16 digital inputs grouped in pairs, fully controllable at all mounting positions.
- Reliable Outputs: 16 relay outputs rated up to 2 A resistive load or 200 W AC lamp load.
- Parameterizable Delays: Input delay selectable from 0.2 ms to 12.8 ms in groups of four.
- Long Cable Support: Shielded cables up to 500 m, unshielded up to 300 m.
- Power Efficiency: Typical power loss is only 10 W during operation.
Detailed Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | 6ES7223-1PL32-0XB0 |
| Manufacturer | Siemens |
| Module Type | Digital I/O Module |
| Supply Voltage | 24 V DC (Permissible Range: 20.4–28.8 V) |
| Input Current | 4 mA per relay, 4 mA typical per digital input |
| Digital Inputs | 16 (in groups of 2) |
| Input Voltage | 24 V DC; signal “0”: 5 V, signal “1”: 15 V |
| Input Delay | 0.2–12.8 ms, parameterizable |
| Digital Outputs | 16 relay outputs (groups of 4) |
| Output Voltage | DC: 5–30 V, AC: 5–250 V |
| Output Current | Max. 2 A per channel; group max. 8 A horizontal installation |
| Switching Capacity | Resistive: 2 A, Lamp Load: DC 30 W / AC 200 W, Inductive: 2 A |
| Operating Cycles | Mechanically: 10 million; Electrical: 100,000 at rated load |
| Cable Length | Shielded: 500 m max, Unshielded: 150 m max |
| Power Loss | Typ. 10 W |
| Dimensions | W70 × H100 × D75 mm |
| Weight | 350 g |
| Country of Origin | Germany |
Dimensions and Weight
- Width: 70 mm
- Height: 100 mm
- Depth: 75 mm
- Weight: 350 g
Frequently Asked Questions
Which PLC series is compatible?
The 6ES7223-1PL32-0XB0 module works with Siemens S7-1200 series PLCs.
Can it handle long cable runs?
Yes, it supports shielded cables up to 500 m and unshielded cables up to 300 m.
How many inputs can work simultaneously at high temperature?
All 16 inputs operate up to 40 °C, ensuring full functionality in industrial conditions.
What is the maximum output load per channel?
Each relay output handles 2 A resistive load, 30 W DC lamp, or 200 W AC lamp load.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 70 × 100 × 75 mm |
