Overview

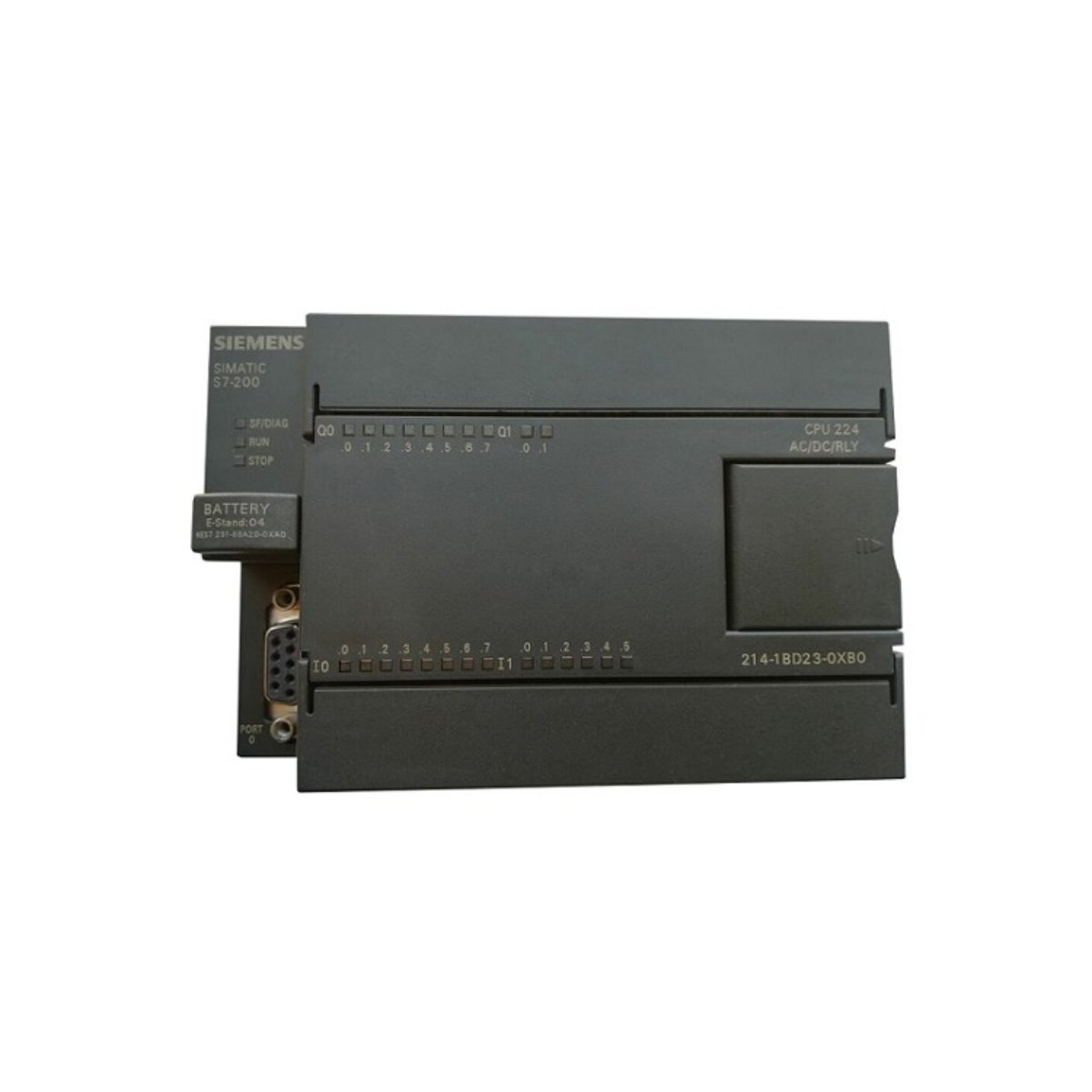

The Siemens 6ES7214-1BD23-0XB0 from the SIMATIC S7-200 series offers exceptional performance for compact automation systems. It delivers high processing speed, stable communication, and flexible expansion options. This CPU 224 module operates efficiently in demanding industrial environments, ensuring continuous and precise control for machinery and process systems.
Key Features
- Integrated I/O: Includes 14 digital inputs and 10 relay outputs for flexible control tasks.
- Dual Power Compatibility: Operates reliably on both 120V AC and 230V AC power sources.
- Expandable System: Connect up to seven additional modules to increase I/O capacity as systems grow.
- Fast Processing: Executes bit operations in just 0.22 microseconds for real-time performance.
- Advanced Communication: Features an RS485 port with MPI, PPI, and serial data exchange support, simplifying integration.
- Energy Efficiency: Optimized for low power consumption while maintaining stable operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7214-1BD23-0XB0 |
| Series | SIMATIC S7-200 |
| Power Supply (AC) | 120V / 230V, 47–63 Hz |
| Load Voltage (DC) | 24V (5V–30V range) |
| Inrush Current | Max. 20 A at 264V |
| Input Current (L1) | Max. 200 mA |
| Output Current (5V DC) | 600 mA |
| Encoder Supply | 24V DC, 280 mA (short-circuit protected) |
| Program Memory | 12 KB |
| Data Memory | 8 KB |
| Expansion Modules | Up to 7 |
| Counters / Timers | 256 each |
| Bit Operation Speed | 0.22 µs |
| Digital Inputs | 14 (24V DC) |
| Digital Outputs | 10 (Relay, 2A) |
| Analog Potentiometers | 2 (8-bit resolution) |
| Interfaces | RS485 (MPI, PPI, serial) |
| Transmission Rate | 19.2–187.5 kbit/s |
| Backup Storage | EEPROM, optional battery |
| Communication Protocol | PROFIBUS DP supported |
Dimensions and Weight
- Width: 120.5 mm
- Height: 80 mm
- Depth: 62 mm
- Weight: Approx. 410 g
Origin
- Country of Manufacture: Germany
Why Choose Siemens SIMATIC S7-200
The Siemens S7-200 CPU 224 stands out for its reliability and flexibility. Engineers prefer it for compact systems that still demand powerful logic control. Moreover, its modular design simplifies upgrades, while its robust build guarantees long-term operation in industrial environments.
Details
| Weight | 0.41 kg |
|---|---|
| Dimensions | 120.5 × 80 × 62 mm |
