Core Function for Terminal Block Integration

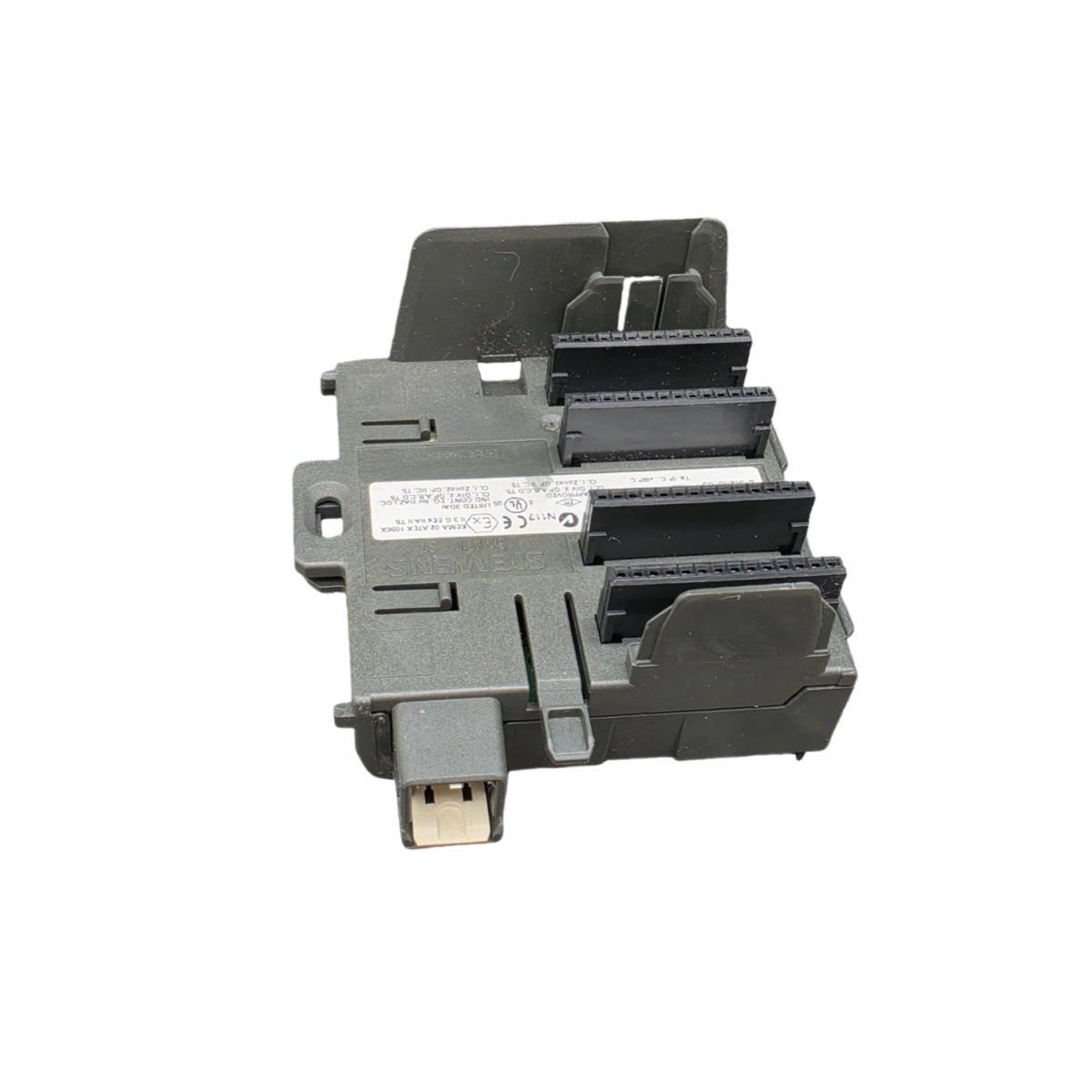

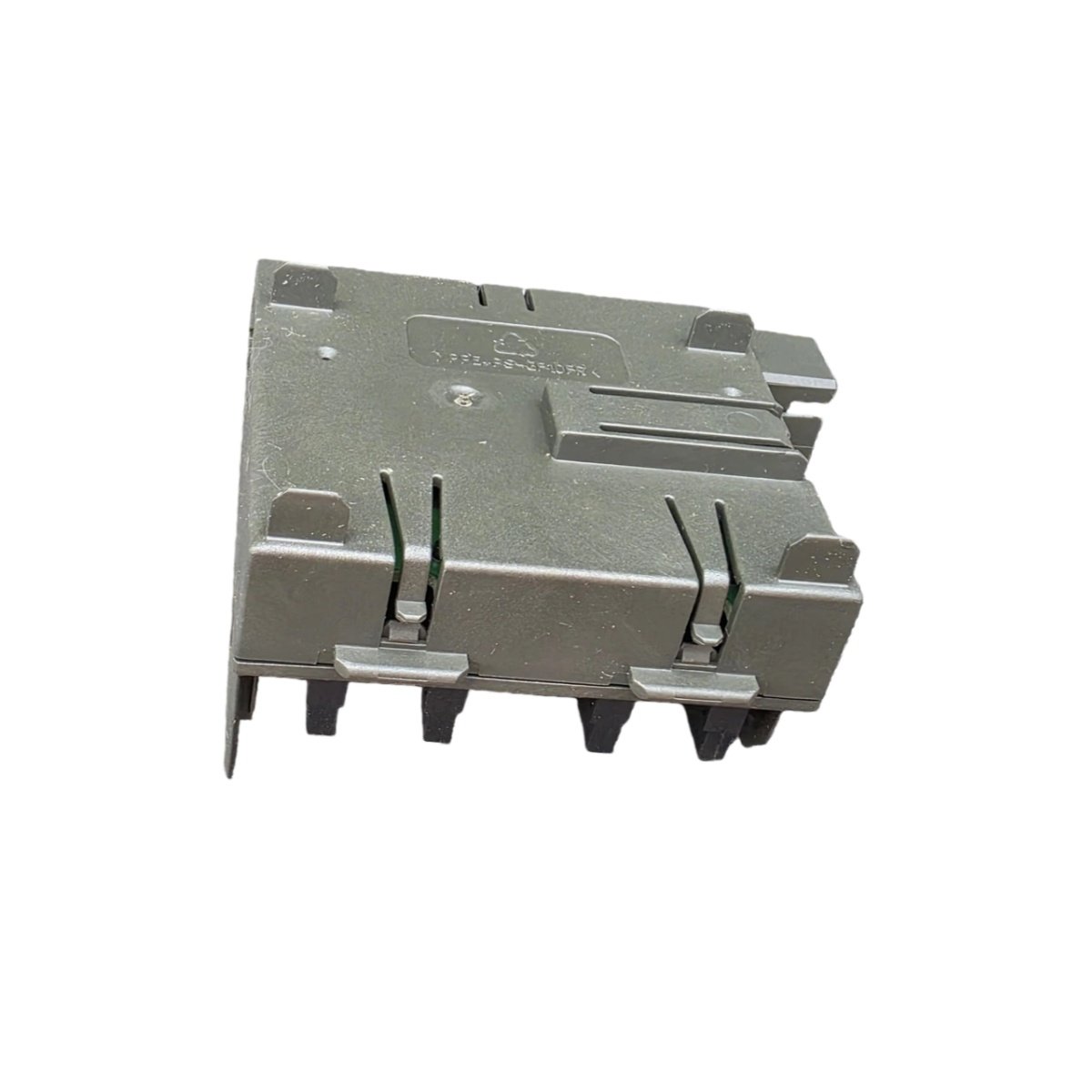

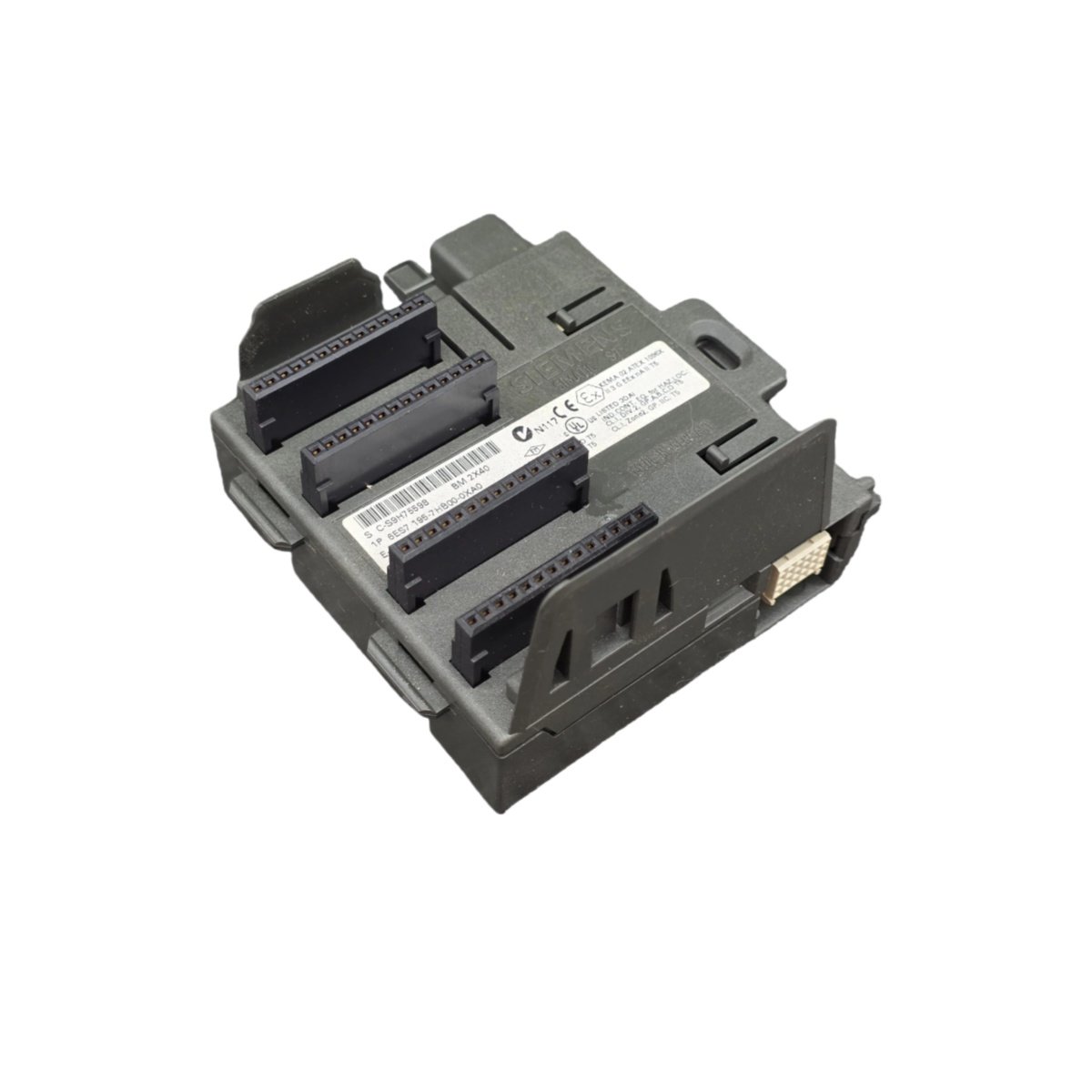

The Siemens 6ES7195-7HB00-0XA0 is a Bus Module for the ET 200S distributed I/O system. This component serves as the essential backplane connector between the terminal block and the electronic module. It establishes both the mechanical mounting and the electrical connection to the I/O module. Consequently, it is a fundamental building block for creating a reliable and modular ET 200S station.

Electrical Specifications and Power Distribution

This bus module facilitates the distribution of power and communication signals within the I/O station. It transfers the backplane bus voltage and 24VDC supply voltage to the connected electronic module. The 6ES7195-7HB00-0XA0 features integrated DIN rail mounting for quick and secure installation. Furthermore, its compact design maintains the slim profile characteristic of the ET 200S system.

Detailed Technical Specifications

Engineered for industrial durability, this module ensures reliable signal transmission in demanding environments. Its standardized interface guarantees compatibility with the full range of ET 200S electronic modules and terminal blocks. The following table details its primary functional and system compatibility parameters.

Application in Distributed I/O Architectures

System integrators use this bus module when building ET 200S stations for manufacturing and process automation. It serves as the foundational layer onto which users mount specific terminal blocks and electronic modules. The Siemens 6ES7195-7HB00-0XA0 is essential for creating a flexible, scalable, and easily maintainable distributed I/O system. Therefore, proper selection and installation of this module are critical for the integrity and reliability of the entire ET 200S station.
