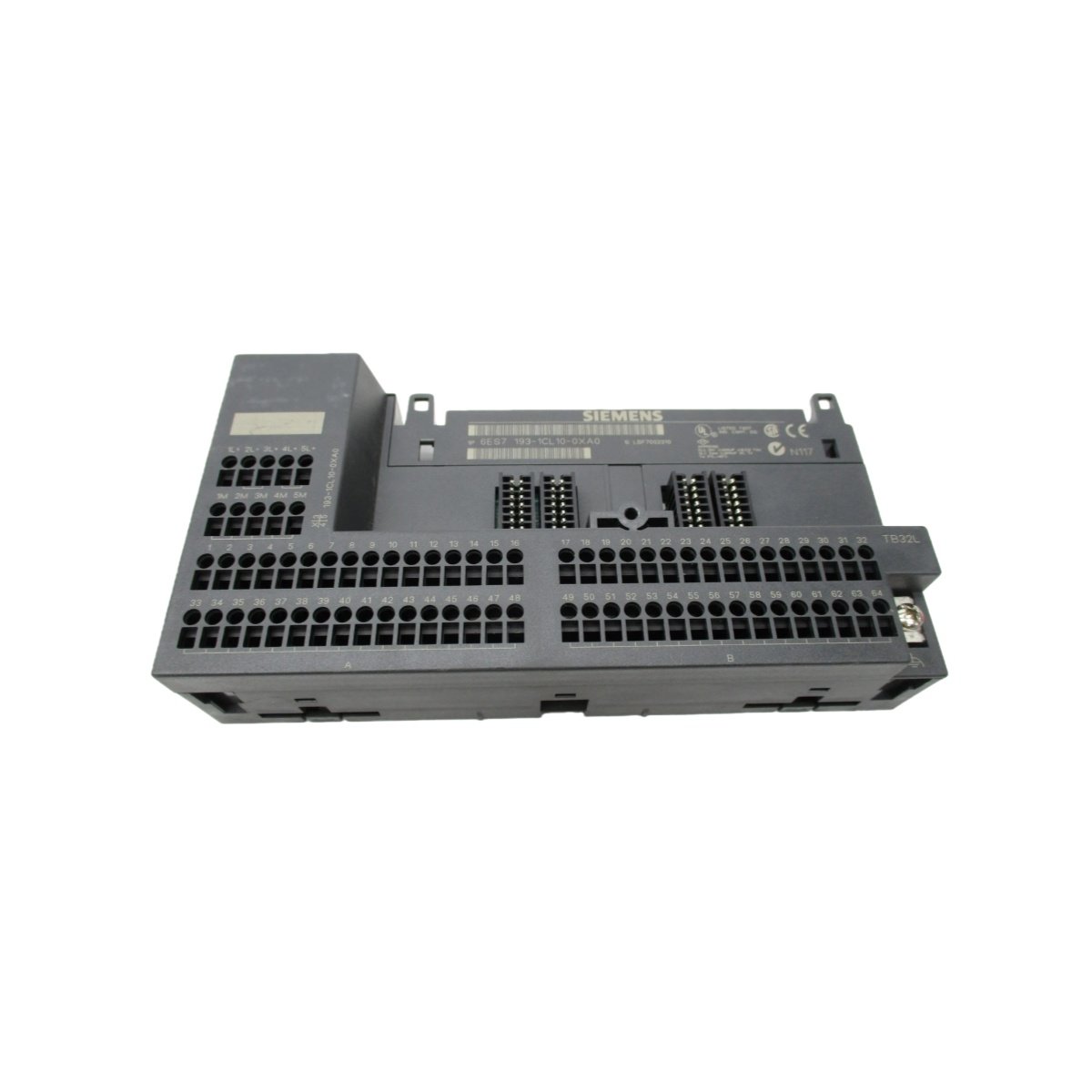

This terminal base provides secure mounting and wiring for ET 200SP I/O modules. It establishes the physical foundation for distributed automation systems. Manufacturing facilities depend on this component for consistent field signal termination.
Technical Specifications & Hardware Overview
Engineers value this terminal base for its straightforward installation and robust electrical connections. The design accommodates various I/O module types within the ET 200SP family.
| Parameter | Specification |
|---|---|
| Model | 6ES7193-1CL10-0XA0 |
| Manufacturer | Siemens |
| Category | Terminal Base (ET 200SP) |
| Module Width | 20 mm (single width) |
| Connection Type | Push-in spring terminals |
| Wire Gauge | 0.14 mm² to 1.5 mm² (AWG 24 to 16) |
| Number of Terminals | 10 per unit |
| Potential Grouping | Up to 8 groups per base |
| Operating Voltage | 24 VDC nominal |
| Physical Size | 20 mm (width) x 117 mm (height) x 78 mm (depth) |
| Weight | Approximately 0.06 kg (0.13 lbs) |
Mechanical Design and Installation
This terminal base snaps directly onto the ET 200SP DIN rail with one hand. It features integrated locking levers for secure attachment to adjacent bases. The 6ES7193-1CL10-0XA0 accepts I/O modules without additional tools or fasteners. Consequently, it simplifies both initial installation and future system expansion.
Electrical Architecture and Signal Routing
This base unit routes power and signal connections between field wiring and the I/O module. It incorporates integrated potential bridges for distributing voltage across multiple bases. The 6ES7193-1CL10-0XA0 supports automatic addressing through the backplane bus connection. Therefore, it eliminates manual configuration steps during commissioning.
Connection Interface and Field Wiring
Push-in terminals provide reliable connections for solid and stranded conductors. Each terminal accommodates a single wire with straightforward insertion and release mechanisms. This base unit features color-coded terminal labeling for simplified identification. As a result, technicians complete wiring tasks quickly without specialized training.
Application in Distributed Systems
This 6ES7193-1CL10-0XA0 terminal base serves as the foundation for ET 200SP I/O stations. It works seamlessly with digital, analog, and function modules within the system. For similar industrial connection components, you will find comparable reliability in static trip units like RMS-TSG-TZ-C from various manufacturers. Thus, this base unit ensures dependable field signal integration for distributed automation networks.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
