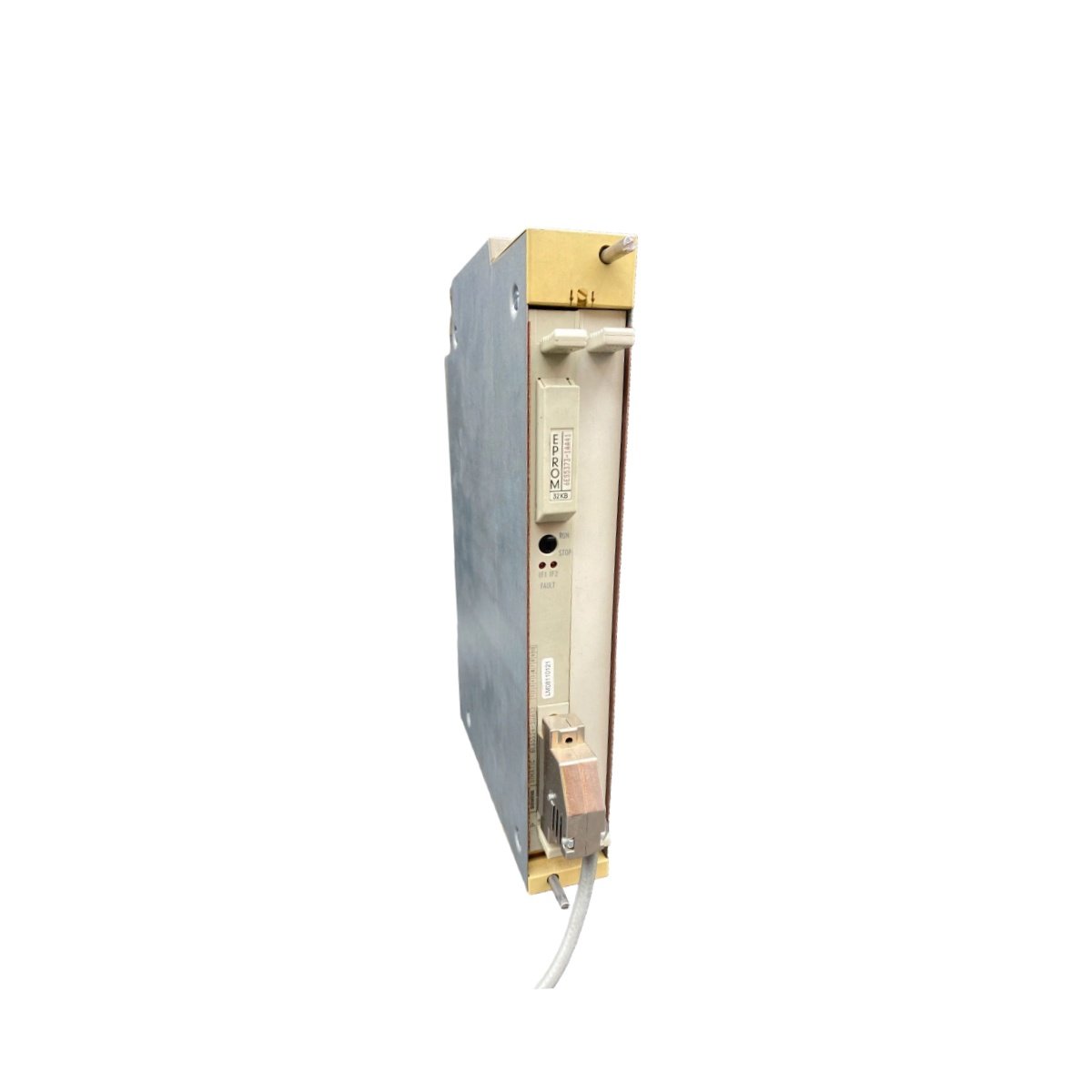

This input-output module expands the signal handling capabilities of SIMATIC S5 programmable logic controllers. It provides dependable connectivity for field devices in legacy automation installations. Manufacturing facilities continue to rely on this component for stable production operations.
Technical Specifications & Hardware Overview
Engineers value this module for its straightforward integration and robust signal processing. The design supports both digital and analog field devices within the S5 architecture.
| Parameter | Specification |
|---|---|
| Model | 6ES5491-0LB11 |
| Manufacturer | Siemens |
| Category | PLC Module (SIMATIC S5) |
| Input Channels | 16 digital inputs |
| Input Voltage | 24 VDC nominal |
| Output Channels | 16 digital outputs |
| Output Current | 0.5 A per channel |
| Isolation | 500 VAC between channels and backplane |
| Power Supply | 5 VDC from backplane |
| Current Consumption | 200 mA typical |
| Physical Size | 25 mm (width) x 232 mm (height) x 148 mm (depth) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Circuit Architecture and Signal Processing
This module utilizes optocouplers for galvanic isolation between field and logic circuits. It incorporates filtering components to reject electrical noise from industrial environments. The 6ES5491-0LB11 communicates with the CPU through the S5 backplane bus. Consequently, it delivers reliable signal acquisition for time-sensitive control tasks.
Installation and Mechanical Configuration
The unit slides into standard SIMATIC S5 rack slots with integrated guide rails. A single printed circuit board contains all active components and connection interfaces. This module features front-facing LED indicators for channel status monitoring. Moreover, the compact width allows efficient use of available rack space.
Energy Management and Operational Stability
This PLC module draws power exclusively from the system backplane connection. It features onboard decoupling capacitors for stable operation during brief fluctuations. The 6ES5491-0LB11 requires no external power supply for field circuits. As a result, it simplifies cabinet wiring and reduces component count.
Field Wiring and System Integration
Field connections terminate through a front-accessible screw-type terminal block. Each channel supports both sinking and sourcing wiring configurations. This 6ES5491-0LB11 module integrates seamlessly with SIMATIC S5 CPUs and expansion racks. For similar industrial control components, you will find comparable reliability in static trip units like RMS-TSG-TZ-C from various manufacturers. Therefore, this module provides essential I/O expansion for legacy S5 automation systems.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
