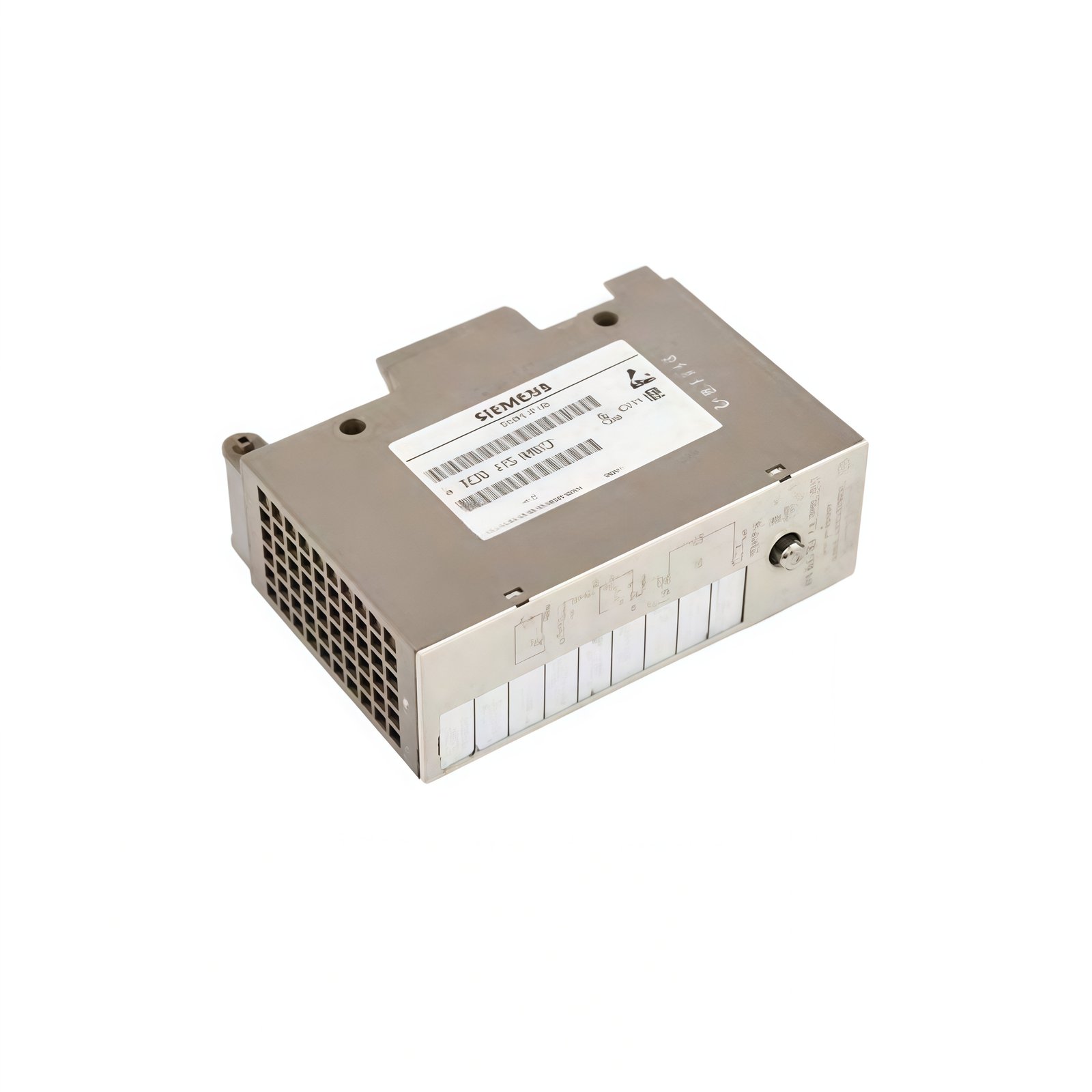

Reliable Analog Control for SIMATIC S5 Systems
The Siemens 6ES5470-8MB12 provides four analog output channels for SIMATIC S5 programmable controllers. This module converts digital setpoints into precise voltage or current signals. It controls valves, drives, and other analog actuators with high accuracy. Engineers select this unit for demanding process control applications.
Detailed Technical Specifications
This section presents the complete technical parameters of the Siemens 6ES5470-8MB12. We emphasize precise output characteristics and electrical ratings for accurate system integration. The design prioritizes signal accuracy and channel isolation.
| Specification | Detail |
|---|---|
| Model Number | 6ES5470-8MB12 |
| Manufacturer | Siemens |
| Product Type | Analog Output Module |
| Series | SIMATIC S5 |
| Number of Channels | 4 |
| Output Signal Types | 0-10V, ±10V, 0-20 mA, 4-20 mA |
| Resolution | 12 Bits |
| Conversion Time | 1 ms per Channel (Typical) |
| Accuracy | ±0.5% of Full Scale |
| Output Load (Voltage) | > 5 kΩ |
| Output Load (Current) | < 500 Ω |
| Isolation | 1500V AC (Channel-to-Bus) |
| Power Consumption | 200 mA (5 VDC Internal Bus) |
| LED Indicators | Power OK, Channel Activity |
| Operating Temperature | 0°C to +60°C |
Physical Dimensions & Weight
Accurate physical data supports proper cabinet layout and rack configuration. The Siemens 6ES5470-8MB12 maintains a standardized form factor for SIMATIC S5 compatibility.
Dimensions (H x W x D): 250 mm x 25 mm x 210 mm
Weight: 0.68 kg
Origin: Made in Germany (Siemens Manufacturing Facilities)
Channel Architecture and Output Configuration
The module provides four independent analog output channels on a single unit. Each channel supports voltage or current output types through software configuration. Users select the appropriate signal range for each application. This flexibility reduces the number of module types required for system design.
Signal Conversion and Resolution
A 12-bit digital-to-analog converter generates each output signal with high precision. Resolution provides 4096 discrete steps across the full output range. The conversion time reaches 1 ms per channel for responsive system operation. Consequently, actuators receive smooth, stable control signals for precise positioning.
Output Characteristics and Load Compatibility
Voltage outputs drive loads with impedance greater than 5 kΩ for accurate signal delivery. Current outputs operate with load resistance below 500 Ω for loop-powered devices. The module accepts connections to proportional valves, variable frequency drives, and chart recorders. Users benefit from compatibility with standard industrial analog instruments.
Accuracy and Output Integrity
The module achieves an accuracy rating of ±0.5% of full scale under normal operating conditions. This precision supports demanding control loops with tight performance requirements. Outputs maintain stability across the operating temperature range. Users receive consistent control signals for reliable process regulation.
Isolation Architecture and Noise Immunity
The Siemens 6ES5470-8MB12 achieves 1500V AC isolation between output channels and the system bus. This separation prevents ground loops from affecting signal accuracy. Electrical noise from field wiring cannot disrupt controller operation. Industrial environments with mixed signal types benefit significantly from this protection.
Component Layout and Status Indication
The module contains a single PCB assembly with analog output circuits and D/A converters. Front-panel LEDs provide immediate visual feedback on operational status. A green Power OK LED confirms proper supply voltage presence. Channel activity indicators show output signal presence on active channels.
Installation and System Integration
Mounting this module requires a compatible SIMATIC S5 series rack. It seats into a standard I/O slot and connects automatically to the backplane. Configuration occurs through programming software without hardware adjustments. This approach simplifies installation and reduces commissioning time.
Energy Requirements and Thermal Management
The unit draws 200 mA from the 5 VDC internal system bus. Power consumption remains modest despite the precision analog circuitry. Natural convection cooling handles all thermal dissipation requirements. No additional cooling modifications are necessary for standard operation.
Manufacturer Quality Standards
Siemens manufactures the 6ES5470-8MB12 under strict quality control protocols. Each unit undergoes comprehensive testing for output accuracy and isolation integrity. Therefore, users receive a product ready for immediate deployment. This commitment to quality aligns with Siemens industrial automation reliability expectations.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
