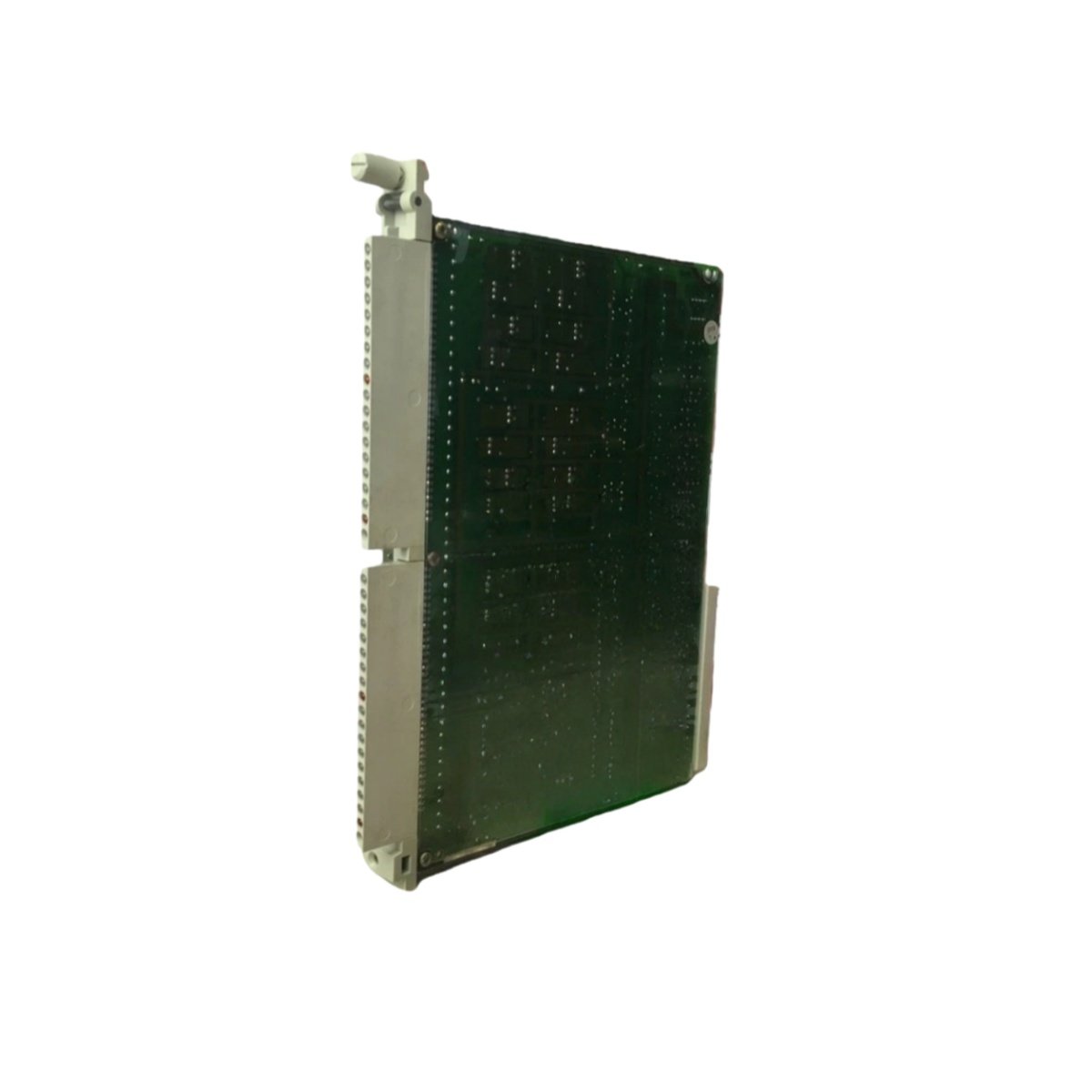

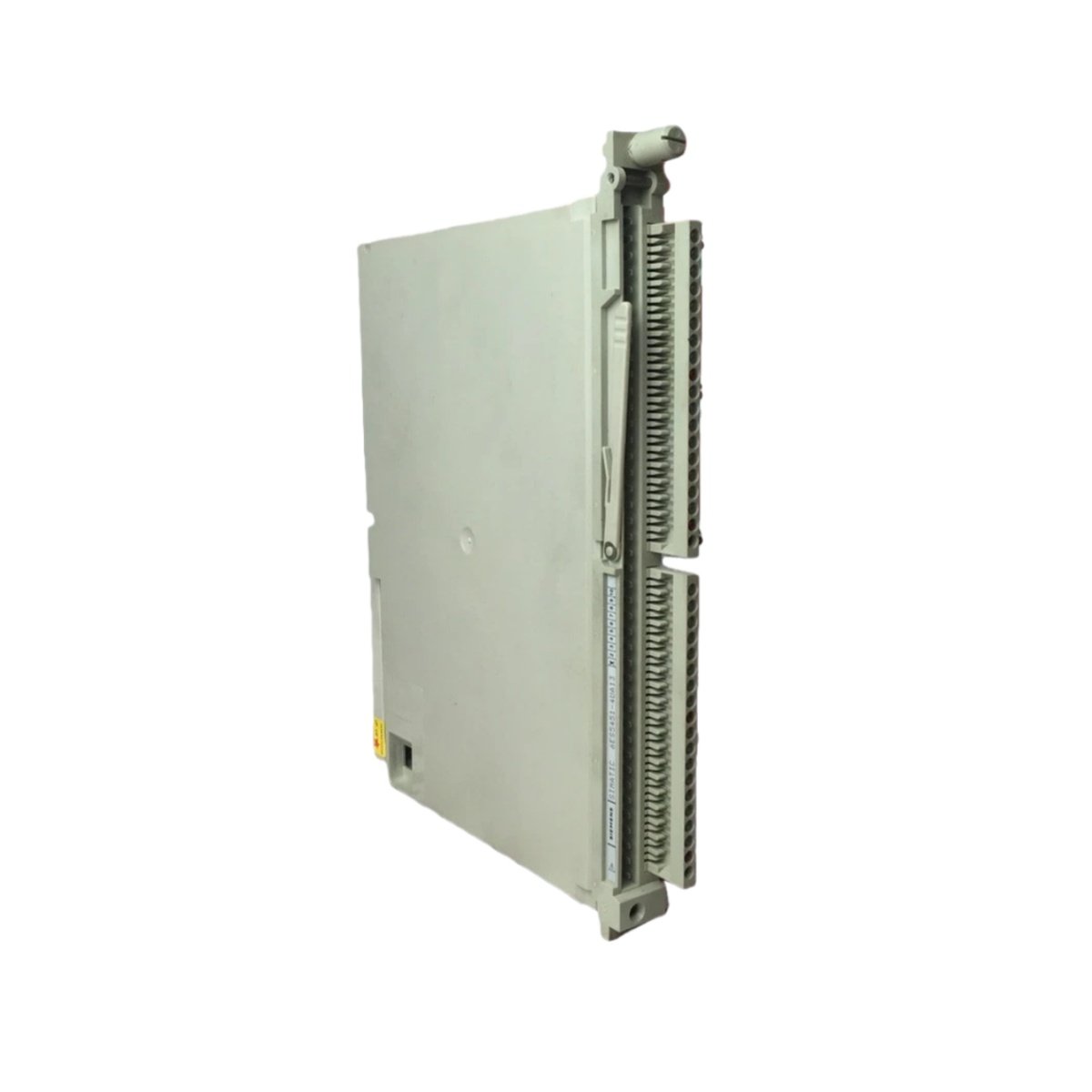

The Siemens 6ES5451-4UA13 functions as a digital output module for SIMATIC S5 programmable logic controllers. This unit converts internal logic signals into industrial voltage levels for actuator control. Engineers use this module to drive contactors, relays, and indicator lights reliably. Its robust design ensures continuous operation in demanding manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 160 mm x 100 mm x 40 mm |
| Weight | 0.32 kg |
| Output Channels | 16 digital outputs (transistor) |
| Output Type | Solid-state PNP switching |
| Output Voltage | 24 V DC nominal (20-30 V DC) |
| Output Current | 0.5 A per channel, 4 A per module |
| Short Circuit Protection | Electronic, per channel |
| Inductive Load Capability | 2 H maximum with freewheeling diode |
| Lamp Load | 5 W maximum per channel |
| Switching Frequency | 100 Hz maximum (resistive load) |
| Isolation Voltage | 1500 V AC between logic and outputs |
| Logic Supply | 5 V DC from S5 backplane (200 mA) |
| Load Supply | 24 V DC external (requires fused supply) |
| LED Indicators | Green per channel for output status |
| Fusing | External fuse recommended (2 A fast-blow) |
| Module Location | S5-100U and S5-115U series racks |
| Backplane Current | 200 mA maximum from 5 V bus |
| Power Dissipation | 4 W typical at full load |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
Reliable Actuator Control for Industrial Processes
The 6ES5451-4UA13 delivers 16 independent digital outputs for controlling field devices directly. Each channel switches up to 0.5 Amps at 24 V DC for solenoid valves and contactors. The module maintains output status even during CPU scan cycle interruptions. Consequently, actuators receive continuous signals without unwanted toggling or chatter.
Comprehensive Output Protection Features
Industrial outputs must withstand occasional overloads and short circuits without damage. The 6ES5451-4UA13 includes electronic short circuit protection on every channel individually. This protection limits current and shuts down affected outputs automatically during faults. The unaffected channels continue operating normally for partial system functionality.
Visual Status Indication for Troubleshooting
Each output channel features a green LED that illuminates when the signal is active. Maintenance personnel can therefore verify output status without additional test equipment. This visual indication proves invaluable during commissioning and troubleshooting procedures. The LEDs remain visible even with the front cover closed.
Simple Integration with SIMATIC S5 Systems
This Siemens module plugs directly into standard S5-100U and S5-115U racks without special tools. The backplane connector automatically supplies logic power and communicates with the CPU. External 24 V DC load power connects through front-panel screw terminals. Clear labeling indicates channel numbers and wiring connections for error-free installation.
Wide Application Compatibility
The 6ES5451-4UA13 suits various industrial applications requiring discrete output control. It drives DC solenoid valves in fluid power systems with inductive load capability. The module also operates indicator lamps and alarm annunciators in control panels effectively. Its 16-channel density maximizes I/O capacity within limited rack space.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
