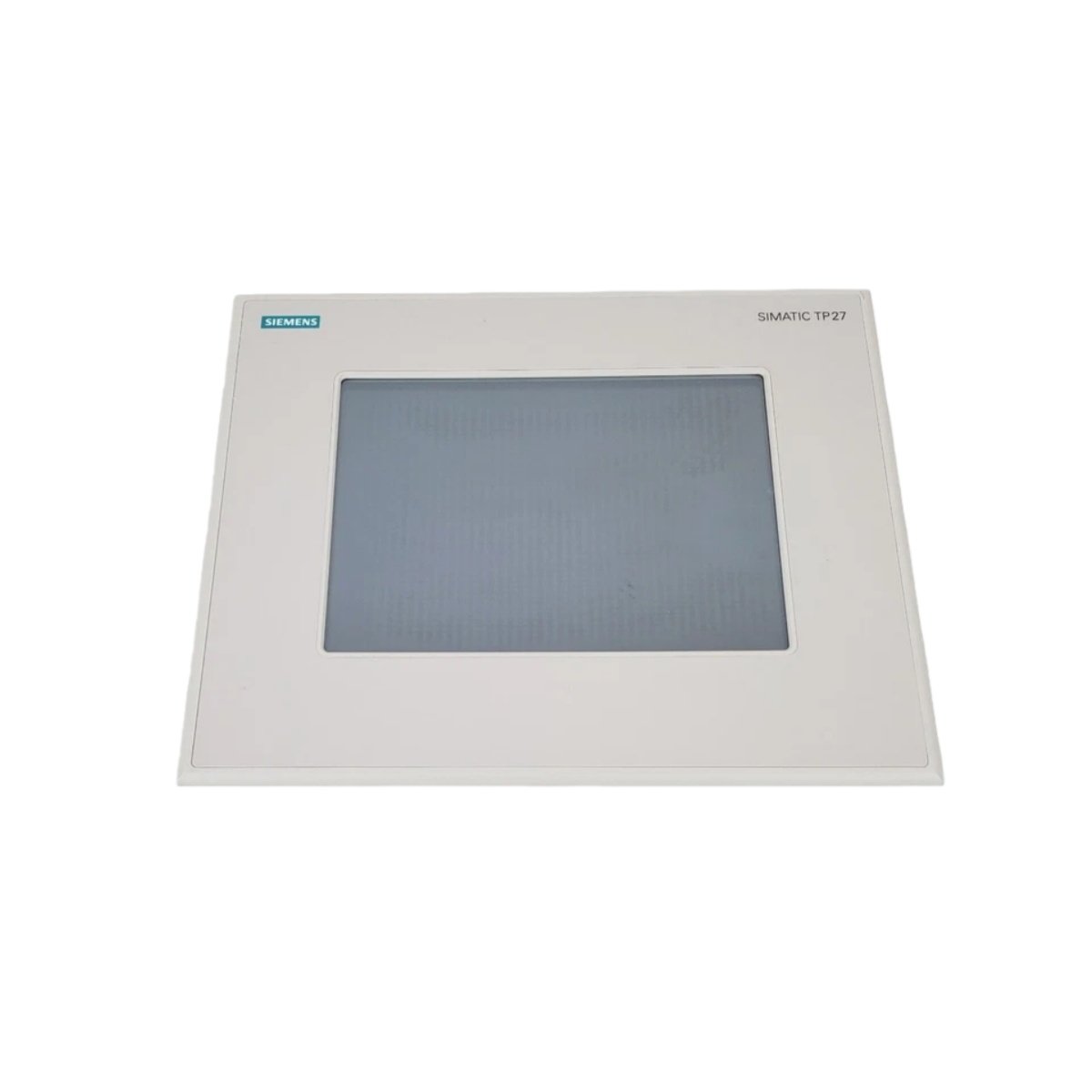

The Siemens 6AV3627-1QL00-0AX0 functions as a touch panel operator interface for industrial control systems. Siemens designed this unit for machine-level visualization and operator interaction. This component delivers reliable HMI functionality for demanding manufacturing environments.
Display Specifications and Visual Performance
This operator interface features a 10.4-inch color display for clear visualization of process data. The touch panel allows operators to interact directly with control system parameters. Therefore, users can navigate screens and modify settings through intuitive touch gestures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AV3627-1QL00-0AX0 |
| Category | Operator Interface |
| Series | TP27-10 |
| Display Size | 10.4 inches |
| Display Type | Color |
| Input Method | Touch panel |
| Memory | 1 MB Flash-EPROM |
| Component Count | Integrated display, processor board |
| Connectors | Serial ports, power connector |
| Weight | Approximately 5.50 lbs (2.50 kg) |
| Dimensions | 12.6 x 9.8 x 2.8 inches |
| Operating Temperature | 0°C to 45°C |
Memory Architecture and Data Storage
The Siemens 6AV3627-1QL00-0AX0 includes 1 MB of Flash-EPROM for storing application data. This non-volatile memory retains configuration and screen layouts without external power. Consequently, operators can rely on consistent interface behavior across power cycles.
Interface and Connectivity
This operator interface features serial ports for communication with PLC systems. It connects to Siemens controllers and other industrial automation devices seamlessly. Moreover, the power connector accepts standard industrial voltage supplies for straightforward installation.
Physical Characteristics and Mounting
Measuring approximately 12.6 inches in width and 9.8 inches in height, this unit occupies standard panel cutouts. It weighs roughly 5.50 lbs for secure mounting in control cabinets. The robust enclosure protects internal components from dust and incidental contact.
User Interface Experience
The color display provides high visibility for monitoring process conditions and alarms. Touch panel input enables quick navigation through operator screens and parameter adjustments. Therefore, machine operators can respond rapidly to changing production requirements.
System Integration
This operator interface belongs to the Siemens TP27 series product family. It integrates with Siemens PLC systems and other automation components seamlessly. Consequently, manufacturers can add visualization capabilities to existing control architectures. The Siemens 6AV3627-1QL00-0AX0 delivers reliable HMI functionality for facilities requiring intuitive operator interaction with industrial equipment.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
