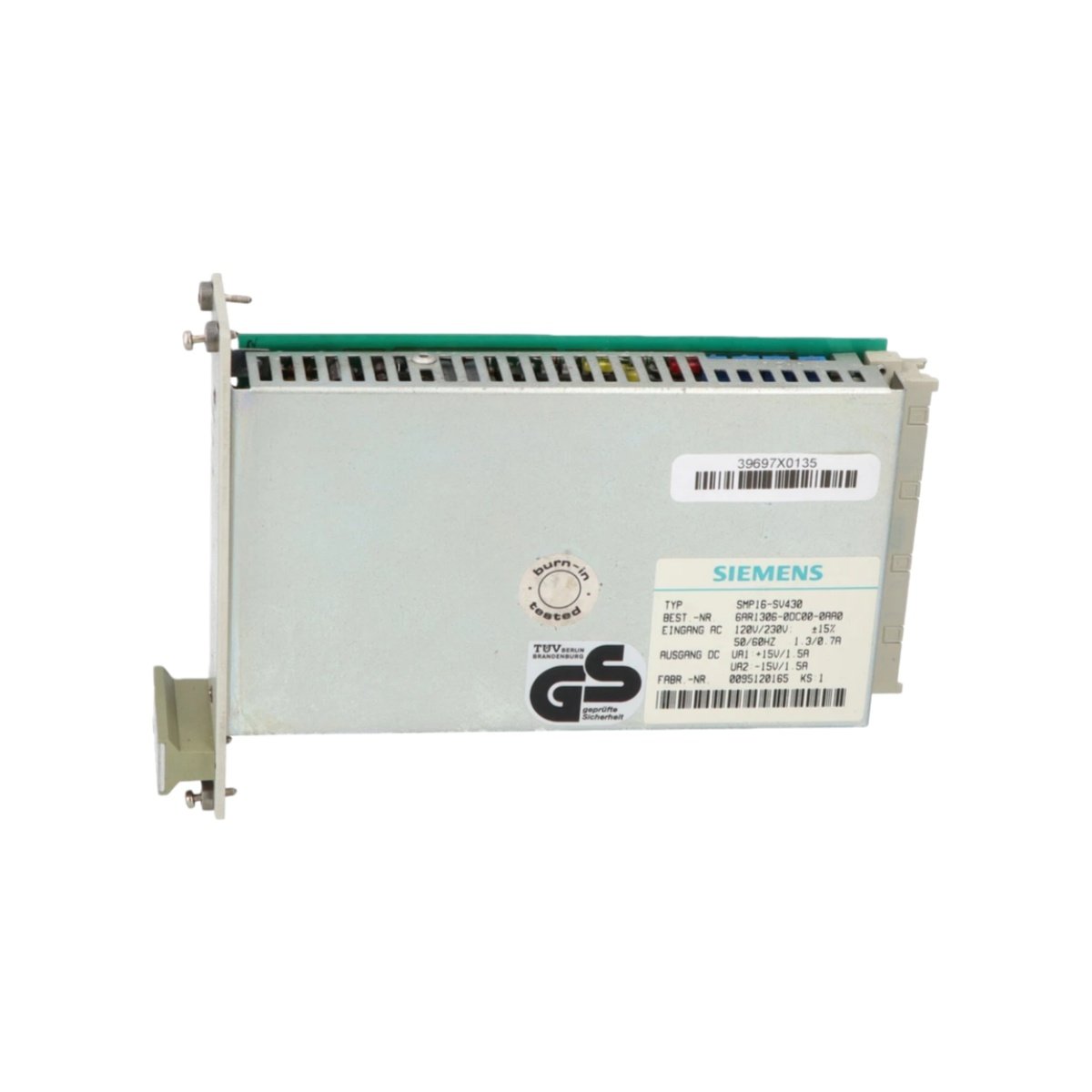

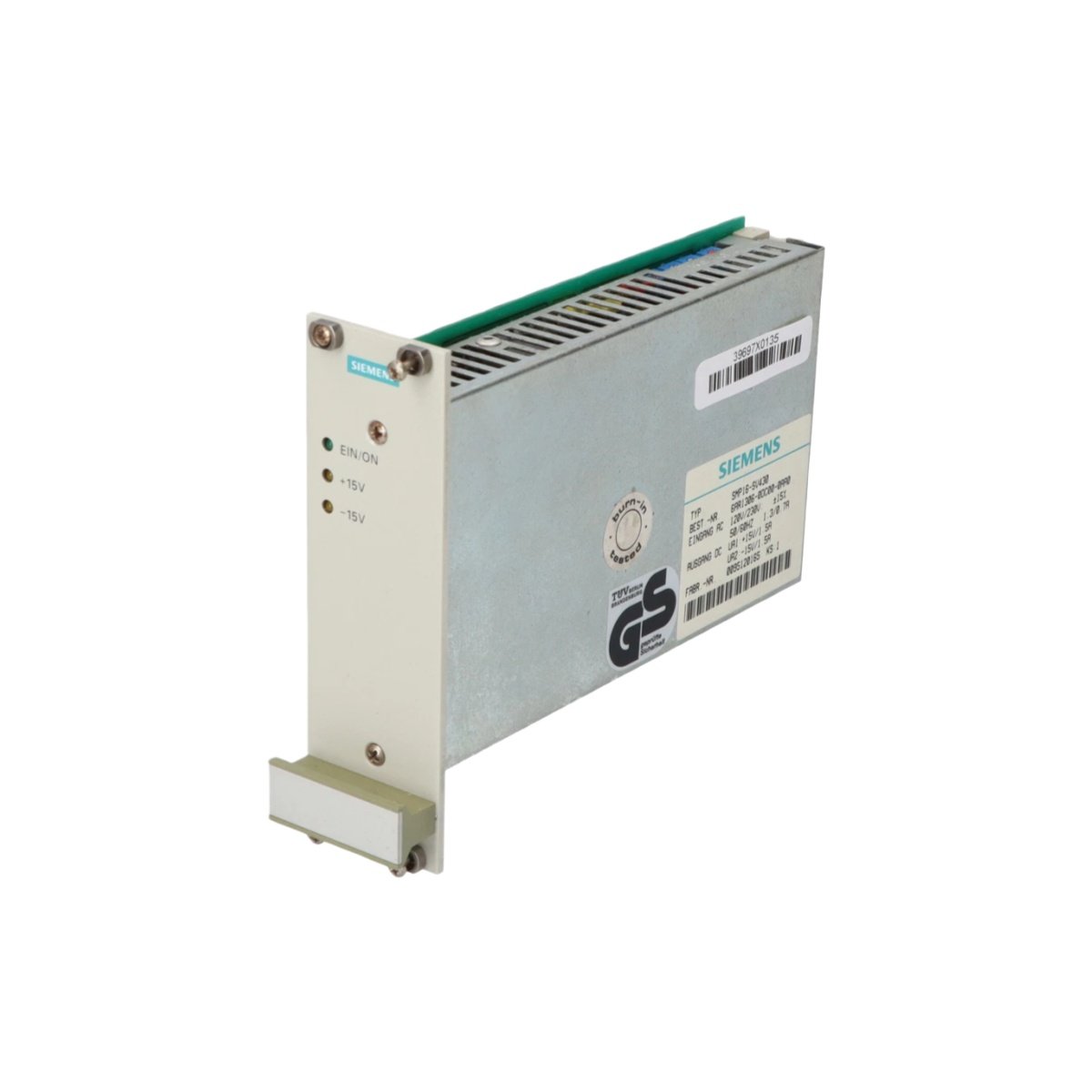

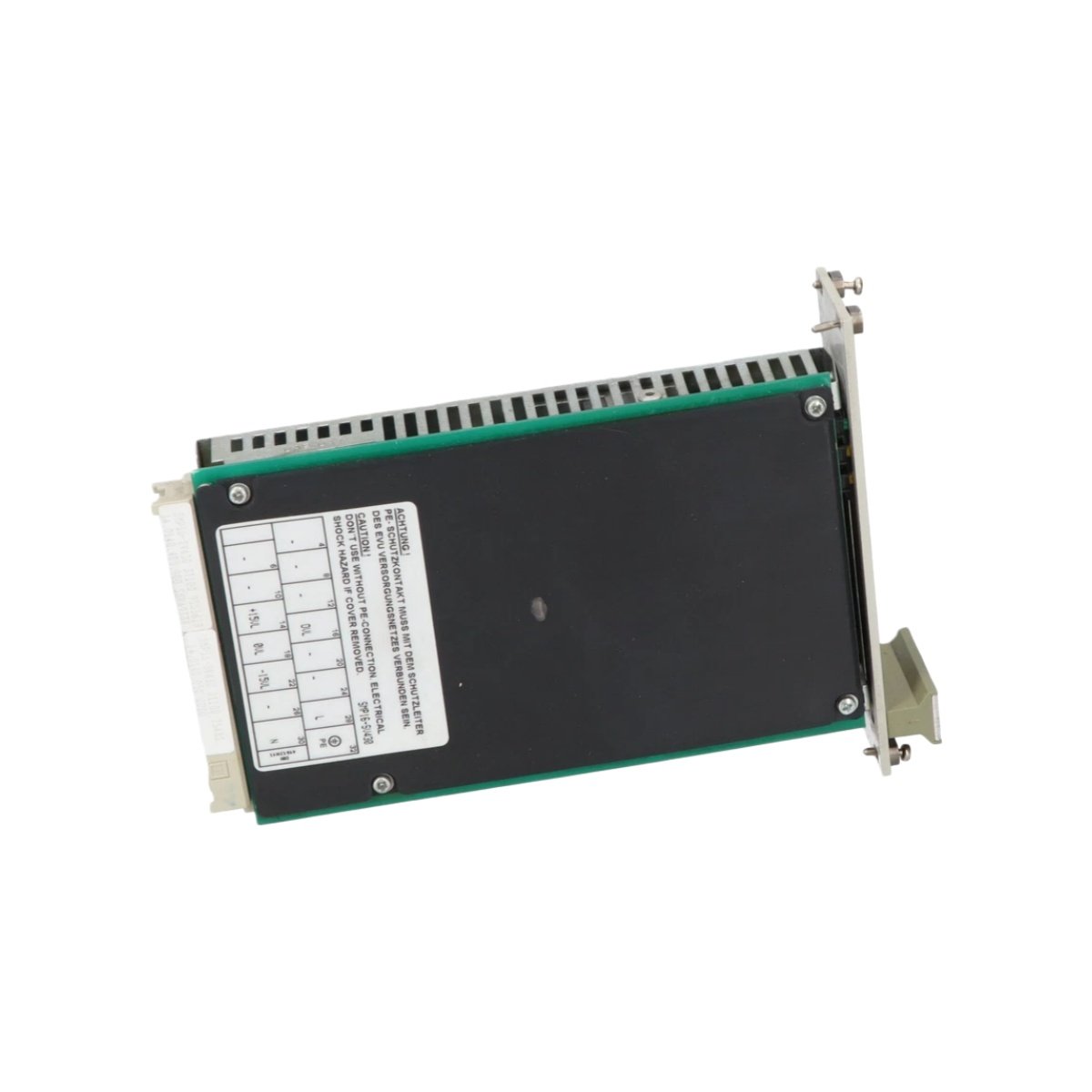

The Siemens 6AR1306-0DC00-0AA0 serves as a compact power supply module for industrial automation applications. This unit converts wide-range AC input voltage into a stabilized DC output for control electronics. Engineers select this module when they need reliable power conversion for sensors, controllers, and interface circuits. Consequently, it ensures consistent operation of downstream devices despite fluctuating AC mains conditions.
Technical Specifications for the Siemens 6AR1306-0DC00-0AA0
This power supply module features universal input acceptance for global installation flexibility. It incorporates regulation circuitry that maintains output voltage within tight tolerances. The unit’s rugged construction ensures reliable performance in industrial environments with temperature variations.
| Specification | Details |
|---|---|
| Model Number | Siemens 6AR1306-0DC00-0AA0 |
| Alternate Model | SMP16-SV430 |
| Product Type | Power Supply Module |
| Dimensions (H x W x D) | 120 mm x 70 mm x 115 mm |
| Weight | 0.95 kg (2.1 lbs) |
| Input Voltage | 120–230 V AC |
| Input Voltage Range | 100–240 V AC |
| Input Frequency | 47–63 Hz |
| Input Current | 0.5 A at 230 V AC typical |
| Output Voltage | 15 V DC |
| Output Voltage Tolerance | ±10% (13.5–16.5 V DC) |
| Output Current | 1.5 A continuous |
| Output Power | 22.5 W maximum |
| Line Regulation | ±0.5% typical |
| Load Regulation | ±1.0% typical |
| Ripple and Noise | <50 mV peak-to-peak |
| Efficiency | >82% at full load |
| Energy Storage | 680 µF output capacitance |
| Hold-up Time | 20 ms at full load |
| Protection Features | Overcurrent, short-circuit, overtemperature |
| Overcurrent Protection | 1.8 A typical trip |
| Isolation Voltage | 3000 V AC (input to output) |
| Connection Type | Screw terminals, pluggable |
| Wire Gauge Range | 24–14 AWG |
| Status Indicator | Green LED (output OK) |
| Mounting Style | DIN rail (35 mm EN 50022) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Enclosure Rating | IP20 |
| Certifications | CE, UL, cUL, RoHS |
Advanced Power Conversion Features
The Siemens 6AR1306-0DC00-0AA0 employs switch-mode technology for efficient power conversion with minimal heat generation. This design allows the compact form factor while delivering full rated output current. Additionally, the module includes substantial output capacitance that provides energy storage for transient loads. The hold-up time of 20 milliseconds bridges brief AC power interruptions without output dropout. Therefore, connected controllers continue operating through minor line disturbances. The ±10% output tolerance accommodates varying loads while keeping logic circuits within specifications. Comprehensive protection circuits guard against overloads, short circuits, and excessive temperature. The green LED status indicator gives immediate visual confirmation of proper output voltage.
System Integration and Manufacturer Context
Siemens developed the 6AR1306-0DC00-0AA0 as part of their comprehensive industrial power supply portfolio. This module carries the alternate designation SMP16-SV430 in some documentation and labeling. It integrates seamlessly with Siemens automation systems and general industrial control panels. The unit powers PLC I/O modules, sensors, transmitters, and interface converters requiring 15 V DC. You can mount multiple 6AR1306 units on DIN rails to provide isolated power for different control sections. For detailed installation guidelines, consult Siemens documentation under the 6AR1306-0DC00-0AA0 product manual. This power supply exemplifies Siemens’ commitment to reliable energy conversion for industrial automation applications.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
