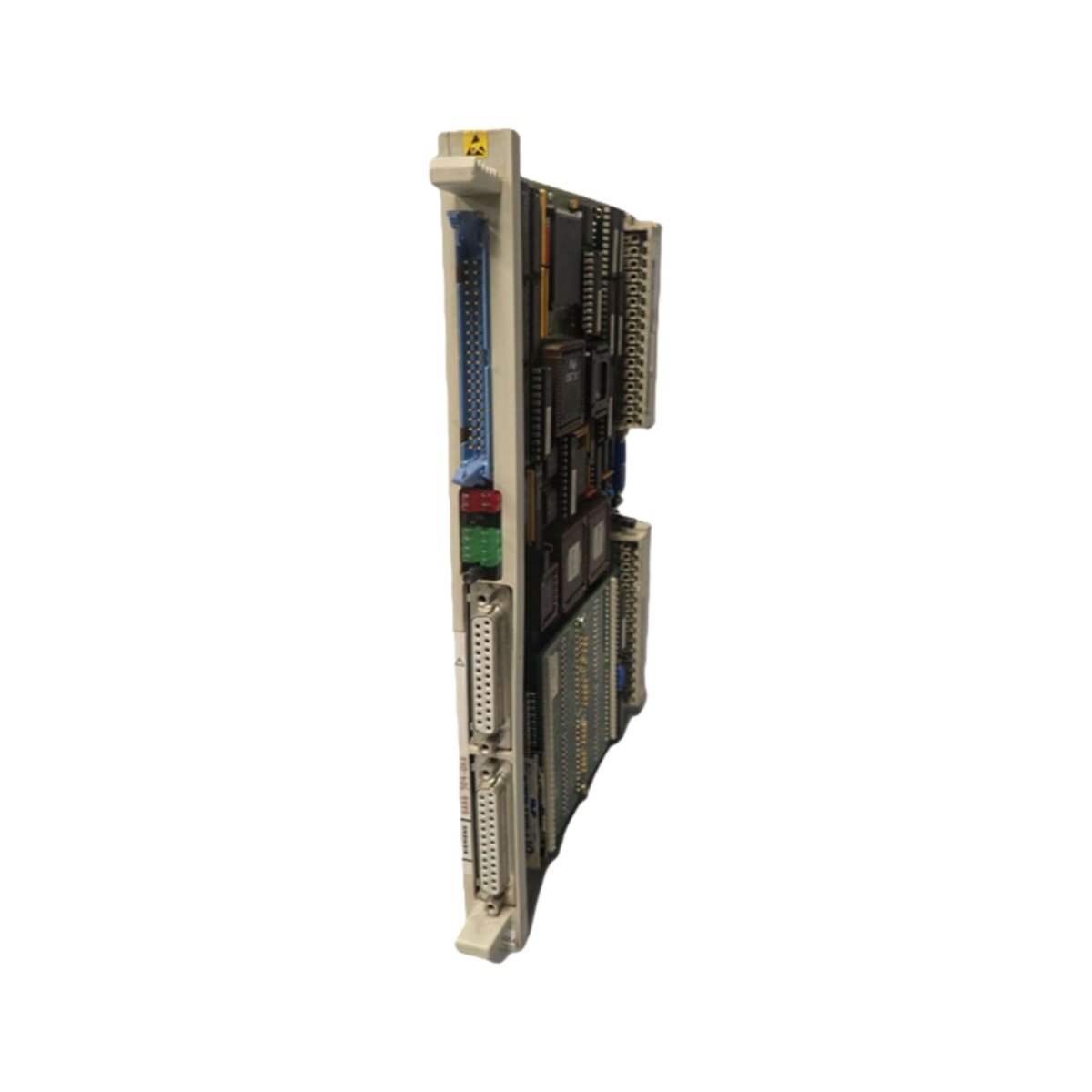

The Siemens 6AA6504-0AA functions as a CPU module within the VE 286 series. Siemens designed this processor board for industrial automation control applications. It combines processing capability with flexible memory configuration options. This module supports complex control programs with its robust architecture. Engineers value its expandability for diverse automation requirements.

Memory Architecture and Configuration

This CPU module features two banks of 128 KB EPROM for firmware storage. It also includes two banks of 128 KB RAM for operational data handling. The board provides two expansion slots for additional memory modules. Users can install 32 KB RAM, EPROM, or EEPROM in these slots. Consequently, this configuration supports up to 320 KB total memory capacity.

Bus Interface and System Integration

The Siemens 6AA6504-0AA operates with two segments of KBUS minimum. This bus structure enables communication with connected I/O modules. The module integrates seamlessly into VE 286-based control systems. It handles both program execution and data processing tasks efficiently. Therefore, users achieve reliable control for medium-scale automation applications.

Physical Characteristics

This CPU board measures standard form factor for VE 286 rack mounting. It occupies a single slot within the system chassis. The module features accessible memory slots for straightforward upgrades. Installation requires proper seating in the backplane for reliable operation.

Technical Specifications

System Deployment

This CPU module serves as the central controller in VE 286 systems. It manages I/O communication across the KBUS segments efficiently. For related control components, explore comparable automation solutions. Always verify memory configuration compatibility when expanding this system. The Siemens 6AA6504-0AA delivers dependable processing for industrial control applications.
