Overview

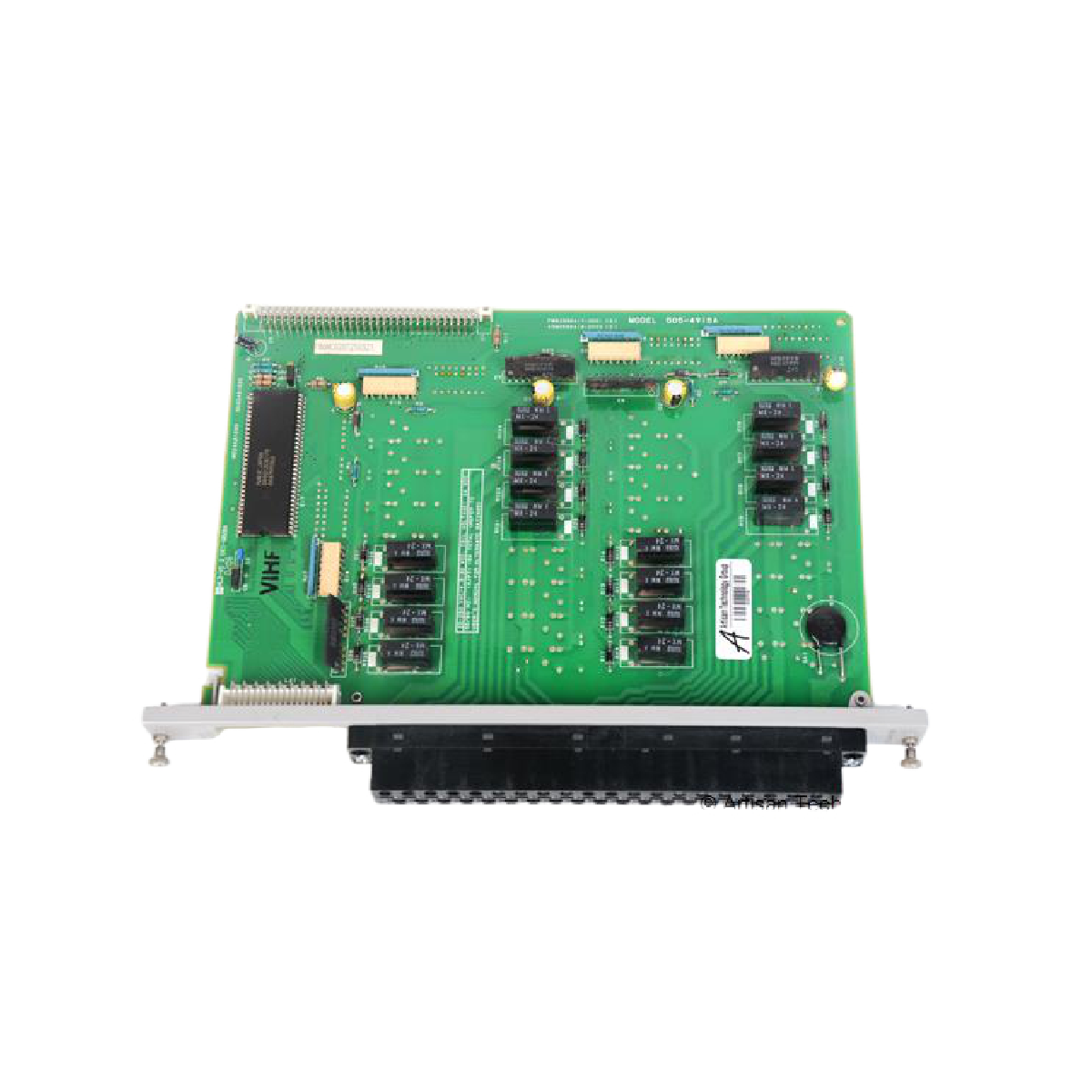

The Siemens 505-4916A Relay Output Module is part of the 505 Series I/O Modules, offering reliable and flexible relay outputs for industrial automation. Moreover, it provides 16 output points with isolated commons, allowing each relay to switch AC or DC power safely. In addition, its design reduces susceptibility to inductive load transients, ensuring stable operation in motor or solenoid control applications. Engineers prefer this module for systems requiring precise switching and high isolation.
Key Features
- Output Points: 16 relay outputs for flexible control of AC and DC loads.
- AC/DC Compatibility: Supports both AC and DC voltage for versatile applications.
- Isolated Commons: Four isolated commons allow independent switching for multiple channels.
- Transient Protection: Minimizes effects of inductive load switching, improving system reliability.
- Compact Industrial Design: Fits efficiently into standard control racks.
Therefore, this module delivers robust performance in demanding industrial environments. Furthermore, it integrates smoothly with other Siemens 505 Series modules for scalable automation systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 505-4916A |
| Product Family | 505 Series |
| Module Type | Relay Output Module |
| Output Points | 16 |
| Voltage Compatibility | AC and DC |
| Isolation | Four isolated commons |
| Net Weight | Approx. 0.5–0.6 kg |
| Country of Origin | Germany |
| Lifecycle Status | Active / Supported |
Applications
The 505-4916A module is ideal for:
- Leak-Free Output Control: Ensures no leakage in off-state for precise applications.
- Inductive Load Management: Controls motors, solenoids, and other inductive devices.
- Isolated Load Currents: Protects systems by isolating multiple channels.
- Versatile Voltage Handling: Operates with both AC and DC loads simultaneously.
As a result, industrial automation systems gain reliable and safe relay switching for critical processes. Moreover, engineers can expand or combine modules to suit complex I/O requirements.
FAQ
Q1: Is the Siemens 505-4916A module original and ready to ship?
Yes, it is 100% Siemens original, available in stock, with dispatch time 3 days–2 weeks depending on order size.
Q2: Can I control both AC and DC loads with this module?
Absolutely. The 505-4916A supports both AC and DC switching, and each isolated common can handle multiple points independently.
Q3: What logistics and returns are supported?
We ship via DHL or FedEx, and any quality issue is supported by a 30-day return policy.
Details
| Weight | 0.7 kg |
|---|
