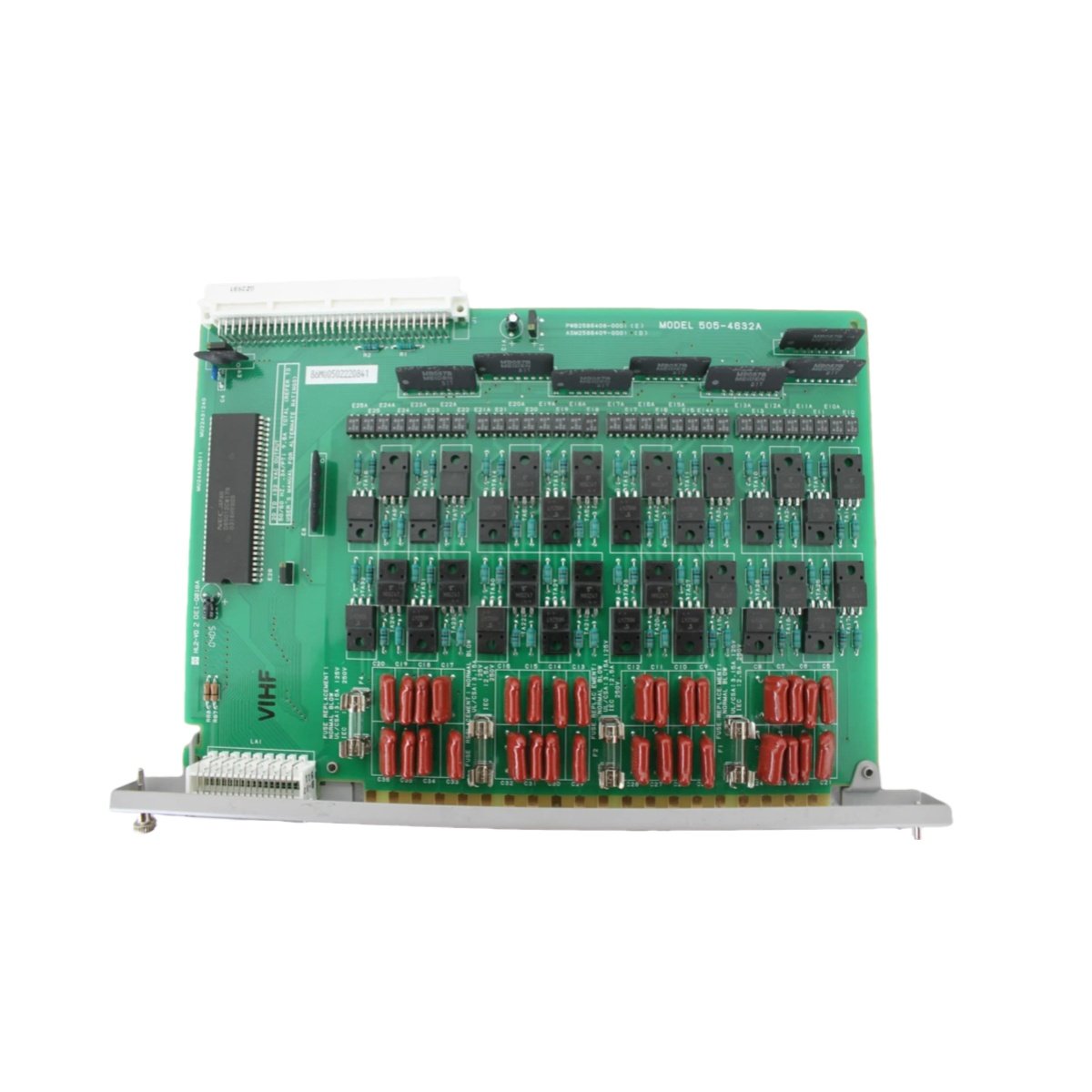

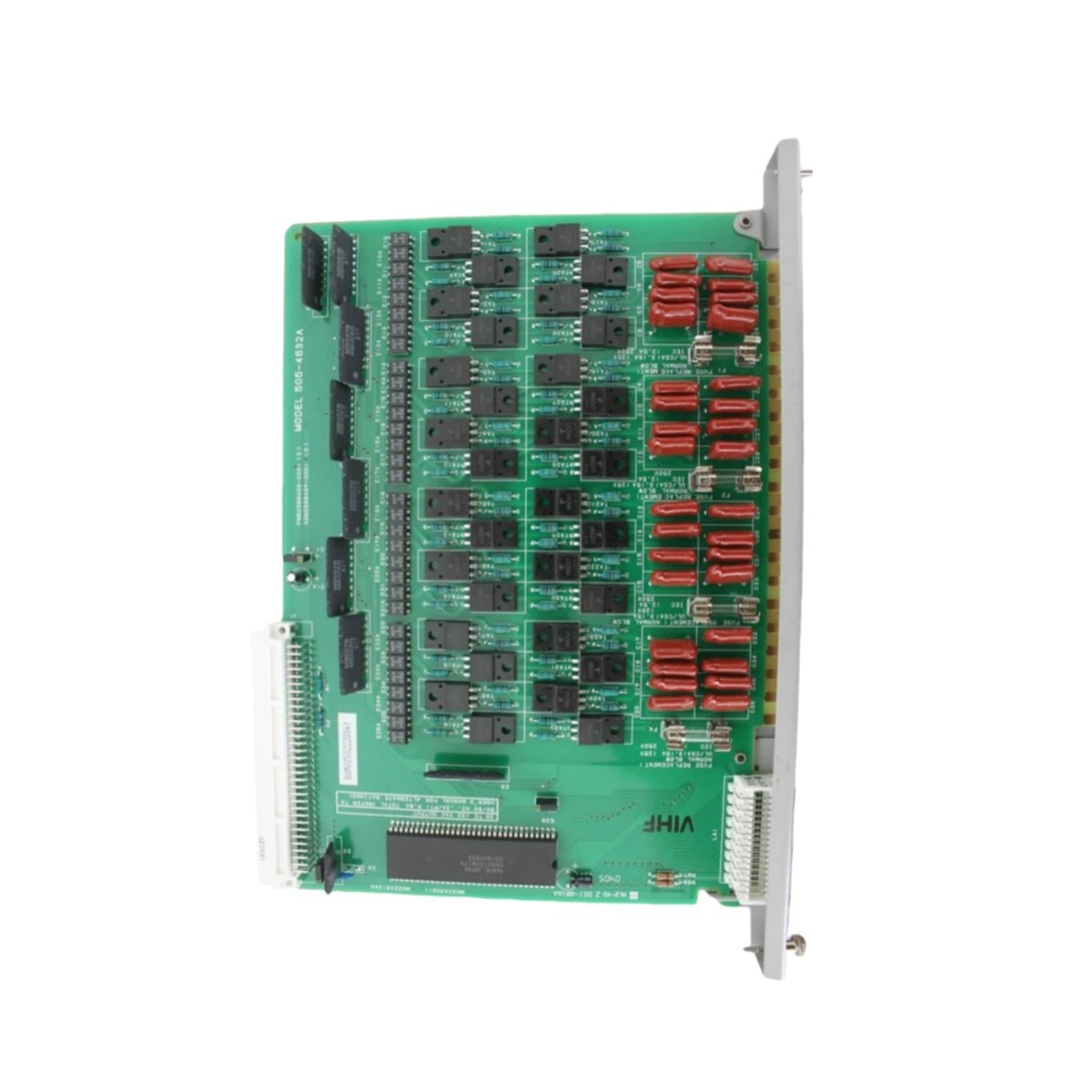

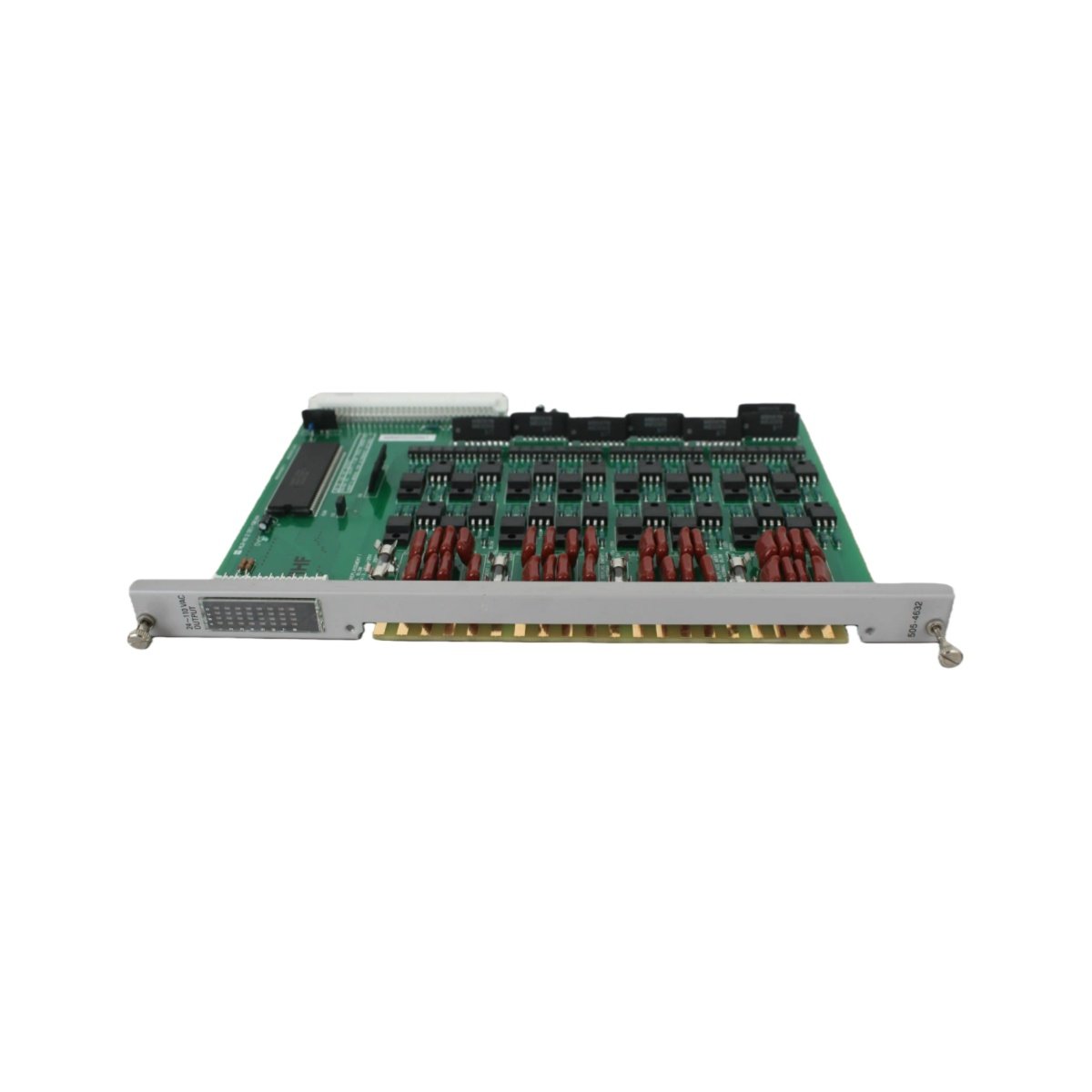

The Siemens 505-4632 functions as a digital output module within the TI505 PLC system. Siemens designed this module for driving AC loads across industrial automation applications. This component delivers reliable switching capabilities for demanding control environments.

Output Configuration and Voltage Range

This module provides 32 discrete output points for controlling field devices. It operates across a wide voltage range from 24 to 110 VAC. Therefore, users can interface with various AC-powered solenoids, contactors, and indicator lamps.

Technical Specifications

Channel Architecture and Protection

The Siemens 505-4632 features individual suppression circuitry on each output channel. This design protects connected devices from voltage spikes during switching operations. Moreover, optical isolation separates the logic side from field wiring for enhanced reliability.

Interface Configuration

This module utilizes two 50-pin ribbon cable connectors for field wiring connections. These connectors allow quick termination of field devices using standard TI505 cabling systems. The straightforward interface simplifies installation and reduces wiring errors.

Physical Characteristics

Measuring approximately 11.2 inches in length and 4.1 inches in width, this module occupies a single slot in the TI505 chassis. It weighs roughly 0.95 lbs, making it easy to handle during installation procedures. The compact form factor allows efficient use of available rack space.

System Integration

This output module belongs to the TI505 programmable controller product family. It integrates seamlessly with TI505 CPU modules and other I/O boards. Consequently, users can build comprehensive control solutions for AC load switching applications. The Siemens 505-4632 provides essential output capacity for facilities operating Siemens TI505 systems requiring reliable AC switching capabilities.
