Overview

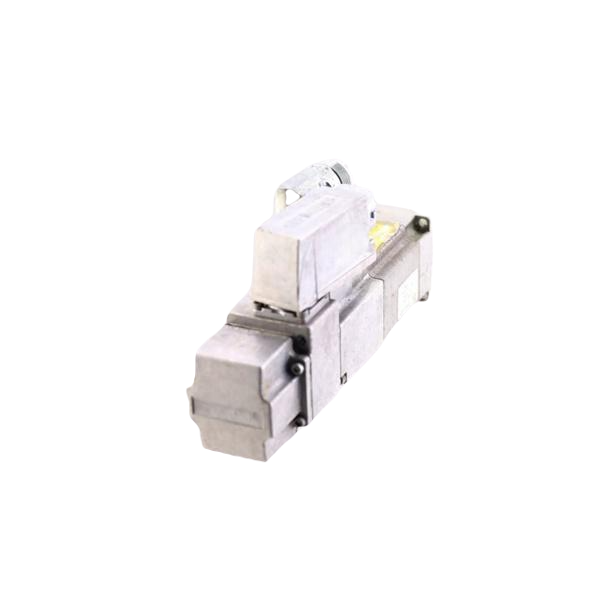

The Siemens SIMOTICS S 1FK7022-5AK71-1LH0 belongs to the SIMOTICS S 1FK7 series of compact synchronous servo motors. It delivers precise torque performance and dynamic speed for demanding automation applications. This motor ensures consistent operation in limited installation spaces while maintaining high reliability.
Key Features
- Rated power output: 0.38 kW with efficient torque delivery
- Maximum speed of 6000 rpm supports dynamic motion profiles
- Holding brake on plain shaft ensures secure stopping capability
- Absolute encoder AM20DQ with 20-bit single-turn and 12-bit multi-turn resolution
- Flexible 270° rotatable connector enables easy installation
- Designed for dust-tight and splash-resistant environments with IP64 protection
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 1FK7022-5AK71-1LH0 |
| Motor Type | SIMOTICS S synchronous servo motor, 1FK7 series |
| Torque | 0.85 Nm |
| Rated Speed | 6000 rpm |
| Rated Power | 0.38 kW |
| Temperature Rating | 100K |
| Cooling Type | Natural convection |
| Encoder | Absolute encoder AM20DQ, Drive-CLiQ interface, 20-bit + 12-bit MT |
| Derating | 10% derating due to encoder |
| Shaft | Plain shaft, tolerance N, with holding brake |
| Protection Rating | IP64 |
| Frame Size | IMB 5 (IM V1, IM V3) |
| Flange | Flange 1 |
| Net Weight | 2.002 kg |
| Country of Origin | Romania |
| Commodity Code | 85015100 |
| Article Number | 1FK7022-5AK71-1LH0 |
| Product Lifecycle | PM300 (Active Product) |
| Estimated Dispatch Time | 15 working days |
Mechanical and Design Details
The 1FK7022-5AK71-1LH0 features a robust IMB 5 frame design with optional vertical mounting configurations IM V1 and IM V3. Its plain shaft, fitted with a holding brake, enhances reliability during precision positioning tasks. The motor includes Flange 1 mounting for simplified integration in diverse mechanical setups.
Encoder and Connectivity
The integrated AM20DQ absolute encoder offers high-resolution feedback with Drive-CLiQ compatibility, ensuring precise motor control. The rotatable connector allows 270° movement, which simplifies cable routing and installation within confined automation environments.
Compliance and Standards
The Siemens 1FK7022-5AK71-1LH0 meets multiple compliance standards:
- RoHS compliant since 22/07/17
- WEEE (2012/19/EU) with take-back obligation
- REACH registered under SCIP number 2e642d78-90cb-4e2f-bf9d-79f18de4bf60
- Classified under eClass 27-02-26-02 and ETIM EC001851
Details
| Weight | 2.002 kg |
|---|
