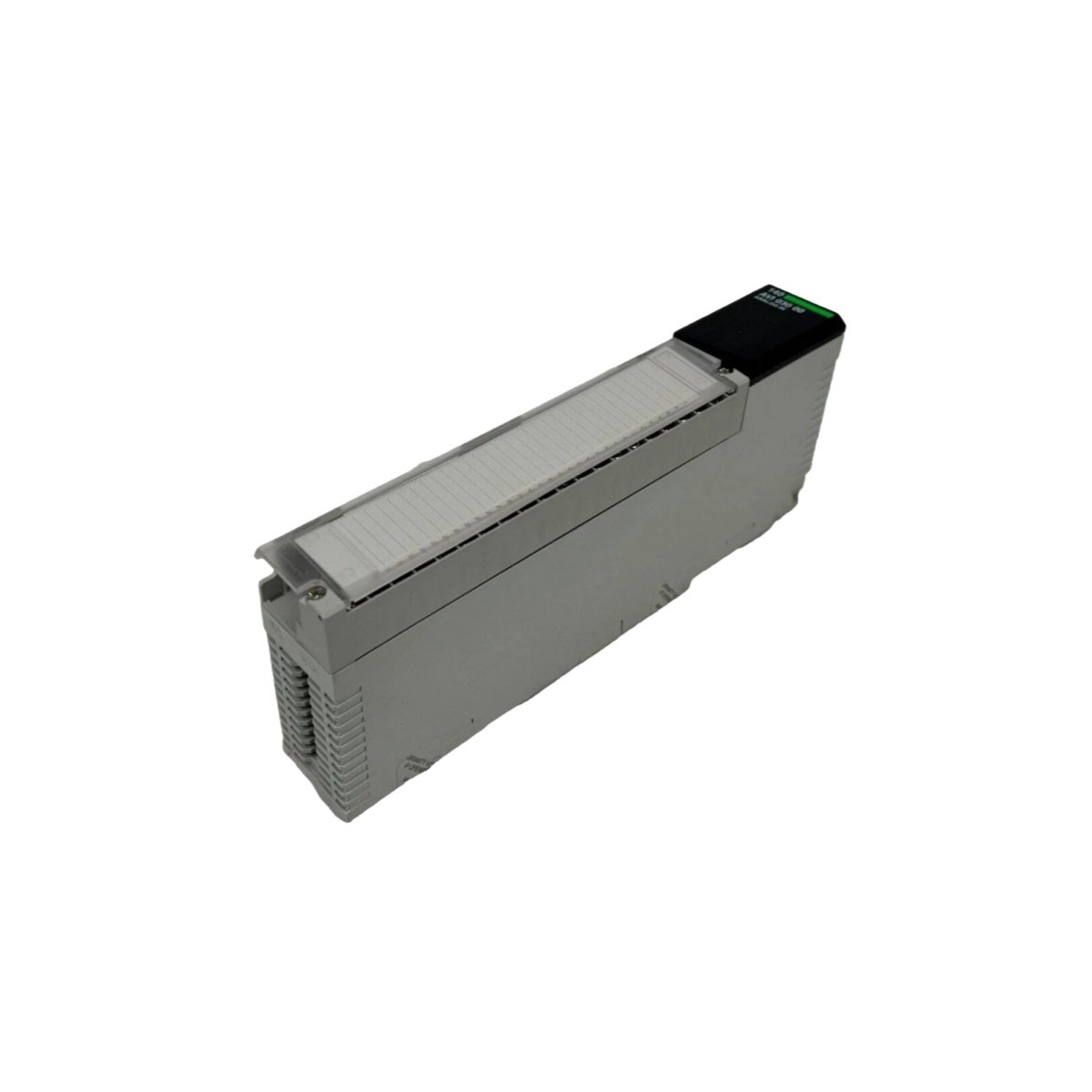

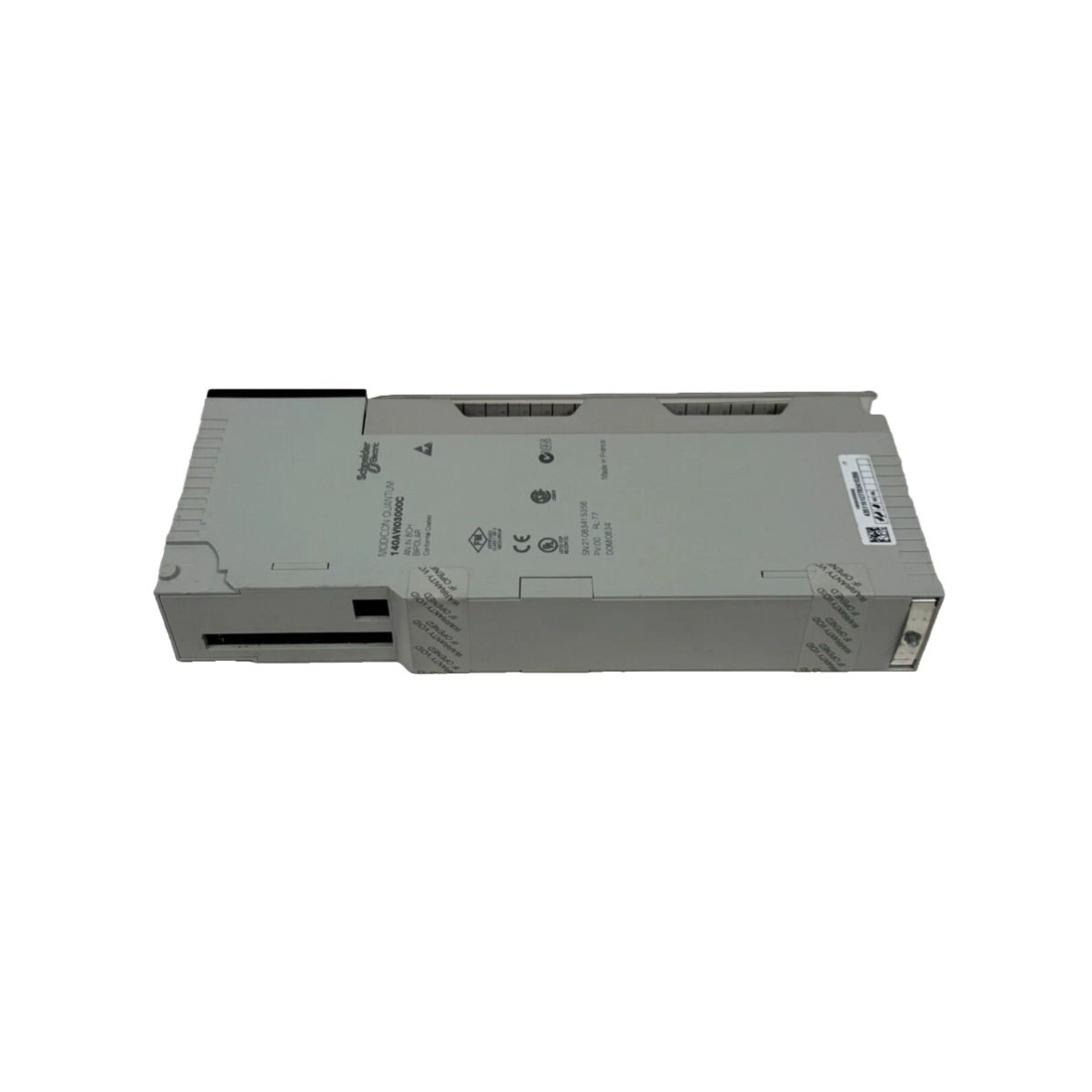

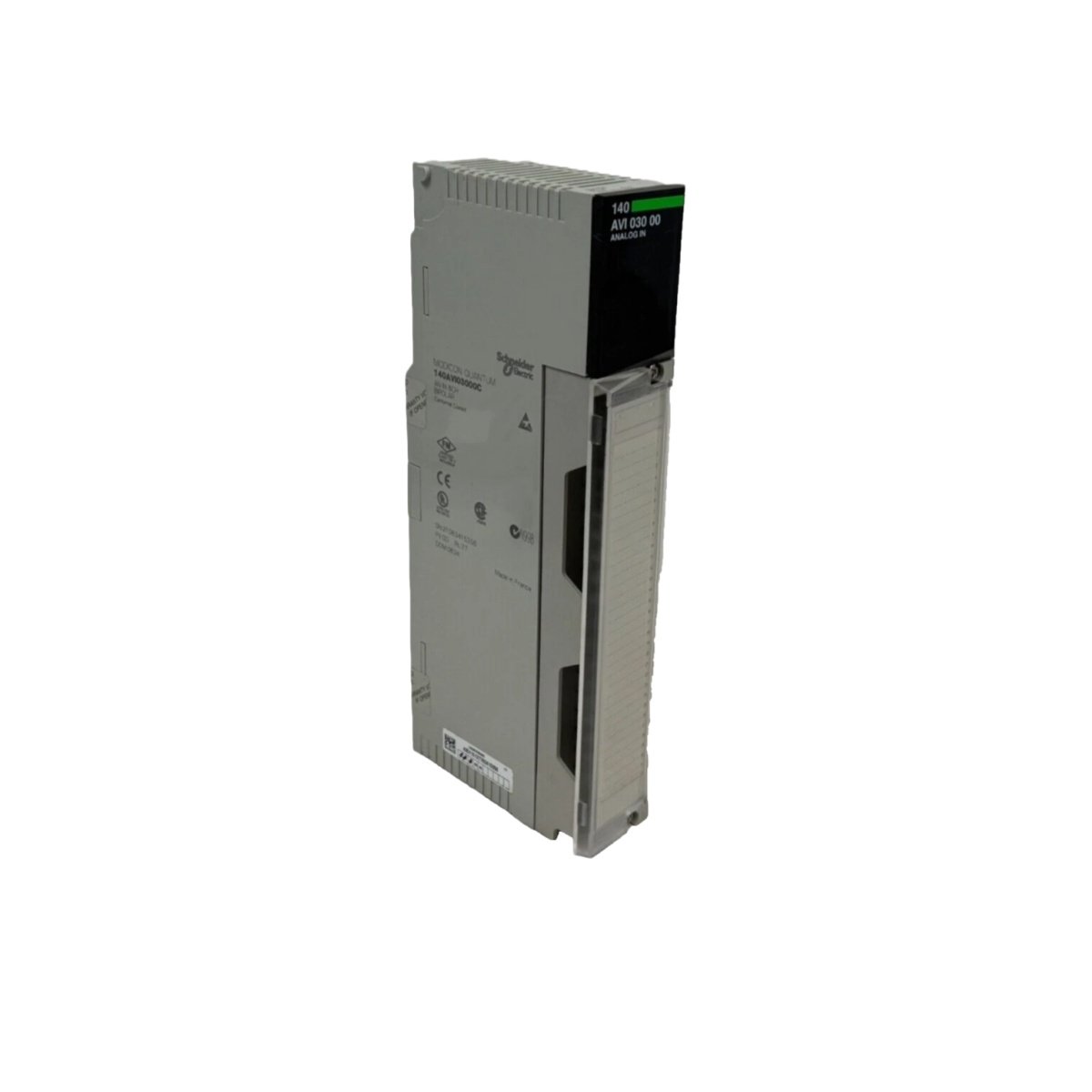

The Schneider 140AVI03000C serves as a high-performance analog input module for the Modicon Quantum automation platform. It provides seamless integration for processing various industrial analog signals with exceptional accuracy. This module ensures reliable data acquisition from field devices like sensors and transmitters.

Advanced Signal Conversion and Channel Configuration

We design this module to convert multiple analog signals into digital values for the PLC processor. It features eight individually isolated differential analog input channels for superior signal integrity. Each channel can accept voltage ranges from 0 to 10 VDC or current ranges from 4 to 20 mA. This flexibility allows engineers to connect diverse field instruments without additional signal conditioners.

Technical Specifications and Physical Characteristics

The 140AVI03000C utilizes a 12-bit resolution analog-to-digital converter for precise measurements. It includes built-in isolation between channels, protecting the backplane from electrical noise. This isolation ensures accurate readings even in electrically noisy industrial environments. The module integrates directly into any standard Quantum rack.

• Input Channels: 8 differential isolated analog inputs

• Input Ranges: 0–10 VDC, 4–20 mA (selectable per channel)

• Resolution: 12 bits (including sign) for high precision

• Conversion Speed: Fast update rate for real-time control applications

• Backplane Current: 350 mA from 5 VDC; 200 mA from 24 VDC

• Dimensions: Standard Modicon Quantum format (height: 102 mm, depth: 104 mm)

• Weight: Approximately 0.40 kg (0.88 lb)

• Isolation: 500 VDC between channels and backplane

Seamless Integration with Quantum Automation Systems

You can configure this module easily using the Unity Pro or Concept software platforms. The Schneider 140AVI03000C automatically communicates with the Quantum central processing unit. It supports both high-density and mixed I/O configurations within the same rack. Therefore, system designers enjoy maximum flexibility for expanding control systems.

Furthermore, this module excels in applications requiring precise process monitoring. Industries like water treatment, chemical processing, and manufacturing benefit from its reliability. The module’s diagnostic features help operators quickly identify wiring or configuration errors. This capability minimizes downtime and ensures continuous production flow.

We source this precision module from Schneider Electric, a trusted global manufacturer of automation solutions. As part of the Modicon Quantum series, it guarantees compatibility with existing and new installations. Choosing the 140AVI03000C means investing in accurate data acquisition for critical processes.

Technical Specifications Overview
