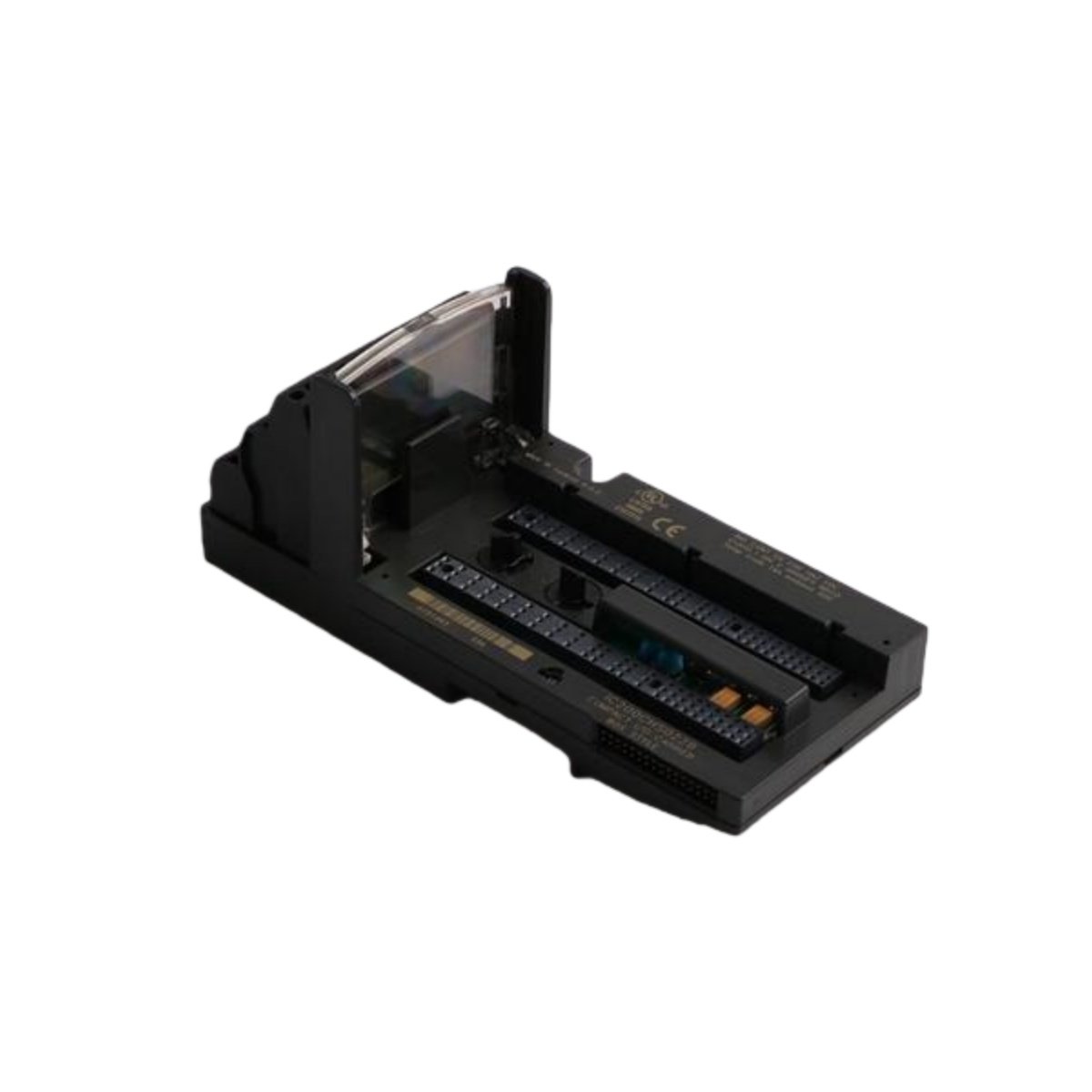

The GE IC200MDL742 functions as a high-density output module for the VersaMax automation platform. Unlike dedicated protection devices such as the RMS-TSG-TZ-C Static Trip Unit from Sie-mens, this module focuses on switching DC loads with integrated protection. It provides 32 points of positive logic output for controlling solenoids, indicators, and contactors. Engineers rely on this module for reliable signal delivery in demanding industrial applications. This unit truly exemplifies GE’s commitment to intelligent and protected output control.

Key Technical Specifications

We engineer the IC200MDL742 to deliver robust switching performance with comprehensive electronic protection. The following table outlines its core technical parameters for precise system integration.

High-Density Output with Individual Point Protection

The primary strength of the IC200MDL742 lies in its 32 output points with per-point electronic protection. Each output includes Electronic Short Circuit Protection (ESCP) that automatically disconnects faulty loads. Consequently, a single short circuit on one point will not shut down the entire group or module. This intelligent protection allows the remaining 31 outputs to continue operating normally. The module truly provides the reliability needed for critical machinery where uptime is essential.

Fast Response for Precise Control

We designed the IC200MDL742 with rapid switching capabilities for time-sensitive applications. It delivers an output response time of just 0.5 ms for both turn-on and turn-off transitions. Therefore, this module excels in high-speed packaging lines, sorting systems, and precision assembly equipment. The fast response ensures accurate timing for glue applicators, cutters, and diverters. You can achieve tighter process control with this responsive output module.

Comprehensive Diagnostic Indication

The IC200MDL742 provides extensive visual feedback through its front panel LED indicators. A dedicated LED per point shows the exact logic state of each individual output. Additionally, the FLD PWR LED confirms that external 24 VDC field power is present at the module. The OK LED illuminates to verify proper backplane power and module communication. These indicators allow technicians to quickly diagnose wiring issues or logic problems without specialized tools.

Rugged Protection Features for Industrial Loads

This output module incorporates multiple protection mechanisms for long-term reliability. Free-wheeling diodes across each output suppress voltage spikes from inductive loads like relays and solenoids. Furthermore, overcurrent protection prevents damage from sustained overload conditions on any single point. The module also handles 2.0 A inrush currents for 100 ms, accommodating lamp loads and capacitive startup. These features ensure the IC200MDL742 survives the harsh electrical environments typical of industrial control panels.

Grouped Commons and Power Requirements

The 32 outputs organize into two isolated groups of 16 points, each with its own common connection. This grouping allows different field supply voltages or enables mixing of AC and DC loads with external isolation. Each group requires an external 18-30 VDC power supply capable of delivering the total load current. The module itself draws only 150 mA from the 5 VDC backplane, minimizing impact on the rack power budget. This efficient design supports dense I/O configurations without overloading the system power supply.
