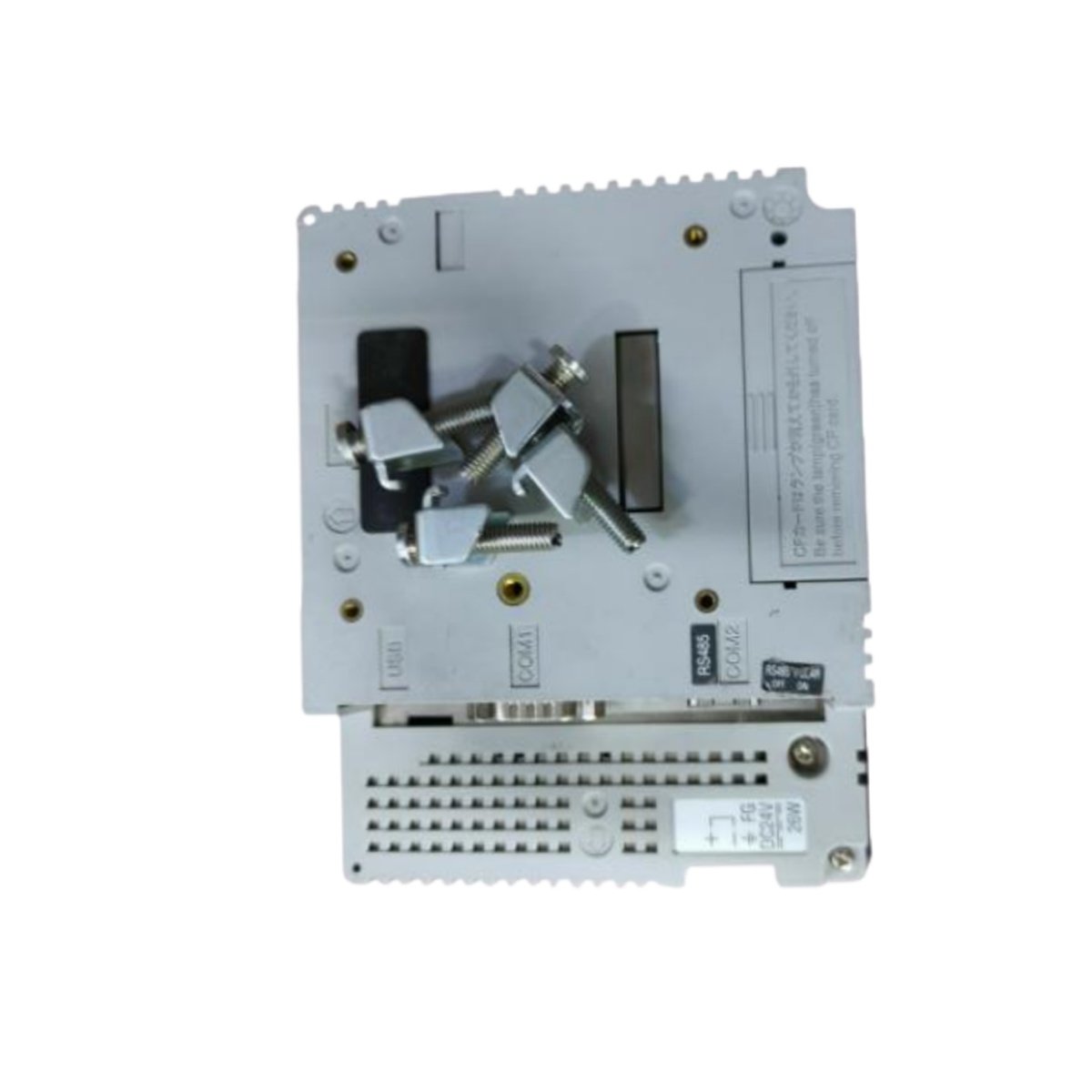

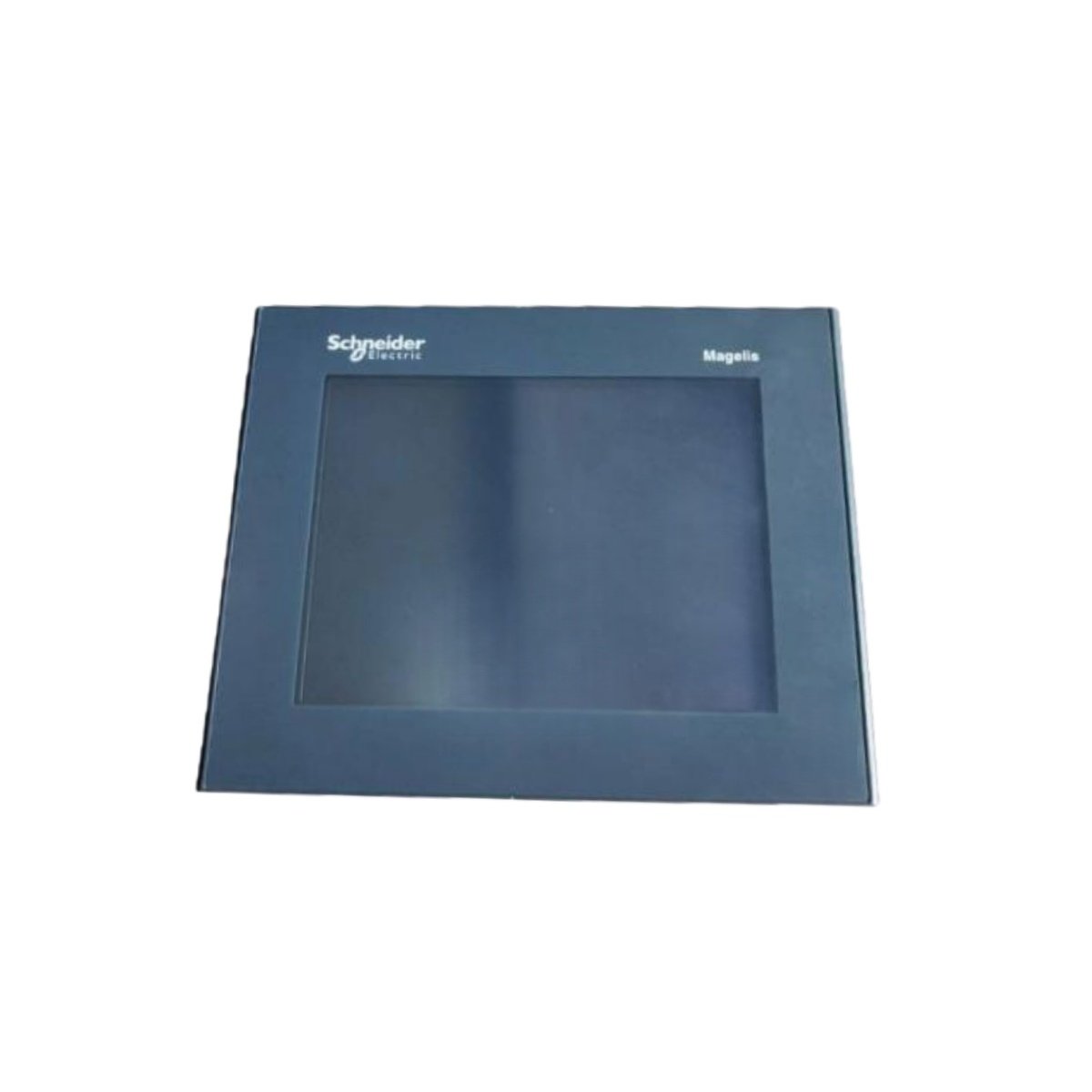

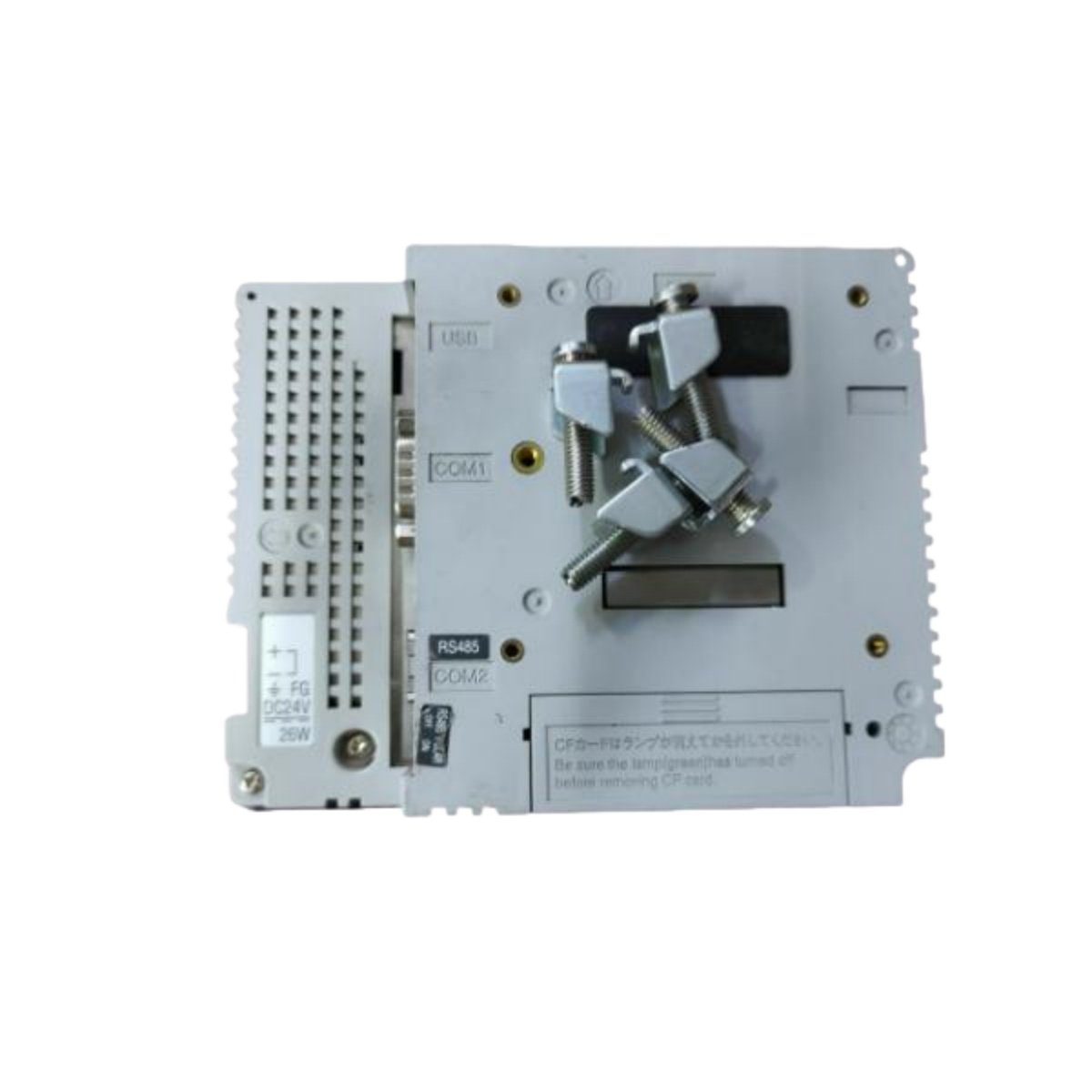

Schneider Electric designed the Magelis XBTGT2220 for reliable industrial visualization. This advanced touchscreen panel features a 5.7-inch color STN LCD display. The panel offers clear visualization with a QVGA resolution of 320 x 240 pixels.
Display Performance and Touch Interface
The XBTGT2220 display supports 4096 colors for detailed process graphics. Users can adjust both brightness and contrast across eight levels via the touch panel. Furthermore, the analogue resistive touch panel provides a sensitive zone of 1024 x 1024 points.
This Magelis panel boasts a long backlight lifespan of 75,000 hours. It supports multiple character fonts, including ASCII and various Asian languages. The unit delivers robust performance in demanding factory environments.
Hardware Specifications and Durability
A RISC CPU running at 133 MHz powers the XBTGT2220 panel efficiently. The device includes 512 kB of SRAM for application data and runtime. A lithium battery reliably backs up this critical data during power cycles.
The panel requires a 24 V DC external power supply for operation. It offers strong resistance to electrostatic discharges up to 6 kV. You can install it in a panel cut-out measuring 156(+1.1-0) x 123.5(+1.1-0) mm.
| Parameter Category | Specification |
|---|---|
| Manufacturer & Series | Schneider Electric Magelis XBTGT |
| Part Number | XBTGT2220 |
| Product Type | Advanced Touchscreen Panel |
| Display | 5.7-inch STN LCD, 4096 colors |
| Display Resolution | 320 x 240 pixels (QVGA) |
| Touch Panel | Analogue Resistive |
| Touch Resolution | 1024 x 1024 points |
| Backlight Lifespan | 75,000 hours |
| Adjustable Settings | 8-level Brightness & Contrast |
| Processor | RISC CPU @ 133 MHz |
| Memory | 512 kB SRAM with battery backup |
| Supply Voltage | 24 V DC |
| ESD Protection | 6 kV (IEC 61000-4-2 Level 3) |
| Cut-out Dimensions | 156(+1.1-0) x 123.5(+1.1-0) mm |
| Software | Vijeo Designer (Configuration) |
| Operating System | Magelis |
Details
| Weight | 0.48 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
