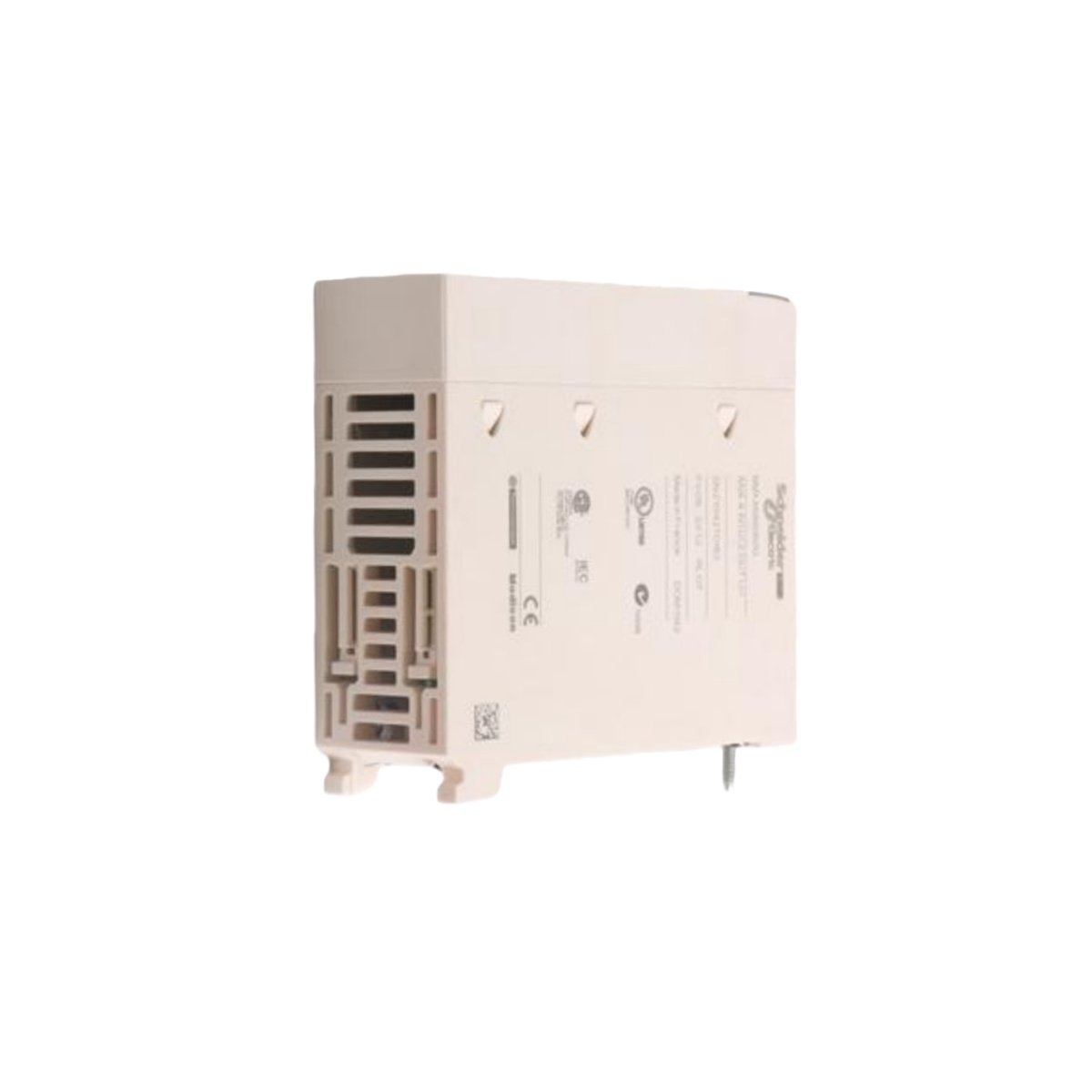

The Schneider USP2I provides integrated motion control for industrial automation systems. This versatile module functions as both a dedicated two-axis positioning controller and a CPU slave. It handles precise trajectory planning and control for stepper or servo motors. Moreover, its slave architecture enables seamless integration into larger master controller networks.
Manufacturer Schneider Electric designed this module for coordinated motion applications. The USP2I executes complex positioning sequences independently from the main PLC. For complete system safety, integrate it with protective devices like the RMS TSG TZ C Static Trip. These complementary safety relays are available from suppliers on Alibaba.
Core Technical Specifications and Motion Control Capabilities
The module manages two independent axes with high-speed pulse output. It supports various motion profiles including linear interpolation and circular arcs. Consequently, it enables precise coordination for applications like pick-and-place or CNC routing. The unit also includes dedicated high-speed inputs for encoder feedback and homing signals.
Detailed Technical Parameter Table
| Parameter | Specification / Description |
|---|---|
| Manufacturer / Brand | Schneider Electric |
| Product Model / Series | USP2I (Positioning Module) |
| Module Type | Intelligent Positioning & CPU Slave |
| Primary Functions | 2-Axis Motion Control, Network Slave Unit |
| Control Axes | 2 independent axes |
| Command Output | Pulse and direction signals (differential line driver) |
| Maximum Output Frequency | Up to 500 kHz per axis |
| Feedback Inputs | Dedicated high-speed inputs for encoder (A/B/Z) |
| Number of Dedicated I/O Points | Typically 8 inputs and 8 outputs (configurable) |
| Communication Interface | Modbus Serial (RS-485) or other fieldbus via adapter |
| Network Slave Protocols | Modbus, CANopen, PROFIBUS-DP (with appropriate gateway) |
| Power Supply Requirement | 24V DC (±10%) |
| Module Power Consumption | Typically 10 Watts (max) |
| Operating Temperature Range | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature Range | -25°C to +70°C |
| Physical Dimensions (W x H x D) | Approx. 80mm x 100mm x 70mm (varies) |
| Module Weight | Approximately 0.4 kg |
| Mounting Style | DIN-rail mountable |
| Program Memory | Integrated non-volatile memory for motion programs |
| Supported Motion Modes | PTP (Point-to-Point), Velocity, Homing, Gearing, Cam |
| Interpolation Modes | Linear and circular interpolation for 2-axis coordination |
| Isolation | Optical isolation for I/O and communication lines |
| Certifications | CE, cULus |
| Typical Lead Time | 4-6 weeks (subject to stock) |
| Primary Industry Applications | Packaging Machinery, Textile Equipment, Assembly Robots, Material Transfer Systems |
Application Benefits and Integration Features
This module offloads complex motion calculations from the main system CPU. Its slave capability allows easy integration into existing PLC or PC-based control architectures. The compact design saves panel space while delivering dedicated performance. Therefore, the Schneider USP2I is an efficient solution for adding precision multi-axis motion to industrial machines.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
