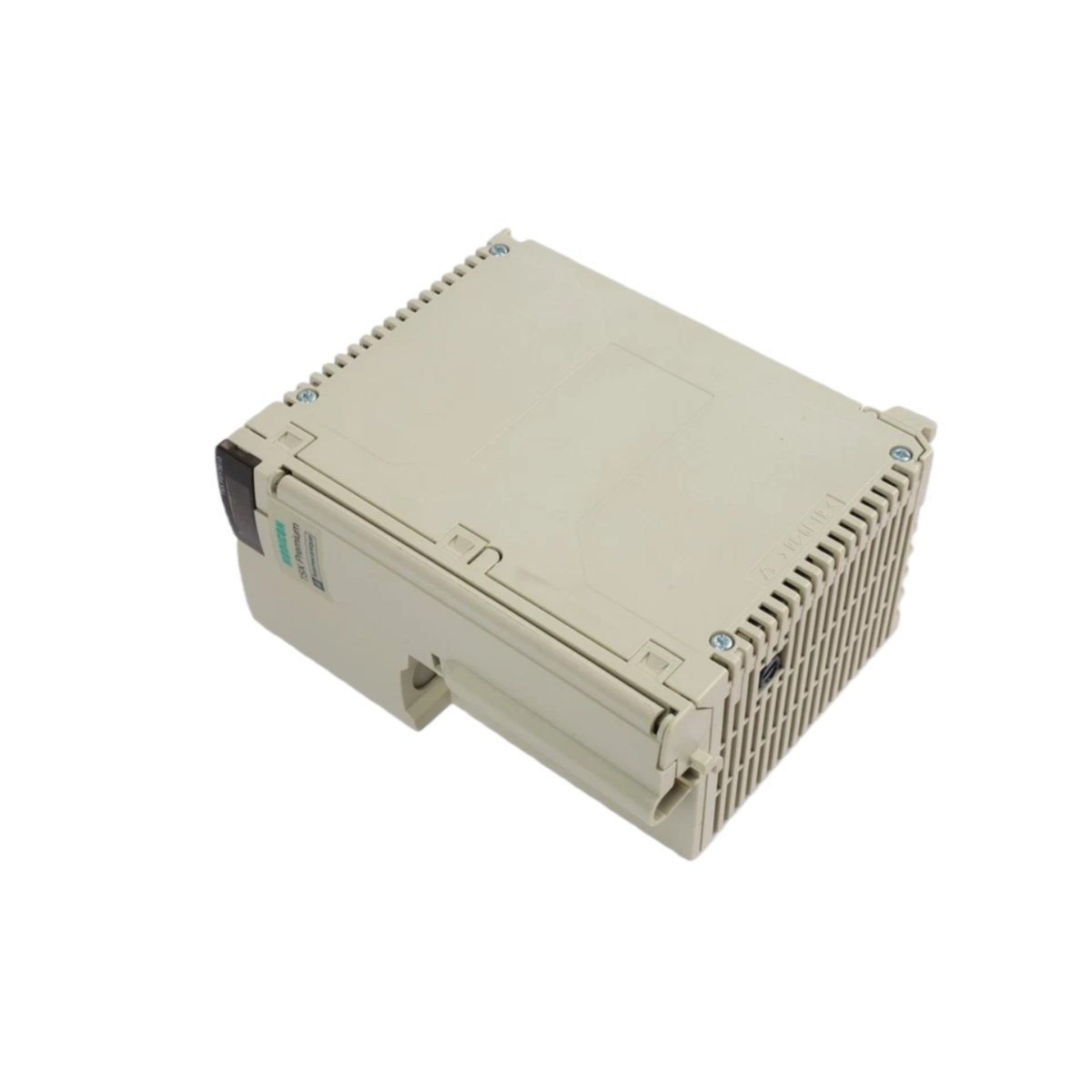

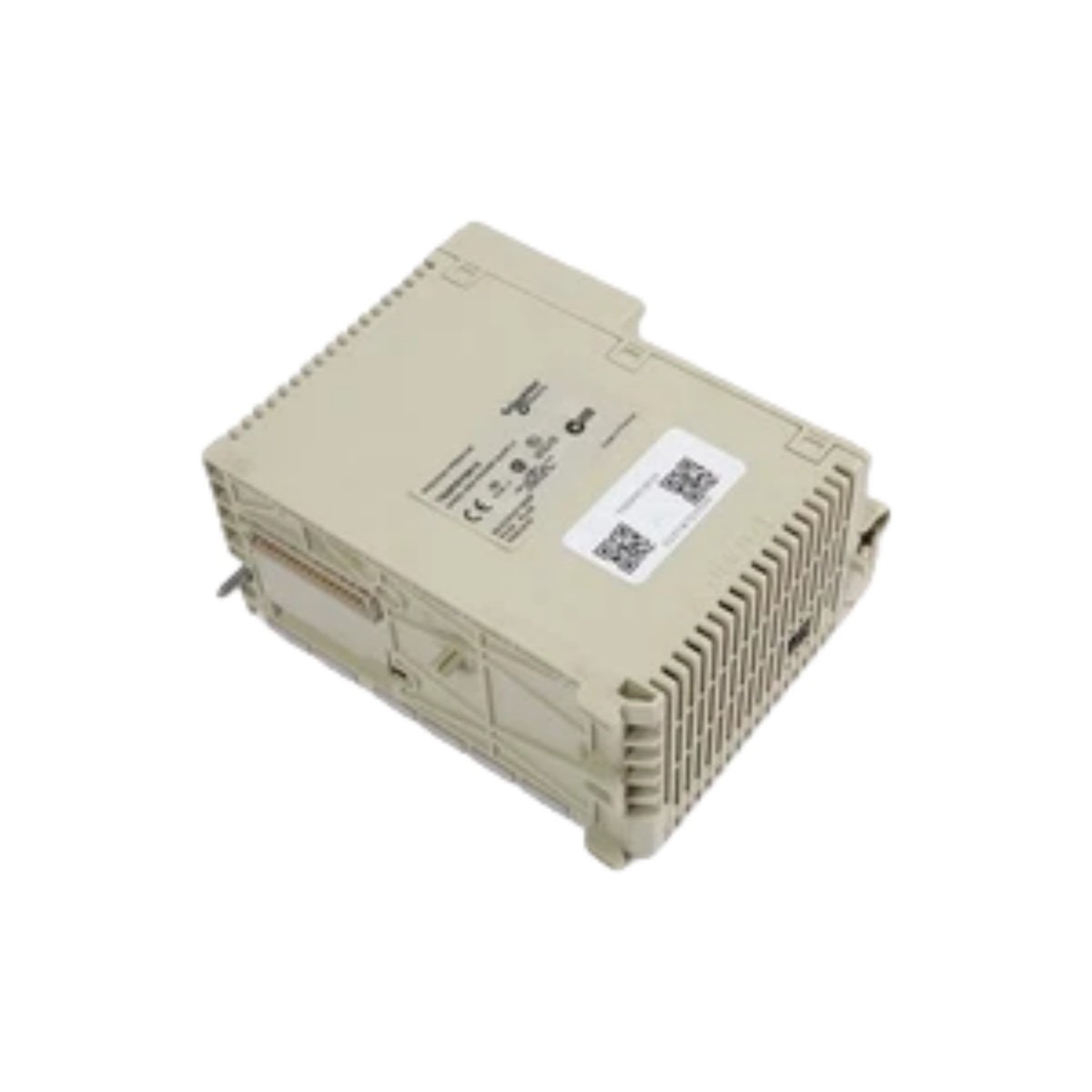

The Schneider TSXPSY3610MC functions as a dedicated power supply module for Modicon Premium automation platform racks. We engineer this module to provide clean, regulated DC power to all modules within the Premium chassis. Its robust design ensures reliable operation of processors, I/O modules, and communication interfaces. This power supply module maintains system stability through consistent voltage delivery under varying load conditions.

Key Features and Power Distribution Benefits

The Schneider TSXPSY3610MC delivers reliable power through its high-efficiency switch-mode design and comprehensive protection features. This module accepts standard industrial AC input and converts it to the DC voltages required by Premium modules. Consequently, it provides stable power even during input voltage fluctuations or transient events. Furthermore, the module includes built-in overload and short-circuit protection for connected equipment safety.

Detailed Technical Specifications

Manufacturers construct the Schneider TSXPSY3610MC using industrial-grade components for continuous operation in demanding environments. The power supply measures approximately 130 millimeters in height, 40 millimeters in width, and 120 millimeters in depth. Its compact form factor occupies a single Premium rack slot while providing ample power for the entire system. Additionally, the module features status indicators for input power present, DC output OK, and overload conditions.

Power Conversion and Regulation

The TSXPSY3610MC performs efficient AC-to-DC conversion with tight output voltage regulation. Its switch-mode design minimizes heat generation while delivering consistent power to all rack modules. The module maintains output voltage within specified limits despite variations in input voltage or load current. Therefore, sensitive electronics receive clean, stable power for reliable operation.

Premium Rack Integration

Engineers designed the Schneider TSXPSY3610MC for seamless integration into Modicon Premium automation racks. It plugs directly into the designated power supply slot at the left side of the rack. The module connects to the rack backplane for power distribution to all installed modules. Consequently, it provides the foundation for reliable Premium system operation.

Protection Features and System Safety

The Schneider TSXPSY3610MC incorporates multiple protection features to safeguard both itself and connected modules. Electronic overload protection limits output current during fault conditions without damaging the supply. Short-circuit protection shuts down the output until the fault clears, then automatically recovers. These features ensure system safety and minimize downtime due to external wiring problems.

Industrial Applications and Use Cases

Manufacturing facilities worldwide rely on the Schneider TSXPSY3610MC for reliable Modicon Premium system power. Automotive plants use this module to power assembly line control systems requiring high availability. Process industries employ it for continuous process control applications where power stability is critical. This power supply ensures reliable operation in all these demanding applications.

Installation Guidelines and Best Practices

Proper installation of the Schneider TSXPSY3610MC ensures optimal performance and long-term reliability. First, insert the module into the leftmost slot of the Premium rack, securing it with the locking mechanism. Next, connect the AC input power to the module terminals following local electrical codes. Finally, verify proper output voltage and indicator status before installing other rack modules.

Maintain System Reliability with Genuine Schneider Components

Choosing the genuine Schneider TSXPSY3610MC guarantees proper power delivery and protection for your Premium system. Aftermarket power supplies may lack the precise regulation or protection features of authentic Schneider designs. Therefore, always source this power supply module from authorized Schneider Electric distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
