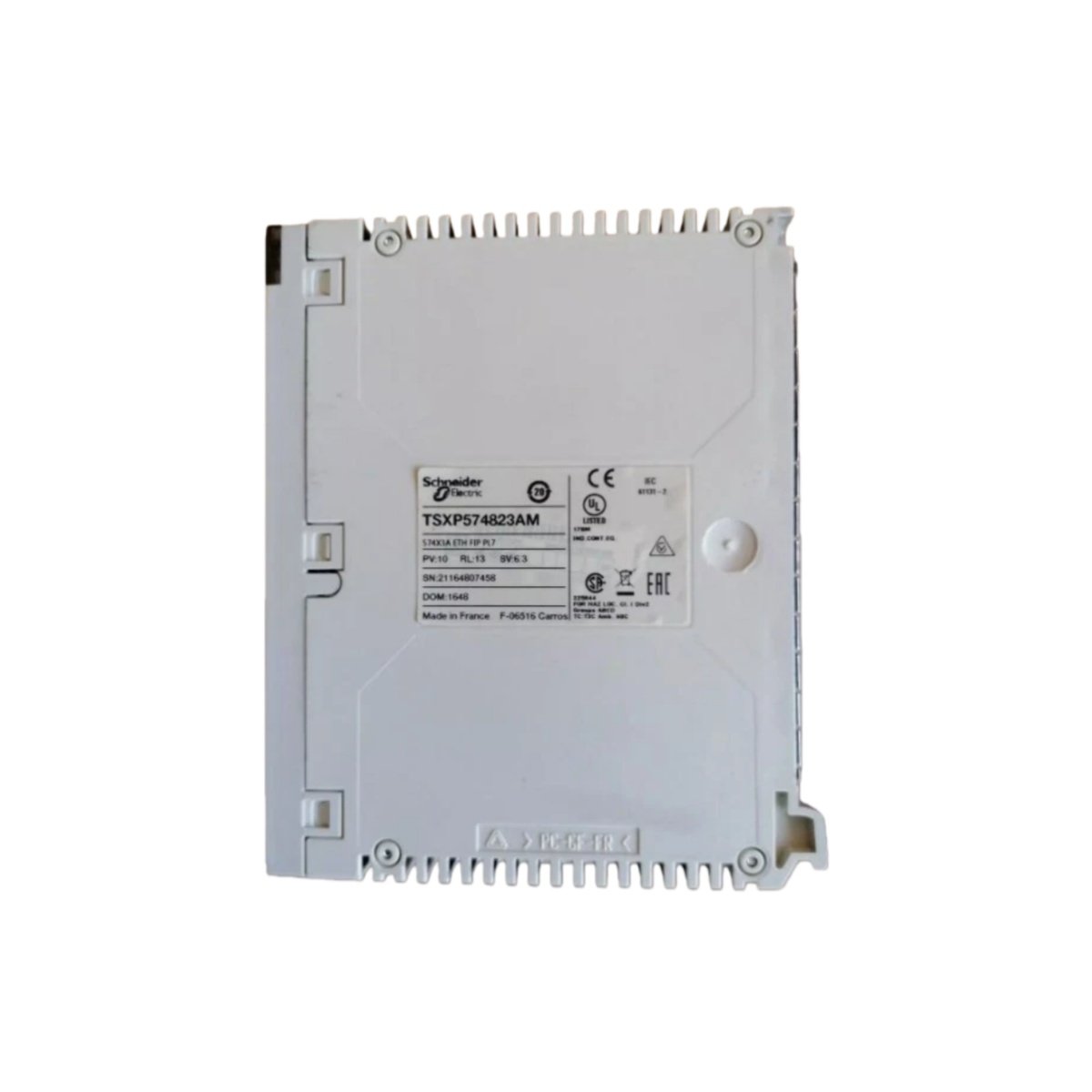

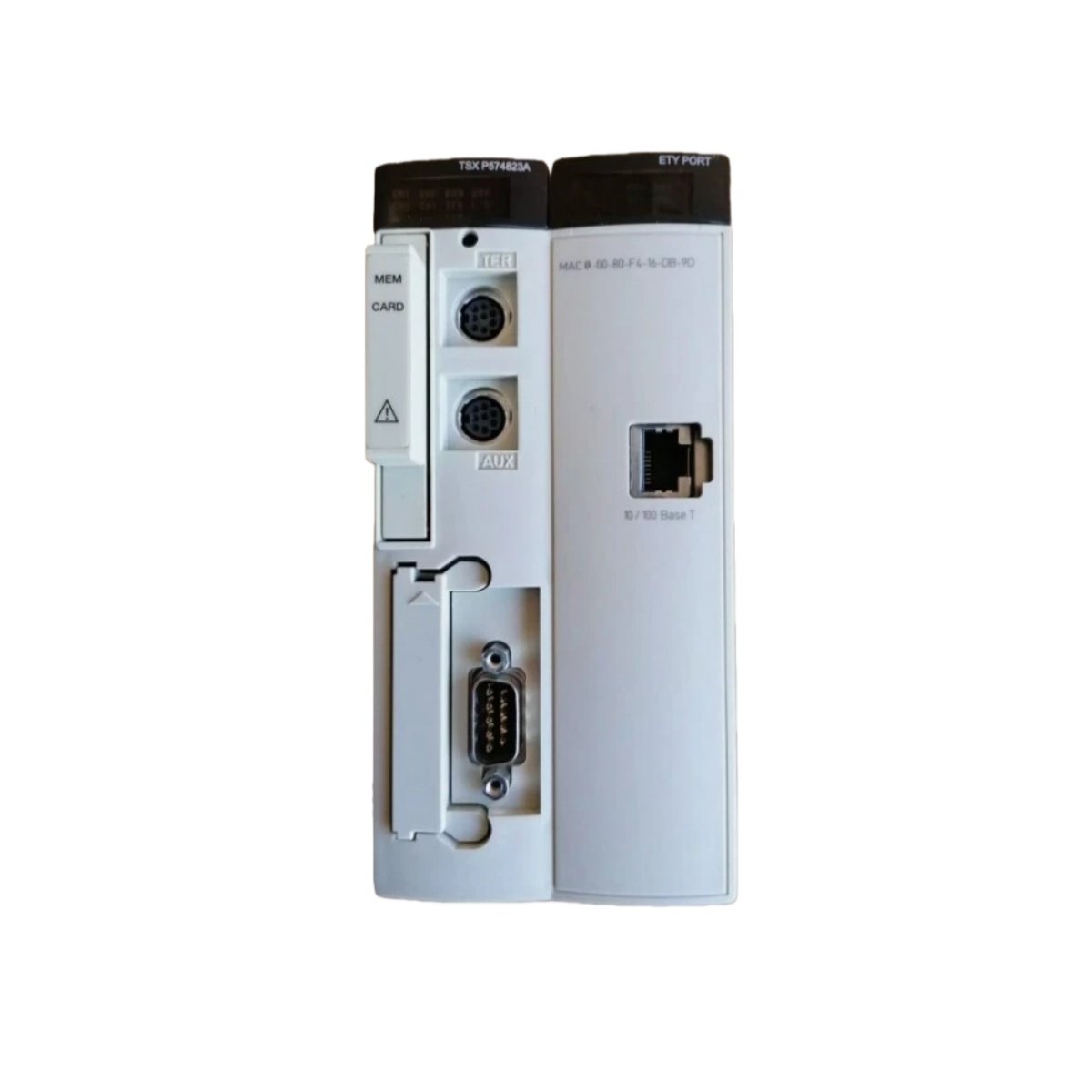

The Schneider TSXP574823 serves as a powerful processor module for Modicon Premium automation platforms. This unit delivers exceptional processing capacity for complex industrial applications requiring discrete, analog, and process control. You can deploy this module in demanding environments where reliable performance matters most.

Technical Specifications

Memory Configuration

Processing Performance

Extensive I/O Handling Capability

The TSXP574823 supports up to 2040 discrete I/O points and 256 analog I/O channels, accommodating large-scale automation applications. You can therefore manage entire production lines or complex machinery with a single processor. This capacity reduces system complexity and simplifies programming.

For specialized applications, the module handles ≤ 64 application-specific channels and ≤ 20 process control channels (up to 60 simple loops). This flexibility suits diverse industries including packaging, material handling, and continuous processing.

Flexible Memory Architecture

We equipped the TSXP574823 with a versatile memory system supporting various configuration options. Without a PCMCIA card, you have 96 Kwords for program and data storage. Adding a PCMCIA card provides 176 Kwords for data plus expanded program capacity.

The module accepts PCMCIA cards for significant expansion. You can add 2048 Kwords of additional data storage and 992 Kwords of program memory. This scalability allows the processor to grow with your application requirements.

Fast Processing for Time-Critical Tasks

The TSXP574823 achieves 0.22 ms fast task overhead, ensuring rapid response for high-speed applications. The 1.15 ms master task overhead efficiently handles broader control loops. You therefore maintain precise timing across all process functions.

PL7 Junior/Pro software provides a familiar programming environment for Modicon users. The Transparent Ready concept enables built-in web and network connectivity for modern industrial applications.

System Integration and Compatibility

This processor manages up to 16 racks with 4/6/8 slot configurations, or 8 racks with 12 slot configurations. The flexible rack support allows optimal I/O distribution across your control panel. You can position modules close to field devices for simplified wiring.
