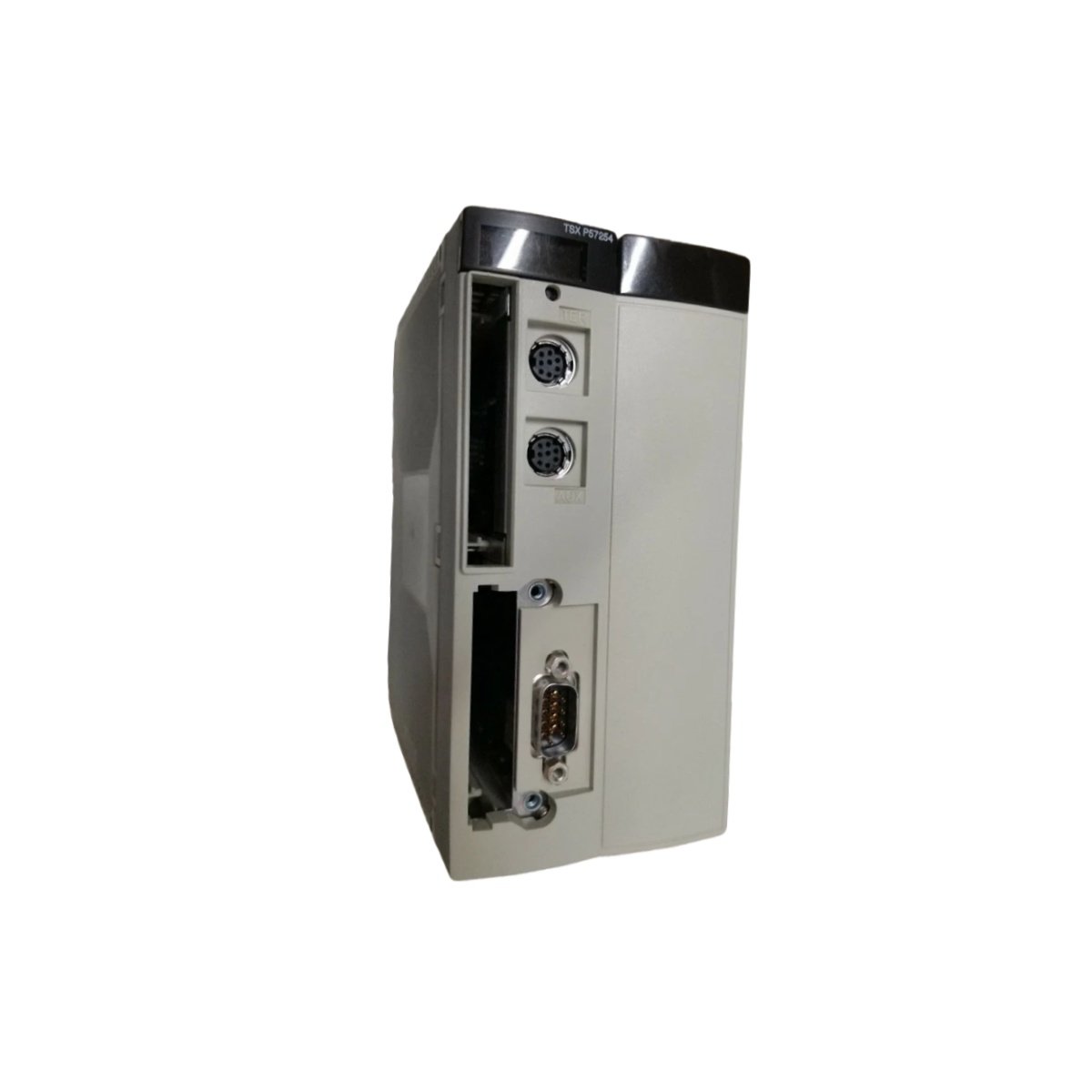

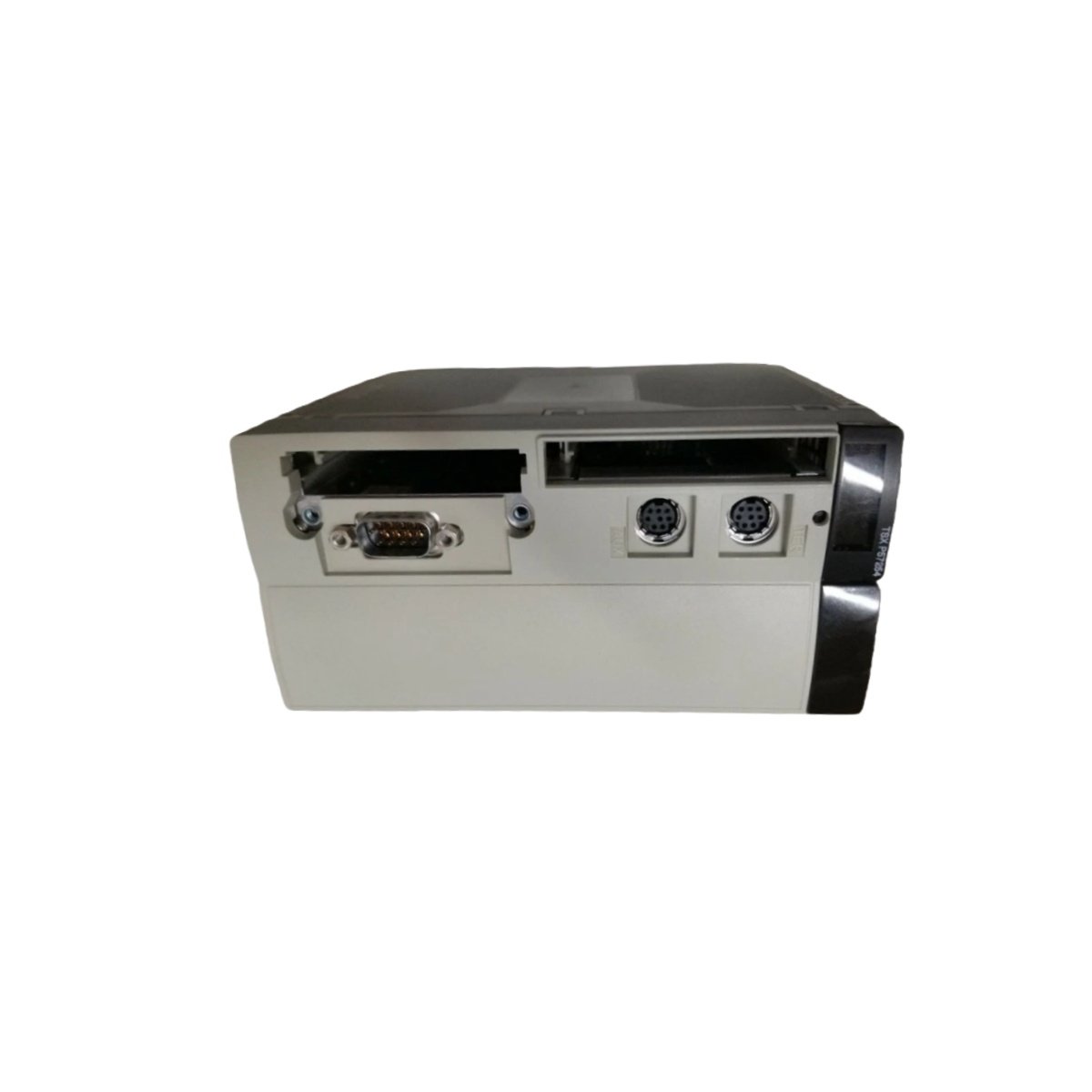

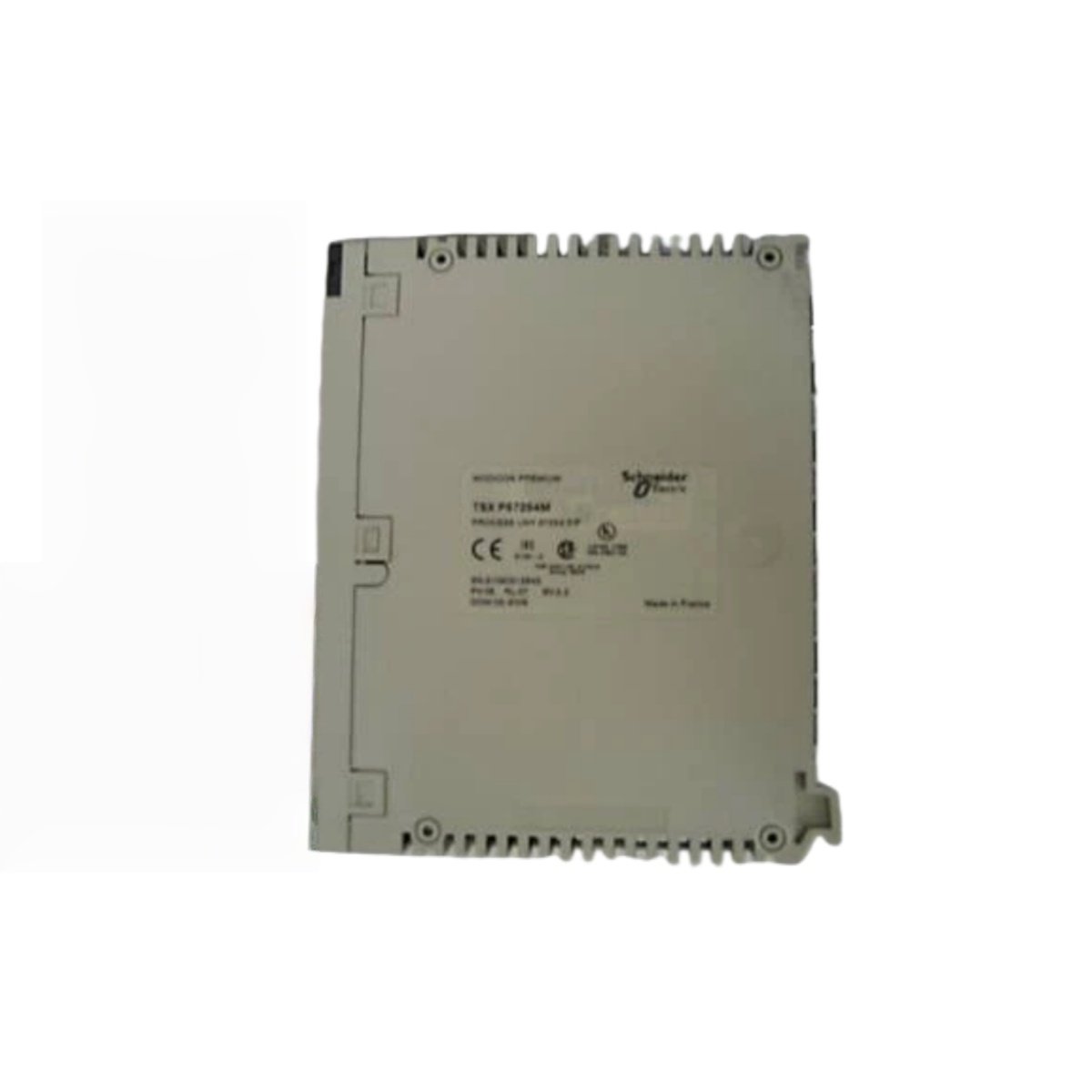

The Schneider TSXP57254M serves as the central processing unit for the Modicon Premium automation platform. It executes complex control programs with exceptional speed and precision for industrial applications. This processor forms the intelligent core of sophisticated manufacturing and process control systems.
Advanced Processing Capabilities and Memory Architecture
We equip this processor with substantial memory resources for demanding automation tasks. It features 1.8 MB of application-specific memory for program and data storage. The module includes integrated RAM for fast execution of control logic and data handling. Consequently, engineers can implement complex algorithms without performance degradation.
Technical Specifications and Physical Characteristics
The TSXP57254M incorporates a high-performance 32-bit processor for rapid instruction execution. It supports multitasking operations for simultaneous control of multiple machine functions. The module includes a real-time clock for time-stamping events and scheduling tasks. This design ensures precise coordination of time-critical industrial processes.
| Specification | Details |
|---|---|
| Product Model | TSXP57254M |
| Processor Type | Unity Processor for Modicon Premium |
| Application Memory | 1.8 MB |
| Data Memory | Integrated RAM for fast execution |
| Processor Bit Size | 32-bit high-performance processor |
| Built-in Ports | 1 x Ethernet TCP/IP, 1 x USB, 1 x Modbus Serial |
| Multitasking Support | Yes – multiple task execution |
| Real-Time Clock | Integrated with battery backup |
| Backplane Current Draw | 800 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.50 kg (1.1 lb) |
| Battery Type | Lithium battery for memory backup |
Seamless Programming with Unity Pro Software
You can program this processor using the powerful Unity Pro software platform. The Schneider TSXP57254M supports all five IEC 61131-3 programming languages for maximum flexibility. It enables modular program design with reusable code blocks and libraries. Therefore, development teams can collaborate efficiently on large automation projects.
Furthermore, this processor excels in coordinating multi-axis motion and process control applications. It manages distributed I/O networks with minimal latency for real-time responsiveness. The built-in Ethernet port facilitates seamless integration with plant-wide control systems. This connectivity supports modern Industry 4.0 initiatives and data acquisition requirements.
We source this high-performance module from Schneider Electric, a global leader in industrial automation solutions. As part of the Modicon Premium family, it guarantees long-term availability and technical support. Choosing the TSXP57254M means investing in a scalable processing solution for future expansion.
Technical Specifications Overview
| Specification | Details |
|---|---|
| Product Model | TSXP57254M |
| Processor Type | Unity Processor for Modicon Premium |
| Application Memory | 1.8 MB |
| Data Memory | Integrated RAM for fast execution |
| Processor Bit Size | 32-bit high-performance processor |
| Built-in Ports | 1 x Ethernet TCP/IP, 1 x USB, 1 x Modbus Serial |
| Communication Protocols | Modbus TCP/IP, Modbus RTU, Ethernet IP |
| Multitasking Support | Yes – multiple task execution |
| Real-Time Clock | Integrated with battery backup |
| Backplane Current Draw | 800 mA from 5 VDC |
| Power Consumption | 4 W maximum |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.50 kg (1.1 lb) |
| Battery Type | Lithium battery for memory backup |
| Battery Life | 3-5 years typical |
| Program Execution Rate | 0.1 µs per basic instruction |
| Compatible Software | Unity Pro (all versions) |
| Supported I/O | Local, remote, and distributed configurations |
| Series | Modicon Premium |
| Manufacturer | Schneider Electric |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
