The Schneider TSXP57253M operates as a double-format processor for Modicon Premium automation platforms. This powerful CPU executes complex control programs while managing extensive I/O networks and communication interfaces. It consequently serves as the central intelligence for demanding industrial applications requiring high processing capacity.

Physical Characteristics and Build Quality

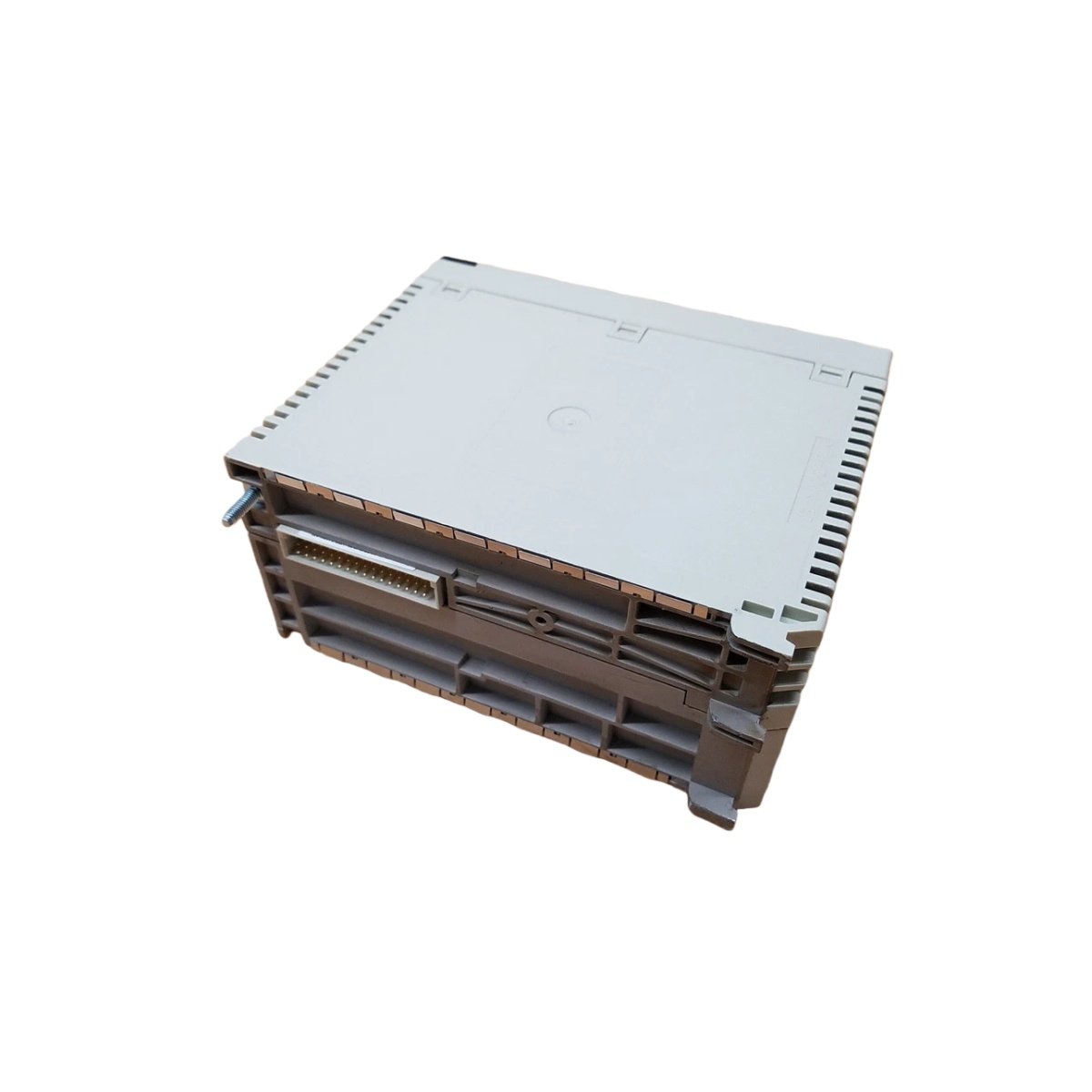

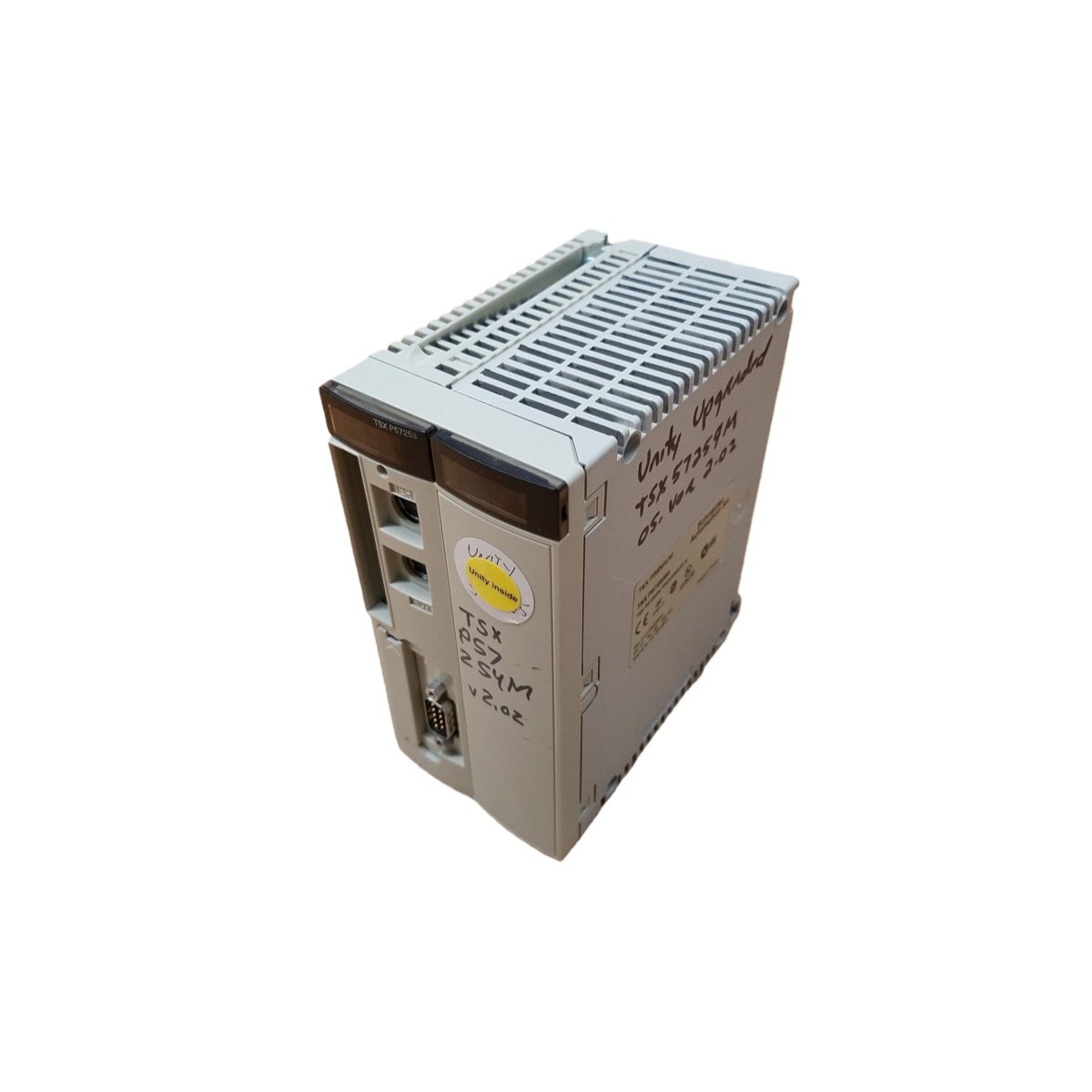

Engineers designed this processor in a double-format housing occupying two rack slots for enhanced functionality. The unit measures approximately 22 centimeters in height, 8 centimeters in width, and 15 centimeters in depth. Its total weight reaches roughly 0.9 kilograms, reflecting the additional components and memory capacity. The rugged construction ensures reliable operation in industrial control panel environments.

Technical Specifications

Processing Power and Performance

The TSXP57253M utilizes a high-speed 32-bit RISC processor for rapid program execution. It processes Boolean instructions in just 0.1 microseconds for fast logic response. The CPU handles complex mathematical operations and floating-point calculations efficiently. Consequently, it suits applications with intensive control algorithms and data processing.

Memory Configuration

This double-format processor includes substantial memory for both program storage and data handling. The 256 KB program memory accommodates large application code with extensive functionality. Data memory of 128 KB supports numerous variables, timers, and registers for complex processes. Flash memory retains the program indefinitely without battery power.

I/O Handling Capacity

The Schneider TSXP57253M manages up to 2048 discrete I/O points and 512 analog channels. This capacity suits medium to large industrial installations with significant field instrumentation. The processor supports both local I/O in the main rack and remote I/O via communication networks. It automatically scans all I/O and updates the process image regularly.

Built-in Communication Ports

Integrated communication ports provide immediate connectivity without requiring additional modules. The Modbus RS-232 port connects to HMIs, drives, and other serial devices. USB port enables direct connection to programming tools for configuration and troubleshooting. Ethernet port supports TCP/IP communication for SCADA and enterprise integration.

Network Expansion Options

The processor accepts optional communication coprocessors for specialized network requirements. Modbus Plus provides high-speed peer-to-peer communication between multiple processors. Fipway supports Modicon proprietary networking for coordinated control systems. Ethernet options enable web-based monitoring and global data access.

Real-Time Clock and Battery Backup

An integrated real-time clock maintains accurate time and date for time-stamped events. The lithium battery provides up to five years of backup for both clock and program memory. You can replace the battery without removing the processor from the rack. This feature ensures critical time-stamping continues during power outages.

Status Indicators

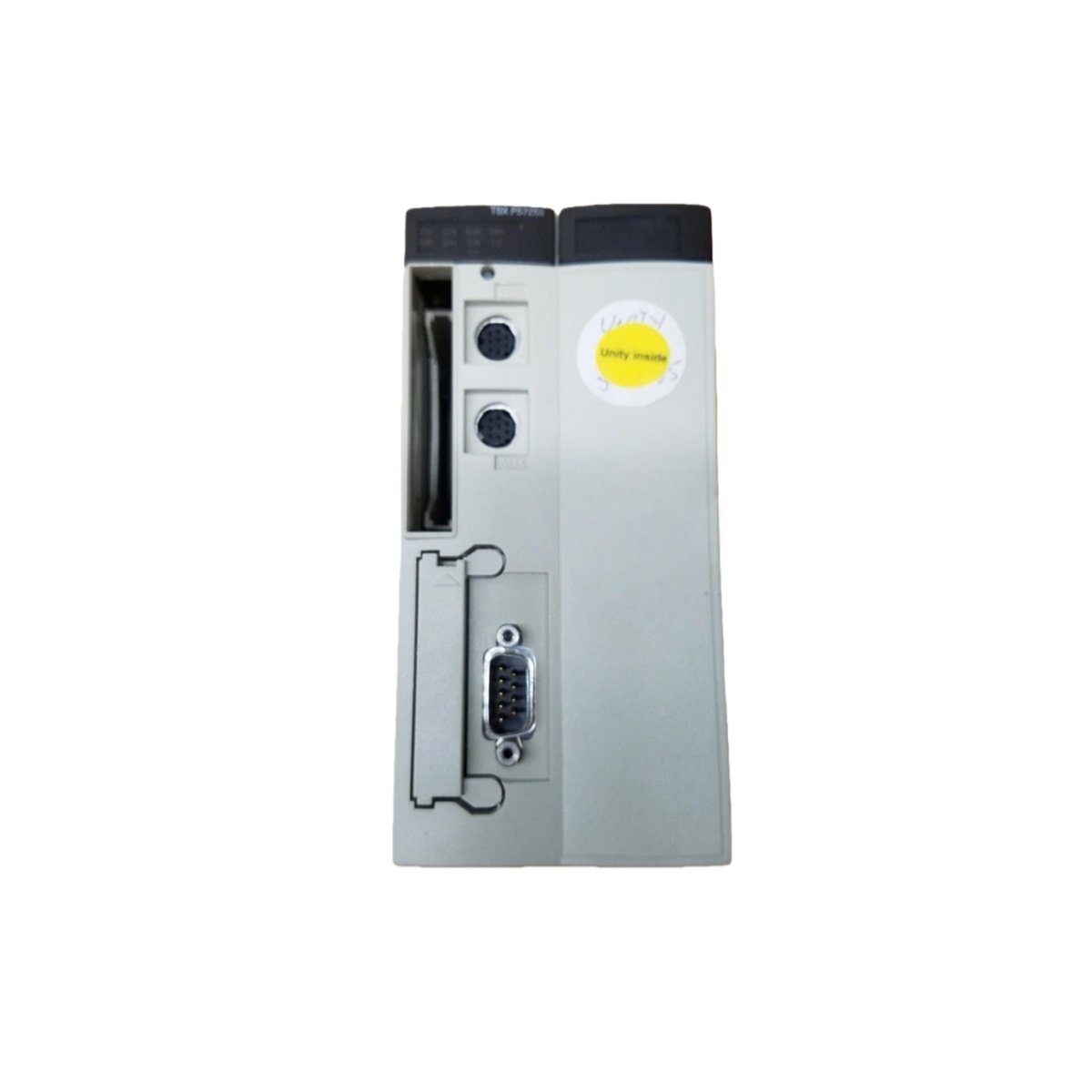

Front-panel LEDs provide immediate visual feedback on processor operating status. Run illuminates when the CPU executes the application program normally. Stop indicates the processor is halted for maintenance or troubleshooting. Error flashes when the CPU detects application or hardware faults. I/O and Communication LEDs show respective subsystem status.

Application Examples

This double-format processor excels in applications requiring significant processing power and memory. Typical uses include material handling systems with complex coordination requirements. Water treatment facilities benefit from its extensive I/O capacity and communication options. The TSXP57253M provides reliable control for manufacturing, infrastructure, and process applications.
