Complex automation tasks demand powerful processing capabilities. The Schneider TSXP57204 delivers robust execution for Unity Pro applications. This processor functions as a CPU module for the Modicon Premium platform. Schneider Electric designed this unit for mid to large-scale control systems.
Technical Specifications & Dimensions
This processor handles complex logic and data processing with ease. The table below outlines its core technical parameters.
| Parameter | Specification |
|---|---|
| Processor Type | Unity processor (Intel 386EX) |
| User Memory | 1024 KB (1 MB) |
| Data Memory | 256 KB |
| Execution Speed | 0.13 µs per Boolean instruction |
| Integrated Ethernet | 1 port (10/100 Mbps) |
| Serial Ports | 2 ports (RS-232 and RS-485) |
| PCMCIA Slot | 1 slot for memory expansion |
| Rack Compatibility | Modicon Premium TSX racks |
| Power Supply | 5V DC from backplane |
| Current Consumption | 650 mA typical |
| Unit Weight | 0.85 kg (1.87 lbs) |
| Dimensions (WxHxD) | 40 x 130 x 150 mm |
Construction and Interface Layout

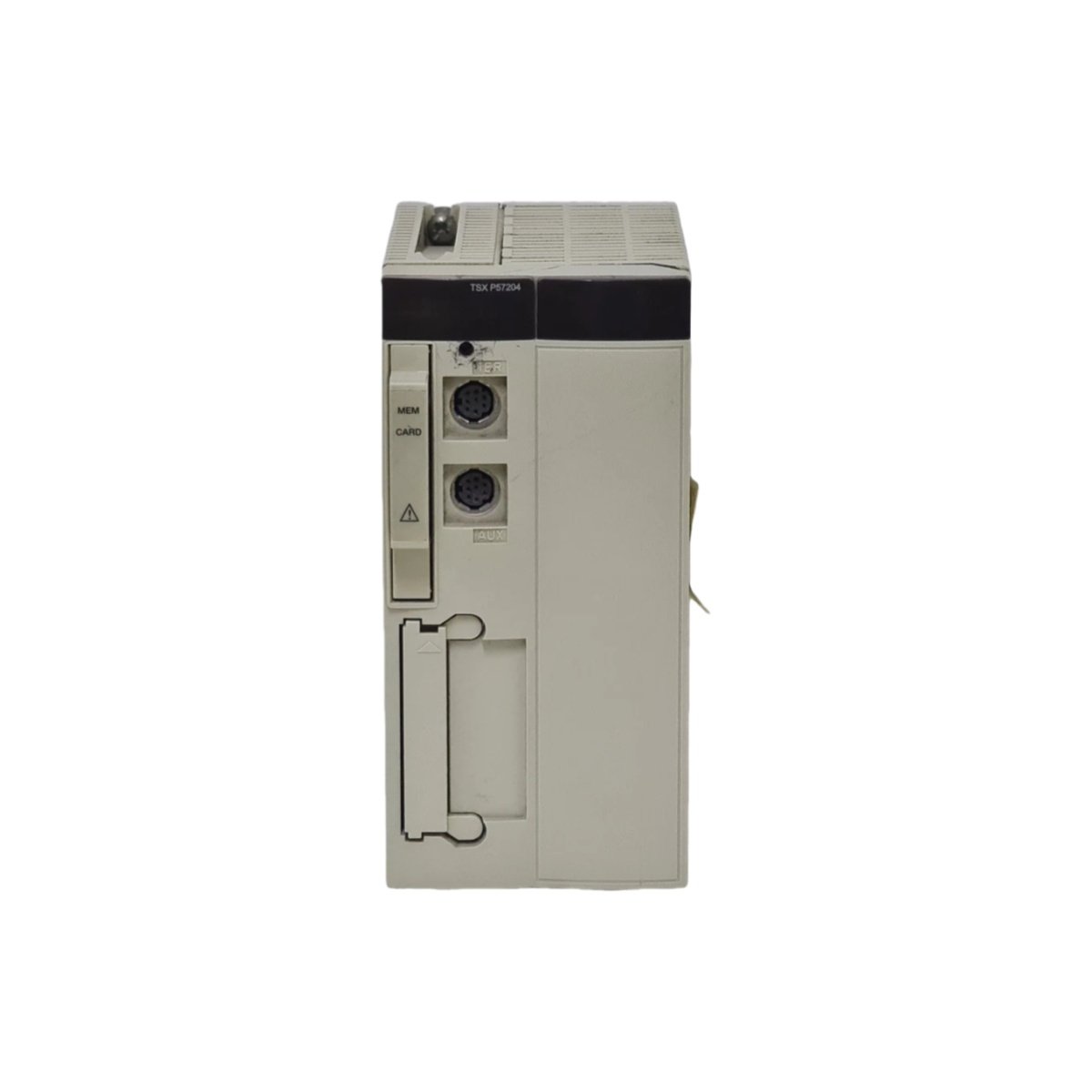

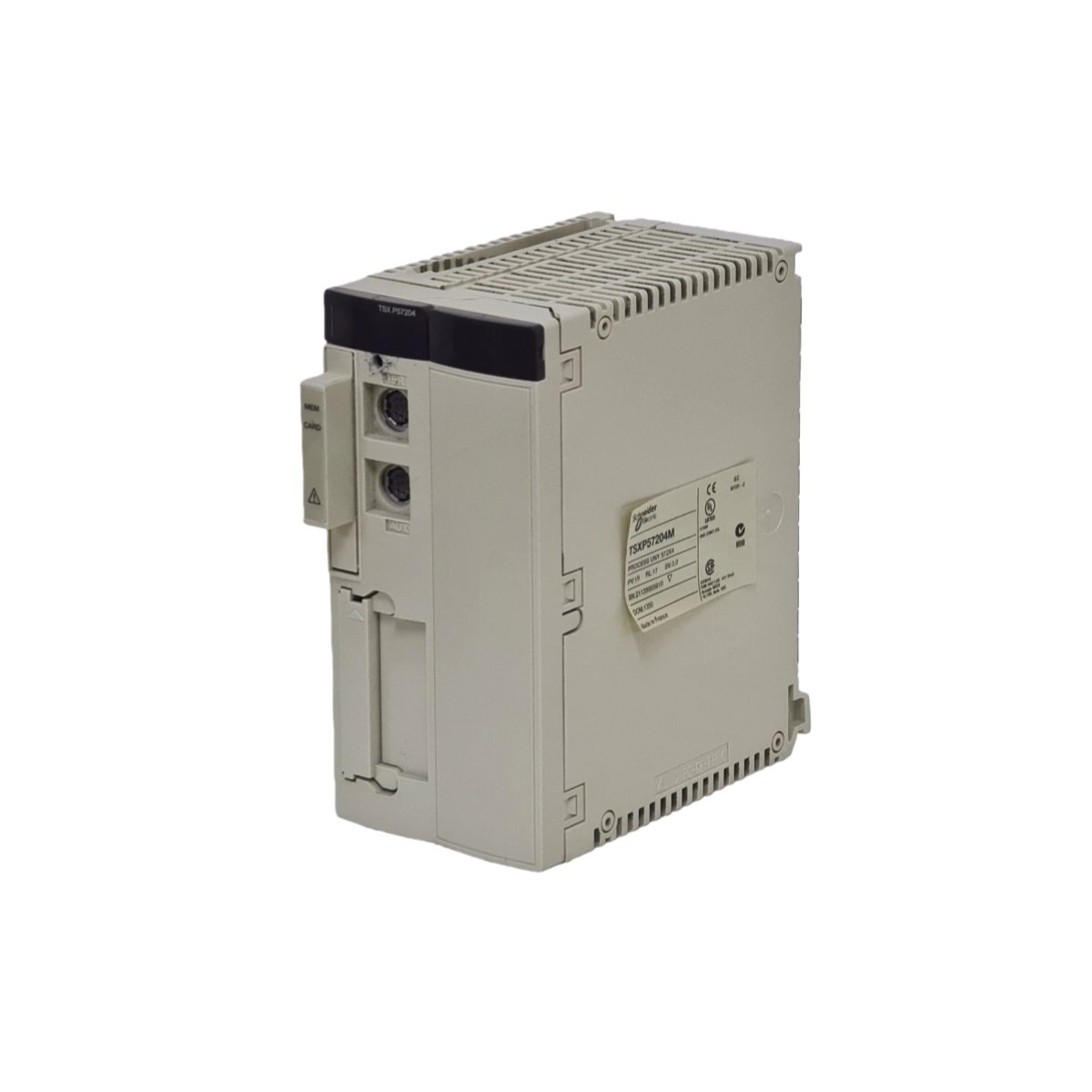

This processor features a rugged metal housing with a plastic front panel. Such a design provides EMI shielding and mechanical durability. Furthermore, the Schneider TSXP57204 offers multiple ports on the front face. You will find an Ethernet RJ45, two serial ports, and a PCMCIA slot. The module also includes a battery access cover on the top side. LED indicators show run, stop, and communication status clearly.
Energy Storage and Memory Retention
Unlike basic CPUs, this Unity processor includes a lithium battery for RAM backup. The battery maintains user programs and data during power outages. Consequently, the Schneider TSXP57204 retains its logic for over 200 days without power. A supercapacitor provides short-term backup during battery changes. This capacitor stores enough energy for 30 minutes of RAM retention. The processor also uses flash memory for firmware storage.
Installation and Mounting Requirements
Installing the Schneider TSXP57204 takes only a few minutes of work. The unit slides directly into a Modicon Premium rack slot. It also locks securely with top and bottom retaining clips. Always disconnect all power before inserting or removing this processor. The unit uses passive cooling through natural convection. This design eliminates fan noise and moving parts. The processor occupies a single slot in the main rack.
Integration with Unity Pro Software
This processor works seamlessly with Schneider Electric Unity Pro software. It supports all five IEC 61131-3 programming languages. Operators can connect via Ethernet for online monitoring and debugging. The Schneider TSXP57204 also supports CANopen and Modbus communication protocols. Consequently, this processor remains an excellent choice for advanced automation. The unit delivers consistent performance across a 0°C to 60°C temperature range.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
