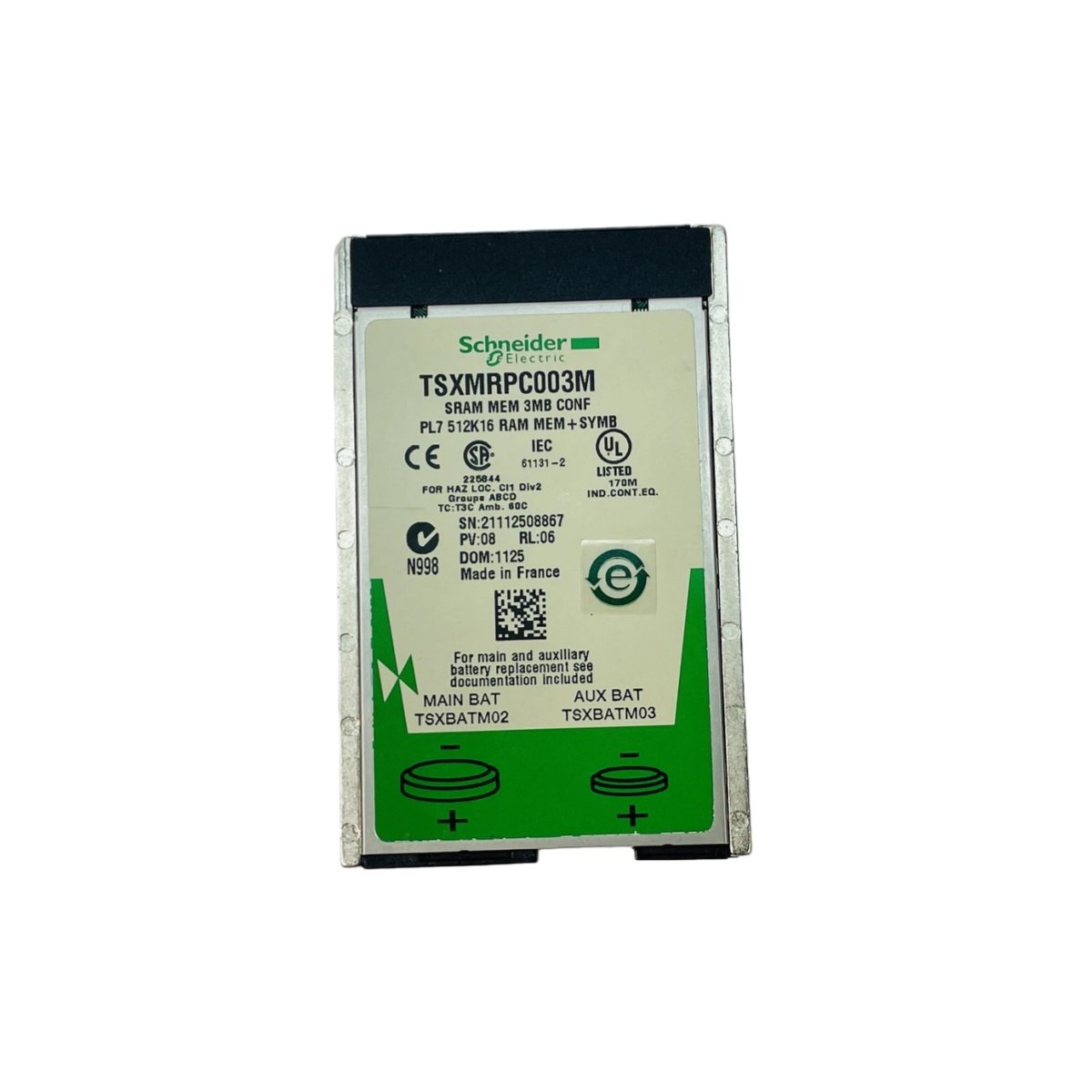

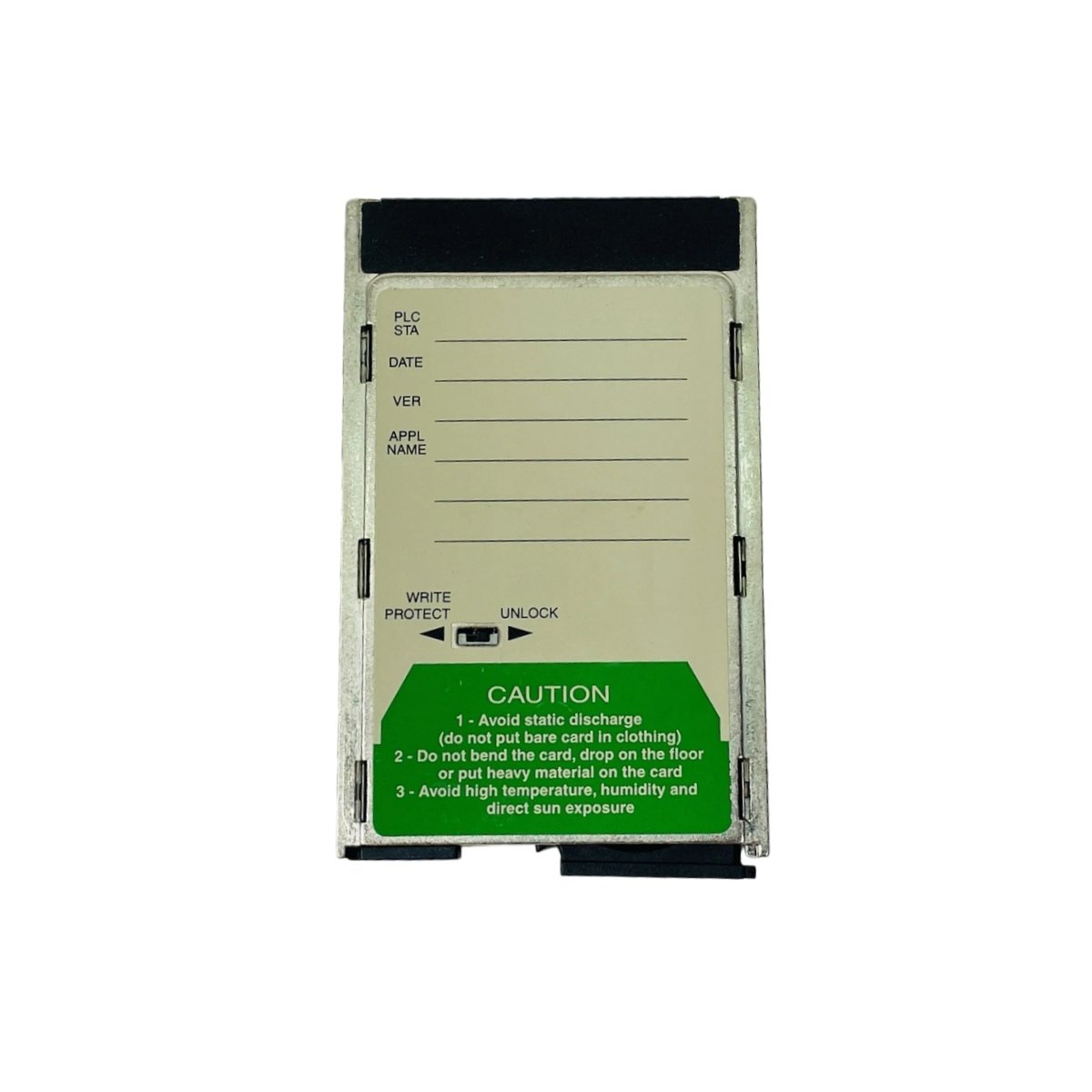

The TSXMRPC003M SRAM memory extension provides secure data retention for Schneider Electric automation systems. This module serves as a critical component for program backup and process data storage. It delivers stable performance within the Modicon TSX Quantum series architecture. You can rely on this unit for consistent operation in demanding industrial environments.

Technical Specifications

The TSXMRPC003M incorporates precise engineering to meet rigorous automation standards. The following parameters define its technical capabilities.

Physical Design and Mounting

The module measures 130 mm in height and 125 mm in depth. Its width occupies just 45 mm for space-efficient installation. The unit weighs approximately 0.42 kilograms for easy handling during setup. This compact form factor allows high-density configurations within control cabinets.

Connectivity and Integration

This memory extension interfaces directly with the Quantum series backplane. It establishes a secure connection through the standard bus connector. The TSXMRPC003M integrates seamlessly with the processor module for direct data access. You can install this unit alongside other I/O modules without configuration conflicts.

Data Retention and Energy Storage

The system incorporates a lithium battery with a 3.6 V rating. This battery maintains memory content during power outages. The typical battery life reaches five years under standard operating conditions. Furthermore, the module includes a built-in battery monitoring circuit. This feature provides early warning when battery replacement becomes necessary.

Application Suitability

Engineers select this memory extension for critical process control applications. It excels in manufacturing lines requiring extensive recipe storage. The module also supports complex data logging tasks in packaging systems. For similar high-reliability automation components, you can explore options like the RMS TSG TZ C static trip unit from the same industrial ecosystem.
