Core Function for High-Density Switching

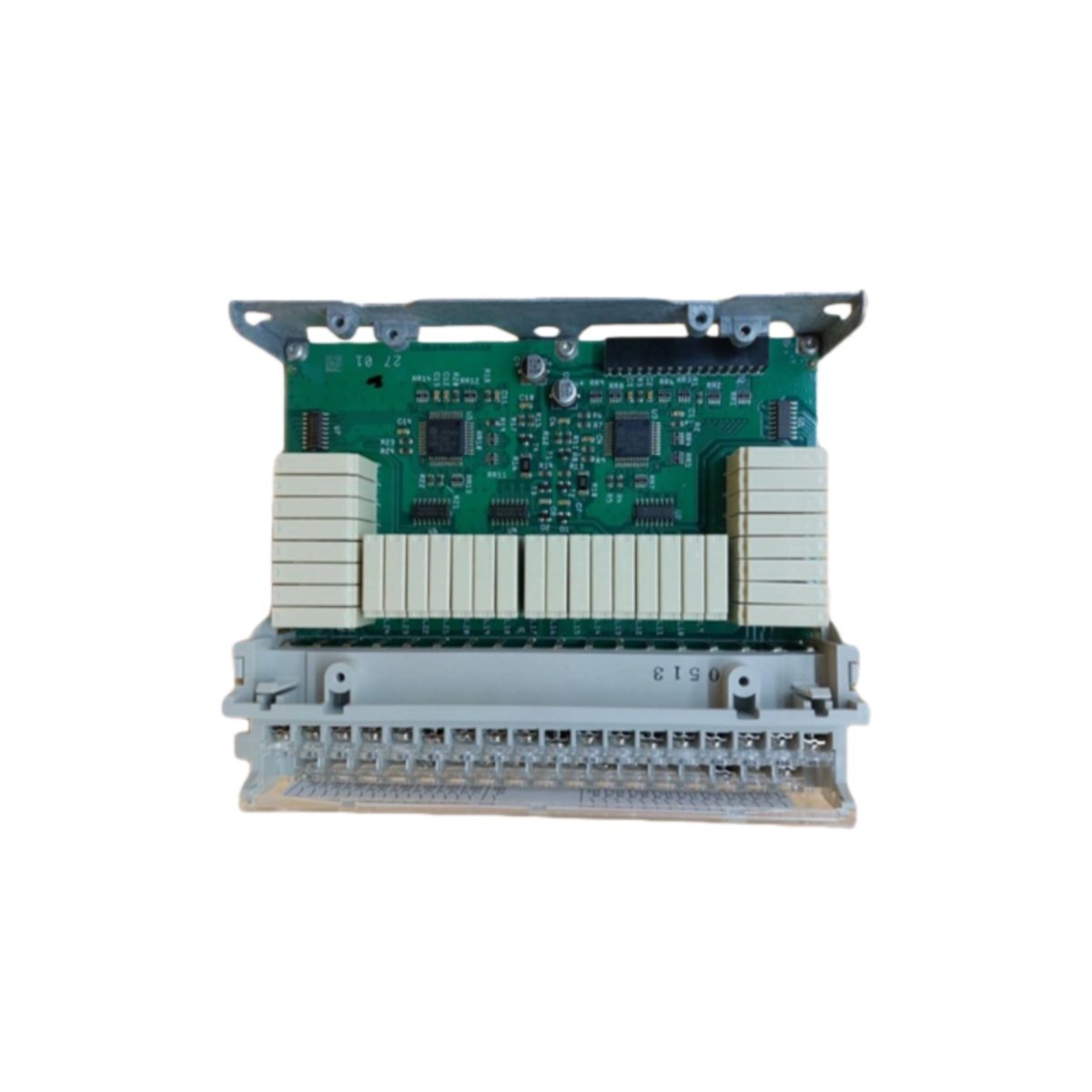

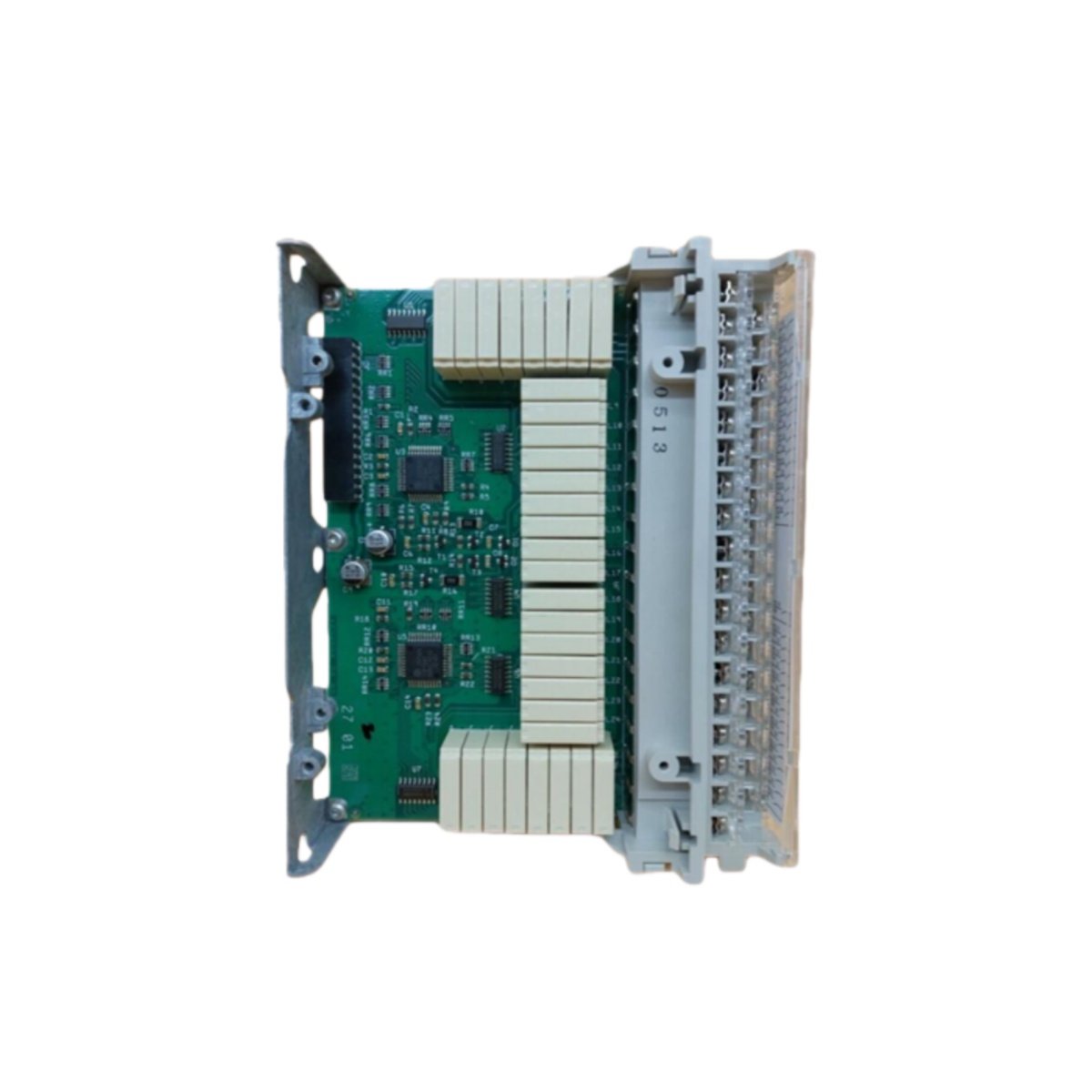

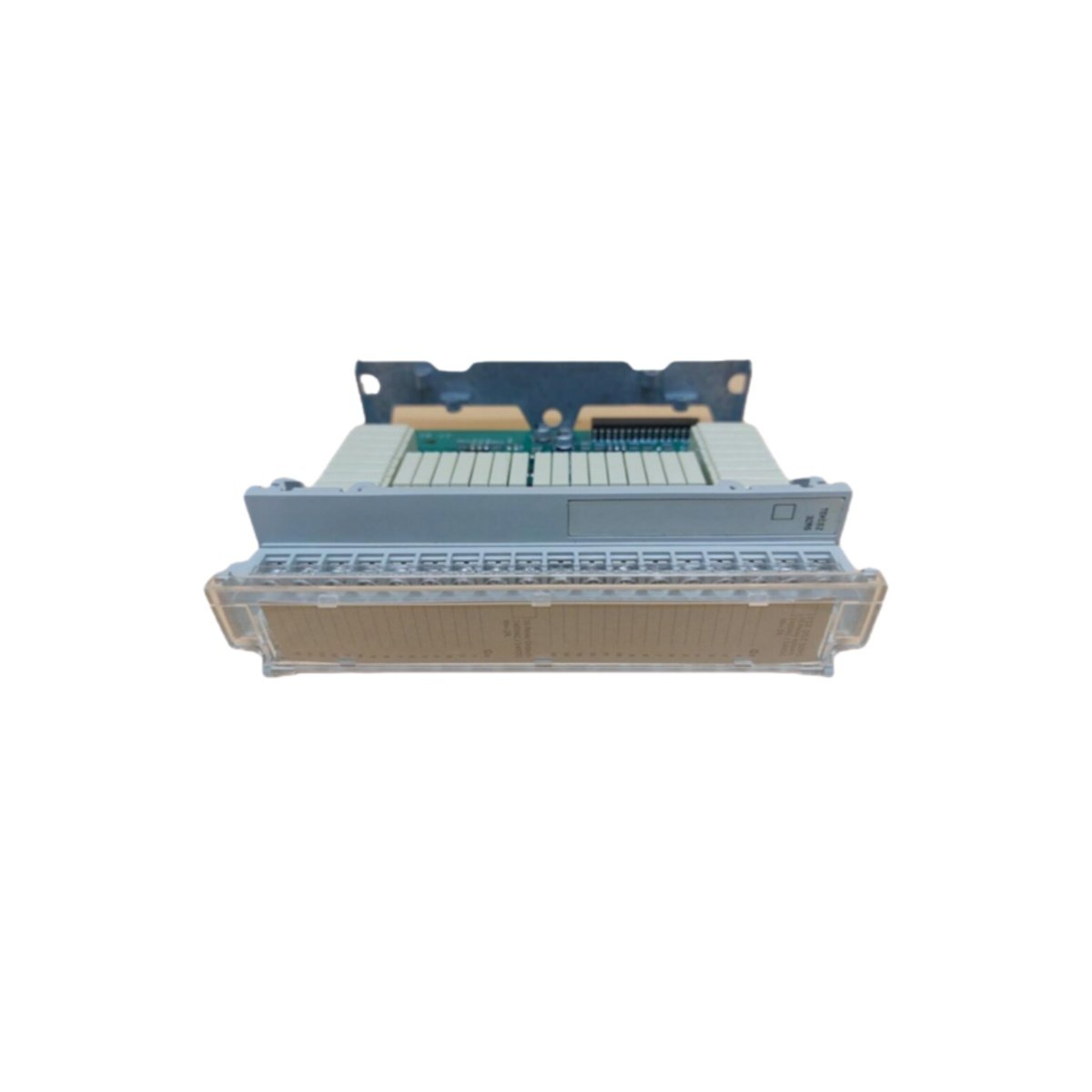

The Schneider TSXDSZ32R5 is a 32-channel relay output module for the Modicon TSX Micro automation platform. This module provides high-density switching capability for AC and DC loads from a single unit. Each of its 32 channels features a normally open (NO) relay contact for flexible control. Consequently, it is ideal for applications requiring numerous independent outputs like lighting, solenoid valves, or motor starters.
Robust Relay Specifications and Performance
The module’s relay contacts can switch loads up to 2 A, with varying VA ratings dependent on voltage. It supports a wide output voltage range from 19-264 V AC and 10-34 V DC for versatile application. The TSXDSZ32R5 offers a fast response time of less than 10 milliseconds for precise control. Furthermore, it provides 1500V isolation for enhanced safety and protection between the logic and field sides.
Detailed Technical Specifications
Designed for efficient operation, the module has a relatively low power consumption from the TSX backplane. Its screw terminal block design ensures secure and reliable wiring connections. The following table details its comprehensive electrical, performance, and insulation parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Platform | Schneider Electric / Modicon TSX Micro |
| Product Model | TSXDSZ32R5 |
| Module Type | Relay Discrete Output Module |
| Number of Outputs | 32 |
| Contact Type | Normally Open (NO) |
| Termination | Screw Terminal Block |
| Max Switching Current | 2 A |
| Output Voltage Range | 19…264 V AC / 10…34 V DC |
| Power Consumption (Backplane) | 175 mA |
| Power Dissipation | 3.5 W |
| Response Time | < 10 ms |
| Isolation Voltage | 1500 V |
| Insulation Resistance | ≥ 10 MΩ |
| Example Load Capacity (Resistive) | 50 VA @ 24V AC, 200 VA @ 200-240V AC |
Application and Integration Notes
Install this module into the TSX Micro rack to control a large array of field devices directly. Always ensure the total connected load per channel and the cumulative heat dissipation remain within specifications. The Schneider TSXDSZ32R5 simplifies panel design by consolidating many outputs into a single module. Therefore, it is a cost-effective solution for machine control, material handling, and building automation systems.
Details
| Weight | 0.48 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
