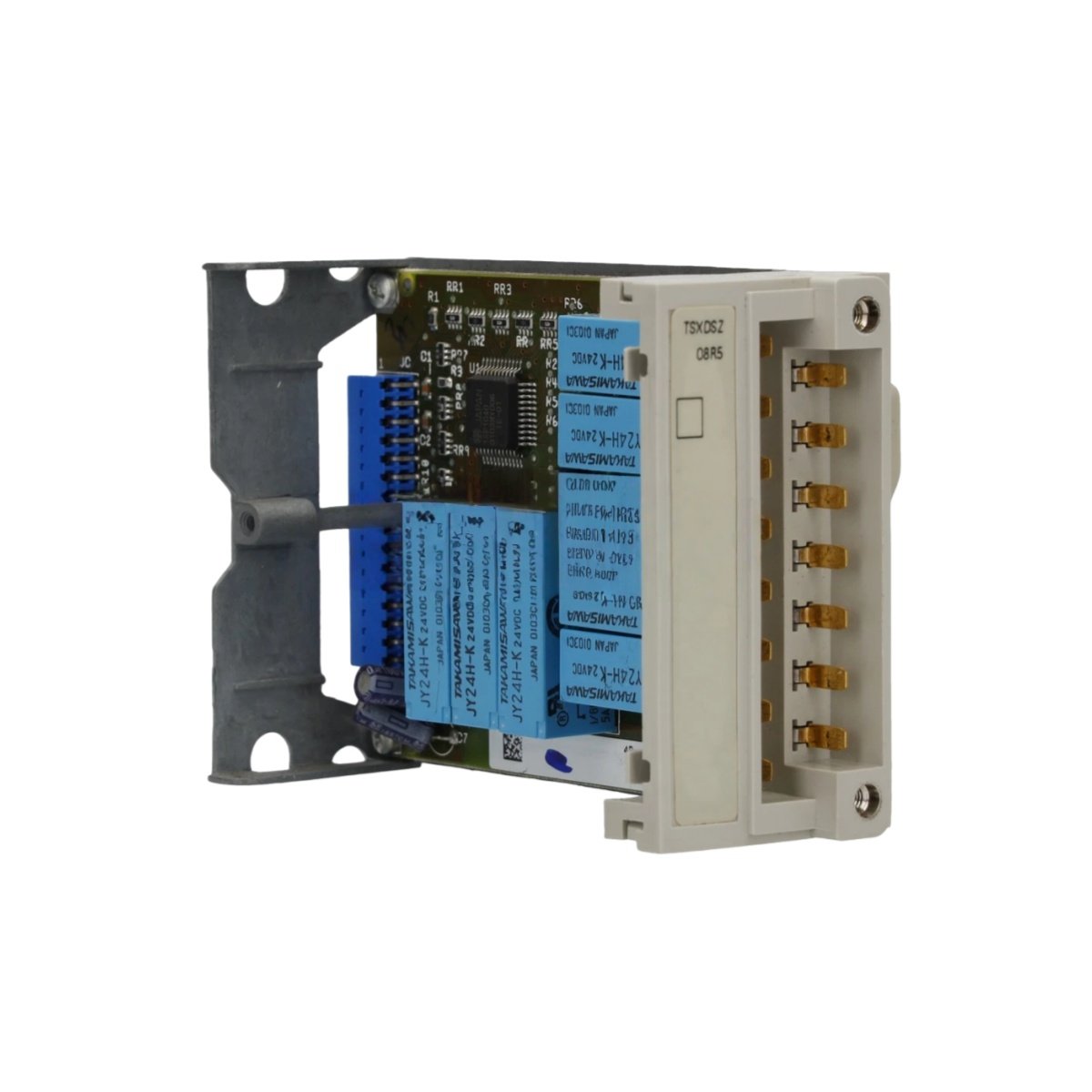

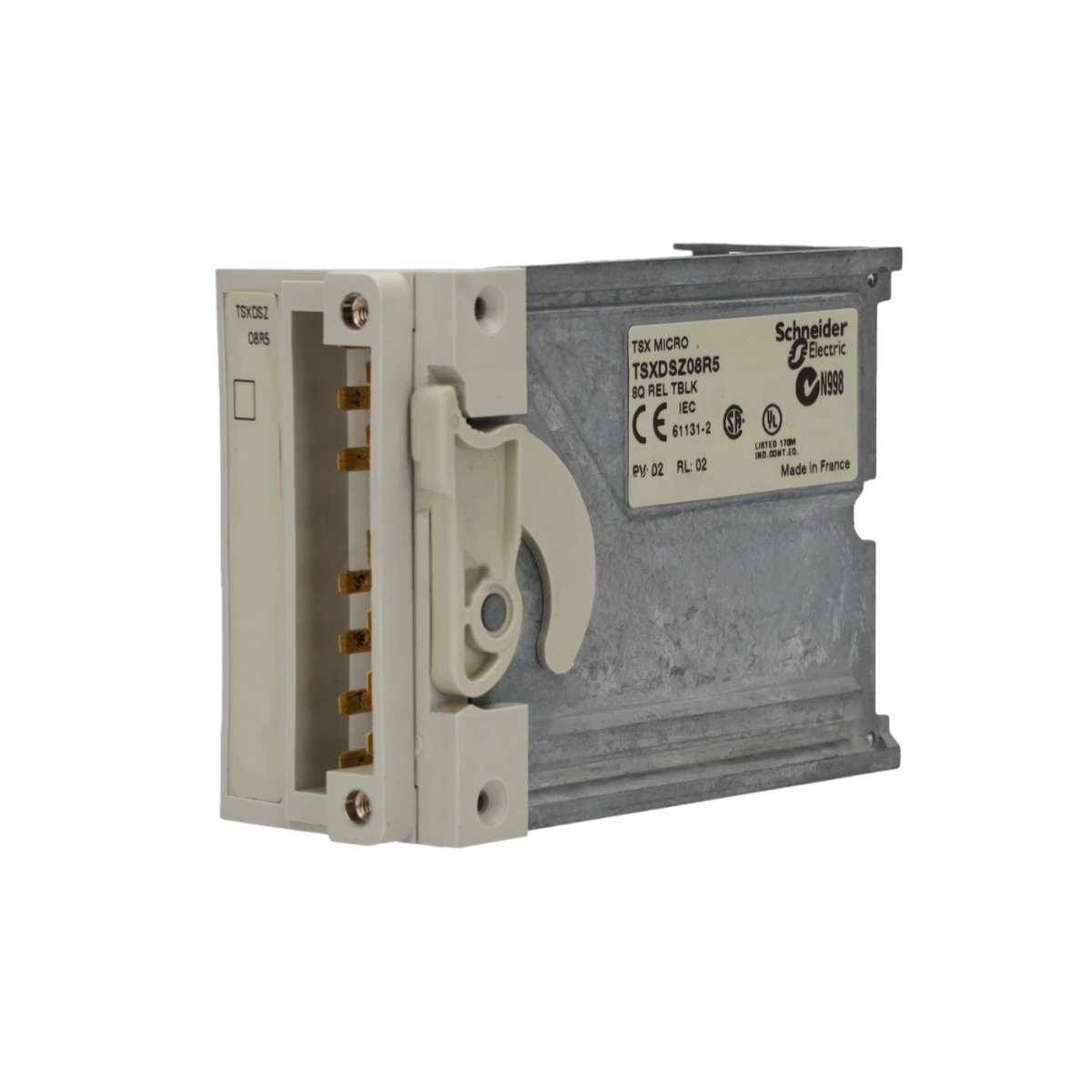

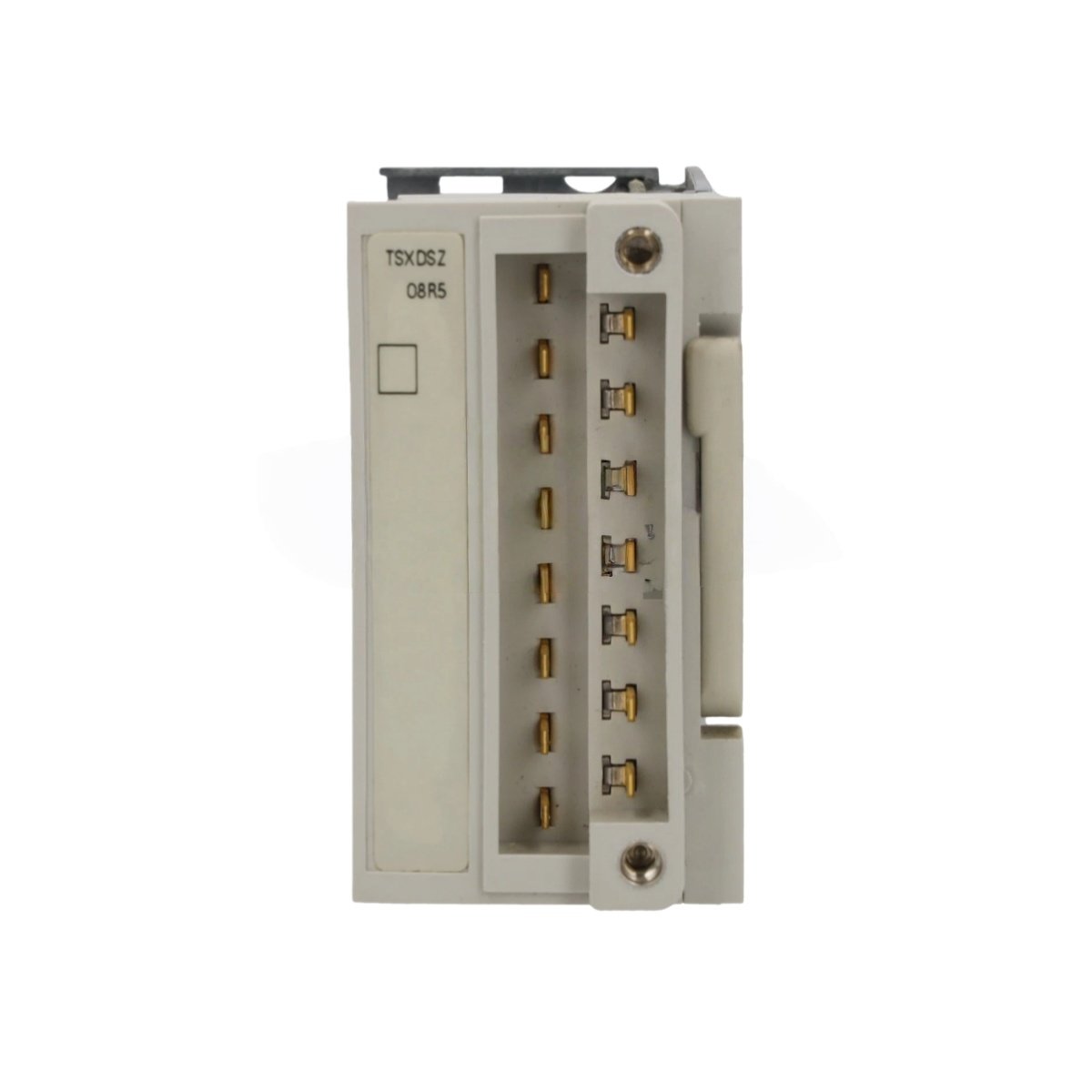

The Schneider TSXDSZ08R5 provides reliable relay discrete output capabilities for Modicon TSX Micro automation systems. This module features eight normally open contacts for switching diverse AC or DC loads. You can integrate this unit seamlessly into compact control applications requiring isolated outputs.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Relay Discrete Output Module |
| Output Channels | 8 independent outputs |
| Contact Type | Normally open (Form A) |
| Contact Rating | 3 A maximum |
| AC Control Voltage | 19-264 VAC |
| DC Control Voltage | 10-34 VDC |
| Power Consumption | 1.5 W typical |
| Isolation | 1500 V RMS coil to contacts |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H x W x D) | 130 mm x 40 mm x 115 mm |
| Weight | 0.4 kg (0.88 lbs) |
| Terminal Type | Screw terminals |
| Wire Size | 0.2 mm² to 2.5 mm² |
| Status Indication | LED per channel |
| Compatibility | Modicon TSX Micro series |
| Approvals | CE, UL, CSA |
Flexible Relay Output Configuration
The TSXDSZ08R5 features 8 independent normally open contacts rated at 3 A maximum. Each channel provides galvanic isolation between the control logic and field wiring. You can therefore switch mixed AC and DC loads without additional interface components.
Every output includes a dedicated LED status indicator that illuminates when the relay energizes. This visual feedback simplifies commissioning and troubleshooting. Technicians can quickly verify output states without multimeters or test lamps.
Wide Operating Voltage Range
This module accepts an exceptionally wide control voltage range. You can power the relay coils with 19-264 VAC or 10-34 VDC, accommodating global power standards. The flexibility simplifies spares management across facilities with different control voltages.
The module consumes only 1.5 W typical, placing minimal load on system power supplies. Low power consumption proves valuable in compact TSX Micro systems with limited power budgets.
Robust Contact Ratings
Each relay contact handles 3 A continuous current, suitable for most pilot-duty applications. Typical loads include contactor coils, solenoid valves, and panel indication lights. The rugged contacts provide reliable switching for millions of operations.
1500 V RMS isolation between coils and contacts protects sensitive PLC logic from voltage transients. This isolation also prevents ground loops that could compromise system integrity.
Compact Design for Space-Constrained Applications
Measuring 130 mm x 40 mm x 115 mm and weighing 0.4 kg, the TSXDSZ08R5 occupies minimal panel space. The slim 40 mm width allows dense packing alongside other TSX Micro modules. You can maximize I/O capacity in small enclosures.
Screw terminals accept 0.2 mm² to 2.5 mm² wiring, accommodating standard control cables. Clear terminal labeling ensures error-free field connections during installation.
Seamless Modicon Integration
We designed this module specifically for Modicon TSX Micro series PLC systems. It connects directly to the backplane without external adapters. The TSXDSZ08R5 appears automatically in your programming software for straightforward configuration.
For similar industrial automation components, examine the RMS TSG TZ C Static Trip protection device. Both components demonstrate Schneider Electric’s commitment to quality and reliability.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
