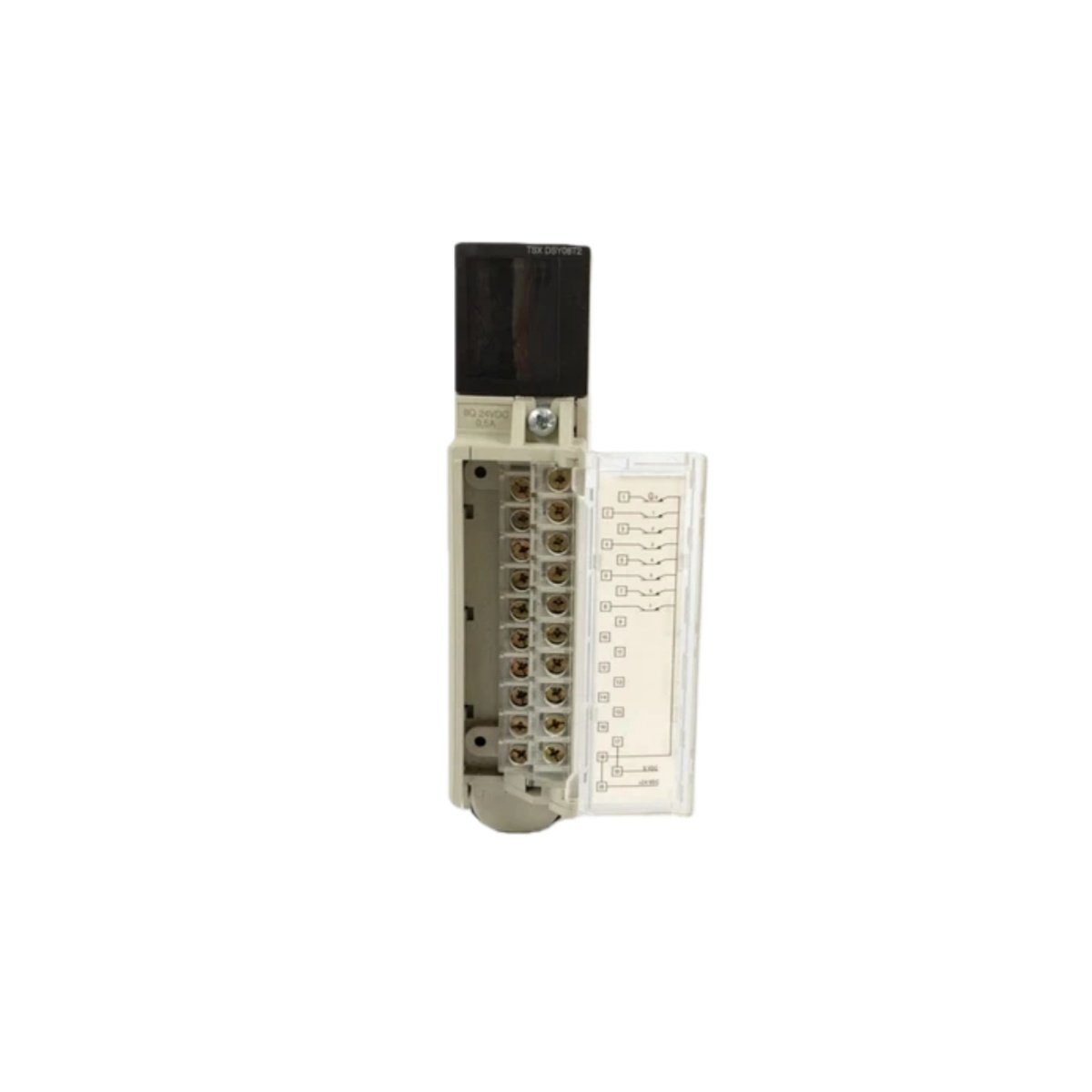

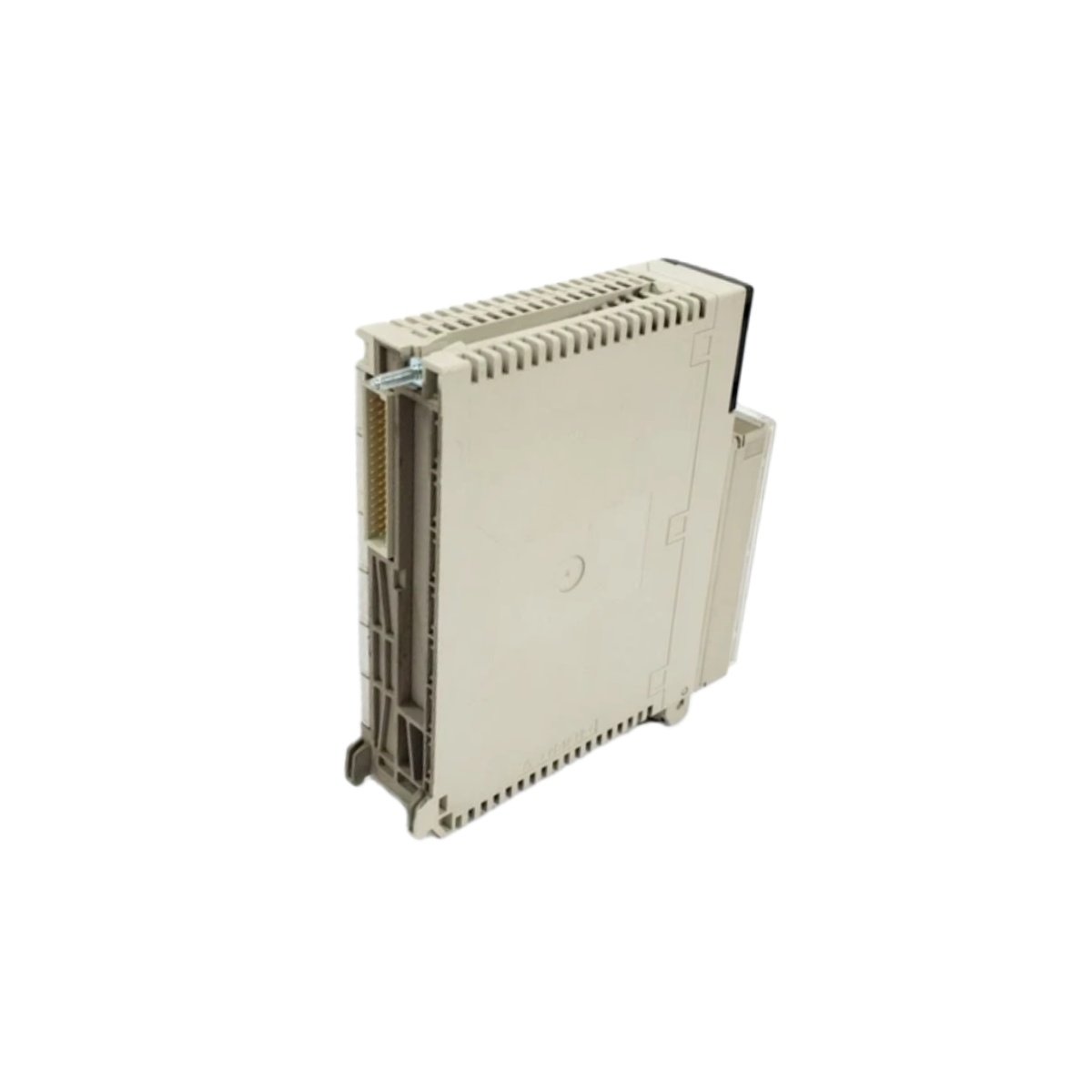

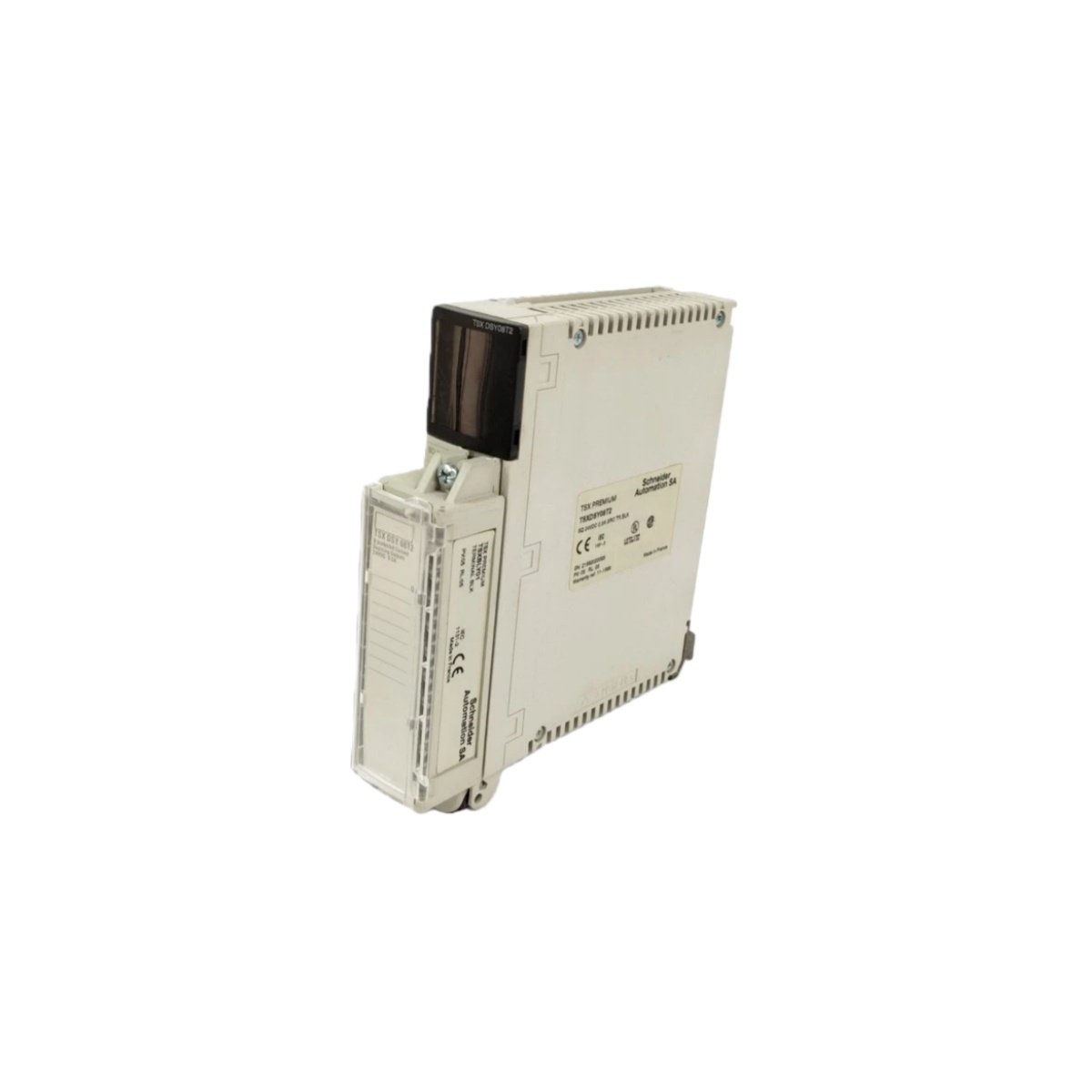

The Schneider TSXDSY08T2 operates as a high-performance discrete output module for the Modicon Premium automation platform. It drives industrial actuators, relays, and indicator lights with precision and reliability. This module translates PLC logic commands into real-world physical actions seamlessly.
Advanced Output Switching and Channel Protection
We equip this module with eight discrete output channels capable of switching loads up to 2 A per point. Each channel utilizes reliable relay contact technology for maximum flexibility in field wiring. The outputs support both AC and DC load voltages from 24 to 240 VAC and 24 VDC. Consequently, engineers can control diverse field devices without additional interface modules.
Technical Specifications and Physical Characteristics
The TSXDSY08T2 features independent relay contacts with normally open configurations for each channel. It includes built-in coil protection against voltage spikes during switching operations. The module provides isolation between the internal logic and external field circuits. This design ensures safe operation even when switching inductive loads like contactors.
| Specification | Details |
|---|---|
| Product Model | TSXDSY08T2 |
| Module Type | Discrete Output Module (Relay) |
| Number of Channels | 8 outputs |
| Contact Type | Normally open (NO) relay contacts |
| Switching Voltage | 24–240 VAC / 24 VDC |
| Maximum Load Current | 2 A per channel (resistive load) |
| Minimum Load | 10 mA at 5 VDC |
| Isolation Voltage | 1500 Vrms between coil and contacts |
| Response Time | < 10 ms (energize) / < 10 ms (de-energize) |
| Backplane Current Draw | 280 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.40 kg (0.88 lb) |
| Terminal Type | Removable screw terminal block |
| Status Indicators | Green LED per channel |
| Electrical Durability | 100,000 operations at rated load |
Seamless Integration with Premium Control Systems
You can configure this module effortlessly using the Unity Pro or PL7 Pro software platforms. The Schneider TSXDSY08T2 automatically maps output data from the processor memory space. It supports both local rack mounting and remote I/O configurations via the bus. Therefore, system designers achieve maximum flexibility for expanding control networks.
Furthermore, this module excels in applications requiring high-current switching capability. Industries like HVAC, material handling, and process control benefit from its robust design. The relay outputs handle frequent on-off cycles without degradation over time. This reliability ensures long service life in demanding industrial environments.
We source this durable module from Schneider Electric, a global leader in automation and energy management. As part of the Modicon Premium family, it guarantees compatibility with existing installations. Choosing the TSXDSY08T2 means investing in reliable output control for critical machinery.
Technical Specifications Overview
| Specification | Details |
|---|---|
| Product Model | TSXDSY08T2 |
| Module Type | Discrete Output Module (Relay) |
| Number of Channels | 8 outputs |
| Contact Type | Normally open (NO) relay contacts |
| Switching Voltage | 24–240 VAC / 24 VDC |
| Maximum Load Current | 2 A per channel (resistive load) |
| Minimum Load | 10 mA at 5 VDC |
| Isolation Voltage | 1500 Vrms between coil and contacts |
| Response Time | < 10 ms (energize) / < 10 ms (de-energize) |
| Backplane Current Draw | 280 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.40 kg (0.88 lb) |
| Terminal Type | Removable screw terminal block |
| Status Indicators | Green LED per channel |
| Electrical Durability | 100,000 operations at rated load |
| Compatible Software | Unity Pro, PL7 Pro |
| Series | Modicon Premium |
| Manufacturer | Schneider Electric |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
