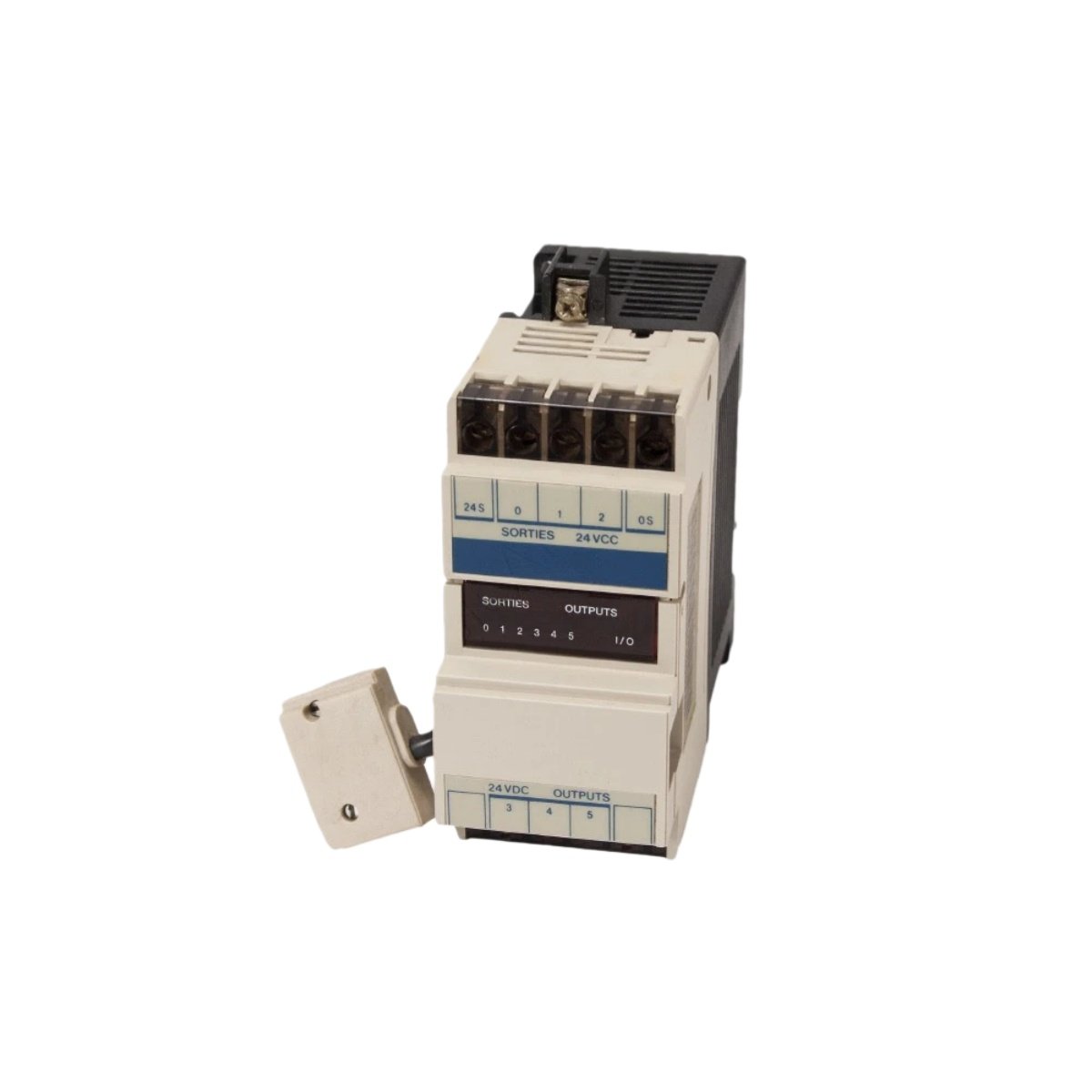

The Schneider TSXDSF612 delivers reliable discrete output control for the Modicon Premium automation platform. It efficiently manages multiple field devices from a single compact module housing. This design maximizes panel space while providing comprehensive control capabilities for industrial machinery.
Advanced Output Switching with Fast Transistor Technology
We equip this module with 12 discrete output channels using solid-state transistor technology. Each channel sources 24 VDC signals to control relays, contactors, and indicator lamps. The outputs feature short-circuit protection and thermal overload safeguards for enhanced durability. Consequently, engineers can trust this module for demanding continuous-duty applications.
Technical Specifications and Physical Characteristics
The TSXDSF612 utilizes fast-switching transistors with typical response times under 1 millisecond. It includes built-in protection against inductive load kickback and reverse polarity conditions. The module provides optical isolation between the internal logic and external field circuits. This design ensures safe operation even when driving motors or solenoids.
| Specification | Details |
|---|---|
| Product Model | TSXDSF612 |
| Module Type | Discrete Output Module (Transistor) |
| Number of Channels | 12 outputs |
| Output Type | Transistor (sourcing) |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel (resistive load) |
| Total Current per Module | 6 A maximum |
| Protection Features | Short-circuit and thermal overload protection |
| Response Time | < 1 ms (OFF to ON) / < 1 ms (ON to OFF) |
| Isolation Voltage | 1500 Vrms between field and logic |
| Backplane Current Draw | 300 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.35 kg (0.77 lb) |
| Terminal Type | Removable screw terminal block |
| Status Indicators | Green LED per channel |
Seamless Integration with Premium Automation Systems
You can configure this module effortlessly using the Unity Pro or PL7 Pro software platforms. The Schneider TSXDSF612 automatically maps output data from the processor memory space. It supports both local rack mounting and remote I/O configurations via the bus. Therefore, system designers achieve maximum flexibility for expanding control networks.
Furthermore, this module excels in applications requiring high-speed output switching. Industries like packaging, assembly lines, and machine tools benefit from its fast response. The solid-state design ensures millions of trouble-free operations without contact wear. This reliability eliminates the maintenance associated with mechanical relay modules.
We source this high-performance module from Schneider Electric, a global leader in automation solutions. As part of the Modicon Premium family, it guarantees compatibility with existing installations. Choosing the TSXDSF612 means investing in maintenance-free output control for your machinery.
Technical Specifications Overview
| Specification | Details |
|---|---|
| Product Model | TSXDSF612 |
| Module Type | Discrete Output Module (Transistor) |
| Number of Channels | 12 outputs |
| Output Type | Transistor (sourcing) |
| Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A (resistive load) |
| Total Current per Module | 6 A maximum |
| Protection Features | Short-circuit and thermal overload protection |
| Response Time | < 1 ms (OFF to ON) / < 1 ms (ON to OFF) |
| Isolation Voltage | 1500 Vrms between field and logic |
| Backplane Current Draw | 300 mA from 5 VDC |
| Power Dissipation | 3.6 W maximum |
| Physical Dimensions | Standard Modicon Premium format |
| Module Weight | Approximately 0.35 kg (0.77 lb) |
| Terminal Type | Removable screw terminal block |
| Status Indicators | Green LED per channel |
| Compatible Load Types | Resistive, inductive, lamp loads |
| Compatible Software | Unity Pro, PL7 Pro |
| Series | Modicon Premium |
| Manufacturer | Schneider Electric |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
