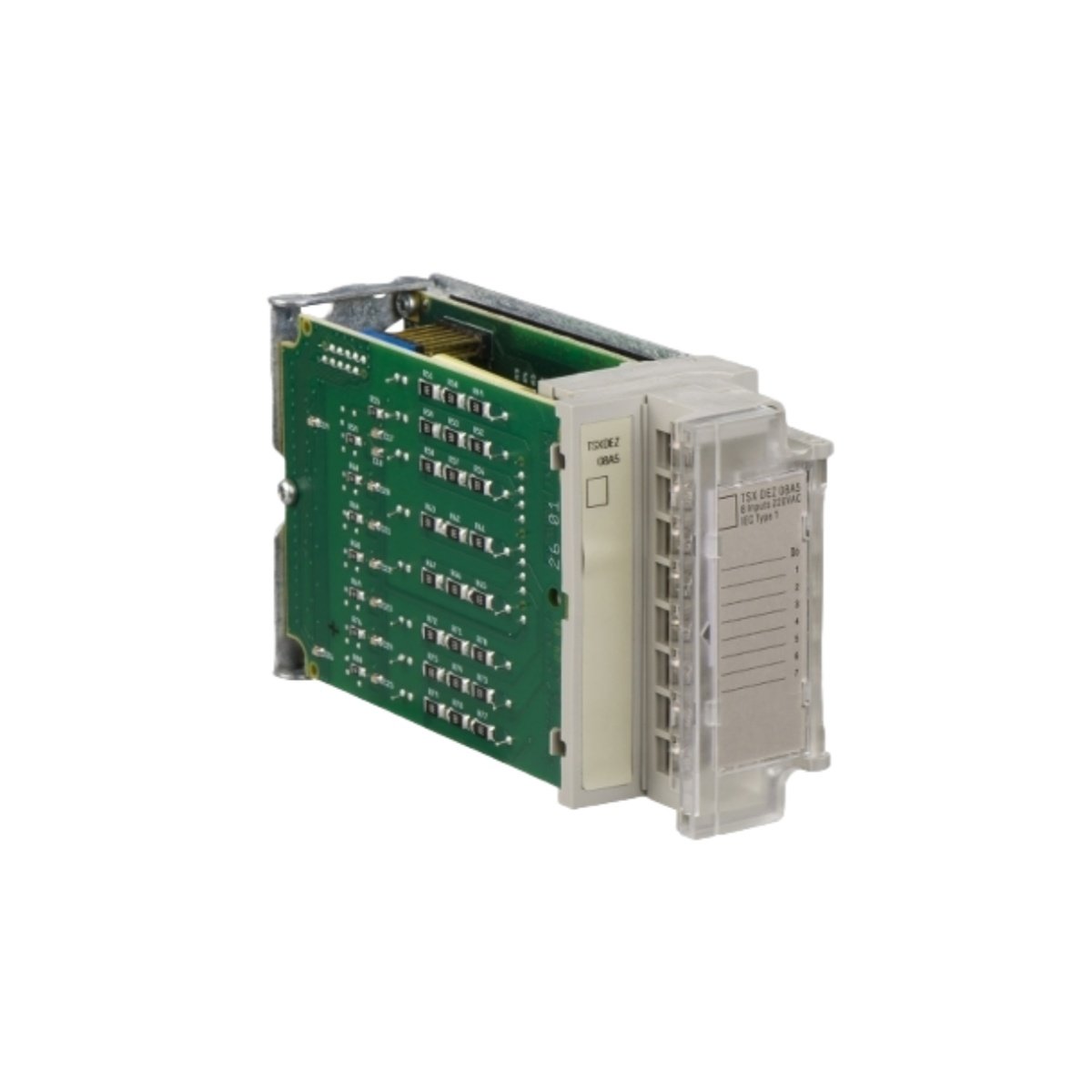

The Schneider TSXDEZ08A5 functions as a discrete input module for Modicon Premium automation platforms. We design this module to interface field sensors and switches with the Premium PLC system. Its reliable circuitry reads the status of eight independent input channels accurately. This input module enables the controller to monitor real-world device states for logic execution.

Key Features and Input Benefits

The Schneider TSXDEZ08A5 delivers reliable input sensing through its eight discrete channels and robust signal conditioning. This module accepts 24 VDC signals from proximity sensors, limit switches, and pushbuttons. Consequently, the controller receives accurate status information for program execution and decision making. Furthermore, the module includes input filtering to reject noise and contact bounce for reliable readings.

Detailed Technical Specifications

Manufacturers construct the Schneider TSXDEZ08A5 using industrial-grade components for continuous operation in demanding environments. The input module measures approximately 130 millimeters in height, 40 millimeters in width, and 100 millimeters in depth. Its compact form factor occupies a single Premium rack slot while providing eight input channels. Additionally, the module features status indicators for each channel to simplify troubleshooting and commissioning.

Input Channel Configuration

The TSXDEZ08A5 provides eight independently configurable discrete input channels for flexible field device connection. Each channel accepts 24 VDC signals from standard industrial sensors and switches. The module supports both sinking and sourcing input configurations for compatibility with various field devices. Therefore, it interfaces with a wide range of input devices without external interface components.

Signal Conditioning and Noise Immunity

Engineers designed the Schneider TSXDEZ08A5 with comprehensive signal conditioning for reliable input reading. Built-in filtering rejects electrical noise from motors, drives, and other industrial sources. Optical isolation protects the backplane and controller from voltage transients on field wiring. Consequently, the module provides clean, accurate input data even in electrically noisy environments.

Premium Platform Integration

The TSXDEZ08A5 integrates seamlessly into Modicon Premium automation racks through standard backplane connection. It plugs directly into any available I/O slot and communicates with the processor via the rack backplane. The module appears in the system configuration for easy setup and diagnostics access. Therefore, it functions as an integral component of comprehensive Premium automation solutions.

Industrial Applications and Use Cases

Manufacturing facilities rely on the Schneider TSXDEZ08A5 for monitoring discrete field devices across many applications. Packaging machines use this module to read sensor positions for product presence and registration. Material handling systems employ it for monitoring limit switches on conveyors and diverters. This input module ensures reliable device status monitoring in all these applications.

Installation Guidelines and Best Practices

Proper installation of the Schneider TSXDEZ08A5 ensures reliable input reading and long-term performance. First, insert the module into an available Premium rack slot and secure it with the locking mechanism. Next, connect field device wiring to the appropriate terminals following the wiring diagram. Finally, verify channel operation by observing status LEDs while actuating connected sensors.

Maintain System Reliability with Genuine Schneider Components

Choosing the genuine Schneider TSXDEZ08A5 guarantees reliable input performance for your Premium system. Aftermarket modules may lack the proper filtering and isolation characteristics of authentic Schneider designs. Therefore, always source this discrete input module from authorized Schneider Electric distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
