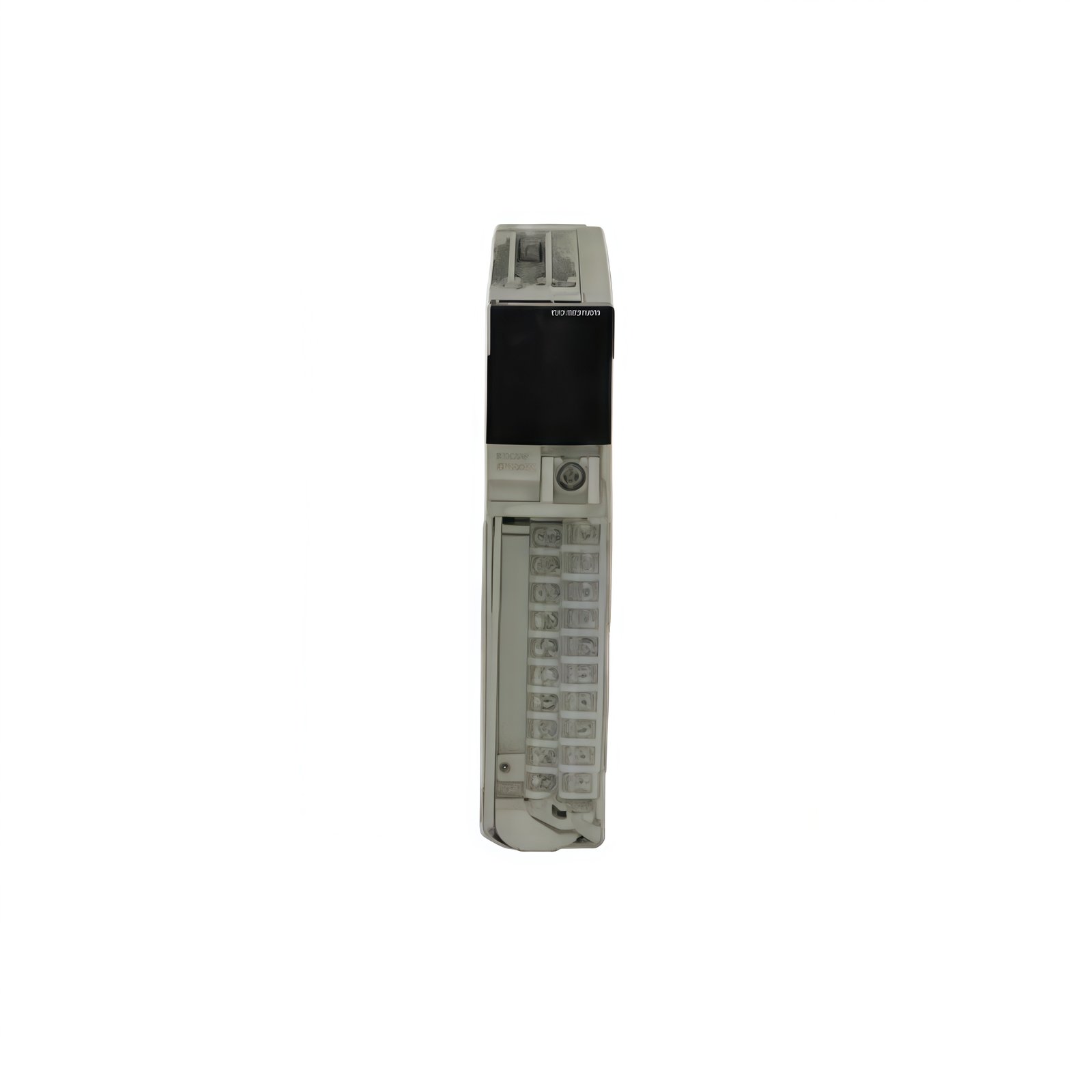

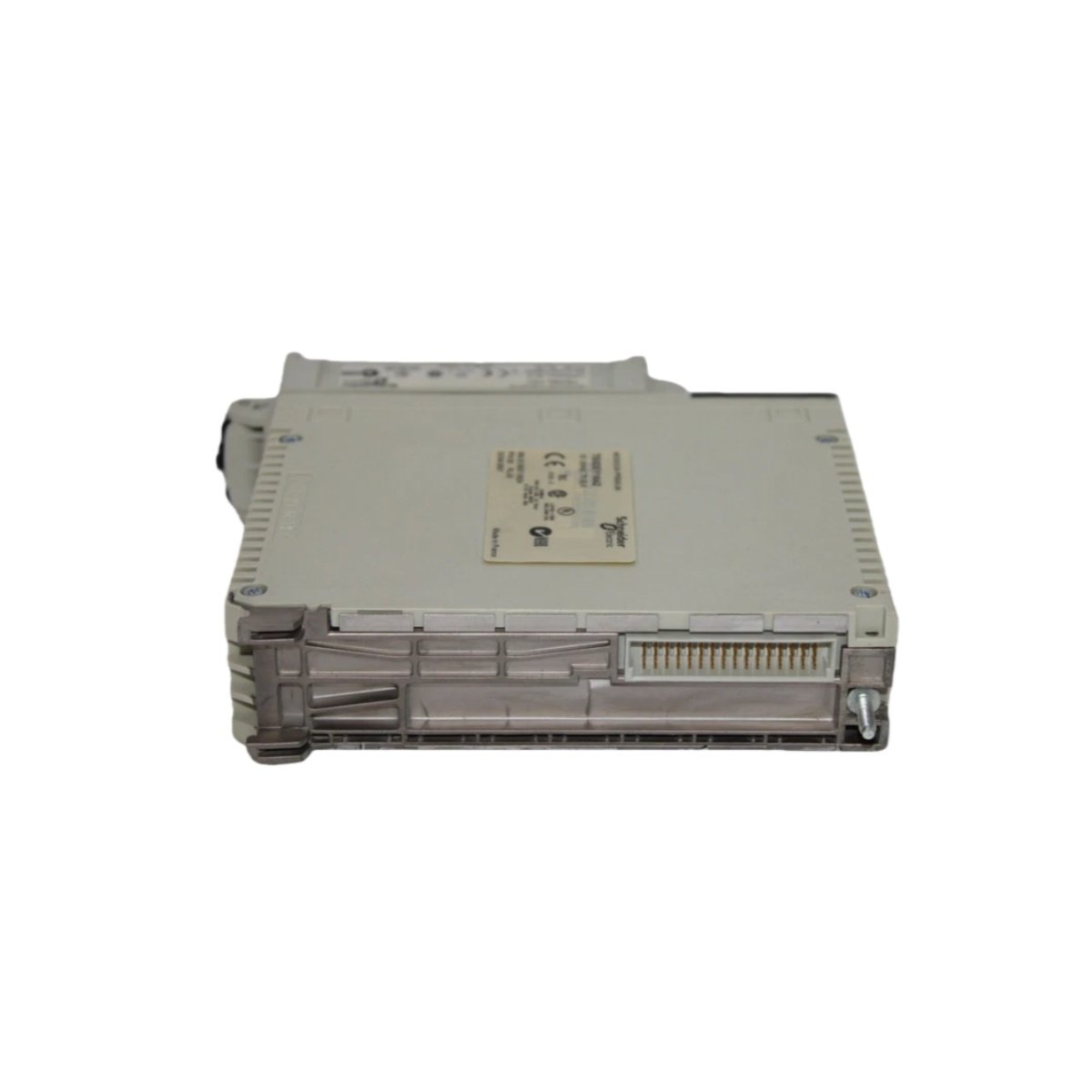

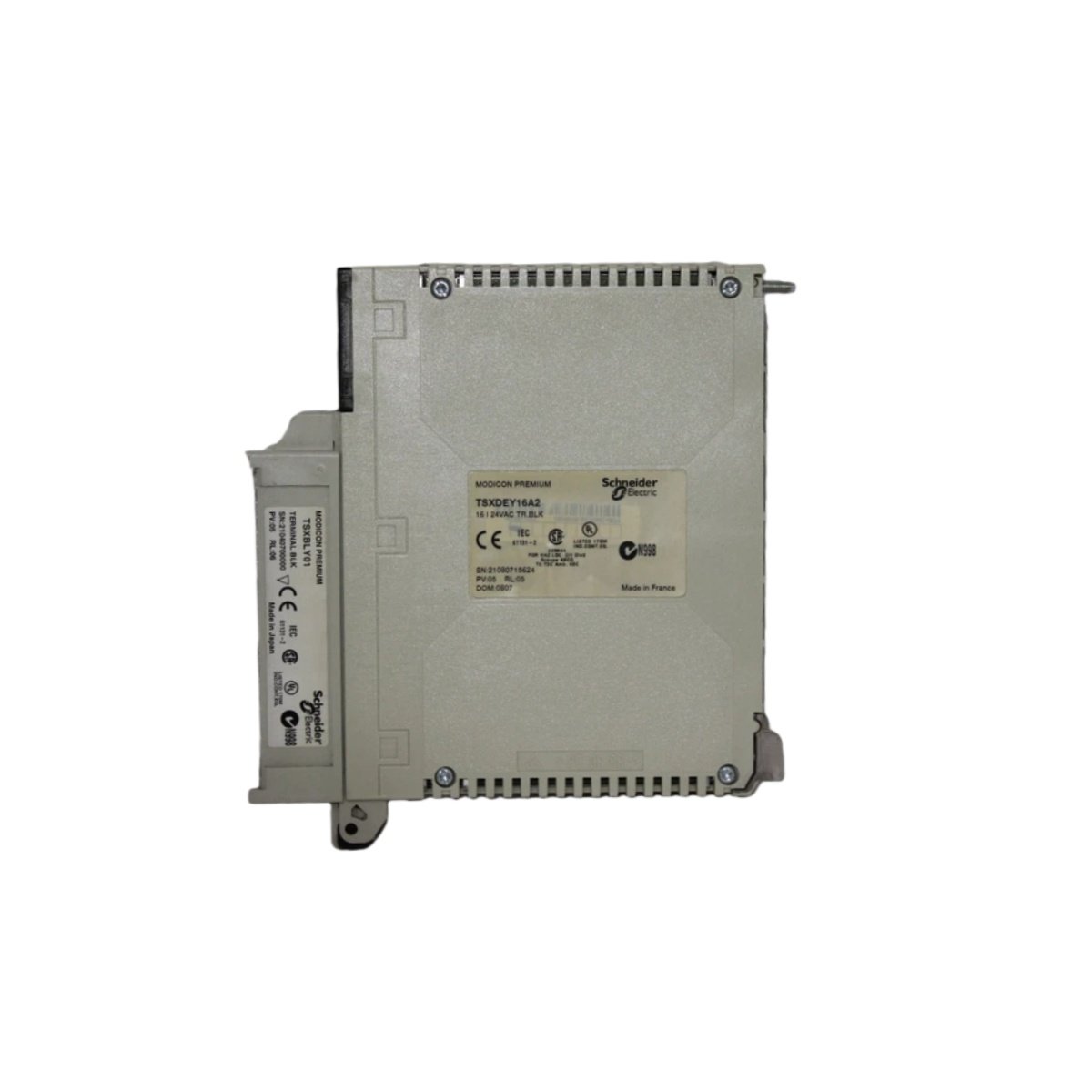

The Schneider TSXDEY16A2 functions as a high-density discrete input module for Modicon Premium automation platforms. This unit acquires digital signals from field devices such as limit switches, pushbuttons, and proximity sensors. You can depend on this module for accurate state detection in industrial control applications.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Discrete Input Module |
| Input Channels | 16 independent channels |
| Input Voltage | 24 VDC nominal |
| Input Current | 7 mA per channel typical |
| Input Type | Sink/source configurable |
| Isolation | 1500 V RMS between field and logic |
| Response Time | 4 ms off-to-on, 4 ms on-to-off |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions (H x W x D) | 130 mm x 40 mm x 115 mm |
| Weight | 0.35 kg (0.77 lbs) |
| Terminal Type | Removable screw terminals |
| Wire Size | 0.2 mm² to 2.5 mm² (24-14 AWG) |
| Power Consumption | 0.5 W from backplane |
| Compatibility | Modicon Premium TSX series |
High-Density Input Configuration
The TSXDEY16A2 packs 16 independent input channels into a slim 40 mm wide housing, maximizing I/O density in your control panel. Each channel accepts 24 VDC nominal signals with only 7 mA typical current draw, minimizing loading on field device outputs. You can therefore connect multiple sensors without signal degradation.
This module offers flexible sink/source configurable inputs to match your existing field wiring conventions. The adaptability simplifies retrofits and standardization across different machine sections. Each channel includes LED indication for immediate visual status confirmation during commissioning.
Robust Electrical Isolation
Industrial environments introduce electrical noise that can corrupt digital signals. The Schneider TSXDEY16A2 addresses this with 1500 V RMS isolation between field inputs and the logic circuitry. This isolation prevents ground loops and transients from affecting control system operation.
The module detects input states with 4 ms response time for both off-to-on and on-to-off transitions. This rapid response suits most industrial applications including machine control, material handling, and process monitoring. You receive timely status updates without unnecessary filtering delays.
Physical Design and Installation
Measuring 130 mm x 40 mm x 115 mm and weighing only 0.35 kg, the TSXDEY16A2 occupies minimal panel space. The compact form factor allows dense packing alongside other Premium series modules. Installation requires no special tools or complex configuration.
Removable screw terminals accept 0.2 mm² to 2.5 mm² wiring, accommodating standard control cables. You can pre-wire these terminals before module installation, reducing assembly time. The terminals feature clear labeling for error-free field connections.
System Integration and Compatibility
We designed the TSXDEY16A2 specifically for Modicon Premium TSX series PLC systems. It communicates with the main processor through the rack backplane, requiring no external adapters. The 0.5 W power consumption places minimal load on system power supplies.
For similar industrial automation components, you might examine the RMS TSG TZ C Static Trip protection device available through equipment suppliers. Both components demonstrate the reliability expected in modern control systems.
Environmental Durability
The Schneider TSXDEY16A2 operates reliably in 0°C to +60°C environments, suitable for most industrial facilities. The -40°C to +85°C storage range allows safe transport and inventory stocking. This thermal tolerance ensures long service life across diverse applications including manufacturing, packaging, and water treatment.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
