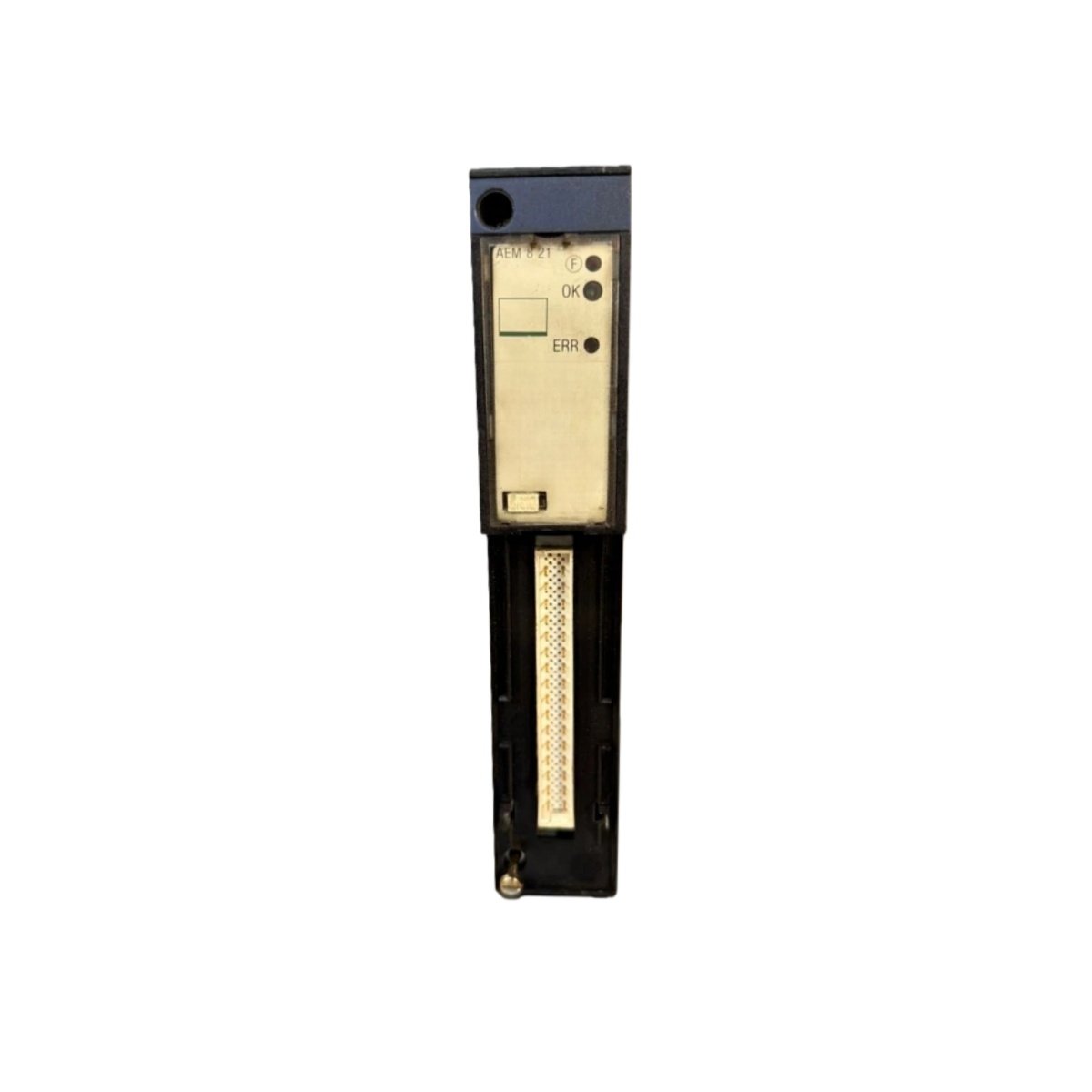

The Schneider TSXAEM1613TSX-AEM1613, also designated TSX-AEM1613, delivers precise analog control signals. This 16-channel module is designed for the robust Modicon Quantum automation platform. It converts digital commands into stable voltage or current outputs for field devices.
Engineered for Flexible and Precise Control
Each channel independently provides either a 0-10V or 0-20mA output signal. Consequently, it offers exceptional flexibility for driving valves, actuators, and variable-speed drives. The module’s 12-bit resolution ensures highly accurate command signal generation.
Complete Technical Specifications
The following table details the core technical parameters of the Schneider TSXAEM1613 / TSX-AEM1613 module.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric TSXAEM1613TSX-AEM1613 |
| Compatible Platform | Modicon Quantum PLC System |
| Product Type | 16-Channel Analog Output Module |
| Output Channels | 16 Independent Channels |
| Output Signal Types | 0-10 VDC or 0-20 mA (Selectable per Channel) |
| Output Resolution | 12-bit |
| Key Protections | Short-Circuit and Overload Protection |
| Diagnostic Indicators | Per-Channel Status LEDs & Power Supply LED |
| Configuration Software | Schneider Electric PL7 or PLC Programming Tools |
Built for Reliability in Diverse Applications
This module integrates vital protection features to safeguard both itself and connected equipment. Furthermore, its clear LED indicators provide instant visual status for every output channel. The TSXAEM1613TSX-AEM1613 is essential for process control, machine automation, and building management systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
