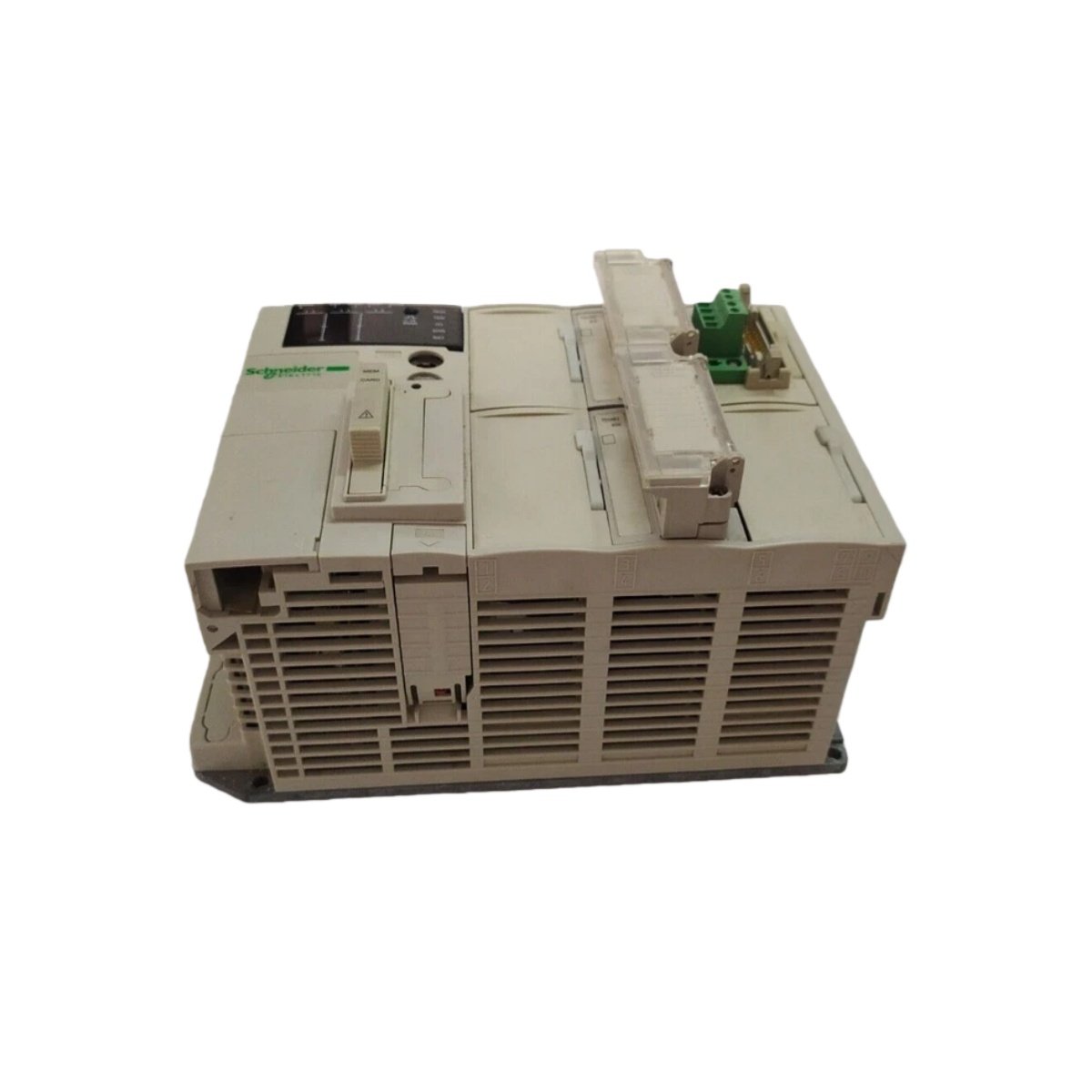

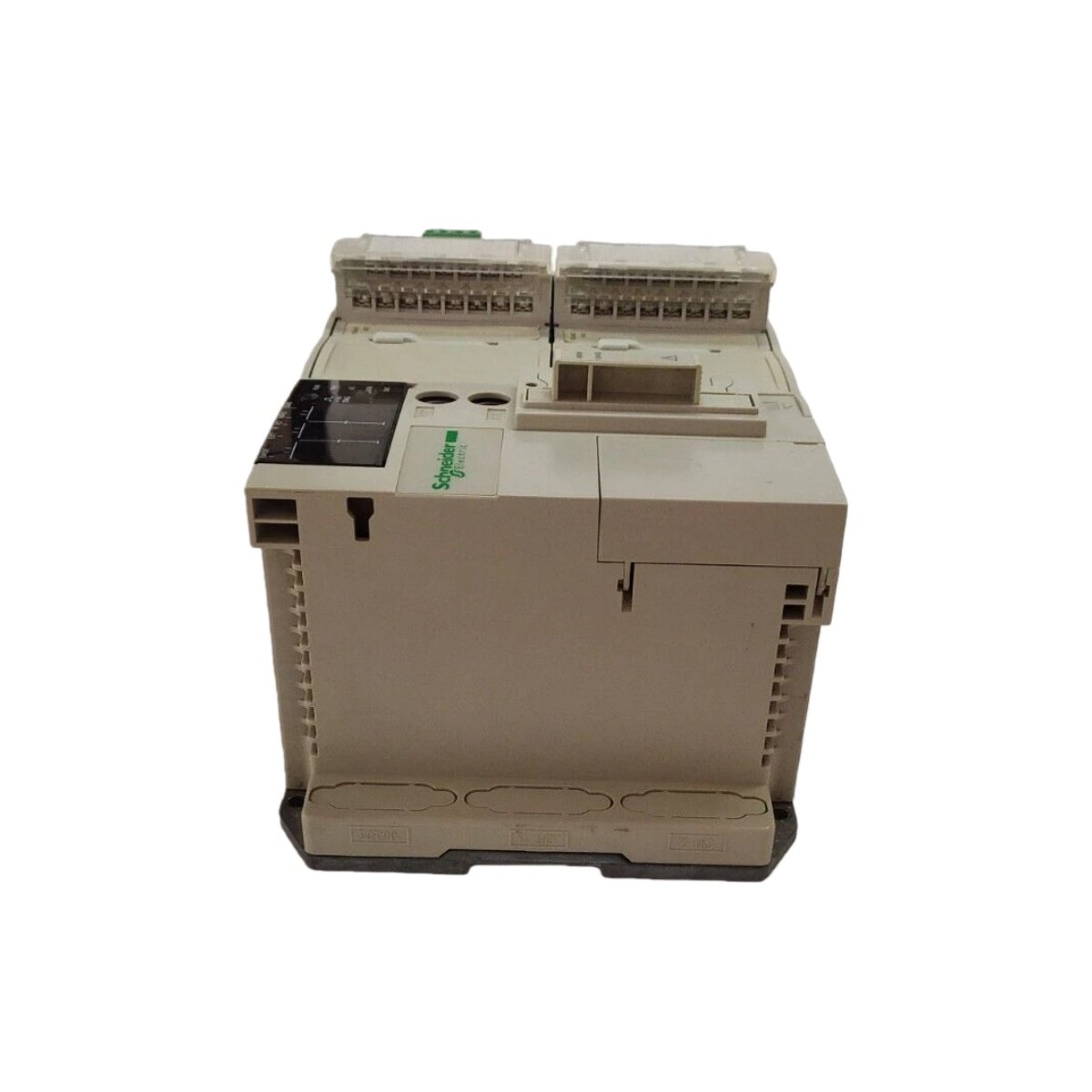

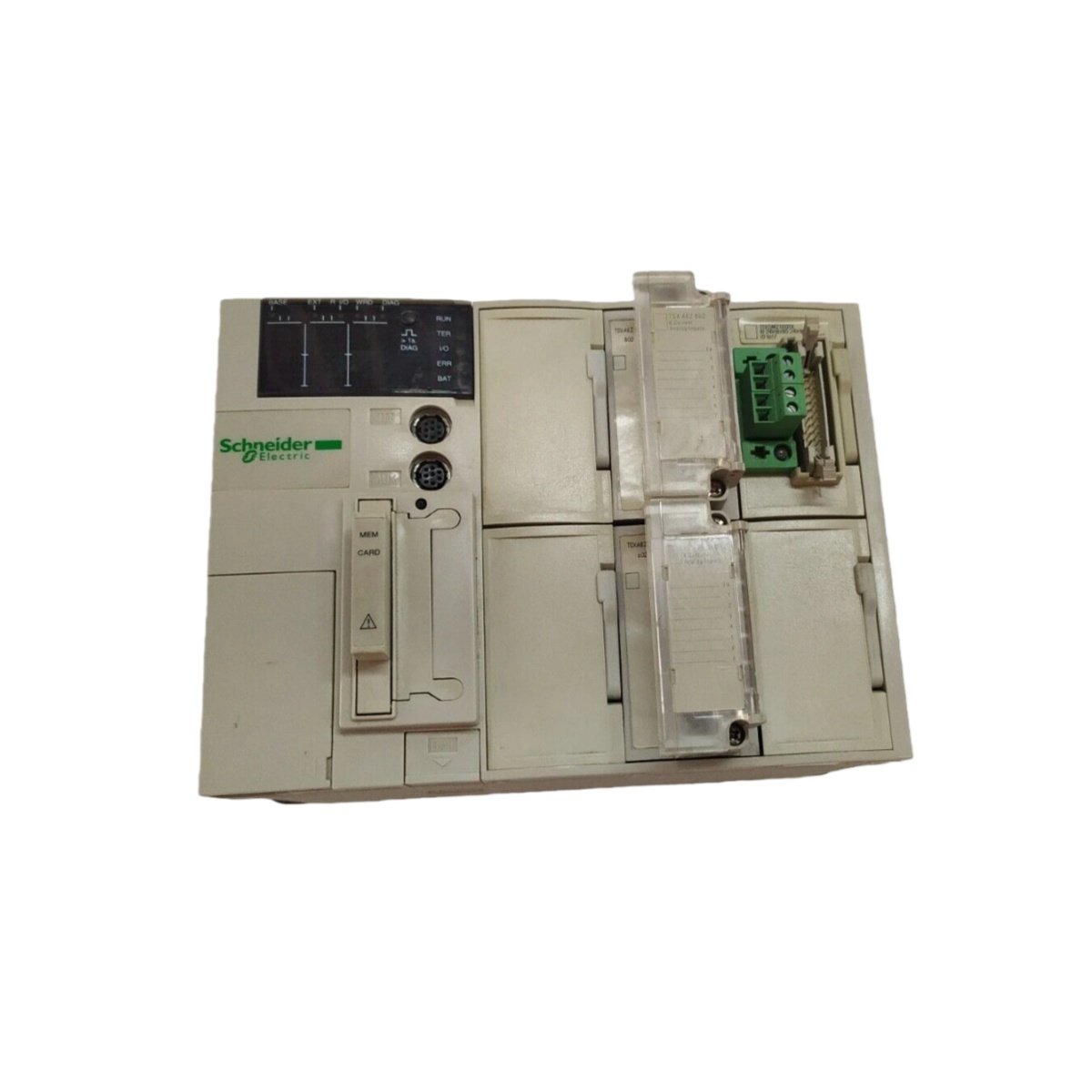

The Schneider TSX3721101 functions as a base controller unit within the TSX Micro programmable logic controller family. We design this compact PLC to provide reliable automation for small to medium-sized industrial applications. Its integrated architecture combines processor, power supply, and I/O in a single space-saving unit. This controller delivers efficient machine control for applications requiring modest I/O counts and compact footprints.

Key Features and Control Capabilities

The Schneider TSX3721101 delivers comprehensive control functionality through its integrated processor and I/O structure. This base controller executes logic programs while managing built-in I/O and optional expansion modules. Consequently, it provides complete machine control without requiring separate components for basic applications. Furthermore, its compact size minimizes panel space requirements for space-constrained installations.

Detailed Technical Specifications

Manufacturers construct the Schneider TSX3721101 using industrial-grade components for reliable operation in manufacturing environments. The controller measures approximately 150 millimeters in height, 100 millimeters in width, and 80 millimeters in depth. Its rugged housing protects internal electronics from dust, vibration, and temperature variations. Additionally, the unit features status indicators for power, processor activity, and I/O status monitoring.

Integrated Design and Space Savings

The TSX3721101 features a space-saving integrated design ideal for compact control panels. It combines processor, power supply, and basic I/O in a single housing without external modules. This integration reduces installation complexity and wiring requirements significantly. Therefore, it provides a cost-effective solution for applications with limited panel space and modest I/O needs.

TSX Micro Platform Expansion

Engineers designed the Schneider TSX3721101 for seamless expansion within the TSX Micro automation family. It connects directly to TSX Micro expansion modules for increased I/O capacity when applications require. The controller also supports communication modules for network connectivity and remote I/O. Consequently, it grows with application requirements while maintaining a compact footprint.

Industrial Applications and Use Cases

Manufacturing facilities use the Schneider TSX3721101 for diverse small to medium control applications worldwide. Packaging machines employ this controller for indexing, sealing, and labeling operations. Material handling applications use it for conveyor control and basic sorting functions. This TSX Micro controller delivers reliable automation in all these applications.

Programming and Software Support

Programmers develop applications for the Schneider TSX3721101 using Schneider Electric’s PL7 Micro software environment. This intuitive platform supports ladder logic, instruction list, and structured text programming languages. Engineers can monitor and debug programs online for efficient troubleshooting and optimization. Therefore, application development remains straightforward and accessible for maintenance personnel.

Installation Guidelines and Best Practices

Proper installation of the Schneider TSX3721101 ensures optimal performance and long-term reliability. First, mount the controller securely on DIN rail or panel using all mounting points provided. Next, connect power supply wiring according to local electrical codes and nameplate ratings. Finally, download the application program and verify proper operation before placing the system in service.

Maintain System Reliability with Genuine Schneider Components

Choosing the genuine Schneider TSX3721101 guarantees proper performance and compatibility for your TSX Micro system. Aftermarket controllers may lack the precise timing and I/O characteristics of authentic Schneider designs. Therefore, always source this base controller unit from authorized Schneider Electric distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
