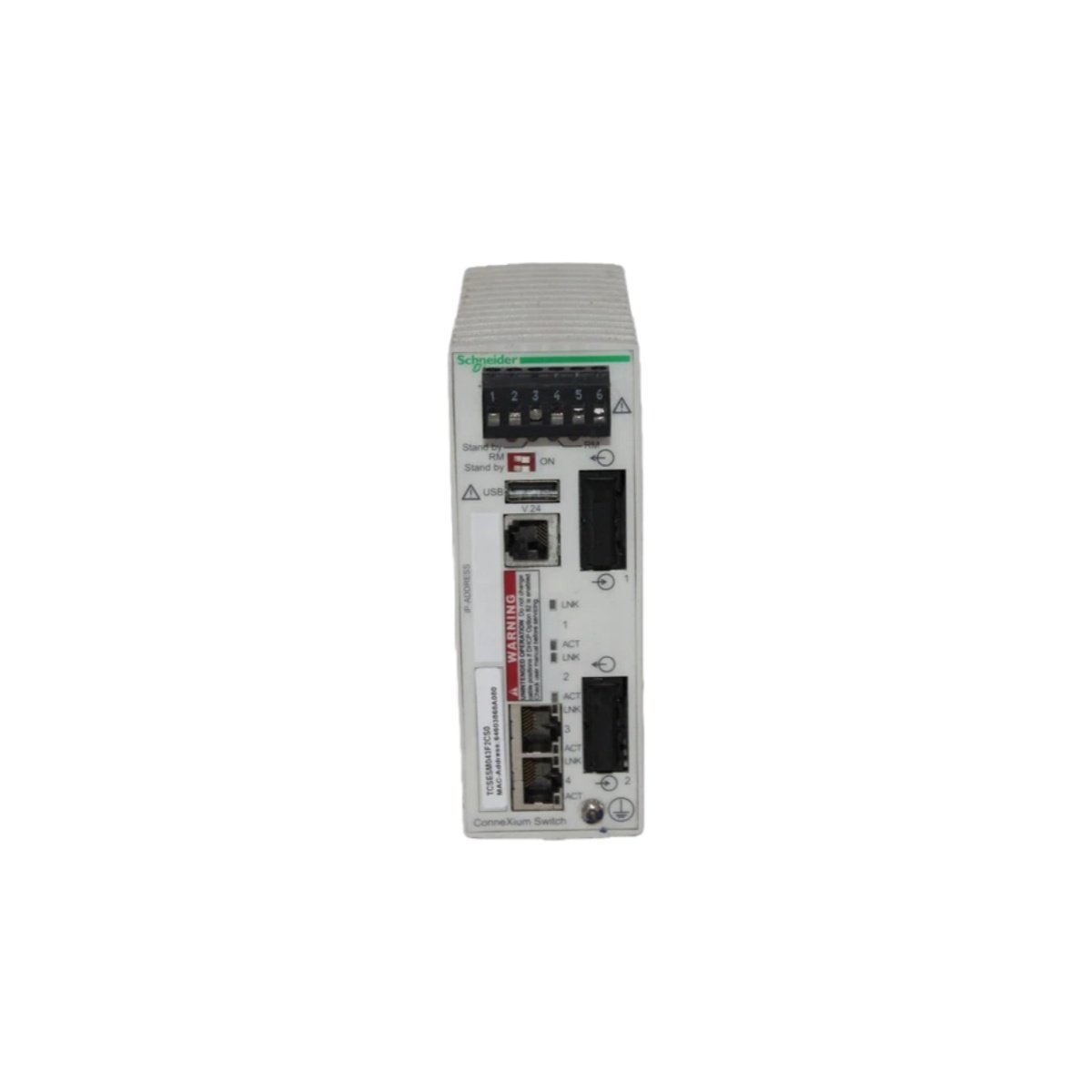

The Schneider Electric TCSESM043FG2UD delivers robust connectivity for industrial networks. This Connexium managed switch supports both copper and fiber optic media. Moreover, its compact design features a low power consumption of just 7.7 watts. Consequently, it provides reliable, long-distance communication for demanding automation systems.
Core Technical Specifications
The TCSESM043FG2UD switch operates on a wide-range 12-48 VDC power input. It offers two high-speed copper ports and two single-mode fiber optic ports. Furthermore, its fiber ports enable connections over distances up to 32.5 kilometers.
Below are the detailed technical specifications for this networking device:
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Schneider Electric, TCSESM043FG2UD |
| Product Series | Connexium Managed Ethernet Switch |
| Primary Protocol | Ethernet TCP/IP |
| Total Port Configuration | 2 x 10/100TX + 2 x 100FX |
| Fiber Optic Type & Distance | Single Mode, Up to 32.5 km (9/125 µm) |
| Copper Cable Distance | Up to 100 meters |
| Power Consumption | 7.7 Watts Typical |
| Input Voltage Range | 12 to 48 V DC |
| Key Internal Components | Managed switching ASIC, power regulation circuitry, and transceiver modules. |
Key Features and Application Role
This switch provides advanced managed features like VLANs and QoS for traffic prioritization. Its fiber optic ports ensure immunity to EMI in electrically noisy plants. Therefore, the Schneider TCSESM043FG2UD is ideal for backbone and infrastructure links.
The wide voltage input allows flexible integration into various DC power systems. Additionally, its industrial-grade construction guarantees stable operation in harsh environments.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
