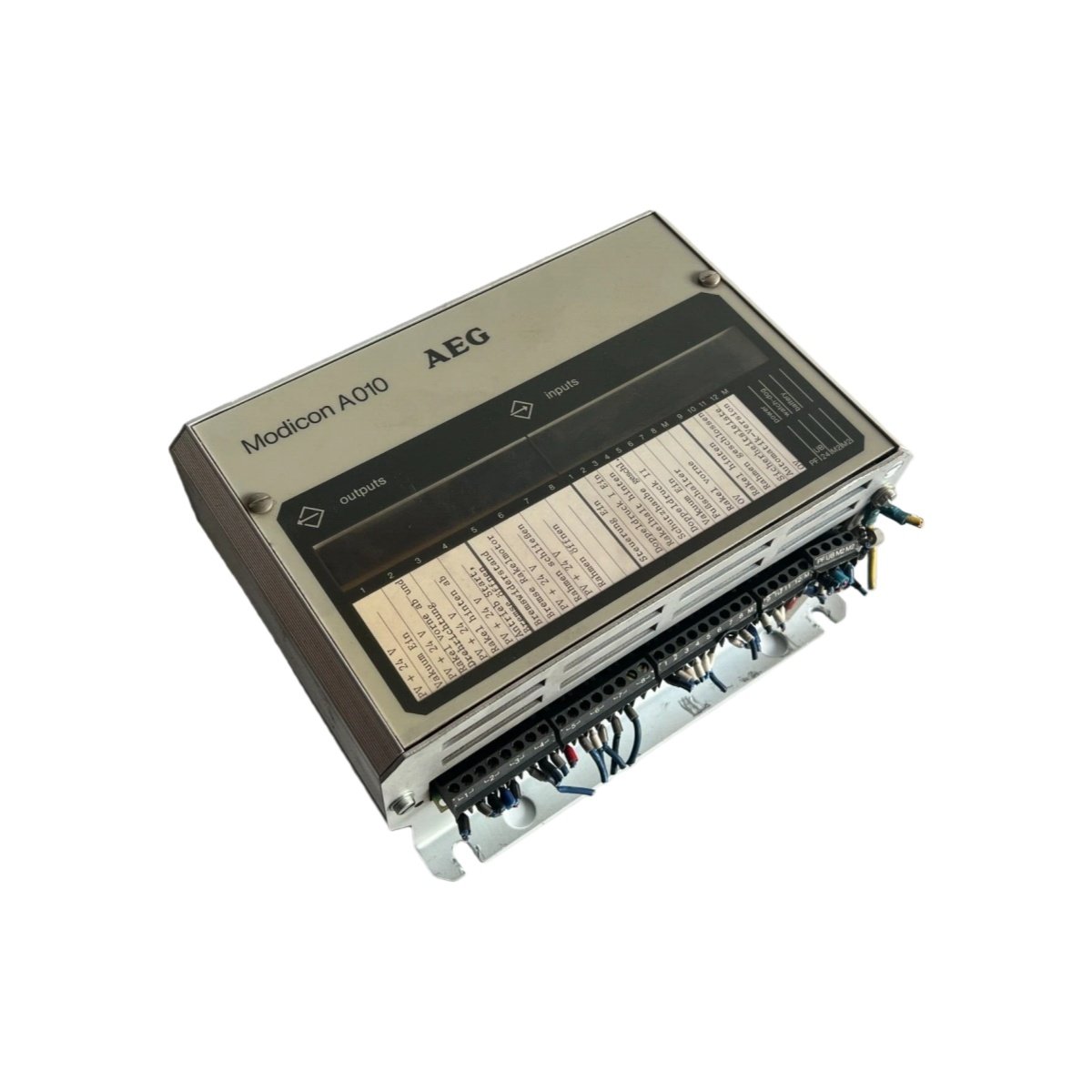

The Modicon A010 PLC module delivers reliable control logic for distributed automation systems. Schneider Electric engineered this unit for seamless integration into Modicon series architectures. It processes discrete signals with consistent accuracy across varied industrial applications. You can deploy this module in both new installations and legacy system upgrades.

Technical Specifications

The Modicon A010 combines compact construction with dependable operational parameters. The following specifications define its technical capabilities.

Physical Design and Mounting

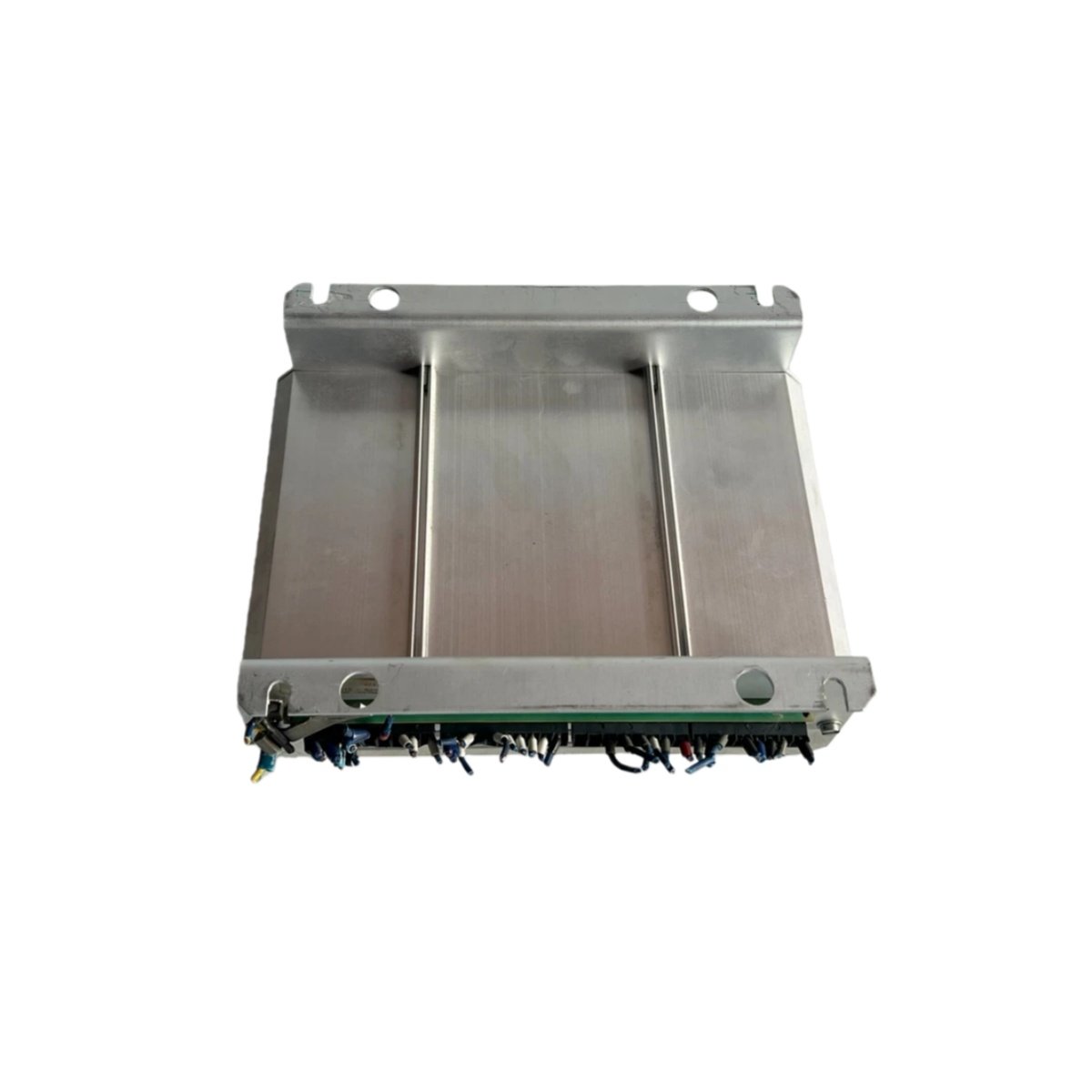

The module measures 120 mm in height and 110 mm in depth. Its width occupies just 40 mm for space-conscious cabinet layouts. The unit weighs approximately 0.38 kilograms for straightforward handling during installation. This slim profile supports high-density configurations within control enclosures.

Connectivity and Integration

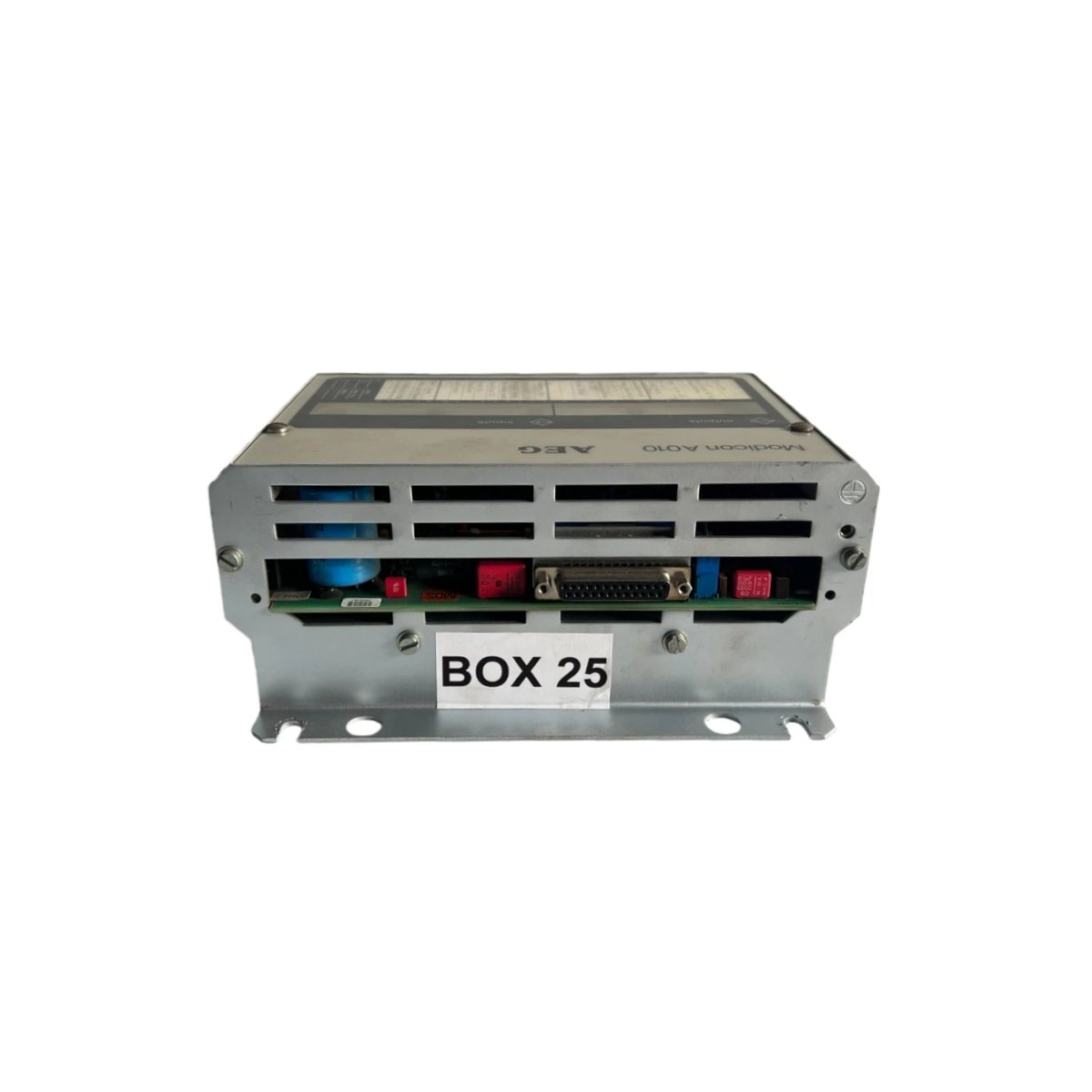

This PLC module interfaces through the standard Modicon backplane connector. It establishes reliable communication with the central processing unit via the system bus. The Modicon A010 accepts field wiring through a removable terminal block. You can install or replace this unit without disturbing adjacent modules.

Power Management and Reliability

The system operates on a 24 V DC power supply with low energy demands. Total power consumption reaches only 3.2 watts under full load conditions. Furthermore, the module includes built-in overvoltage protection circuitry. This feature safeguards internal components from supply fluctuations.

Application Suitability

Engineers select this module for discrete control tasks in manufacturing environments. It performs reliably in conveyor systems, packaging lines, and material handling equipment. The Modicon A010 also supports basic sequencing operations in process control applications. For similar high-quality automation components, you can explore options like the RMS TSG TZ C static trip unit from the same industrial ecosystem.
