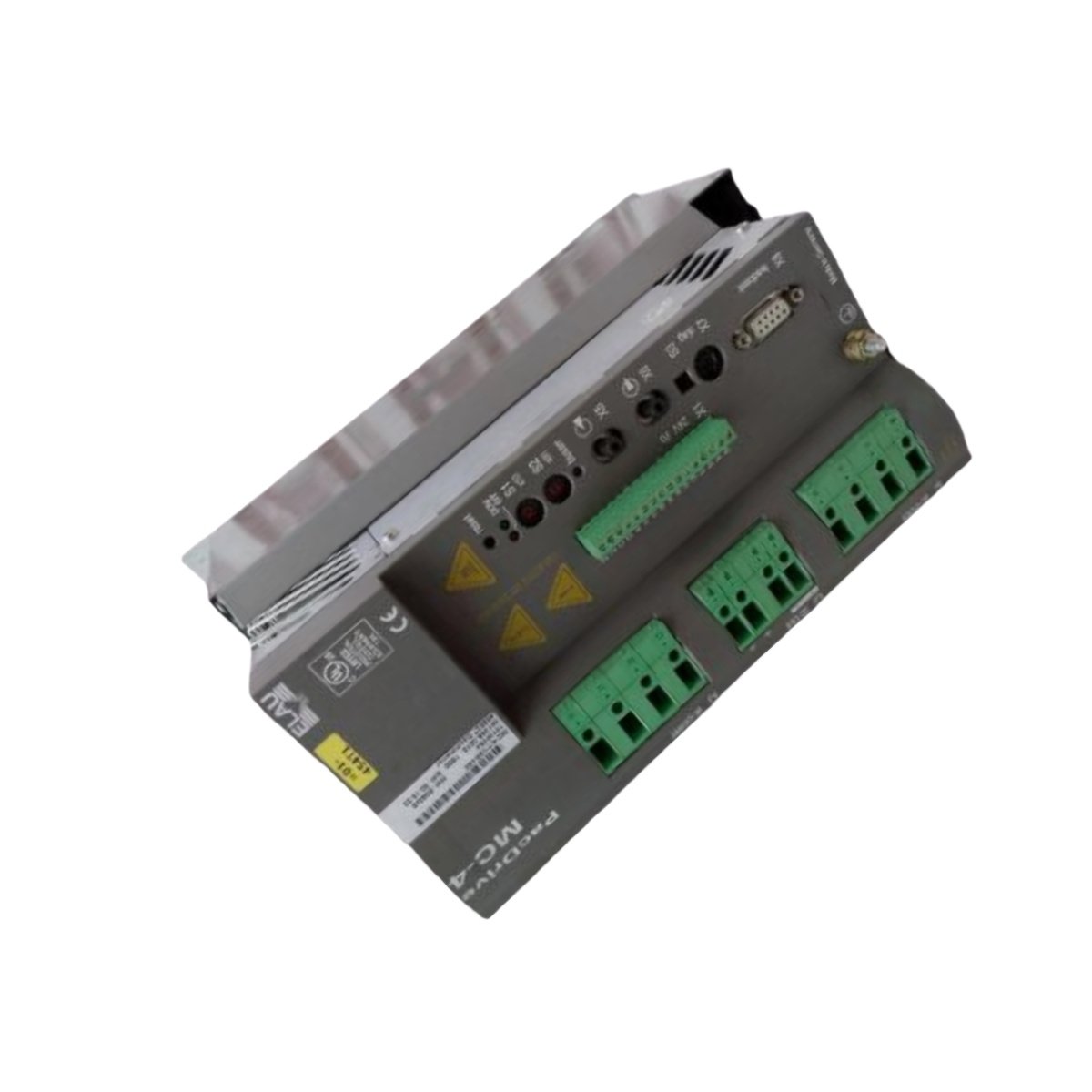

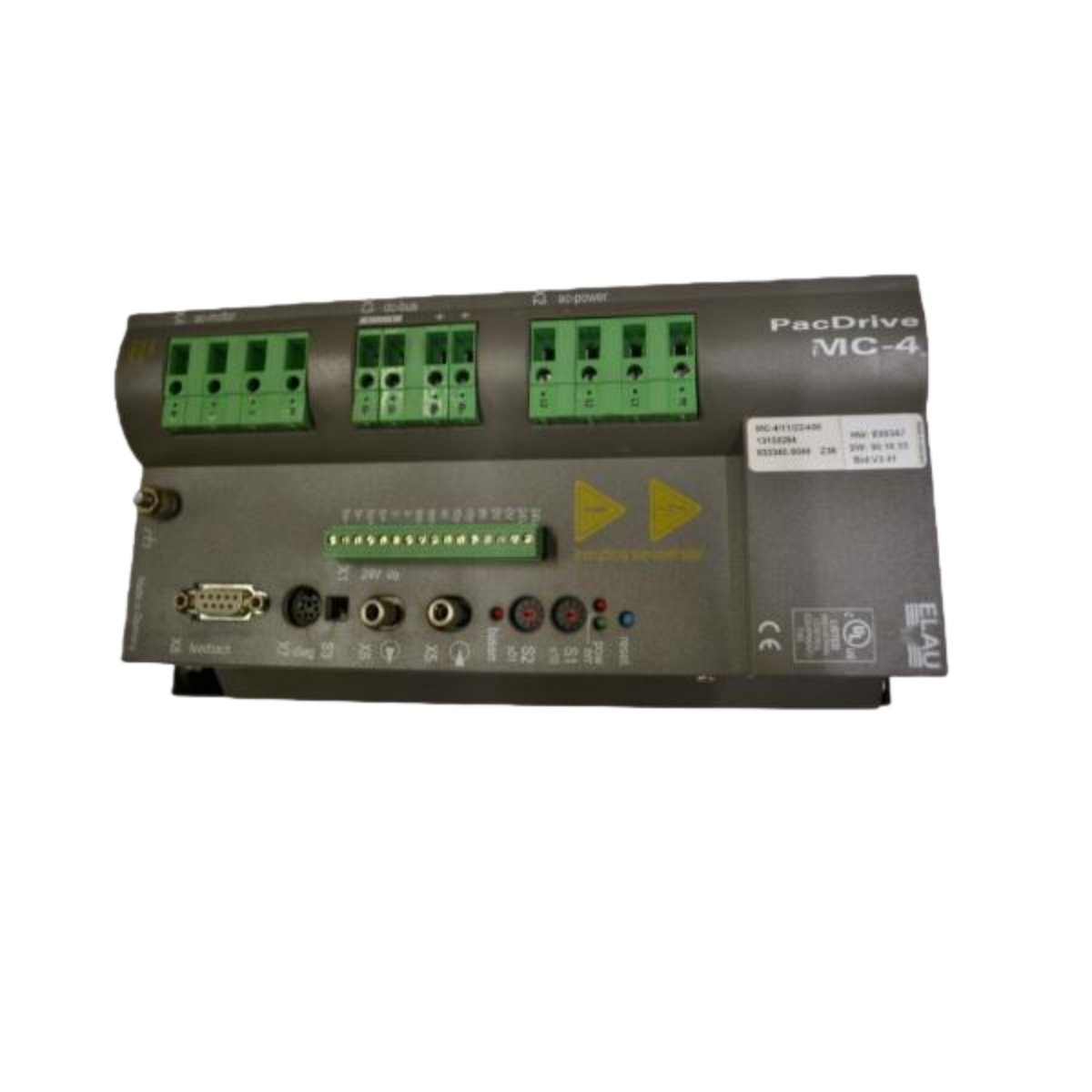

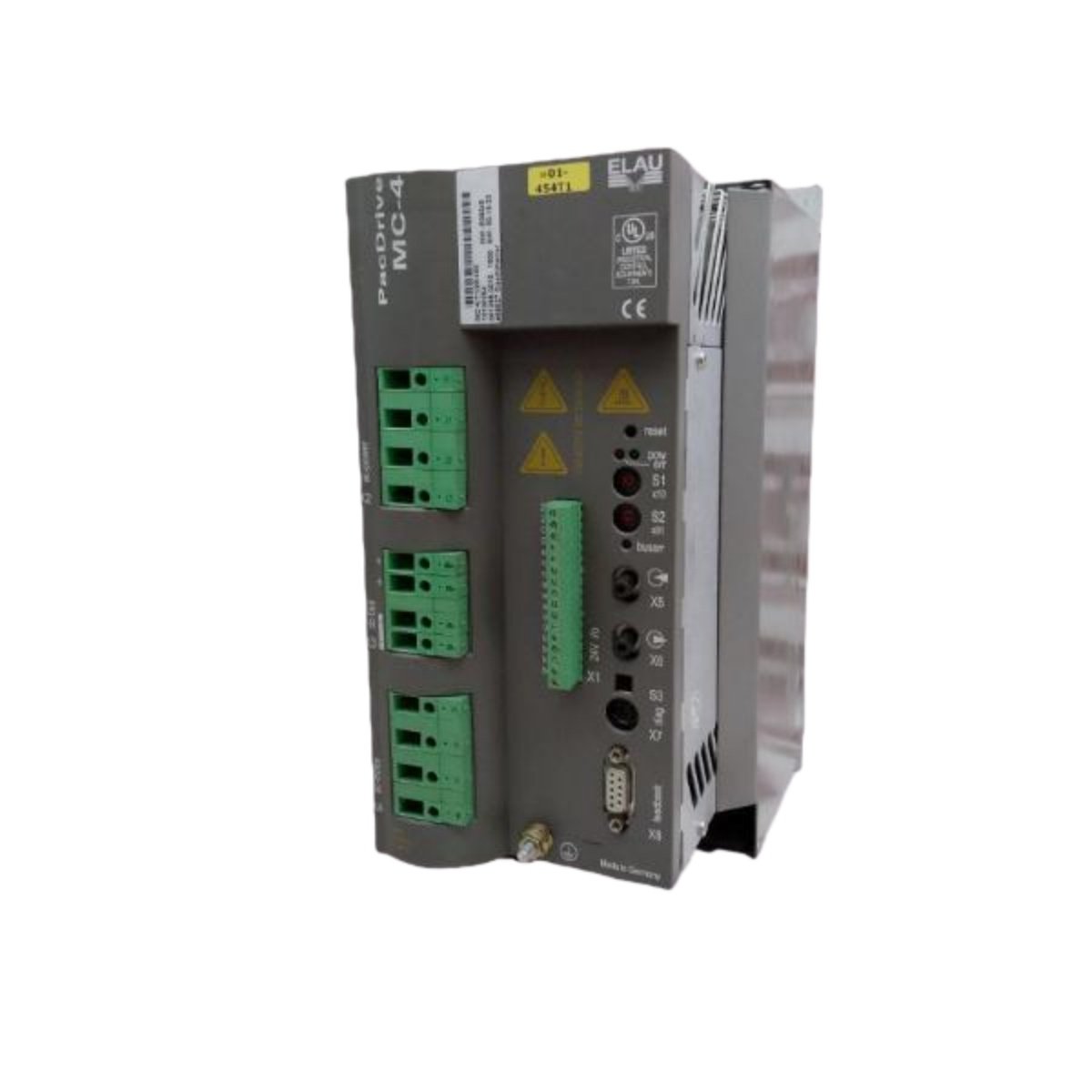

The Schneider MC-4/11/22-400 delivers high-performance motion control for demanding applications. This advanced servo drive is a key component of the Schneider PacDrive series. It provides precise control over motor torque, speed, and position with dynamic response.
Engineered for Powerful and Precise Motion Control
This drive accepts a wide three-phase input voltage range from 380 to 480 VAC. Consequently, it offers flexible integration into various industrial power infrastructures worldwide. The Schneider generates a controlled output for high-speed servo motor operation.
Complete Technical Specifications
The following table outlines the critical electrical input and output parameters for the Schneider MC-4/11/22-400.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric MC-4/11/22-400 |
| Product Series | PacDrive Series |
| Product Type | High-Performance Servo Drive |
| Input Power | 3-Phase, 380-480 VAC, 48-62 Hz |
| Input Current | 22.2 Amps |
| Output Power | 3-Phase, 0-480 VAC, 0-600 Hz |
| Output Current | 22 Amps (Continuous) |
| Control Topology | Intelligent, digital signal processing for closed-loop control |
| Communication Interface | Integrated fieldbus for seamless PLC integration |
| Key Function | Precise control of servo motor torque, speed, and position |
A Core Component for Advanced Automation Systems
Engineers select this drive for its high current rating and wide output frequency range. Furthermore, its robust design ensures reliable performance in continuous production environments. The MC-4/11/22-400 is ideal for packaging, robotics, and other high-speed precision machinery.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
