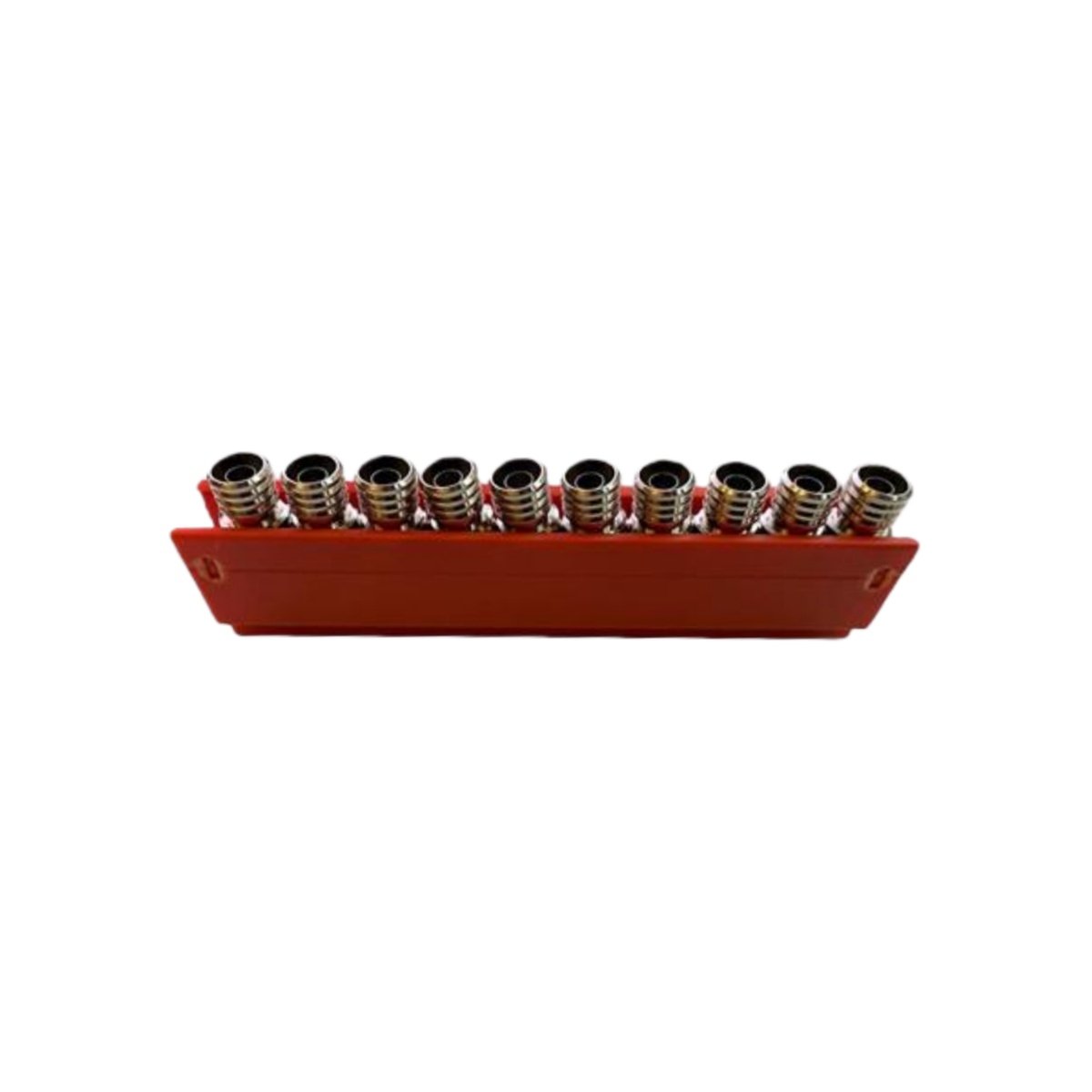

The Schneider MA-0329-001 is a specialized 10-piece F connector cassette set. It provides a reliable and standardized termination solution for shielded RG-6 coaxial cables. This set ensures consistent signal integrity and robust mechanical connections in communication networks.
Technical Specifications and Physical Details
This connector set features high-quality components designed for industrial durability. Each item in the cassette meets precise electrical and mechanical standards. Now, let’s examine the key technical parameters in detail.
Primary Product Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Model | MA-0329-001 |
| Product Type | F Connector Cassette / Assembly Set |
| Connector Type | F-Type, for RG-6/U coaxial cable |
| Cable Shield Compatibility | Designed for 10 FD6Q type shielding |
| Contents | Set of 10 complete pre-assembled connectors |
| Cable Diameter Range | For standard RG-6 coaxial cable (approx. 6.9mm) |
| Interface Standard | Standard 75-ohm F-type female thread |
| Application | Video, data, and RF signal transmission systems |
Application and Integration Context
You use this set to quickly terminate RG-6 cables in security, CCTV, or broadband systems. These connectors maintain the 75-ohm impedance critical for minimizing signal reflections. Therefore, they are essential for maintaining high-quality video and data transmission.
For proper installation techniques, always refer to the Schneider Electric technical guidelines. This product exemplifies the precision components required for reliable infrastructure. Ultimately, it supports stable performance in demanding surveillance and industrial communication applications.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
