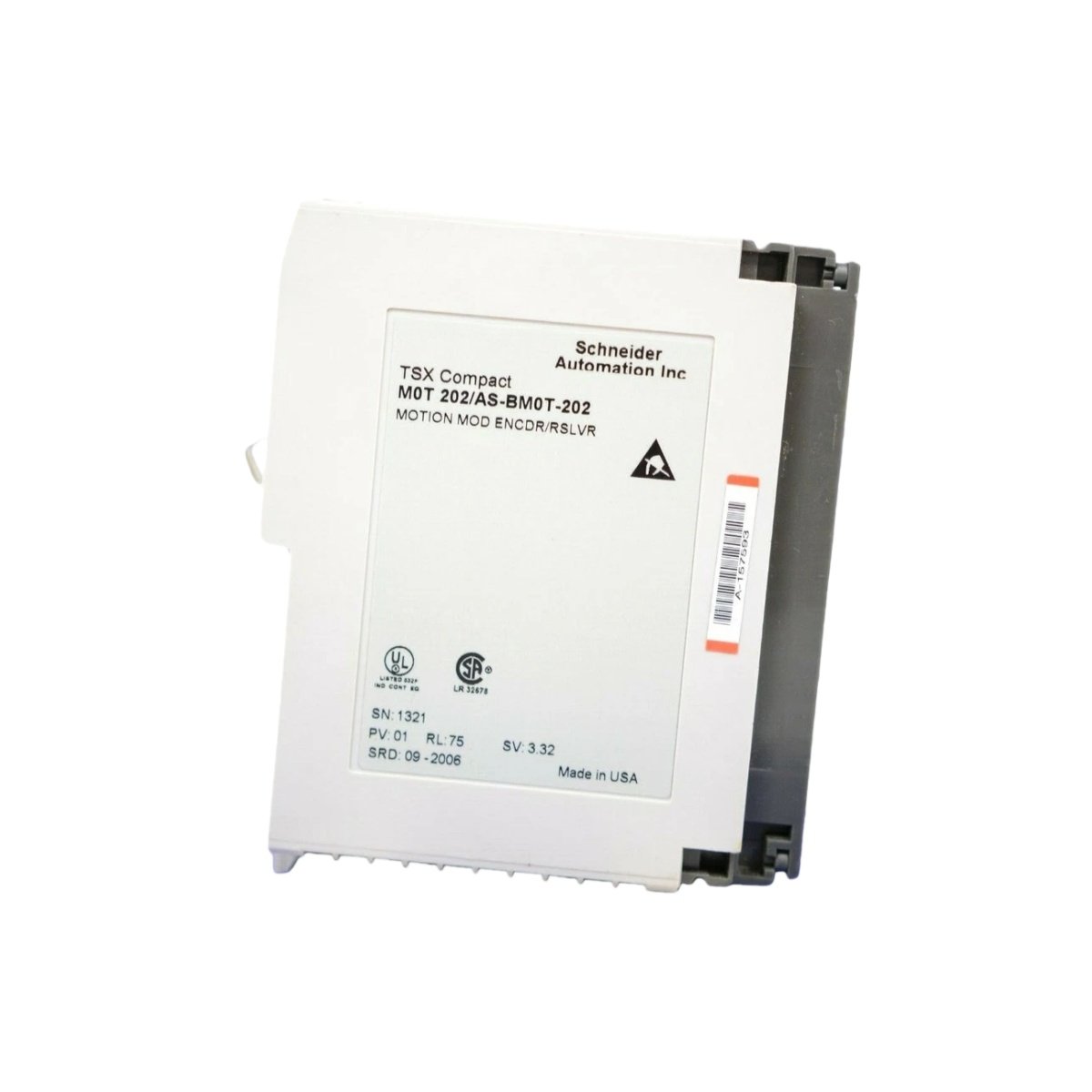

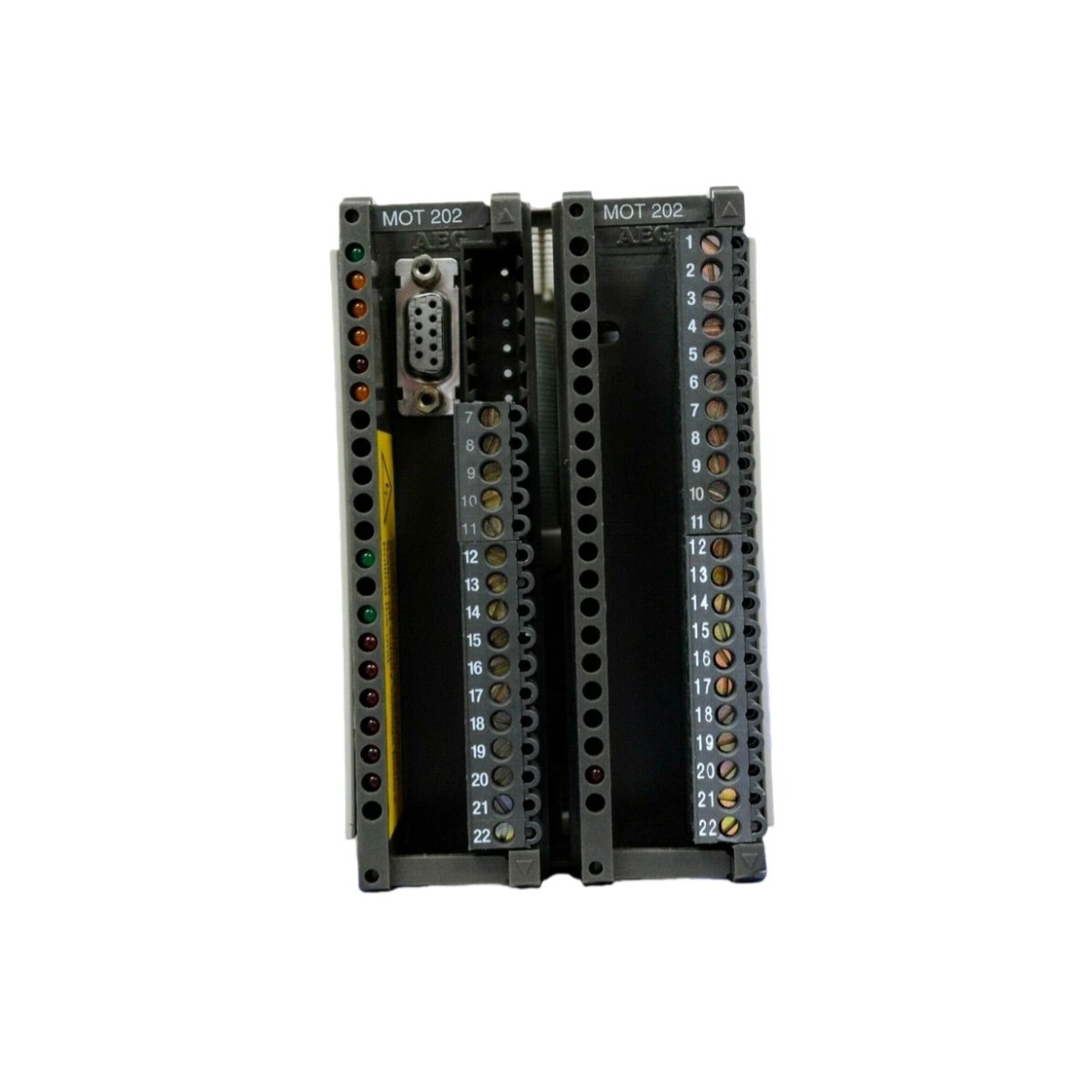

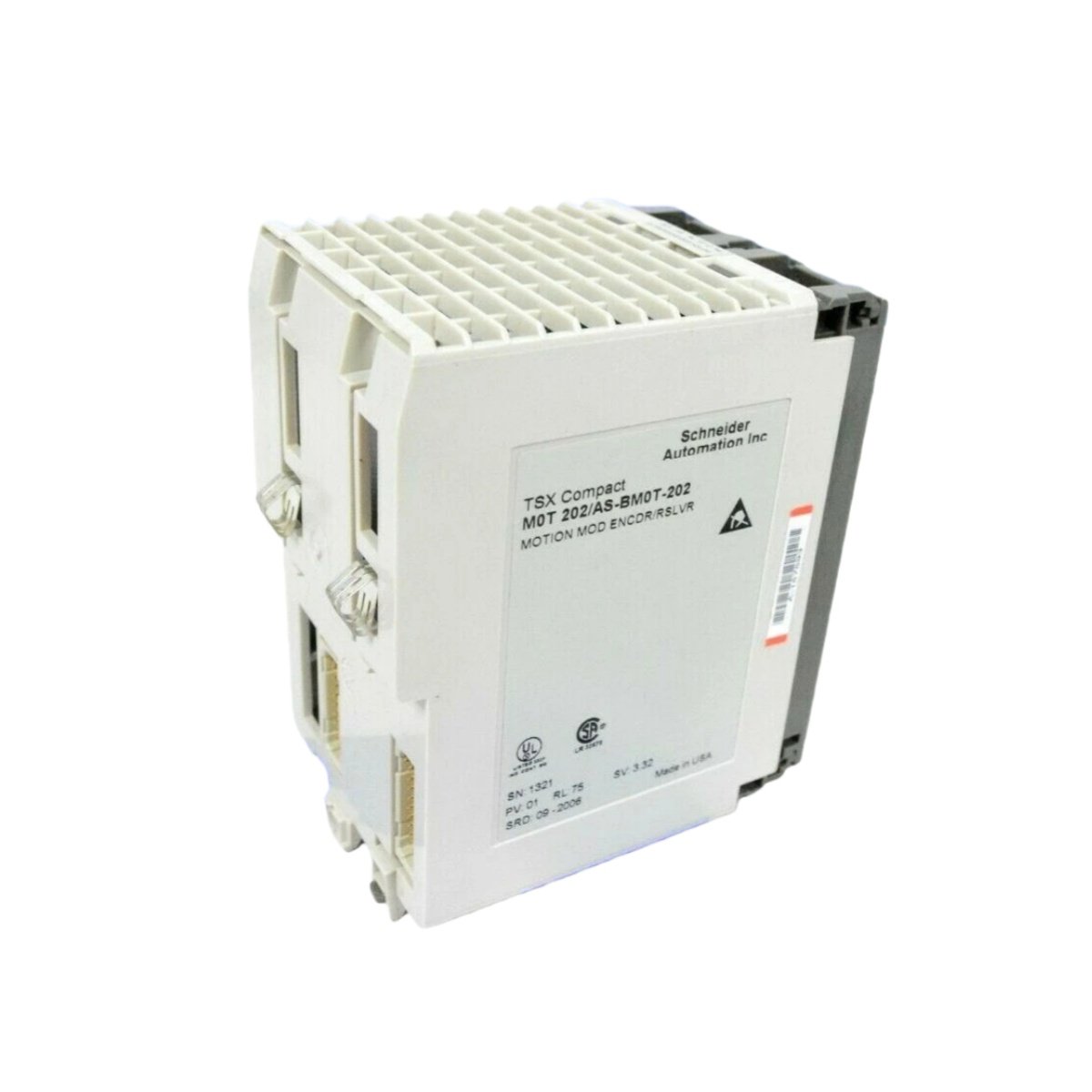

The M0T 202/ASBM0T202 from Schneider Electric represents a sophisticated motion control module within the Premium automation platform. Engineers use this module to coordinate multi-axis movements with exceptional precision. It integrates effortlessly with TSX PLCs for synchronized machine control.
Core Hardware Architecture and Physical Design
This motion module features a compact Eurocard format with dimensions of approximately 100 mm x 160 mm. The unit weighs around 0.4 kg, allowing for straightforward installation in standard racks. Its robust construction incorporates high-quality components for reliable performance in industrial environments. Additionally, the module includes status LEDs for immediate visual feedback on operational health.
Processing Power and Motion Control Capabilities
The M0T 202/ASBM0T202 utilizes a dedicated motion processor to handle complex control algorithms independently. This architecture offloads intensive calculations from the main PLC processor. Consequently, it achieves precise trajectory generation for both linear and circular interpolation. The module supports up to two independent axes with high-speed counting and position capture features.
Interface Specifications and Connectivity
For encoder feedback, the module includes two differential encoder interfaces with 5 VDC power. Each channel accepts signals up to 500 kHz, ensuring accurate position tracking at high speeds. The ASBM0T202 variant specifically includes additional I/O points for limit switches and proximity sensors. These integrated interfaces reduce the need for external modules and simplify wiring.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Motion Control Module |
| Series | Premium / TSX |
| Model | M0T 202/ASBM0T202 |
| Axis Control | 2 independent axes |
| Encoder Inputs | 2 channels, differential, 5 VDC |
| Max Encoder Frequency | 500 kHz |
| Form Factor | Eurocard |
| Dimensions (H x W) | Approx. 100 mm x 160 mm |
| Weight | Approx. 0.4 kg |
| Integrated I/O | Limit switch inputs, proximity sensor inputs |
| Communication | Backplane connection to Premium PLC |
Installation and Integration Benefits
The M0T 202/ASBM0T202 mounts directly into any standard Premium rack position. This plug-and-play design eliminates complex wiring and configuration challenges. Users can quickly deploy the module using Schneider’s proprietary software tools. Furthermore, its compatibility with the broader Modicon ecosystem ensures seamless data exchange.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
