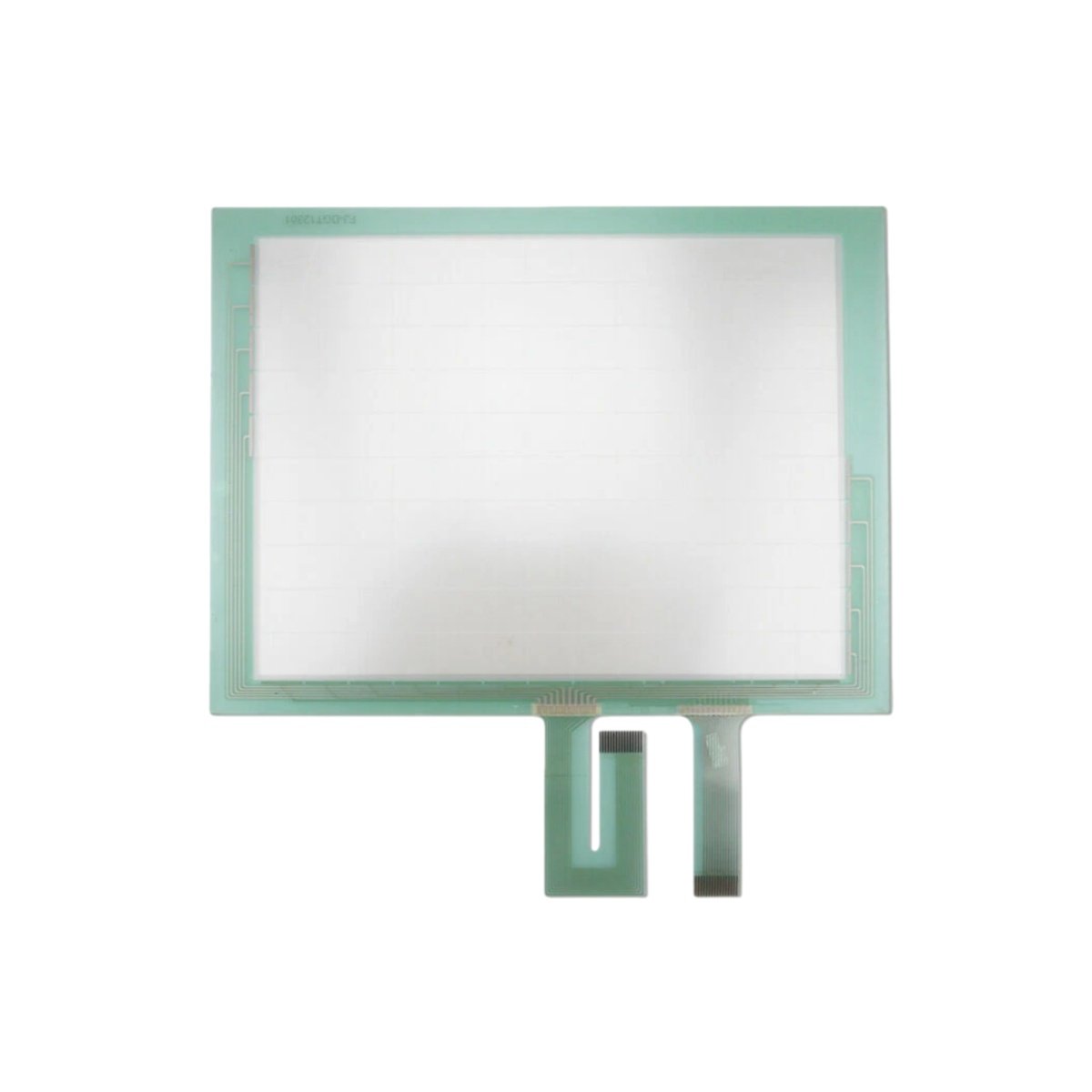

The Schneider Electric XBTF034510 provides a robust operator interface for industrial control. This unit belongs to the versatile Magelis series of HMIs. Moreover, it features a clear 10.4-inch color touchscreen for intuitive monitoring and control. Consequently, operators can interact directly with machinery and process data efficiently.
Core Technical Specifications
The XBTF034510 HMI operates on a standard 24 VDC industrial power supply. It consumes approximately 35 watts of power during normal operation. Furthermore, Schneider Electric has replaced this model with newer products for ongoing support.
Below are the detailed technical specifications for this legacy operator terminal:
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Schneider Electric, XBTF034510 (Legacy) |
| Product Series | Magelis HMI Series |
| Device Type | Operator Interface Terminal |
| Display Size & Type | 10.4-inch Color Touch Screen |
| Power Requirements | 24 Volts DC Input |
| Typical Power Consumption | 35 Watts |
| Primary Interface | Touch Screen, plus communication ports (e.g., serial, network) |
| Replacement Note | Replaced by XBTGT5330 + XBTZGCO3 combo |
| Key Internal Components | LCD panel, touch overlay, processor board, and power supply unit. |
Functional Role and Migration Path
This HMI displayed real-time data and hosted control screens for system operators. It connected to PLCs and other devices via its integrated communication ports. Therefore, it served as a central visualization point for many automation systems.
For upgrades or replacements, consider the official successor products. The XBTGT5330 touchscreen combined with the XBTZGCO3 communication module offers modernized features.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
