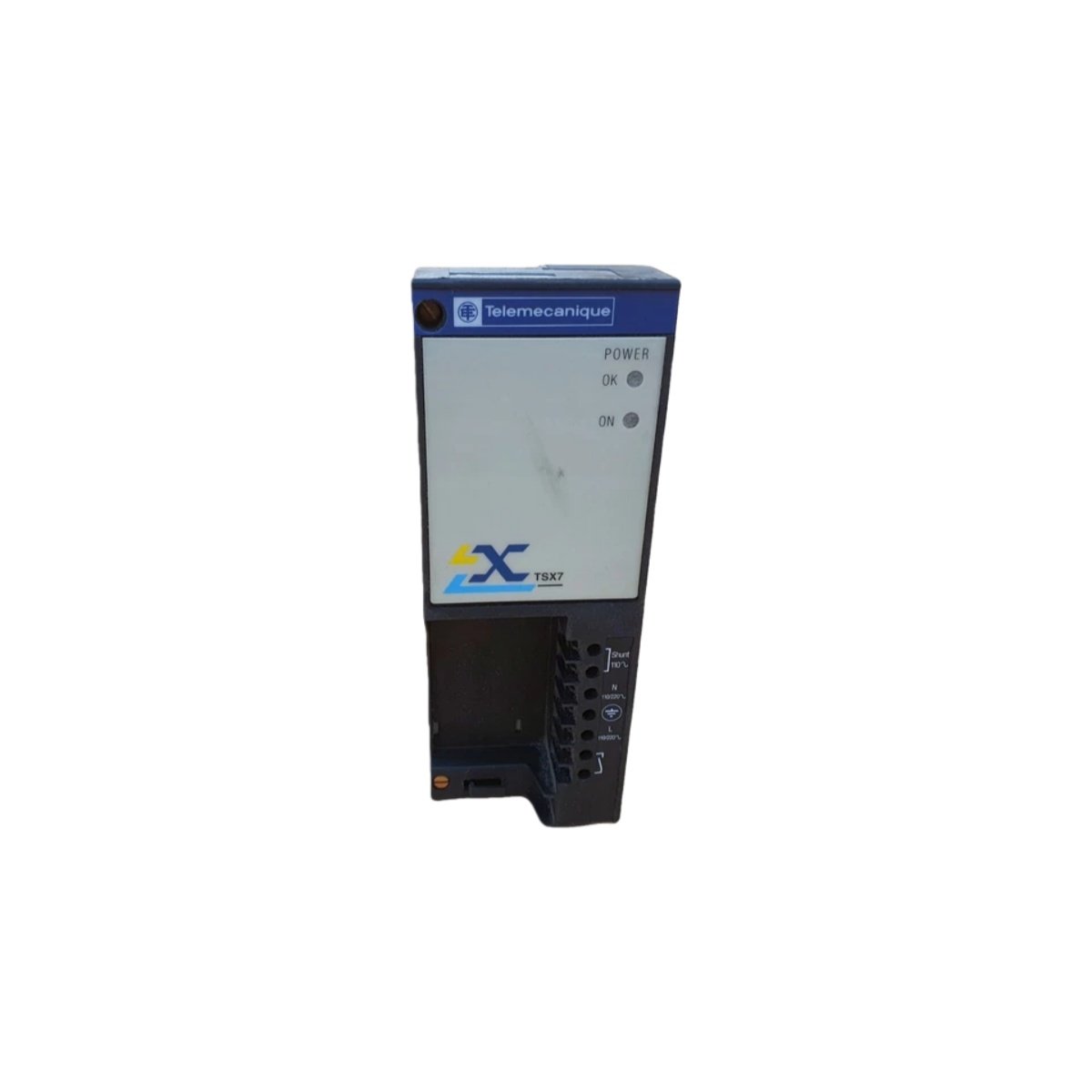

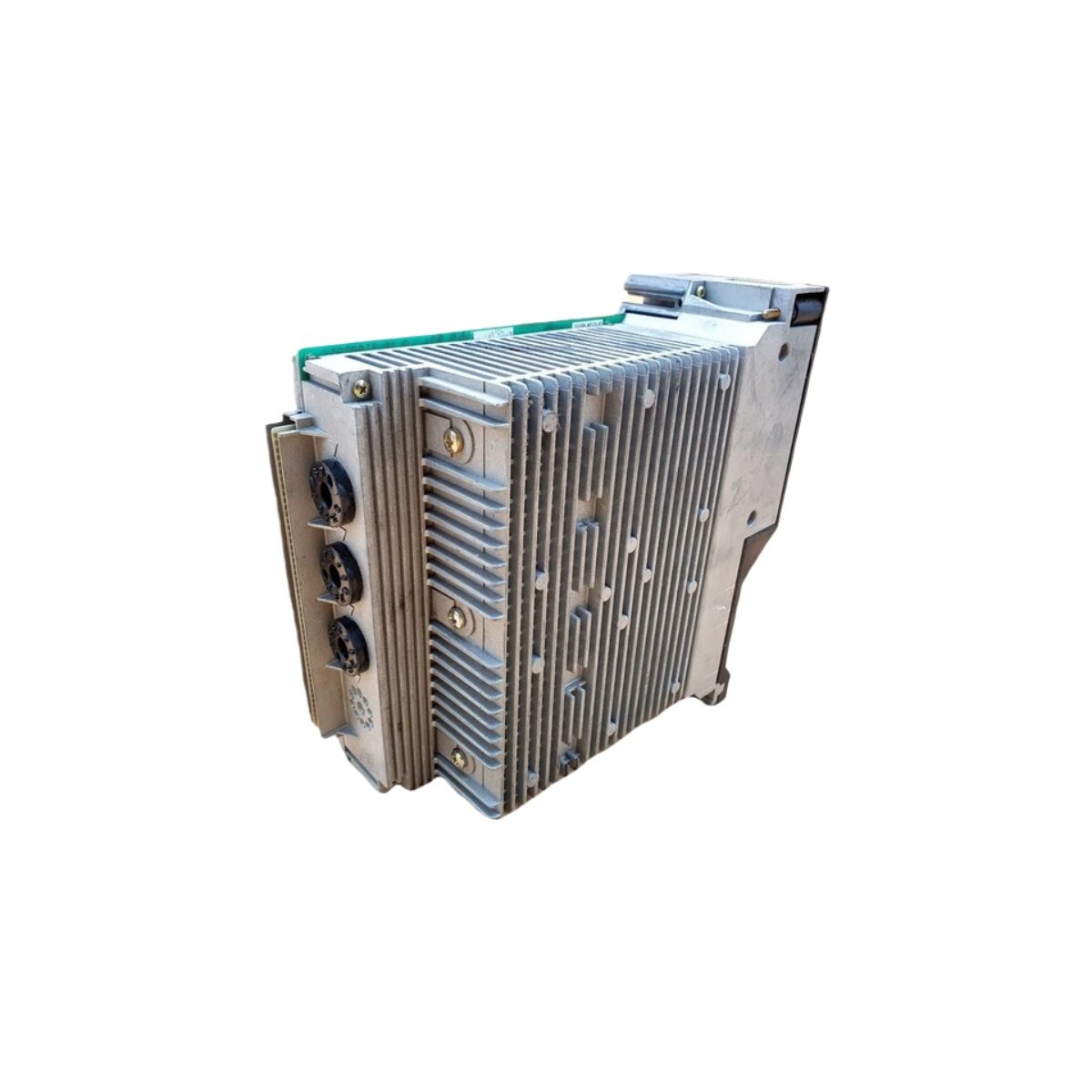

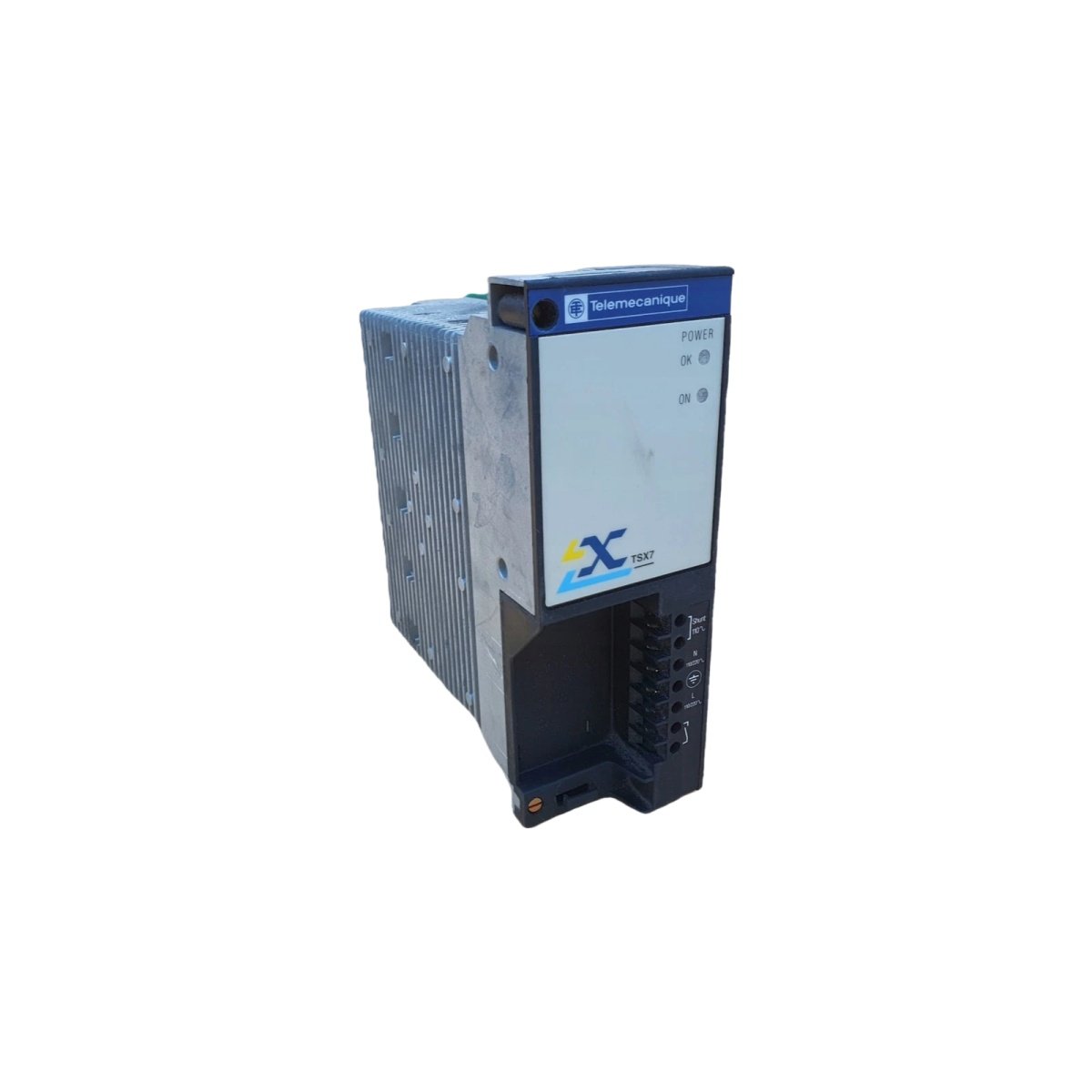

Schneider Electric engineered the TSXSUP702R to deliver stable power for Modicon Premium automation systems. This module provides 24 VDC output with robust protection features. It serves as the primary energy source for TSX series I/O racks and processors.
Key Technical Specifications
The TSXSUP702R module features a compact form factor designed for rack mounting. It measures 100 millimeters in height and 153 millimeters in depth. This unit weighs approximately 0.85 kilograms for secure installation.
| Specification | Detail |
|---|---|
| Input Voltage | 100 to 240 VAC, auto-ranging |
| Output Voltage | 24 VDC at 2.5 A |
| Energy Storage | Internal capacitor supports brief power interruptions |
| Interfaces | One screw-type input terminal, one output terminal |
| Component Count | Integrated PCB with thermal overload protection |
| Dimensions | 100 x 45 x 153 mm (H x W x D) |
Transitioning to installation, this power supply mounts directly into the Premium rack. You slide it into the dedicated slot and secure it with the built-in latch. Consequently, the module establishes immediate electrical contact with the backplane.
Design and Application Focus
Engineers select the TSXSUP702R for its reliable power delivery in continuous operations. The design includes overcurrent and short-circuit protection to safeguard connected components. Furthermore, the internal capacitor provides brief energy storage during momentary power dips. This feature prevents unexpected processor resets in unstable grid conditions.
Unlike external power supplies, this unit integrates fully with the Premium backplane. You can power the CPU and all I/O modules from a single source. Additionally, the LED indicator shows input status at a glance for quick diagnostics.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
