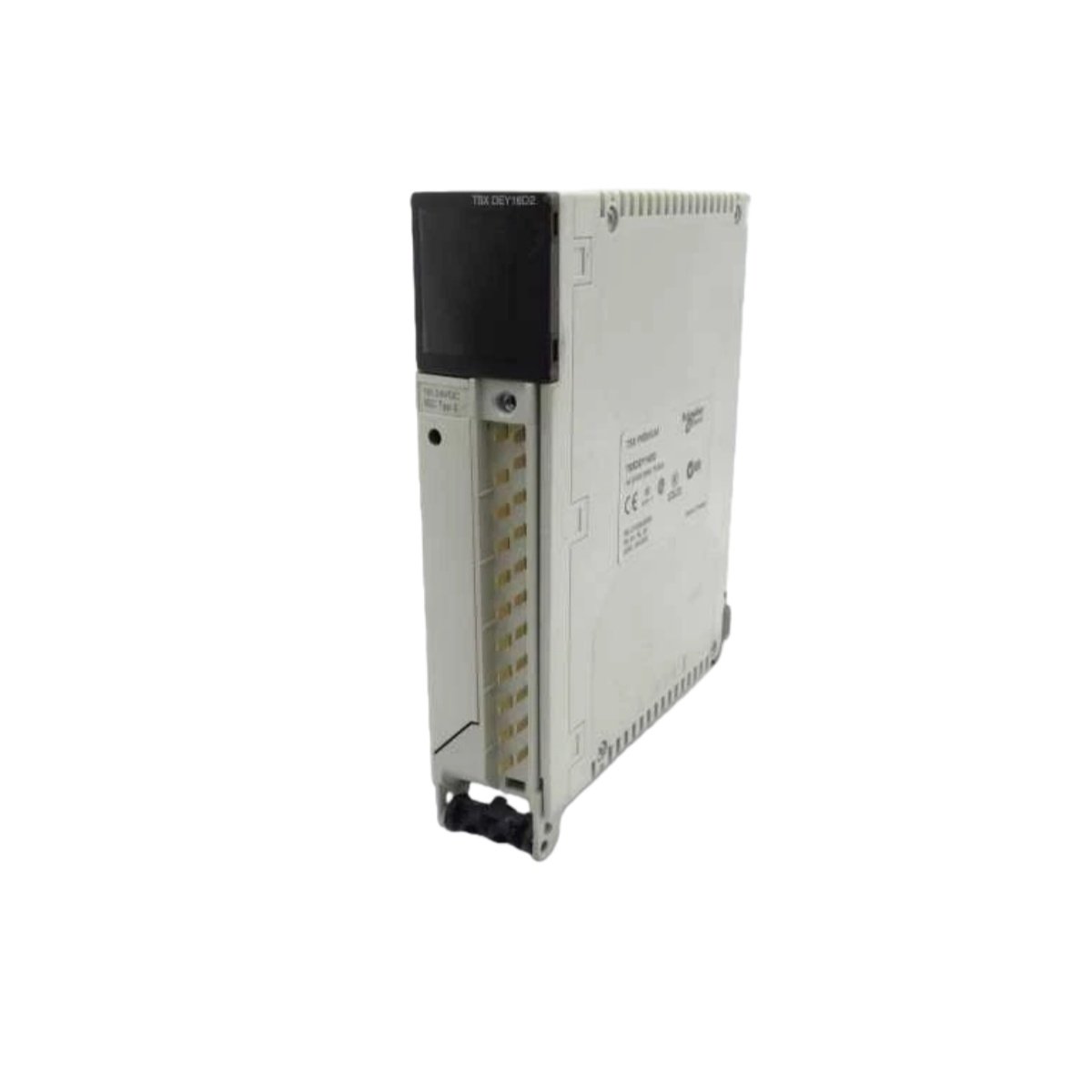

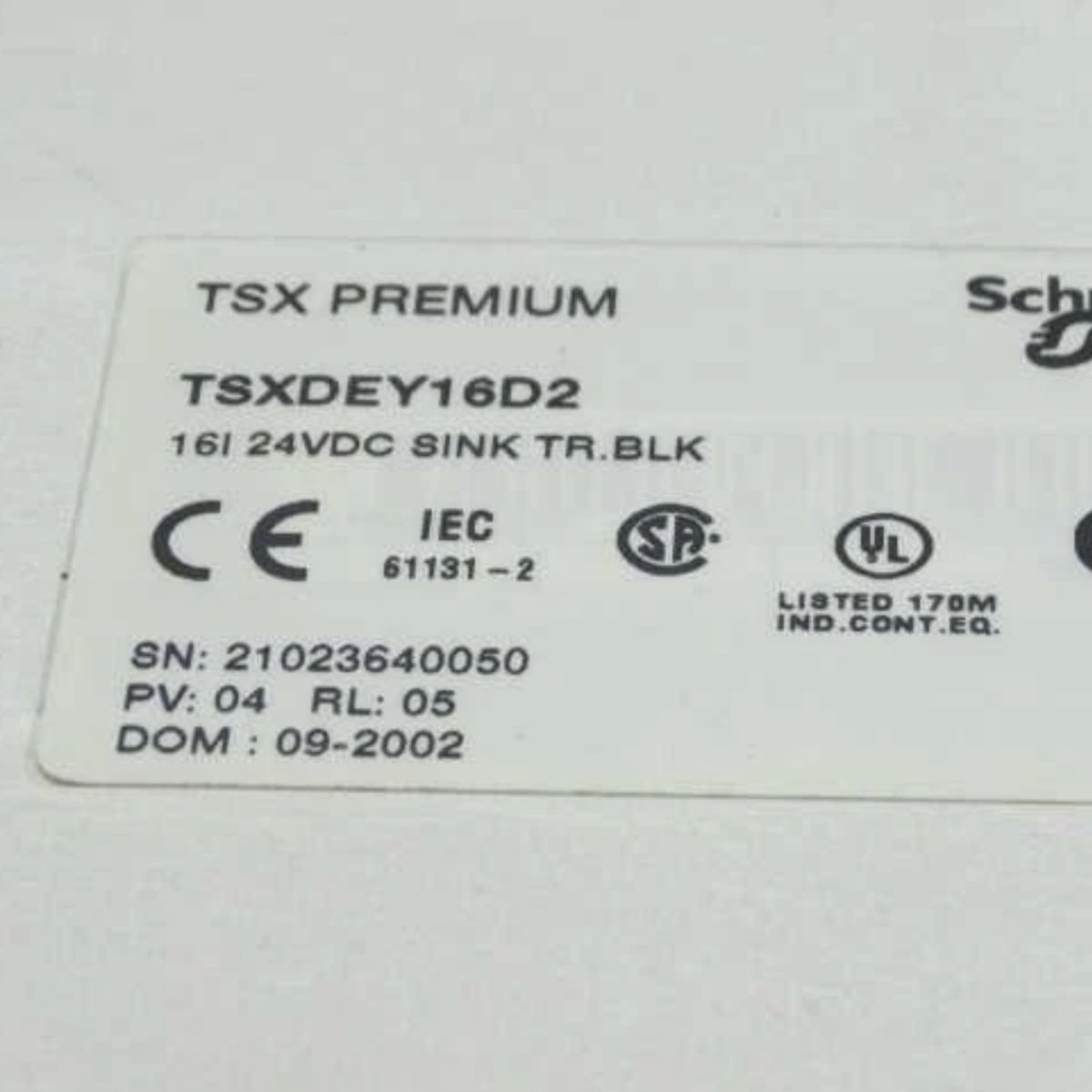

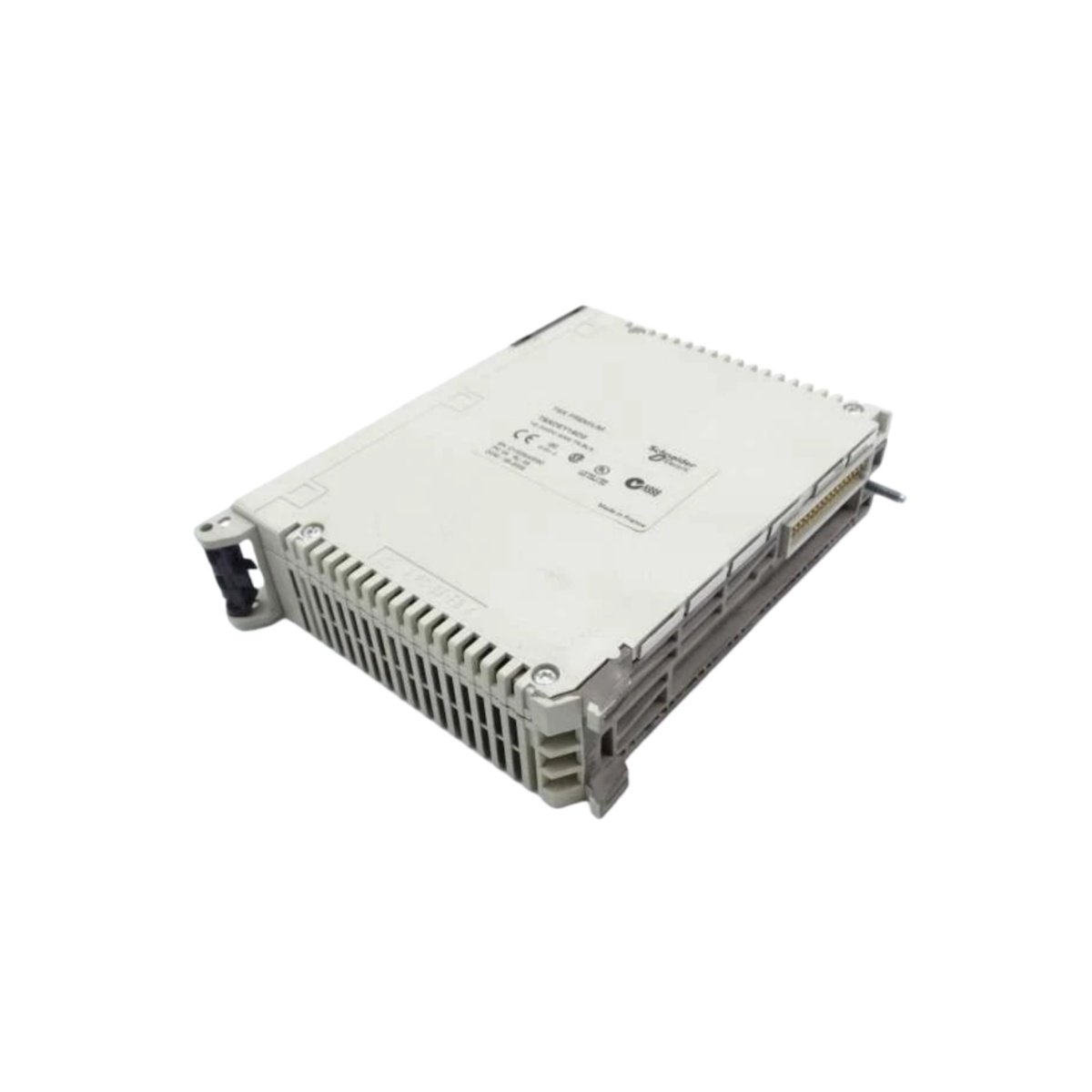

The Schneider Electric TSXDEY16D2 discrete input module is designed for high-performance automation systems. As part of the Modicon series, this module offers exceptional flexibility and reliability, handling 16 discrete inputs with a standard 24V DC input voltage. It supports both 2-wire and 3-wire proximity sensors, making it ideal for a wide range of industrial applications.

Key Features of the TSXDEY16D2 Module

• Manufacturer: Schneider Electric
• Product Line: Modicon
• Part Number: TSXDEY16D2
• EAN: 3389110717402
• Weight: 0.38 lbs (0.17 kg)
• Type: Discrete input module
• Input Voltage: 24V DC
• Sensor Power Supply Voltage: 19 to 30V DC
• Number of Inputs: 16 inputs
• Input Current: 7 mA
• 2-Wire Proximity Sensors: Supported
• 3-Wire Proximity Sensors: Supported
• Sink Isolated Inputs: Yes
• Operating Temperature Range: 0 to 60°C
• Storage Temperature Range: -25 to 70°C
• CE Marking: Yes

Technical Specifications

The following table provides a detailed overview of the technical specifications for the Schneider Electric TSXDEY16D2:

Key Advantages of the TSXDEY16D2 Module

1. High Flexibility: Supports both 2-wire and 3-wire proximity sensors, offering adaptability for various industrial setups.
2. Noise Isolation: Features sink isolated inputs, ensuring accurate signal reception without interference from electrical noise.
3. Wide Temperature Range: The module operates effectively in a temperature range from 0 to 60°C, and withstands storage conditions as low as -25°C and as high as 70°C.
4. Compact and Lightweight: Weighing just 0.38 lbs (0.17 kg), it’s easy to integrate into existing systems without adding unnecessary weight.
5. CE Certification: With CE Marking, it complies with European safety and quality standards.

Application Flexibility

The TSXDEY16D2 module is ideal for environments requiring robust and reliable signal processing. Whether you’re integrating 2-wire or 3-wire proximity sensors, this module provides seamless operation and reliable performance in industrial control systems. It is particularly useful in systems where precise input control and minimal interference are critical.

Conclusion

The Schneider Electric TSXDEY16D2 discrete input module delivers top-tier performance, adaptability, and reliability for industrial automation. Its 16 inputs, wide sensor voltage range, and noise-isolated inputs make it a key component for modern control systems. With its compact design and high-quality construction, it’s an ideal choice for engineers seeking efficiency and precision.
