Product Overview

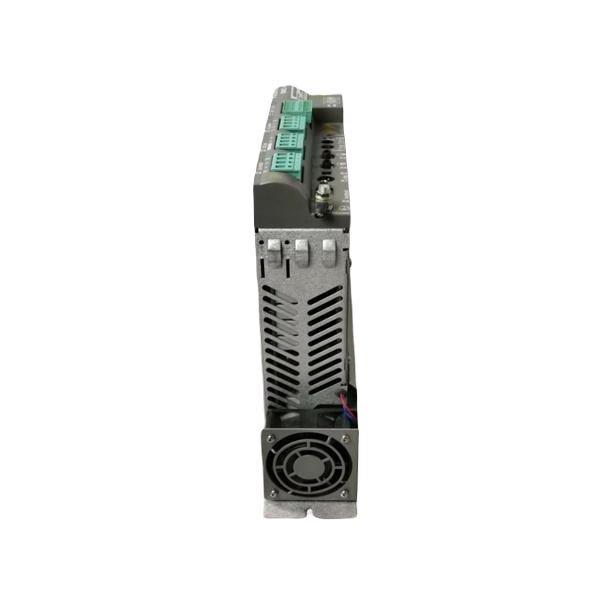

The Schneider Electric MC-4/11/10/400 VDM01D10AA00 PacDrive Servo Drive provides precise motor control in industrial automation. Consequently, it ensures efficient performance under variable load conditions. Moreover, its compact design allows flexible installation in diverse environments.
Key Features
- Rated power: 6.9 kVA, peak current 25 A for 1 second.
- Control voltage: DC 24 V, 1 A ensures reliable logic operations.
- DC bus voltage: 530–680 V with 330 µF capacitance for stable operation.
- Natural convection cooling maintains optimal temperature automatically.
- Relay outputs support DC 20–30 V, 2 A signaling.
- IP20 casing with installation flexibility up to IP54 using safety wiring.
- CE, UL, and cUL approvals guarantee compliance with international standards.
Power & Electrical Specifications
| Parameter | Specification |
|---|---|
| Rated Connection Voltage | 3-phase AC 380–480 V |
| Mains Frequency | 48–62 Hz |
| Control Voltage / Current | DC 24 V / 1 A |
| DC Bus Voltage | 530–680 V |
| Capacitance | 330 µF |
| Bleeder ON Voltage | 820 V |
| Bleeder OFF Voltage | 800 V |
| Excess Voltage | 860 V |
| Permanent Power | 100 W |
| Peak Power | 10 kW |
| Motor Rated Current | 10 Aeff |
| Motor Peak Current | 25 Aeff |
| Electronics Supply | ~12 W |
| Power Part | 0–100 W (depends on application) |
| Bleeder Power | ~15 W/A |
Inputs & Outputs
| Parameter | Specification |
|---|---|
| Input Voltage / Current | DC 20–30 V / 5 mA |
| IE-Input | DC 20–30 V / 30 mA |
| Input Filter | 5 ms |
| Relay Outputs | DC 20–30 V / 2 A |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Width | 100 mm |
| Height | 400 mm |
| Depth | 320 mm |
| Product Weight | 3.6 kg |
| Boxed Weight | 4.5 kg |
Ambient Conditions & Protection
| Parameter | Specification |
|---|---|
| Cooling | Natural convection, temperature-controlled |
| Operation Temperature | +5 … +45 °C (+55 °C with reduced power) |
| Storage Temperature | -25 … +70 °C |
| Humidity | 5–85%, non-condensing |
| Protection Class | IP20 casing, IP54 installation with safety wiring |
| Pollution Degree | 2 (dew formation prohibited) |
| Degree of Radio Distortion | Class A EN 55011 / EN 61800-3 |
Compliance & Safety
- Approvals: CE, UL, cUL.
- Insulation Class: Class 1 (DIN VDE 0160).
- Overvoltage Category: K III, T2 (DIN VDE 0110).
Application & Reliability
The Schneider Electric MC-4/11/10/400 V provides accurate and dynamic motor control for PacDrive systems. Consequently, engineers benefit from consistent, reliable performance under heavy industrial loads. Moreover, its compact size simplifies panel integration and reduces installation complexity.
Details
| Weight | 3.6 kg |
|---|
