Product Overview

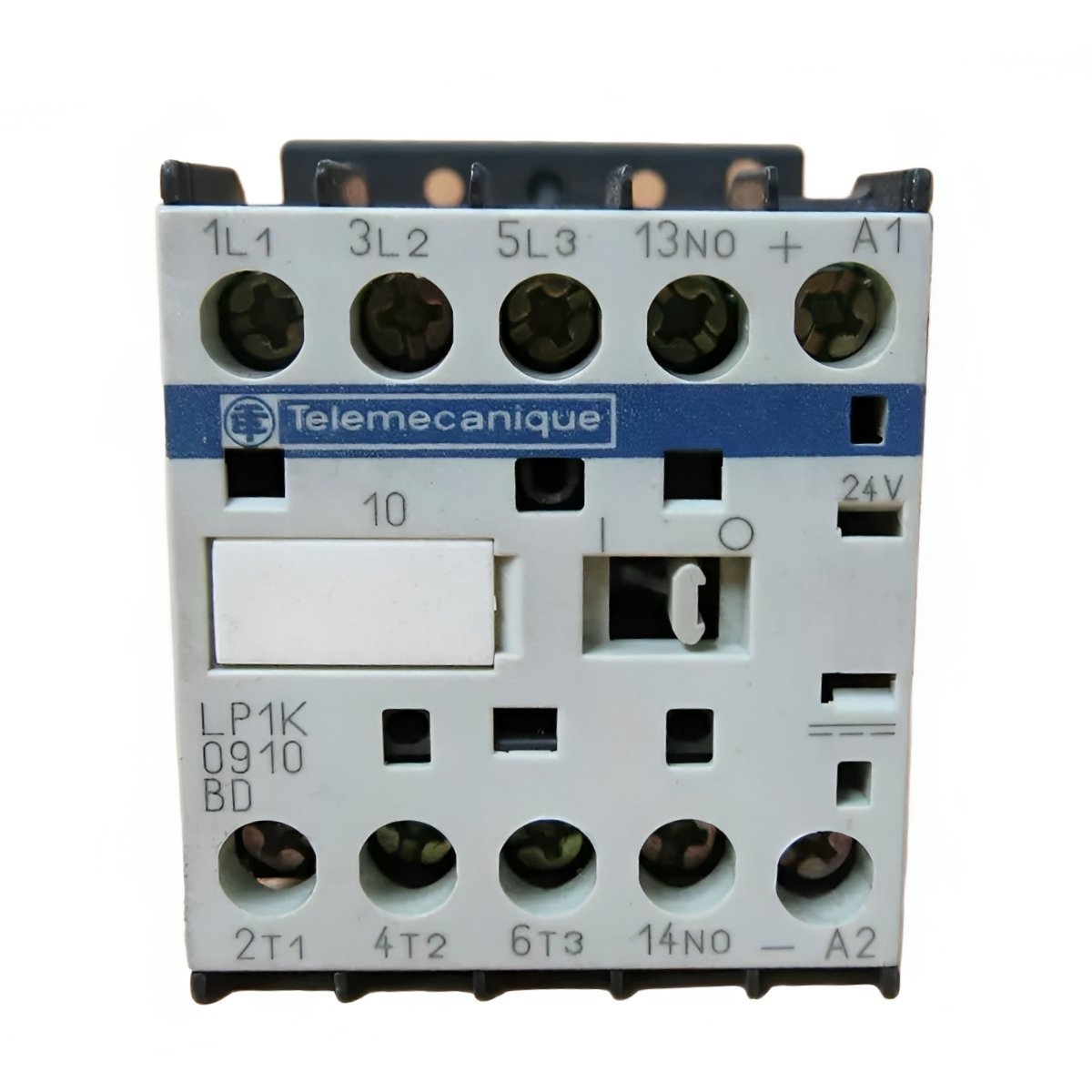

The LP1K0910BD from Schneider Electric is a compact 3-pole TeSys K contactor designed for motor applications up to 4kW at 400V. It features a 24V DC coil and an integrated 1NO auxiliary contact, allowing seamless connection to various control systems. Its 45mm width ensures easy installation in tight control panels.
Technical Specifications
| Parameter | Details |
|---|---|
| Product ID | LP1K0910BD |
| Brand | Schneider Electric |
| Series | TeSys K |
| Category | 3-Pole Contactor / Motor Control |
| Voltage Range | Up to 690V AC |
| Motor Power | 4kW at 400V AC-3 |
| Current Rating | 9A AC-3, 20A AC-1 |
| Auxiliary Contact | 1NO |
| Short-Time Withstand Current | 90A for 1 second |
| Electrical Durability | 1.3 million cycles (AC-3) |
| Mechanical Durability | 10 million cycles |
| Power Consumption | 3W holding power |
| Heat Dissipation | 1.3W |
| Coil Voltage | 24V DC |
| Mounting Options | DIN-rail or panel mounting |
| Terminal Type | Screw clamp, compatible with solid, flexible, ferrule wires |
| Tightening Torque | 0.8–1.3 N·m |
| Operating Temperature | -25°C to 50°C |
| Storage Temperature | -50°C to 80°C |
| Altitude Rating | Up to 2000m without derating |
| Flame Retardant | UL 94 V1 |
| Unit Weight | 0.225 kg |
| Packaging Options | Single unit, 40-unit box, 640-unit bulk |
| Warranty | 12 months |
Key Features
- Compact 45mm-wide design allows installation in small control panels
- Supports DIN-rail and panel mounting for flexible integration
- Screw clamp terminals ensure secure connections with various wire types
- High reliability with 9A AC-3 rating and 1.3 million electrical cycles
- Built-in 1NO auxiliary contact allows additional control functions
- Operates efficiently with low heat dissipation and 3W holding power
Related Parts & Services
- Schneider Electric TeSys K Series Contactors
- Motor Control Relays and Accessories
- Industrial Control Panels and Modules
FAQ
Q1: Are these contactors brand new?
Yes, all units are original Schneider Electric products with verified quality.
Q2: How quickly can I receive the contactor after ordering?
We typically ship within 3 days to 2 weeks depending on order size.
Q3: Which shipping methods are available?
Common options include DHL, FedEx, and other reliable logistics providers.
Q4: Can I return the contactor if it has defects?
Yes, we support returns within 30 days for quality-related issues.
Q5: Is this contactor suitable for high-altitude applications?
Yes, it operates reliably up to 2000 meters without derating.
Details
| Weight | 0.225 kg |
|---|---|
| Dimensions | 168 × 122 × 107 mm |
