High-Performance Servo Drive for PacDrive 3 Systems

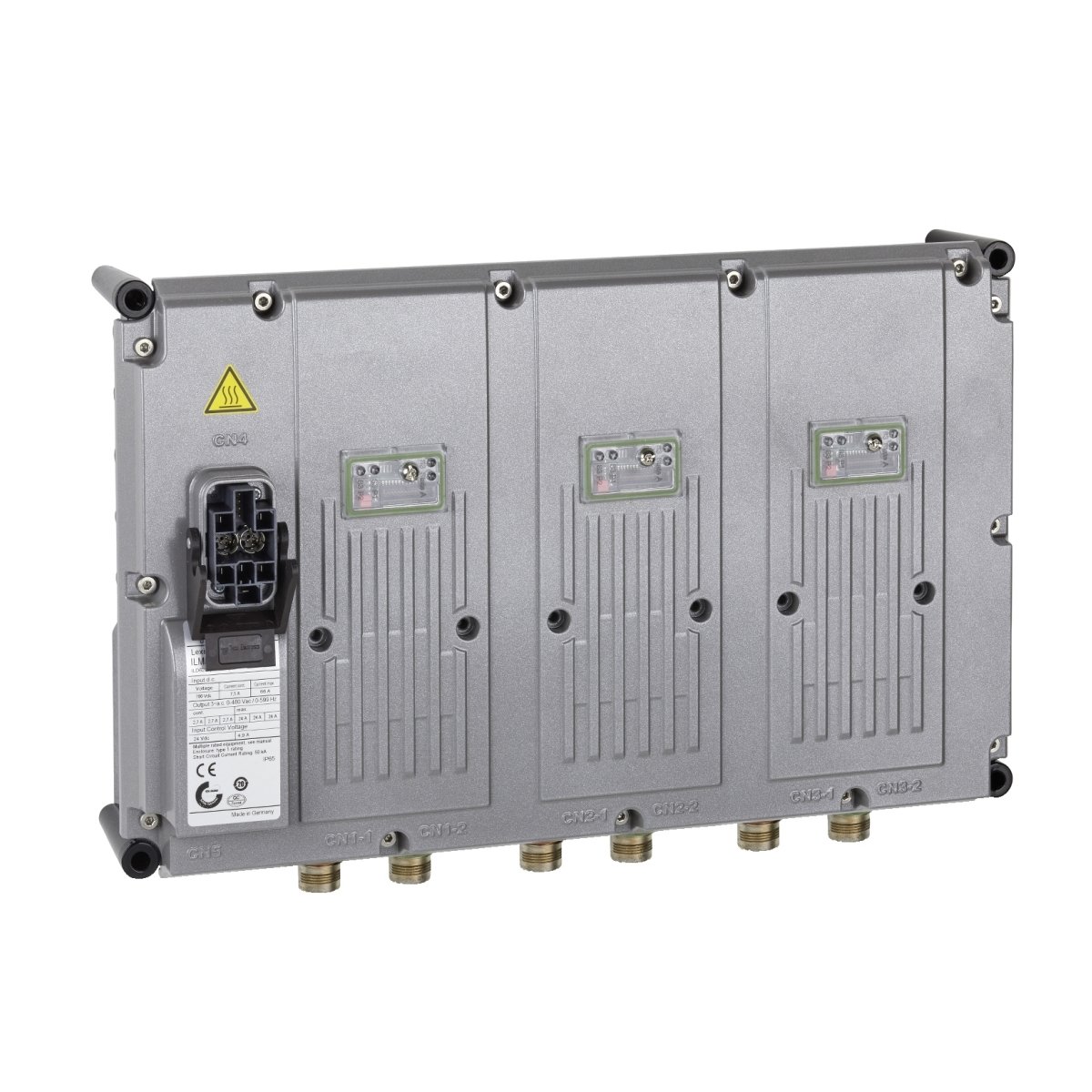

The ILM62DDD24D1000 is a high-efficiency detached servo drive designed for PacDrive 3 automation systems by Schneider Electric. This model delivers 6 A continuous current and up to 24 A peak, ensuring powerful motion control in demanding industrial environments. Mounted directly onto the machine frame, it offers IP65 protection, eliminating the need for separate enclosures and simplifying integration.
Optimized Design for Efficient Installation
This drive uses plug-and-play hybrid cables, significantly reducing wiring time by up to 90% and cabling requirements by 70%. It also supports automatic network configuration, streamlining setup and minimizing commissioning time. The compact, fanless, and water-cooled cold plate design ensures excellent heat dissipation and long-term reliability even in high-load operations.
Compatible Servo Motors and System Integration
The ILM62DDD24D1000 works seamlessly with MH3 and SH3 series servo motors, supporting 6 A and 4.4 A configurations. It provides a safe torque off (STO) function, improving system safety without compromising performance. This combination of advanced cooling, flexible compatibility, and high protection level makes it ideal for integrated motion systems.
Technical Specifications
| Category | Specification |
|---|---|
| Product Range | PacDrive 3 |
| Product Type | Detached Servo Drive |
| Device Short Name | ILD |
| Model | ILM62DDD24D1000 |
| Continuous Current | 6 A (active cold plate) |
| Peak Current | 24 A |
| Rated Supply Voltage | 250–700 V |
| Cooling Type | Fanless / Water-cooled / Passive cold plate |
| Protection Degree | IP65 |
| Safety Function | STO (Safe Torque Off) |
| Compatible Motors | MH3, SH3 (4.4 A and 6 A) |
| Mounting Holes | 4 |
| Compliance Standards | IEC 61800-5-1, IEC 61800-3, IEC 62061, UL 61800-5-1, CSA C22.2 No 274, ISO 13849-1 |
| Directives | 2014/30/EU (EMC), 2014/35/EU (Low Voltage), 2006/42/EC (Machinery) |
| Certifications | CE, cURus |
| Category Code | US1PC5218351 |
| Discount Schedule | PC52 |
| GTIN | 3606485468846 |
| Returnable | Yes |
Dimensions and Weight
| Specification | Value |
|---|---|
| Net Weight | 5.3 kg (11.7 lb) |
| Package Height | 17.2 cm (6.8 in) |
| Package Width | 32.5 cm (12.8 in) |
| Package Length | 42.5 cm (16.7 in) |
| Package Weight | 6.5 kg (14.3 lb) |
Country of Origin
Germany (DE)
Why Choose ILM62DDD24D1000
The ILM62DDD24D1000 servo drive combines powerful performance with practical design. Its direct mounting, hybrid cabling, and automatic configuration drastically reduce installation time and system complexity. Built to meet strict international standards, it offers long-term reliability, safety, and superior efficiency for modern automation systems.
