Efficient Rack Design for Modular Automation

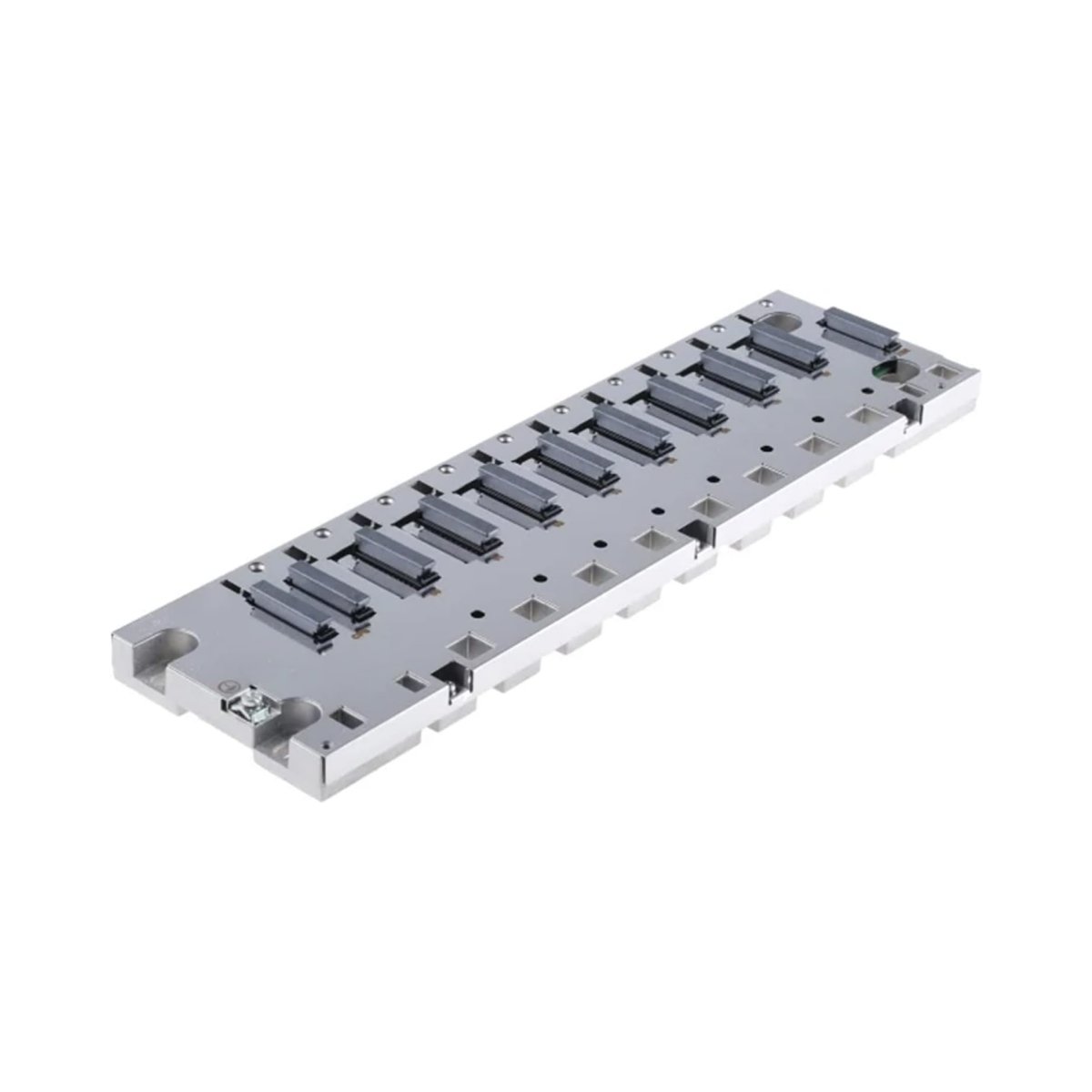

The BMXXBP0800 rack from Schneider Electric delivers eight flexible slots that support scalable system design. It works seamlessly with BMXP34 processors, BMXCPS power supplies, standard I/O modules, and application-specific units. You gain stable module organization while keeping your control architecture clean and adaptable.
Reliable Power and Expansion Capability
The BMXXBP0800 operates with only 2.21 W, which helps you maintain low overall system consumption. It also includes one XBE expansion connector, so you can extend your application without redesigning your existing layout.
Flexible Mounting for Industrial Installations
You can mount the BMXXBP0800 on a panel, plate, or DIN rail, which simplifies integration with different cabinet layouts. Four M4/M5/M6 screws secure the rack on panels or mounting plates, while DIN-rail clips allow fast installation on standard 35 mm rails.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXXBP0800 |
| Category | I/O Rack / Backplane |
| Number of Slots | 8 bus X slots |
| Compatible Modules | BMXP34, BMXCPS, I/O modules, specialty modules |
| Power Consumption | 2.21 W |
| Expansion Connector | 1 × XBE |
| Mounting Options | Panel, mounting plate, 35 mm DIN rail |
| Screw Size | M4 / M5 / M6 |
| Height | 103.7 mm |
| Width | 372.8 mm |
| Depth | 19 mm |
| Weight | 0.95 kg |
Country of Origin
France (Schneider Electric manufacturing line)
Dimensions & Weight
- Height: 103.7 mm
- Width: 372.8 mm
- Depth: 19 mm
- Weight: 0.95 kg
Details
| Weight | 0.95 kg |
|---|---|
| Dimensions | 103.7 × 372.8 × 19 mm |
