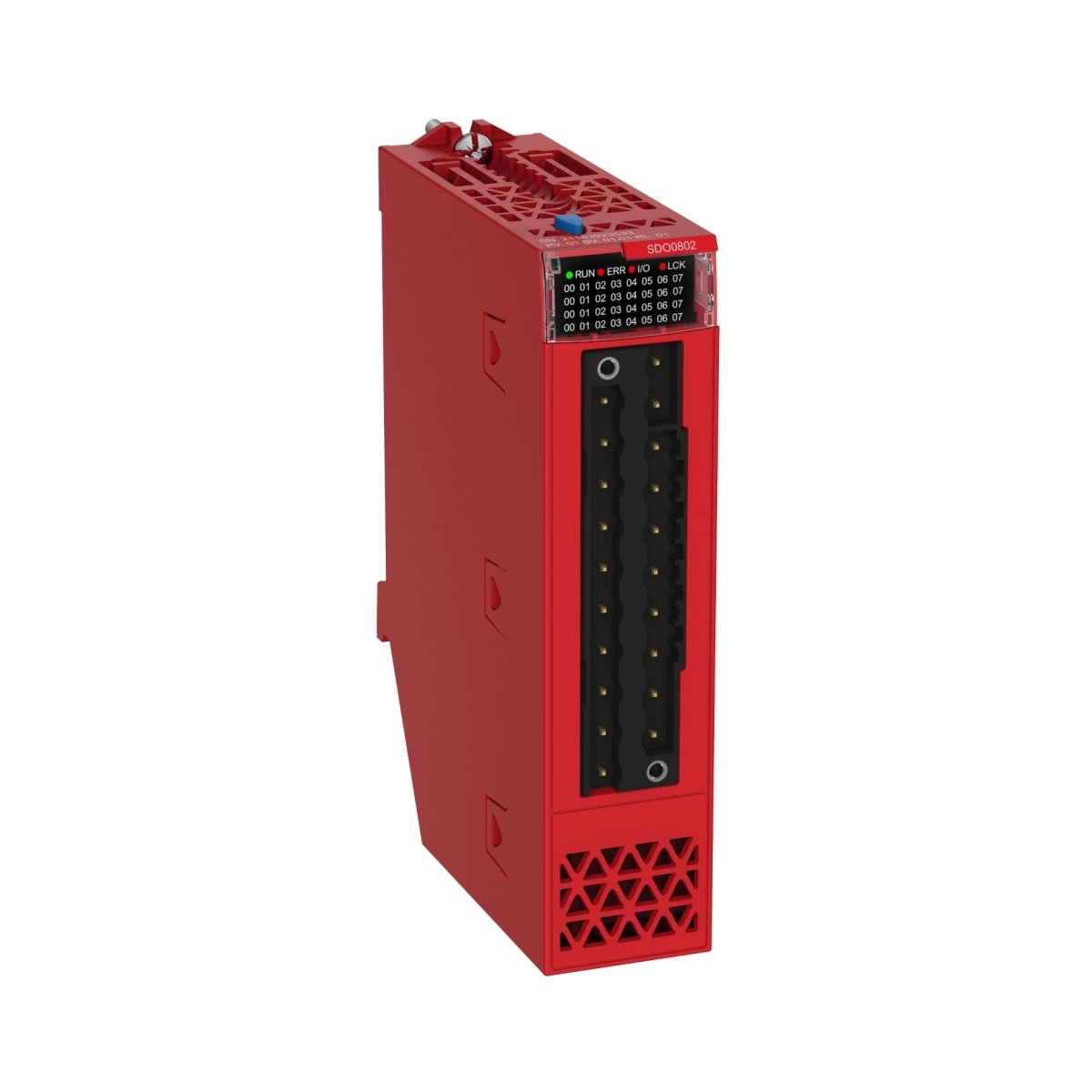

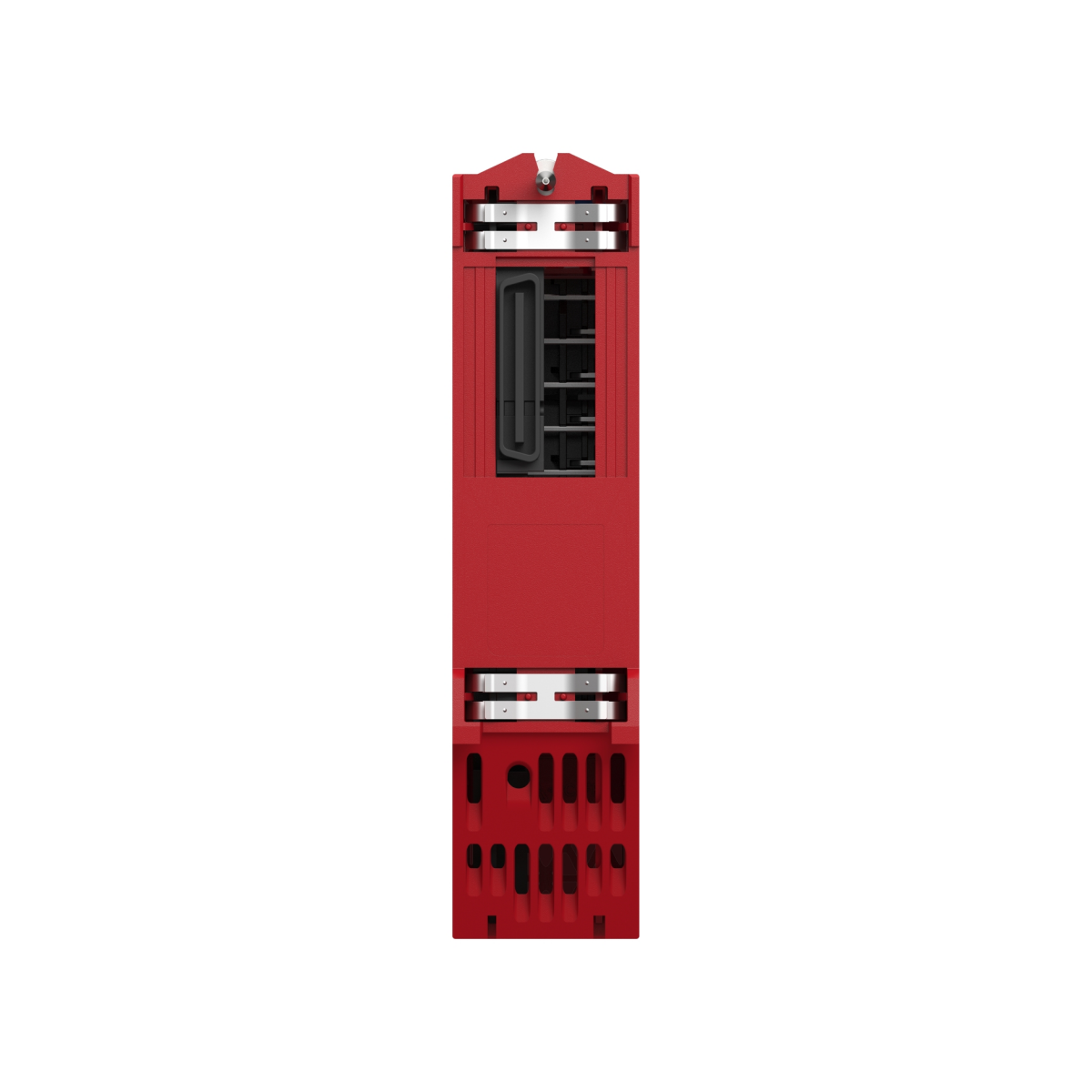

High-Performance Discrete Output Module for Modicon X80 PLC Systems
The BMXSDO0802 module delivers eight solid-state discrete outputs, meeting EN/IEC 61131-2 standards. Its positive logic design ensures reliable switching of industrial signals. Engineers can integrate the module into Modicon X80 architectures efficiently, allowing precise digital control in automation applications.
Robust Electrical Specifications for Reliable Operation
The BMXSDO0802 operates at 24 V DC with a voltage range of 19–30 V. Each channel supports 0.625 A with a maximum module current of 10 A. Leakage current remains under 0.5 mA at logic 0, and voltage drop stays below 1.2 V at logic 1, ensuring minimal signal loss. The module supports paralleling of outputs (maximum two) and maintains a switching frequency of 0.5/LI² Hz for stable process control.
Integrated Diagnostics and LED Indicators for Enhanced Maintenance
Schneider Electric equips the BMXSDO0802 with built-in diagnostic LEDs. One green LED indicates module operation (RUN), a green LED per channel shows channel status, and red LEDs report module errors (ERR) and I/O faults. Voltage detection thresholds trigger alerts below 14 V for sensor faults and above 18 V for sensor OK, providing reliable monitoring for maintenance personnel.
Durable Construction for Industrial Environments
The BMXSDO0802 meets IP20 protection and resists gas, dust, sand, salt, mold, and fungal spores according to industrial standards. It withstands 3 gn vibration and 15 gn shock, while dielectric strength reaches 1500 V AC for one minute between output/ground and output/internal logic. Conformal coating and temperature ratings from -25 to 60 °C ensure long-term reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXSDO0802 |
| Series | Modicon X80 |
| Category | Discrete Output Module |
| Number of Outputs | 8 |
| Output Type | Solid state, positive logic |
| Output Voltage | 24 V DC (19–30 V) |
| Output Current | 0.5 A per channel (max 0.625 A) |
| Maximum Module Current | 10 A |
| Maximum Leakage Current | 0.5 mA at state 0 |
| Voltage Drop | <1.2 V at state 1 |
| Paralleling | 2 outputs max |
| Power Dissipation | 4.4 W |
| Response Time | 1.2 ms |
| Status LEDs | RUN, ERR, I/O, channel diagnostics |
| MTBF | 383,000 H |
| Load Impedance | ≥ 48 Ohm |
| Maximum Tungsten Load | 6 W |
| Switching Frequency | 0.5/LI² Hz |
| Insulation Resistance | >10 MΩ 500 V DC |
| Weight | 0.12 kg |
| IP Rating | IP20 |
| Protective Treatment | Conformal coating |
| Operating Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
| Humidity | 5–95% without condensation |
| Altitude | 0–2000 m (derate 2000–5000 m) |
Country of Origin
France (Schneider Electric Manufacturing Facility)
Dimensions & Weight
- Module Dimensions: Height 5.5 cm × Width 18 cm × Length 26 cm
- Net Weight: 0.12 kg / 341 g packaged
Details
| Weight | 0.341 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
