Overview

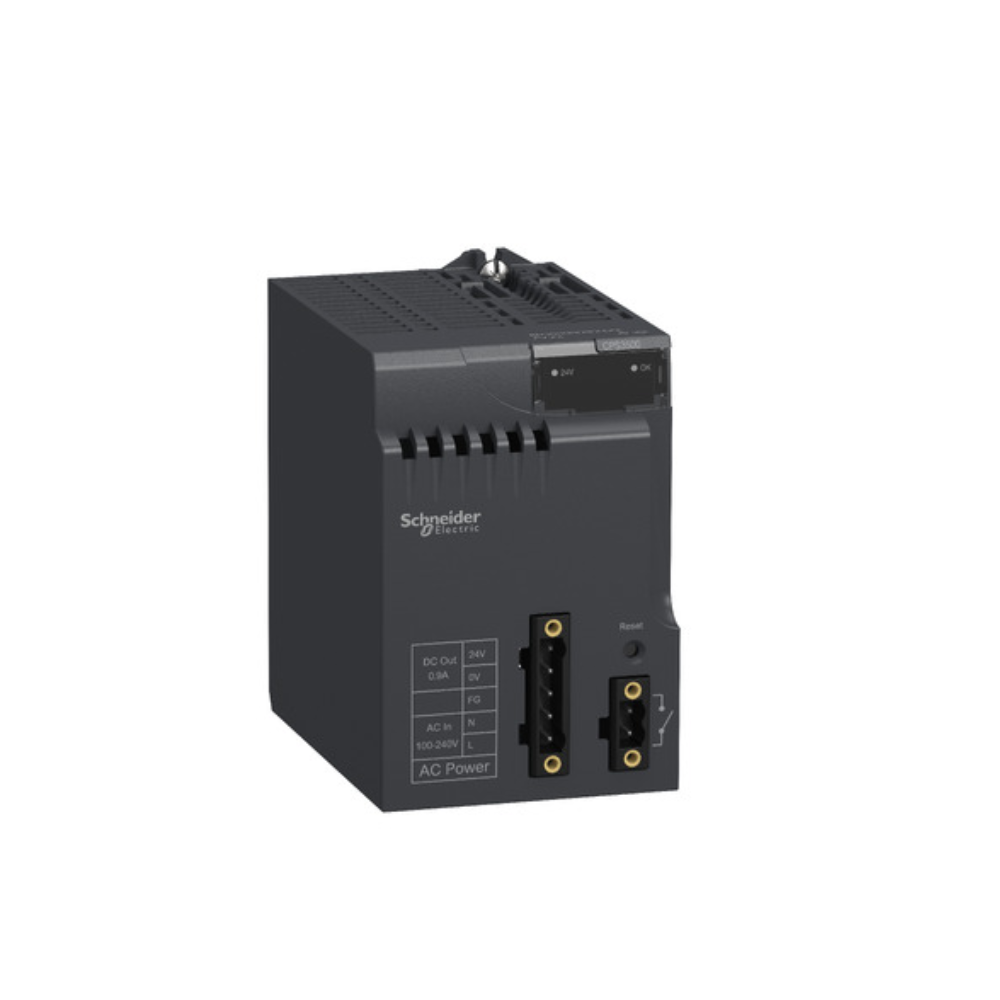

The BMXCPS3500 is a robust power supply module from Schneider Electric’s Modicon X80 range. Designed for Modicon M580 and M340 Programmable Automation Controllers (PACs), it provides reliable and efficient secondary power for processor, I/O modules, and sensor applications. Built to withstand industrial environments, the IP20-rated module supports medium to large-scale automation projects while maintaining precise voltage stability and protection.
Key Features
- Provides multiple secondary outputs: 24V DC and 3.3V DC for I/O, processor, and sensor power
- Compatible with Modicon M580 and M340 PACs
- High reliability with IP20 protection rating and industrial-grade components
- Includes alarm relay output and multiple connection options for sensors and I/O modules
- Supports operation in harsh environments with shock and vibration resistance
- Conforms to CE, UL, CSA, RCM, EAC, and Merchant Navy approvals
Technical Specifications
| Feature | Specification |
|---|---|
| Primary Voltage | 100–240V AC |
| Secondary Outputs | 31.2W at 24V DC (I/O and processor), 21.6W at 24V DC (sensor), 15W at 3.3V DC (logic) |
| Current at Secondary Voltage | 0.9A (24V sensor), 1.3A (24V I/O & processor), 4.5A (3.3V logic) |
| Input Voltage Limits | 85–264V AC |
| Frequency Range | 50/60 Hz (47–63 Hz) |
| Power Consumption | 0.12 kVA |
| Inrush Current | 30A at 120V AC, 60A at 240V AC |
| Insulation Resistance | ≥100 MΩ primary/ground & primary/secondary |
| Dielectric Strength | 1500–2300V between primary and secondary |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Humidity | 5–95%, non-condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Altitude | 0–2000 m (derating 2000–5000 m) |
| Protection Rating | IP20 |
| Net Weight | 0.36 kg |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
Applications
- Industrial automation and process control systems
- Modicon M580 / M340 PACs requiring stable 24V DC and 3.3V DC supply
- Powering I/O modules, sensors, and logic circuits in medium to large-scale installations
Packaging & Warranty
- Package Dimensions: 13.26 x 15.41 x 15.59 cm
- Package Weight: 489.8 g
- Warranty: 12 months
