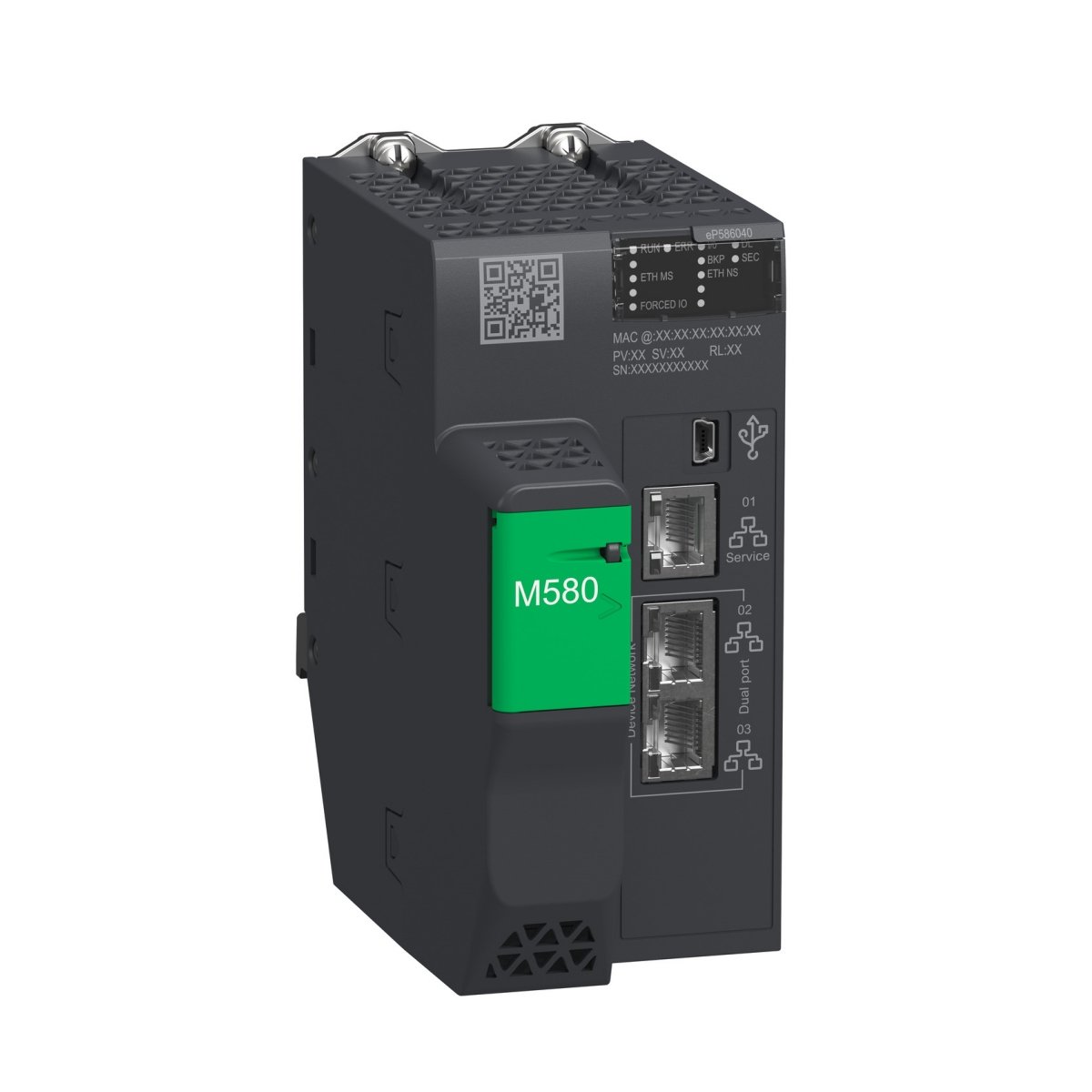

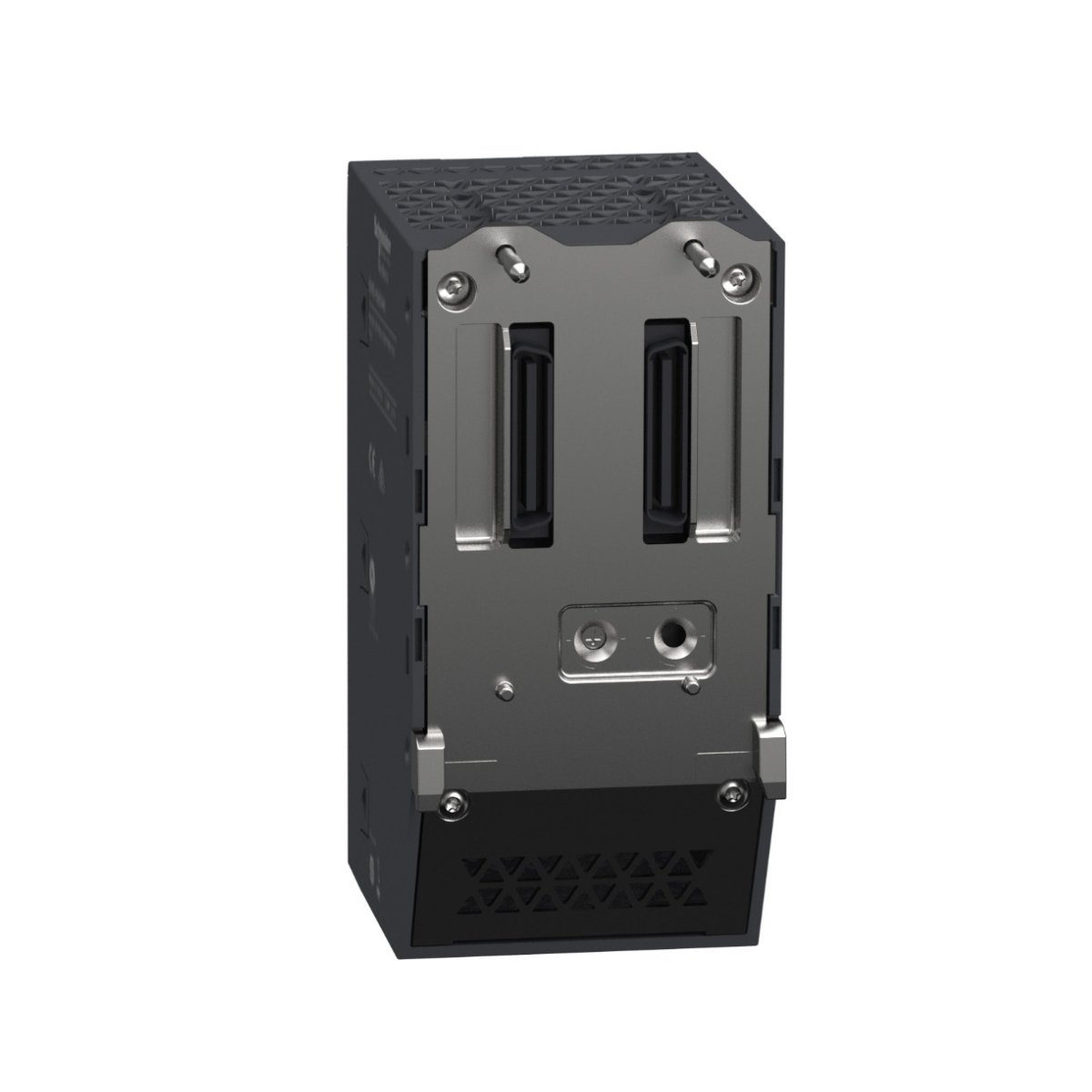

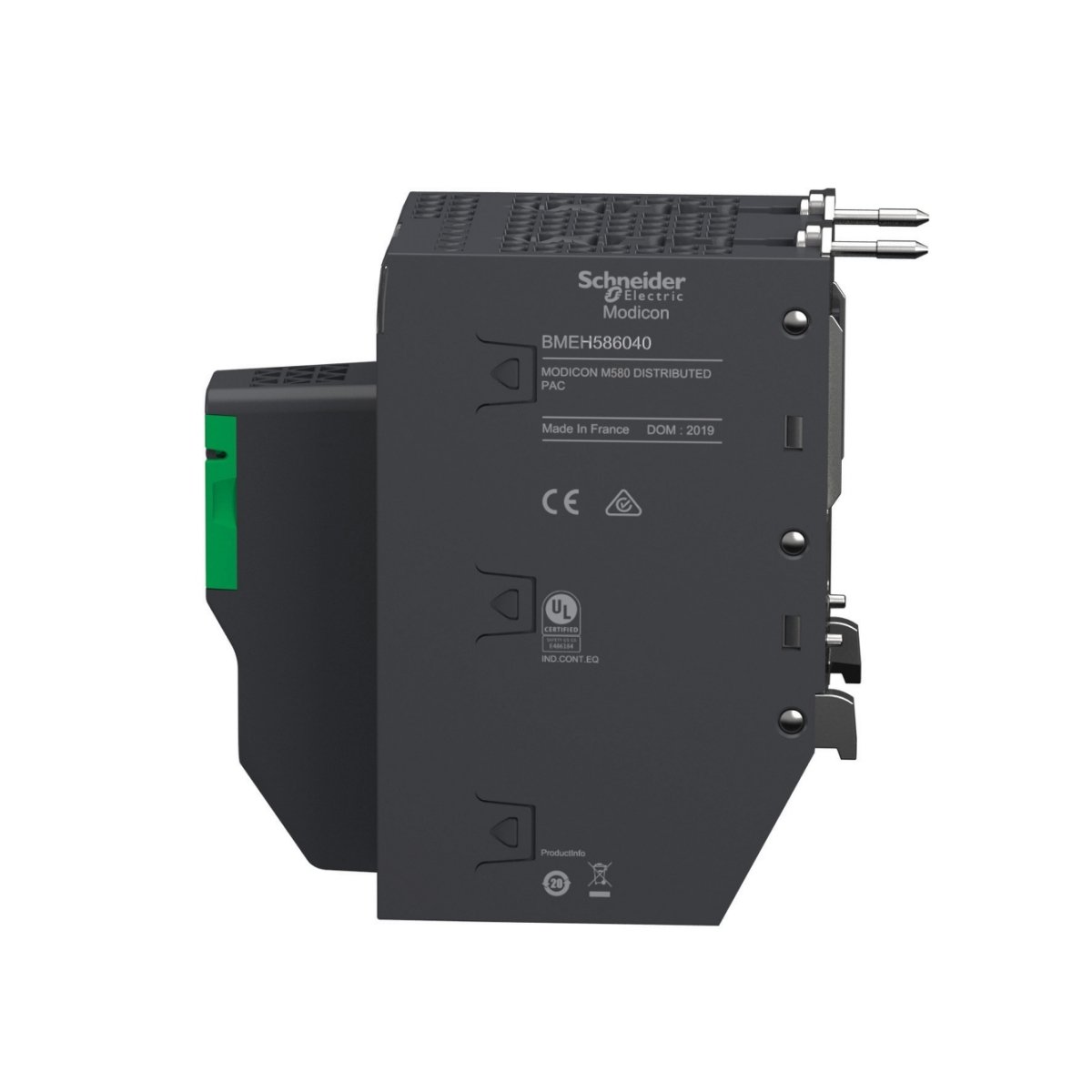

High-Performance Cybersecure Processor for Industrial Automation
The BMEP586040 from Schneider Electric is a powerful standalone processor module within the Modicon M580 series. It delivers high-speed processing with advanced cybersecurity and exceptional reliability for complex industrial automation applications. Designed for seamless integration, it connects up to 61 Ethernet devices and 31 remote I/O racks, enabling real-time data exchange and efficient control across distributed systems.
Advanced Performance and Connectivity
The BMEP586040 features 64 MB of program memory and 4 GB of expandable flash storage, supporting large-scale control architectures. Its integrated Ethernet TCP/IP ports, USB interface, and multiple communication channels simplify system networking and data transparency. The processor handles 50 K instructions per millisecond for Boolean operations, ensuring high-speed control and reduced latency in process automation.
Integrated Cybersecurity for Reliable Operation
Schneider Electric designs the BMEP586040 to meet modern cybersecurity demands. It includes Achilles certification, IPSec encryption, firewall protection, firmware signature, and DoS prevention to safeguard against unauthorized access. These robust features ensure reliable and secure communication, even in critical industrial environments.
Comprehensive Application Capabilities
Engineers can deploy the BMEP586040 for motion control, process automation, time stamping, HART communication, and serial link management. It supports cyclic, periodic, and event-based tasks, offering flexibility for both process and discrete applications. The built-in RIO and DIO scanners further improve communication efficiency between local and remote modules.
Technical Specifications
| Category | Specification |
|---|---|
| Series | Modicon M580 |
| Model | BMEP586040 |
| Product Type | Processor Module |
| Program Memory | 64 MB |
| Flash Memory | Expandable 4 GB |
| System Memory | 10 kB |
| Number of Racks | 8 |
| Discrete I/O Capacity | 6144 I/O |
| Analog I/O Capacity | 1536 I/O |
| Application Channels (Local) | 216 |
| Remote I/O Stations | 31 (2 remote drops) |
| Connected Ethernet Devices | 61 |
| Communication Capacity | 6 Ethernet modules, 16 AS-Interface modules |
| Communication Ports | 1 Service Ethernet, 2 Device Ethernet, 1 USB mini-B |
| Security Functions | IPSec, Firewall, TLS, SNMP Logging, Audit Trail |
| Certifications | Achilles Certified, CE, UL, CSA, RCM, EAC |
| Standards | IEC 61131-2, IEC 61010-2-201, EN/IEC 61850-3 |
| Performance | 50 Kinst/ms (Boolean), 40 Kinst/ms (Mixed) |
| Power Consumption | 300 mA at 24 V DC |
| MTBF | 775,000 hours |
| Protection Degree | IP20 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Humidity | 5–95% (non-condensing at 55 °C) |
| Altitude | Up to 2000 m (derating above 2000 m) |
| Internal Power Supply | Via rack |
| LED Indicators | RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS, FORCED IO |
Dimensions and Weight
| Specification | Value |
|---|---|
| Net Weight | 0.849 kg (1.872 lb) |
| Package Height | 9.0 cm (3.543 in) |
| Package Width | 17.5 cm (6.890 in) |
| Package Length | 25.0 cm (9.843 in) |
| Package Weight | 0.875 kg (30.864 oz) |
Country of Origin
France (FR)
Environmental and Compliance
The BMEP586040 complies with TAA and supports BAA via COTS, making it suitable for government and defense projects. It adheres to IEC, UL, and CSA industrial safety standards and withstands demanding conditions with IP20 protection and Class I Division 2 hazardous location rating.
Why Choose BMEP586040
The BMEP586040 processor delivers advanced speed, security, and scalability for high-end automation systems. Its efficient design shortens development cycles, reduces downtime, and ensures stable operation in mission-critical applications. With proven Modicon reliability, it empowers users to build smarter, safer, and more connected plants.
Details
| Weight | 0.875 kg |
|---|---|
| Dimensions | 90 × 175 × 250 mm |
