Overview

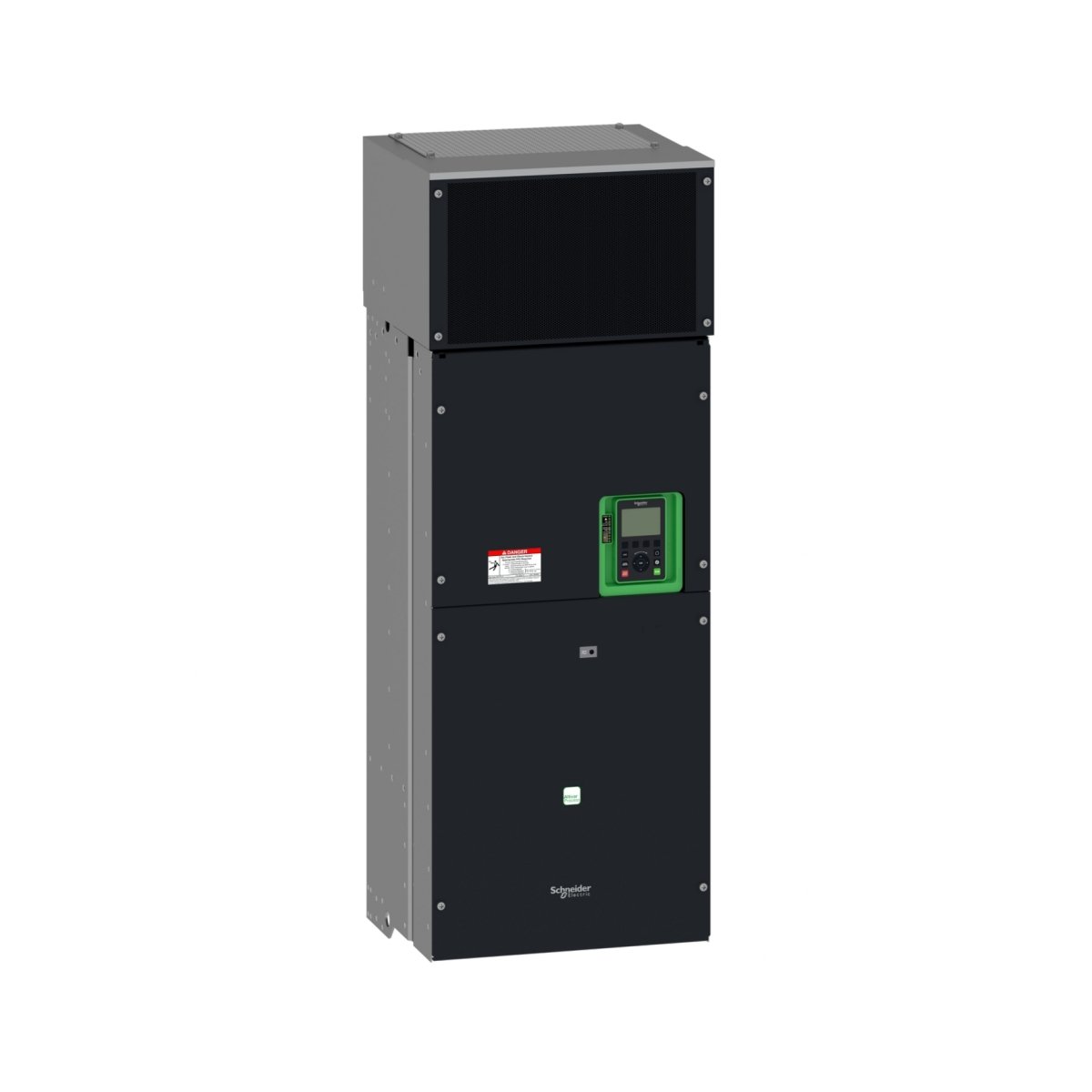

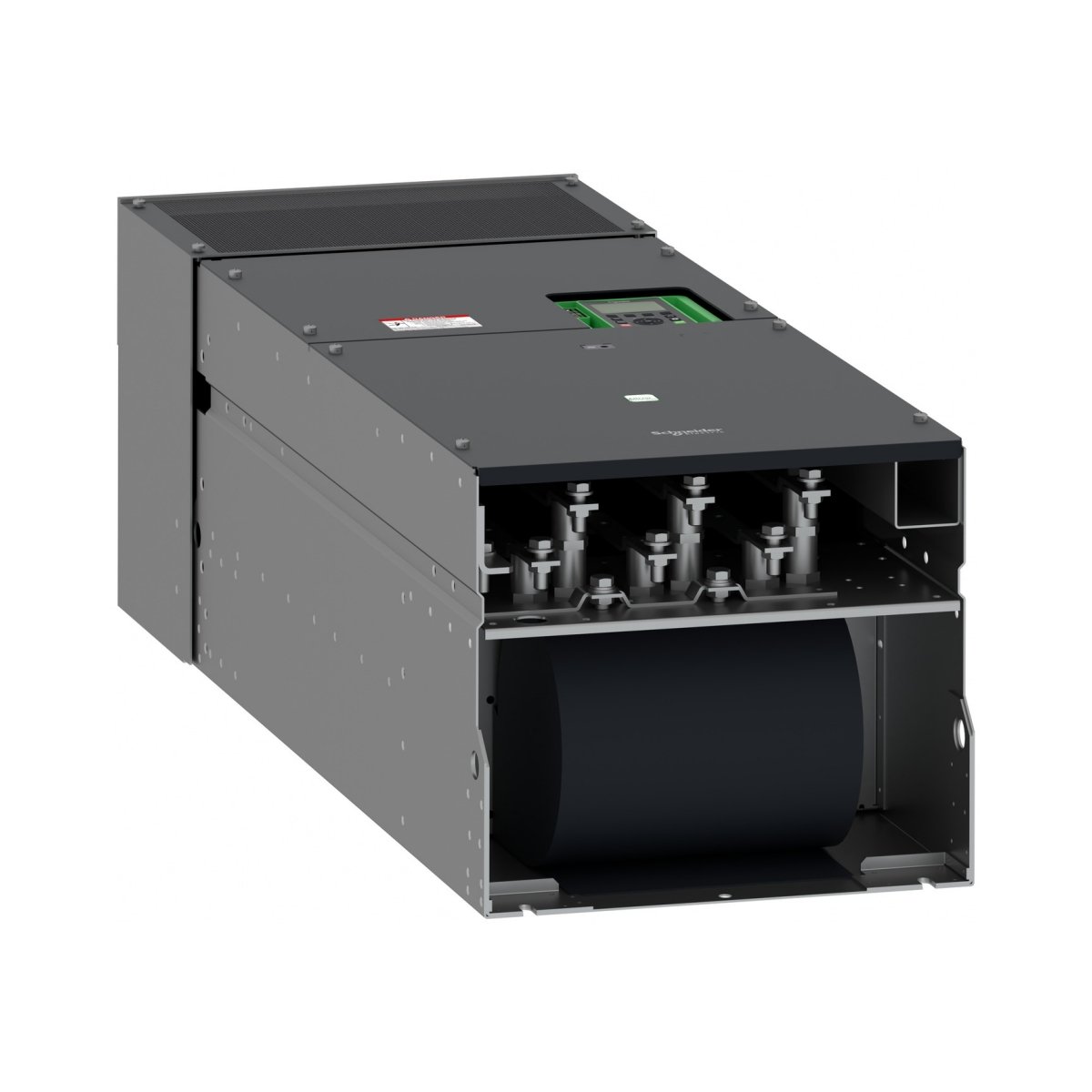

The Schneider Electric ATV630C22N4 is a high-performance variable speed drive (VSD) from the Altivar Process ATV600 series. It is designed for demanding industrial and process control environments where reliability, energy efficiency, and precision control are essential. With an impressive 220 kW (350 HP) power rating, the ATV630C22N4 provides exceptional motor control for both asynchronous and synchronous motors in applications such as water treatment, HVAC systems, mining, and oil & gas operations.
This drive combines embedded energy monitoring, process control, and communication flexibility to simplify integration and improve system efficiency. Its Stop & Go function and intelligent asset monitoring features significantly reduce energy consumption and extend equipment lifespan.
Key Features
- Rated for 3-phase 380–480 V, 50/60 Hz input power
- Handles 220 kW (350 HP) at normal duty and 160 kW (250 HP) at heavy duty
- Integrated Modbus TCP, Ethernet, and serial communication ports
- Built-in STO (Safe Torque Off) function certified to SIL 3
- Embedded energy dashboard and process monitoring system
- Rugged industrial housing suitable for harsh environments
- Flexible wall-mounted design with integrated EMC filter
Electrical & Performance Specifications
| Parameter | Specification |
|---|
| Model Number | ATV630C22N4 |
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV600 |
| Input Voltage | 3-Phase, 380–480 V ±10 % |
| Input Frequency | 50/60 Hz ±5 % |
| Output Frequency | 0.1–500 Hz |
| Nominal Output Current | 427 A (normal duty), 302 A (heavy duty) |
| Motor Power Rating | 220 kW (normal duty) / 160 kW (heavy duty) |
| Maximum Horsepower | 350 HP (normal duty) / 250 HP (heavy duty) |
| Switching Frequency | 2.5–8 kHz adjustable |
| Control Type | PID regulation with motor slip compensation |
| Cooling Method | Forced convection |
| Protection Functions | Overcurrent, overvoltage, overheating, motor phase loss, short-circuit protection |
| Safety Function | STO (Safe Torque Off) – SIL 3 |
Connectivity & I/O Specifications
| Parameter | Specification |
|---|
| Communication Protocols | Modbus TCP, Ethernet/IP, Modbus Serial |
| Communication Ports | RJ45 connectors for Ethernet/Modbus |
| Analog Inputs | 3 configurable (0–10 V DC or 0–20 mA) |
| Analog Outputs | 2 configurable (0–10 V DC or 0–20 mA) |
| Digital Inputs | 8 programmable, up to 30 kHz |
| Relay Outputs | 3 relays rated 250 V AC, 3 A |
| Interface Type | Ethernet and RS-485 (2-wire) |
| Data Transmission Rate | 4800 bps to 38.4 kbps (serial), 10/100 Mbps (Ethernet) |
| Modbus Address Range | 1–247 |
Mechanical & Environmental Specifications
| Parameter | Specification |
|---|

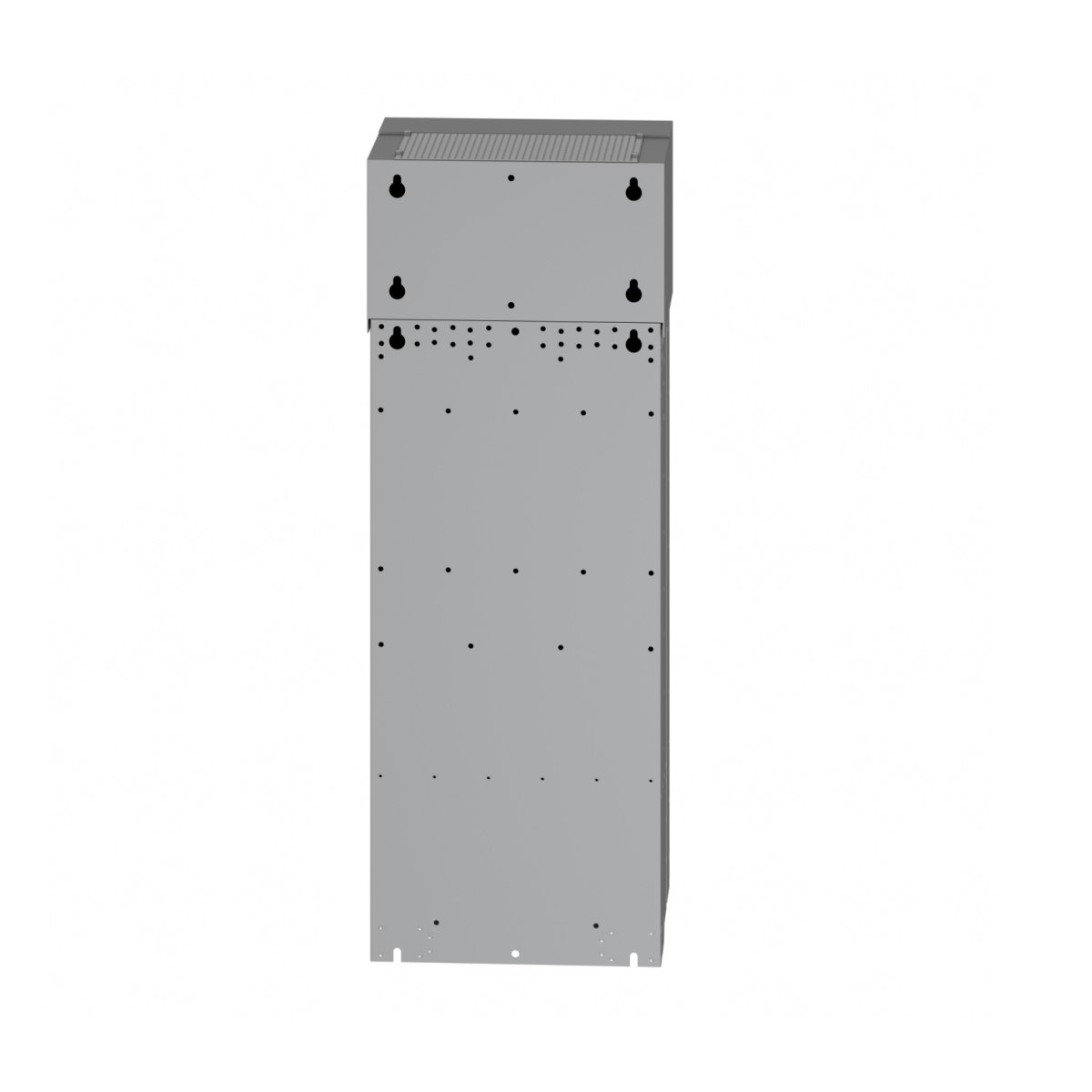

| Mounting Type | Wall-mounted |
| IP Rating | IP00 / IP21 (with kit VW3A9112) |
| Cooling Air Volume | 860 m³/h |
| Noise Level | 73 dB |
| Vibration Resistance | 1.5 mm (2–13 Hz), 1 gn (13–200 Hz) |
| Shock Resistance | 15 gn for 11 ms |
| Ambient Operating Temperature | –10 °C to +60 °C (derating above 40 °C) |
| Relative Humidity | 5–95 % non-condensing |
| Altitude | ≤ 1000 m without derating; up to 3000 m with 1 %/100 m derating |
| Standards Compliance | IEC 61800-3, IEC 61800-5-1, UL 508C, CE, TÜV, CSA, SIL3 |
Dimensions and Weight
| Parameter | Specification |
|---|
| Width | 440 mm (17.3 in) |
| Height | 1195 mm (47.05 in) |
| Depth | 380 mm (15.0 in) |
| Net Weight | 172 kg (379.2 lb) |
| Shipping Weight | 193 kg (425.5 lb) |
| Package Dimensions (L×W×H) | 1400 × 580 × 650 mm |
Advantages
The Schneider Electric ATV630C22N4 delivers robust performance and precision control across a wide power range. Engineers benefit from its advanced diagnostics, predictive maintenance functions, and energy management tools. Its modular design simplifies installation and reduces downtime in process industries. By combining safety, connectivity, and efficiency, the ATV630C22N4 represents a new standard for high-power variable speed drives in the Altivar Process ATV600 series.
Manufacturer & Origin
- Manufacturer: Schneider Electric
- Model: ATV630C22N4
- Series: Altivar Process ATV600
- Category: Variable Speed Drive
- Country of Origin: China
