Overview

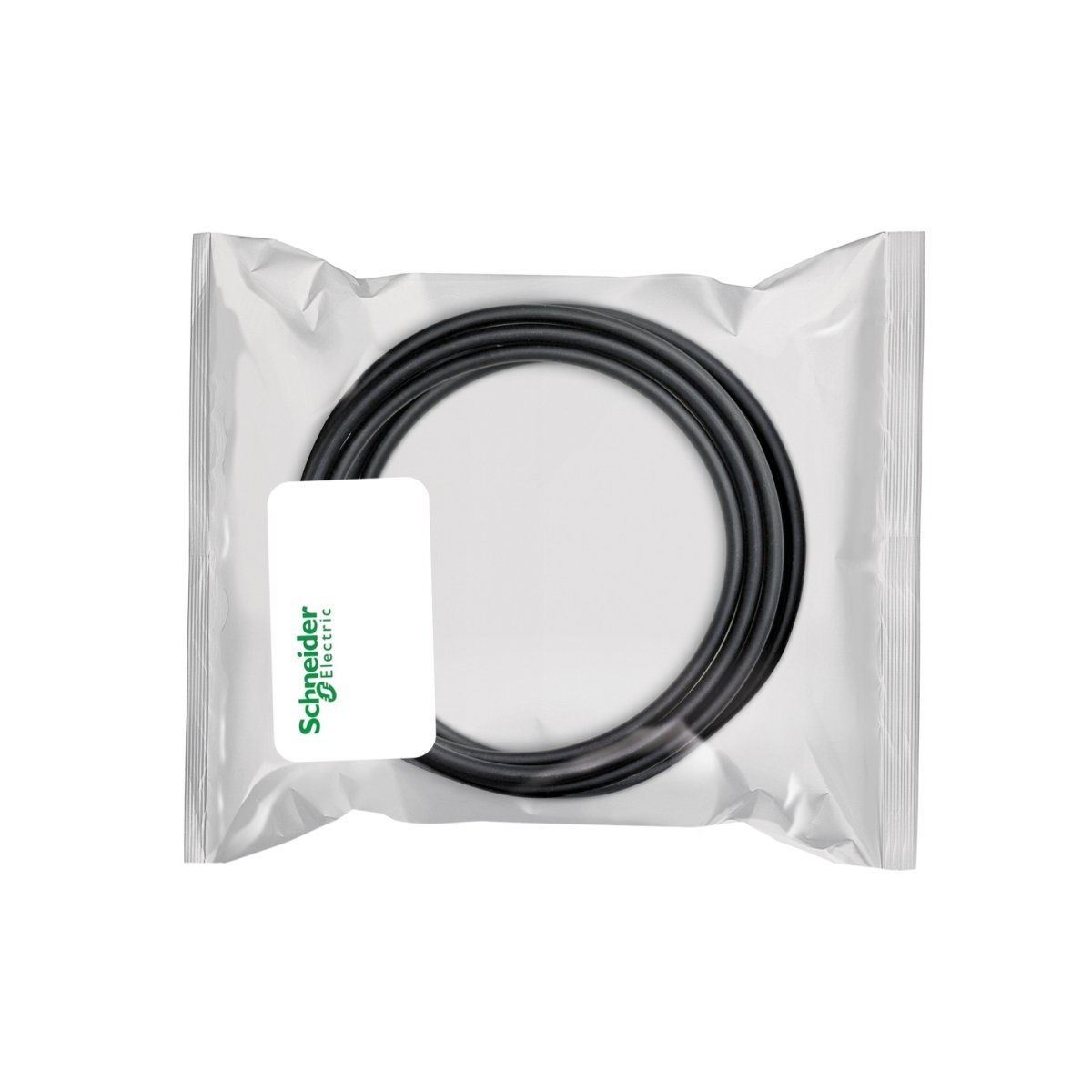

The Schneider Electric 140XTS01206 high-power cable supports demanding Quantum systems and delivers stable energy transfer within compact control panels. I integrate this rugged cable into industrial automation cabinets because its pre-terminated design speeds up wiring and reduces installation mistakes. Moreover, its SUB-D 50-pin interface aligns smoothly with Quantum I/O modules, ensuring reliable communication and power delivery.
Key Features
- I use heavier-gauge conductors to maintain consistent current flow under high load.
- I include factory-terminated connectors to simplify system wiring.
- I optimize the 1.8-meter length for dense panel layouts.
- I reinforce the cable jacket to withstand continuous industrial operation.
- I support Quantum I/O modules through a secure SUB-D 50-pin interface.
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | 140XTS01206 |
| Series | Modicon Quantum |
| Cable Type | CableFast High-Power Assembly |
| Cable Length | 1.8 m (5.9 ft) |
| Connector A | Quantum I/O Module Connector |
| Connector B | SUB-D 50-Pin |
| Color | Industrial Black |
| Termination | Factory Pre-Terminated |
| Construction | Heavy-Duty Industrial Grade |
| Power Handling | High-Power Conductor Capacity |
| Weight | 1.074 kg (2.37 lb) |
| Package Dimensions | 32.5 × 30 × 5.8 cm |
Dimensions & Weight
- Weight: 1.074 kg (2.37 lb)
- Package Size: 32.5 × 30 × 5.8 cm
- Cable Length: 1.8 m
Compatibility
- Modicon Quantum automation platform
- All compatible Quantum I/O modules
- SUB-D 50-pin terminal blocks
Package Contents
- 1 × 140XTS01206 High-Power Cable
- Ready for immediate installation
Applications
I deploy this cable in:
- High-current Quantum I/O racks
- Motor starter control sections
- Power distribution modules within automation cabinets
- Compact industrial control panels requiring stable high-power transfer
Details
| Weight | 1.074 kg |
|---|---|
| Dimensions | 325 × 300 × 58 mm |
